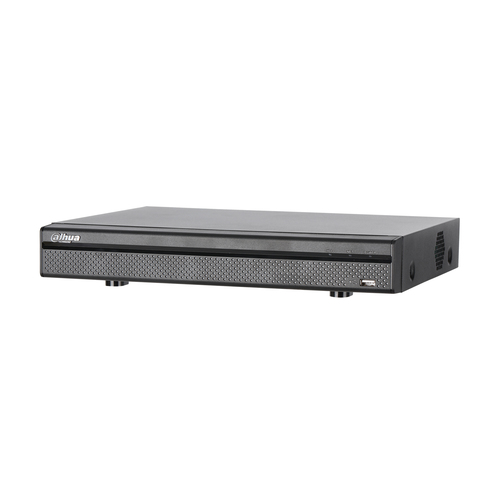

DH-XVR5104H-4KL-X4 digital video recorder (DVR) Black
Model DH-XVR5104H-4KL-X4
42 specifications
- OSEmbedded LINUX
- Weight1.2 kg
- ColourBlack
- Maximum video resolution3840 x 2160 pixels
- Video input channels4 channels
- Ethernet LANYes
Overview
- OS
- Embedded LINUX
- Weight
- 1.2 kg
- Colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- Video input channels
- 4 channels
- Ethernet LAN
- Yes
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR5104H-4KL-X4
- Part number
- DH-XVR5104H-4KL-X4
- Also known as
- Dahua Technology DH-XVR5104H-4KL-X4 digital video recorder (DVR) Black
Specifications
42 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Video capturing speed | 60 fps |
| Video loss detection | Yes |
| Video motion detection | Yes |
| Channels quantity | 4 channels |
| Event logging | Yes |
| Operating system installed | Embedded LINUX |
| Playback modes | Fast forward, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Zoom |
| Product colour | Black |
| USB connectivity | Yes |
| Video streaming | Yes |
| Certification | FCC: Part 15 Subpart B, EN 60950-1/IEC 60950-1, EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, UL 60950-1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Video input channels | 4 channels |
| BNC input ports | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet interface type | Fast Ethernet |
| Number of users | 128 user(s) |
| Supported network protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | SATA |
| Maximum HDD capacity | 10 TB |
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
Power
| Specification | Value |
|---|---|
| DC voltage | 12 V |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 325 mm |
| Depth | 255 mm |
| Height | 55 mm |
| Weight | 1.2 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
