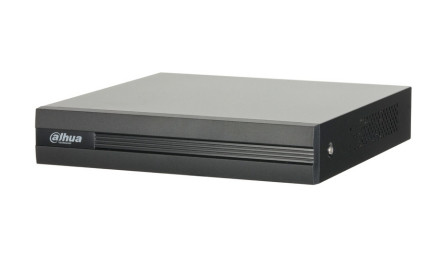

DH-XVR1A04 digital video recorder (DVR) Black
Model DH-XVR1A04EAN 6939554953514
37 specifications
- Resolution1920 x 1080 pixels
- Weight550 g
- ColourBlack
- HDMI ports quantity1
- Ethernet LANYes
- Power supply typeDC
Overview
- Resolution
- 1920 x 1080 pixels
- Weight
- 550 g
- Colour
- Black
- HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Power supply type
- DC
- Brand
- Dahua Technology
- Category
- Digital Video Recorders (DVR)
- Model
- DH-XVR1A04
- Part number
- DH-XVR1A04
- EAN / UPC
- 6939554953514
- Also known as
- Dahua Technology DH-XVR1A04 digital video recorder (DVR) Black
Specifications
37 specifications in 9 groups
Performance
| Specification | Value |
|---|---|
| Maximum video resolution | 1920 x 1080 pixels |
| Video compression formats | H.264 |
| Analog signal format system | NTSC, PAL |
| Bit rate | 64 Kbit/s |
| Channels quantity | 4 channels |
| Maximum frame rate | 30 fps |
| Motion sensor | Yes |
| Multi-display modes | 4, 6 |
| Multi-display supported | Yes |
| Playback modes | Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop |
| Plug and Play | Yes |
| Product colour | Black |
| USB connectivity | Yes |
| Rack capacity | 1U |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) output ports | 1 |
| Audio input | 1 |
| Audio output | 1 |
| USB 2.0 ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Hard drive
| Specification | Value |
|---|---|
| Number of HDDs supported | 1 |
| HDD interface | Serial ATA |
| Maximum HDD capacity | 6 TB |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| DC voltage | 12 V |
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 197 mm |
| Depth | 192 mm |
| Height | 41 mm |
| Weight | 550 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1 kg |
Display
| Specification | Value |
|---|---|
| Display resolution | 1920 x 1080 pixels |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
