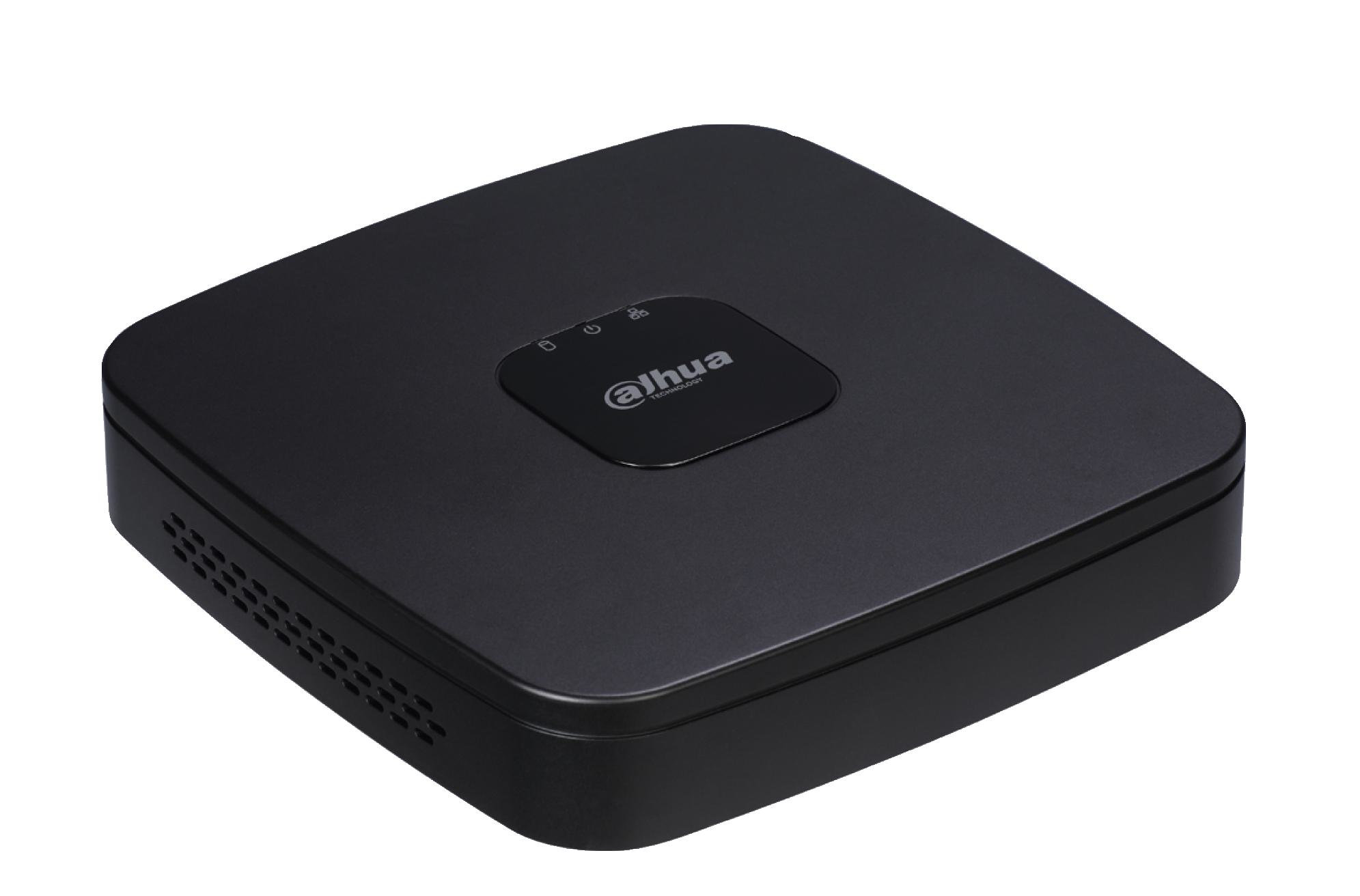

Dahua Technology DH-HCVR4108C-S3 digital video recorder (DVR) Black

Dahua Technology DH-HCVR4108C-S3 digital video recorder (DVR) Black

Model DH-HCVR4108C-S3

31 specifications

OSEmbedded LINUX
Weight500 g
ColourBlack
Maximum video resolution1920 x 1080 pixels
BNC input ports8
Ethernet LANYes

See all specifications

Overview

OS: Embedded LINUX
Weight: 500 g
Colour: Black
Maximum video resolution: 1920 x 1080 pixels
BNC input ports: 8
Ethernet LAN: Yes

Brand: Dahua Technology
Category: Digital Video Recorders (DVR)
Model: DH-HCVR4108C-S3
Part number: DH-HCVR4108C-S3
Also known as: Dahua Technology DH-HCVR4108C-S3 digital video recorder (DVR) Black

Specifications

31 specifications in 8 groups

Performance

Specification	Value
Maximum video resolution	1920 x 1080 pixels
Audio formats supported	G.711
Video compression formats	H.264
Video loss detection	Yes
Analog signal format system	NTSC, PAL
Channels quantity	8 channels
Motion sensor	Yes
Operating system installed	Embedded LINUX
Playback modes	Fast forward, Next, Pause, Previous, Repeat, Shuffle, Slow, Zoom
Product colour	Black

Ports & interfaces

Specification	Value
BNC input ports	8
HDMI ports quantity	1
VGA (D-Sub) output ports	1
Audio input	1
Audio output	1
USB 2.0 ports quantity	2
Audio (L/R) out	1
RS-485 ports	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP,UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P

Hard drive

Specification	Value
Number of HDDs supported	1
HDD interface	Serial ATA
Maximum HDD capacity	6 TB

Processor

Specification	Value
Built-in processor	Yes

Power

Specification	Value
Power consumption (typical)	10 W
Power requirements	12V/2A

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	205 x 205 x 40 mm
Weight	500 g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-10 - 55 °C
