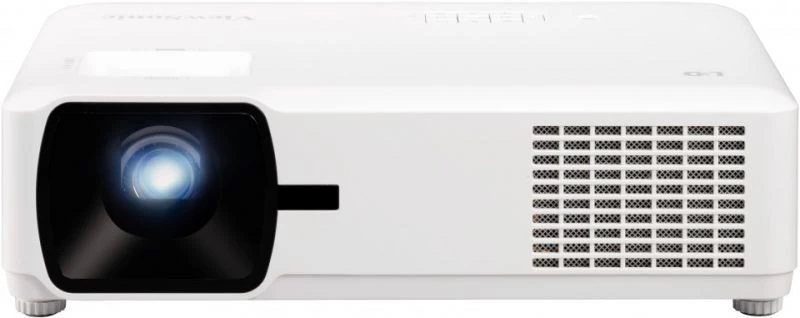

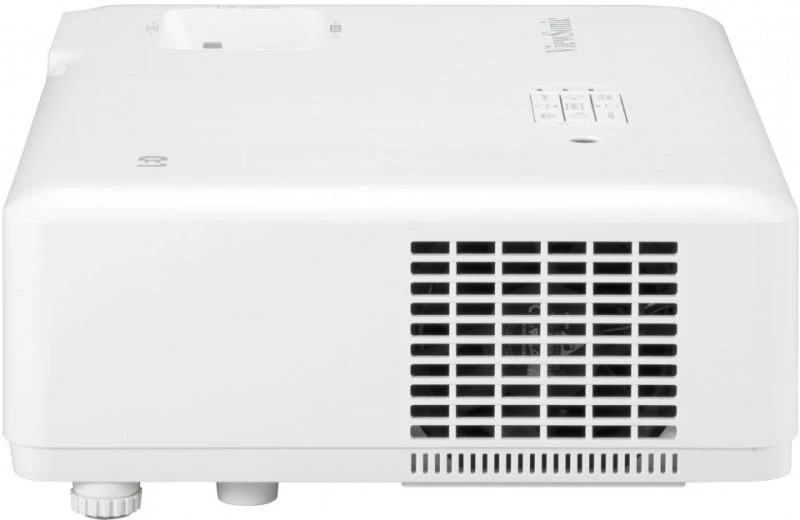

WXGA 4000 ANSI lumens LED WXGA (1280x800) White
Model WXGAPart no. LS610WHEAN 766907018141
63 specifications
- Noise32 dB
- Weight5 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLED
- Aperture range (F-F)1.6 - 1.75
Overview
- Noise
- 32 dB
- Weight
- 5 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- LED
- Aperture range (F-F)
- 1.6 - 1.75
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- WXGA
- Part number
- LS610WH
- EAN / UPC
- 766907018141, 5704174956945
- Also known as
- Viewsonic WXGA 4000 ANSI lumens LED WXGA (1280x800) White
Specifications
63 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projector brightness | 5000 LED lumens |
| Projection technology | LED |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 3000000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.88 - 10.59 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Aperture range (F-F) | 1.6 - 1.75 |
| Throw ratio | 1.37 - 1.64 |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

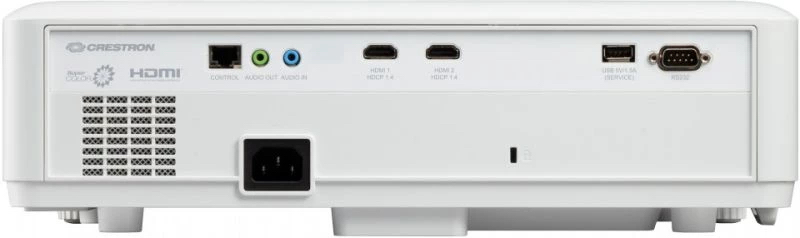

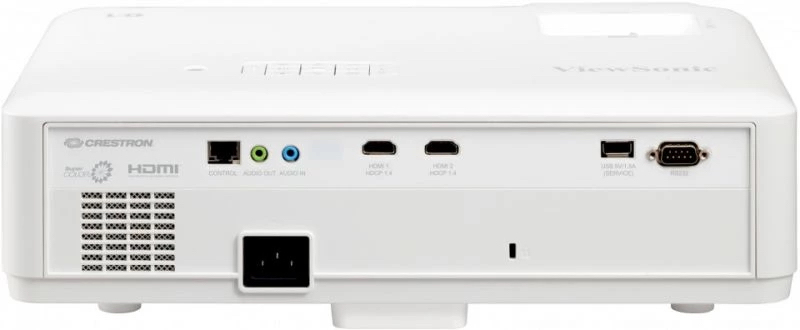

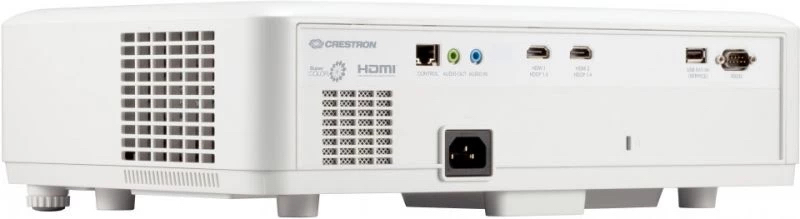

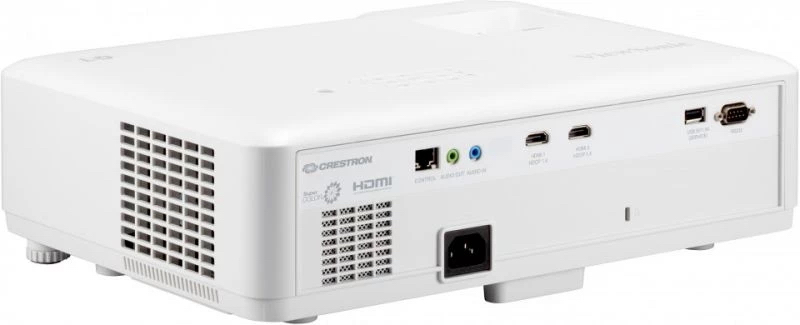

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RJ-45, RS-232C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 32 dB |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 24 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Supplier features
| Specification | Value |
|---|---|
| Recommended gender | Any gender |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5 kg |
| Width | 386 mm |
| Depth | 276 mm |
| Height | 116 mm |
| Package width | 490 mm |
| Package depth | 376 mm |
| Package height | 268 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|

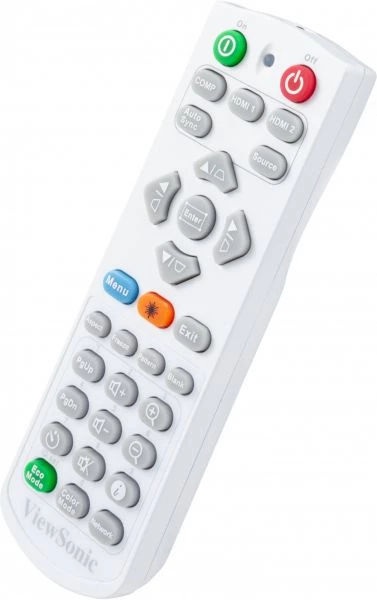

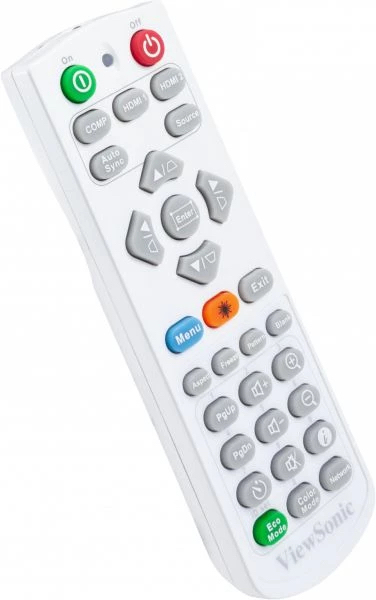

| Remote control included | Yes |
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2 m |
| Pallet gross length | 98 cm |
| Pallet gross width | 113 cm |
| Products per master (outer) case | 1 pc(s) |
