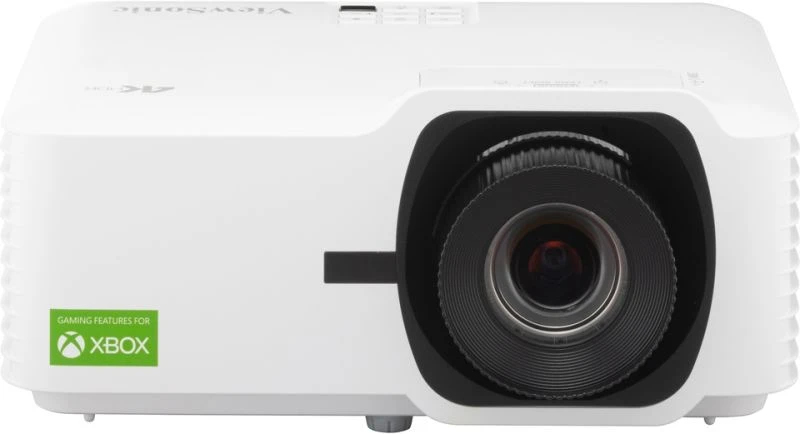

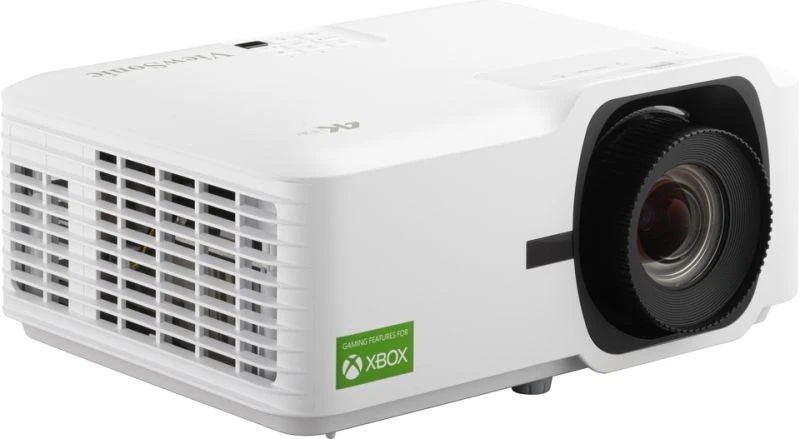

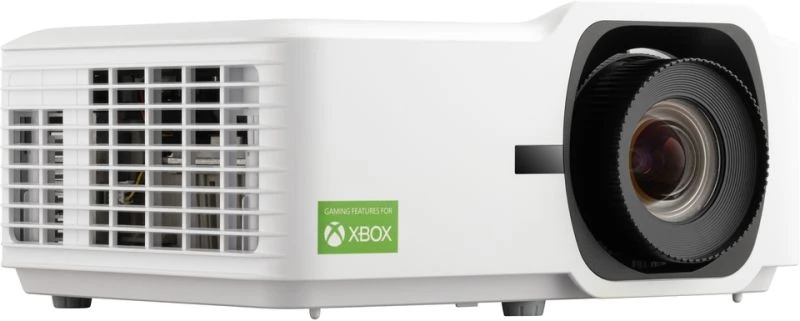

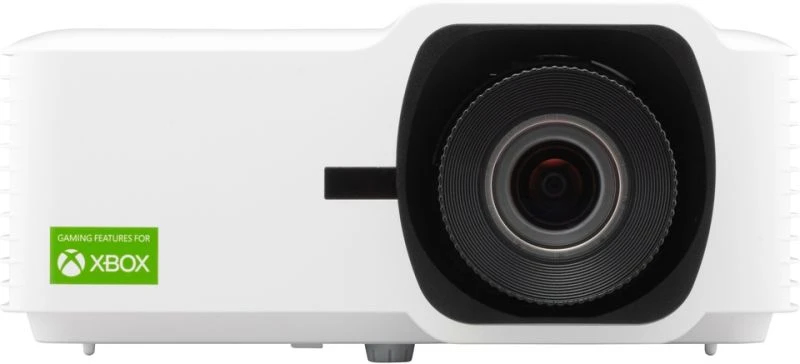

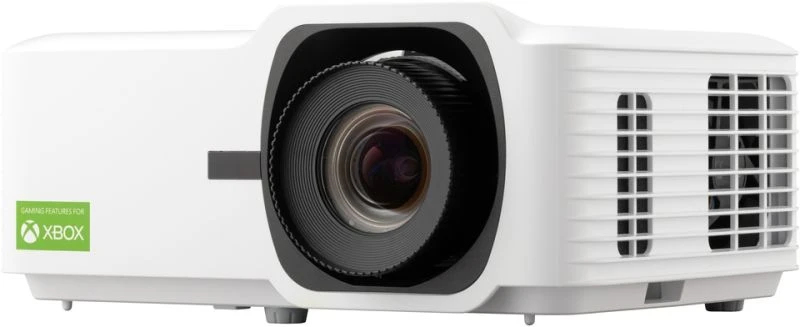

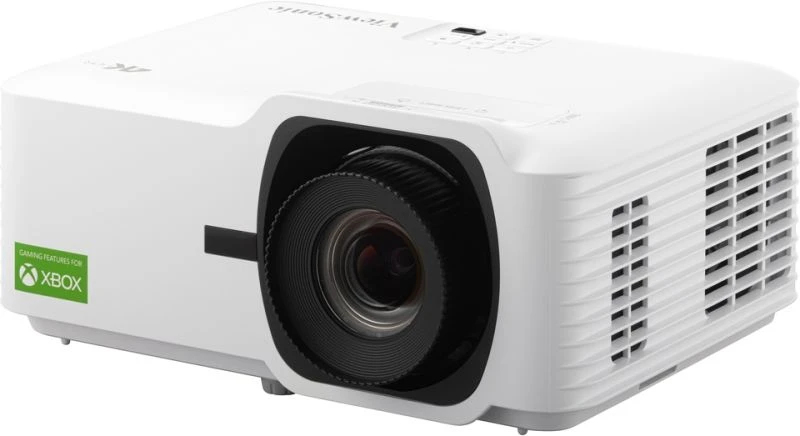

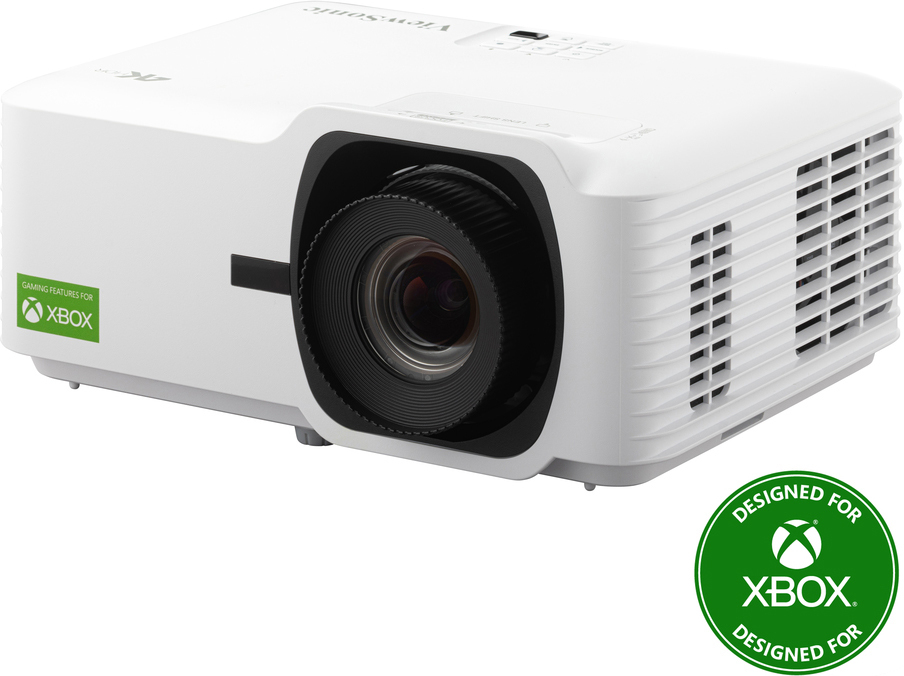

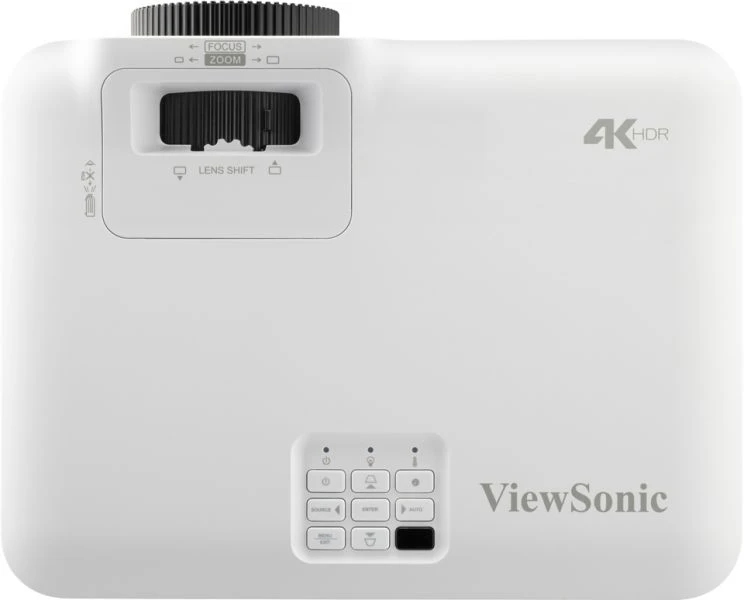

V554K data projector Ultra short throw projector 3500 ANSI lumens 3LCD UHD 4K (3840x2160) 3D White
Model V554KEAN 766907028256
58 specifications
- Noise31 dB
- TypeUltra short throw projector
- Weight3.3 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 31 dB
- Type
- Ultra short throw projector
- Weight
- 3.3 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Laser
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- V554K
- Part number
- V554K
- EAN / UPC
- 766907028256
- Also known as
- Viewsonic V554K data projector Ultra short throw projector 3500 ANSI lumens 3LCD UHD 4K (3840x2160) 3D White
Specifications
58 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1 - 7 m |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, horizontal | +/-30° |
| Keystone correction, vertical | +/-30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Aperture range (F-F) | 2.51 - 2.93 |
| Zoom ratio | 0.8 - 2.0:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

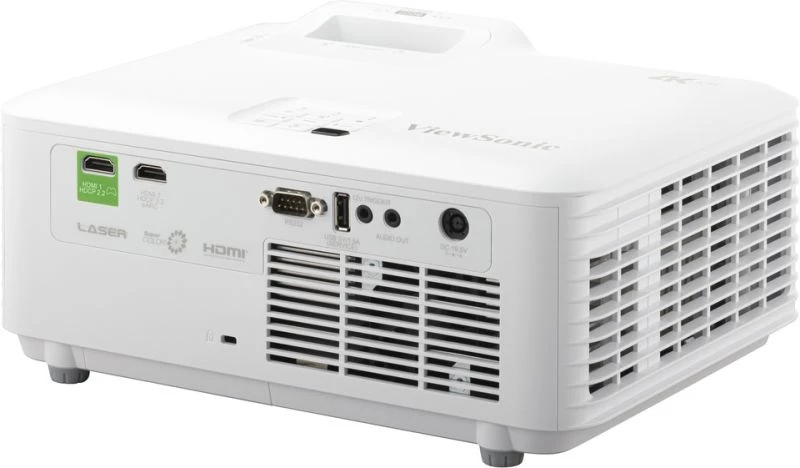

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) out | 1 |
| Enhanced Audio Return Channel (eARC) | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 26 dB |
| Projection modes | Ceiling |
| 4K Ultra HD upscaling | Yes |
| High Dynamic Range (HDR) supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 180 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.3 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 129 mm |
| Package width | 400 mm |
| Package depth | 155 mm |
| Package height | 280 mm |
| Package weight | 4.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| AC adapter included | Yes |
| Cables included | Power |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 181 cm |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Products per master (outer) case | 1 pc(s) |
