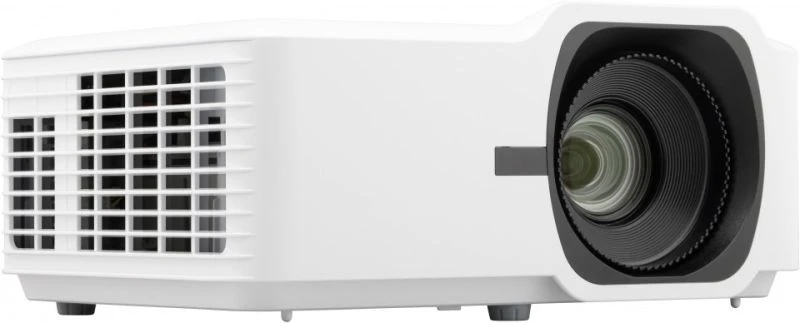

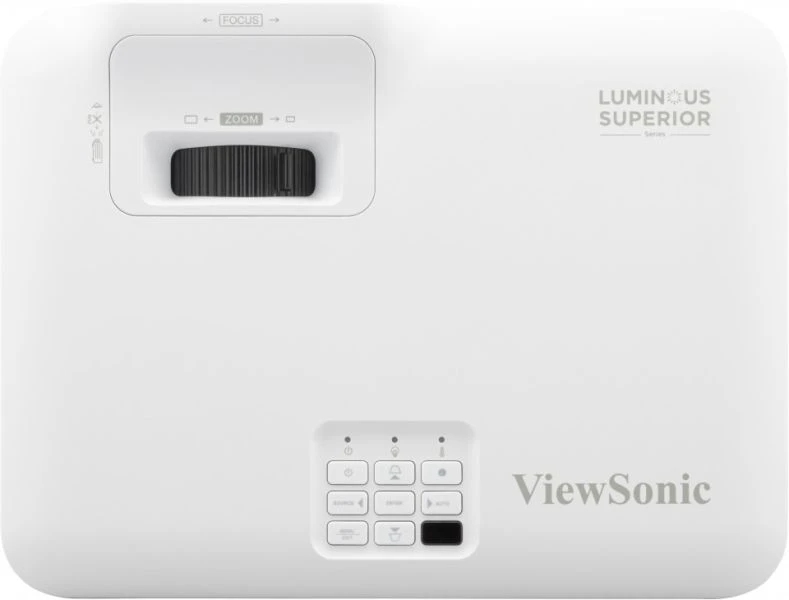

V52HD data projector 5000 ANSI lumens DMD 1080p (1920x1080) White
Model V52HDEAN 766907024777
66 specifications
- Noise32 dB
- Weight2.97 kg
- ColourWhite
- Projector brightness5000 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 32 dB
- Weight
- 2.97 kg
- Colour
- White
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- V52HD
- Part number
- V52HD
- EAN / UPC
- 766907024777
- Also known as
- Viewsonic V52HD data projector 5000 ANSI lumens DMD 1080p (1920x1080) White
Specifications
66 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2000000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.75 - 9.76 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 21.61 mm |
| Aperture range (F-F) | 2.43 - 2.78 |
| Zoom capability | Yes |
| Zoom ratio | 0.8 - 2.0:1 |
| Throw ratio | 1.13 - 1.47 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

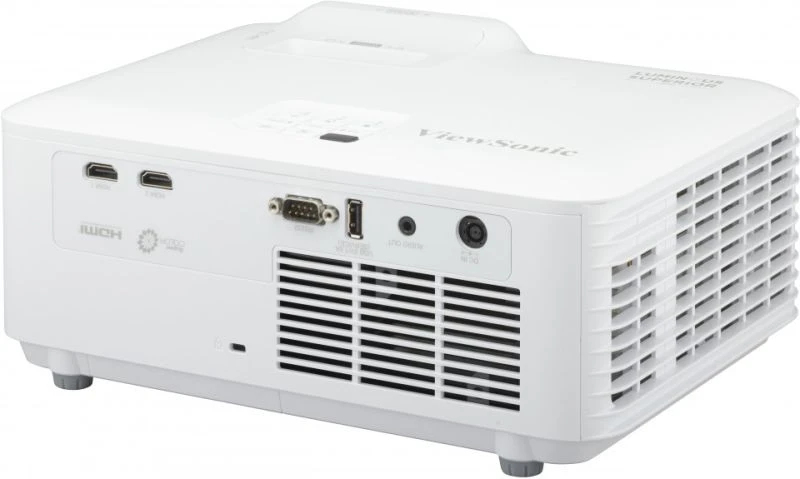

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 26 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish, Vietnamese |
| Number of OSD languages | 23 |
| International Protection (IP) code | IPX6 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Education |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 210 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.97 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 129 mm |
| Package width | 400 mm |
| Package depth | 155 mm |
| Package height | 280 mm |
| Package weight | 5.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 181 cm |
| Pallet gross length | 102 cm |
| Pallet gross width | 122 cm |
| Products per master (outer) case | 1 pc(s) |
