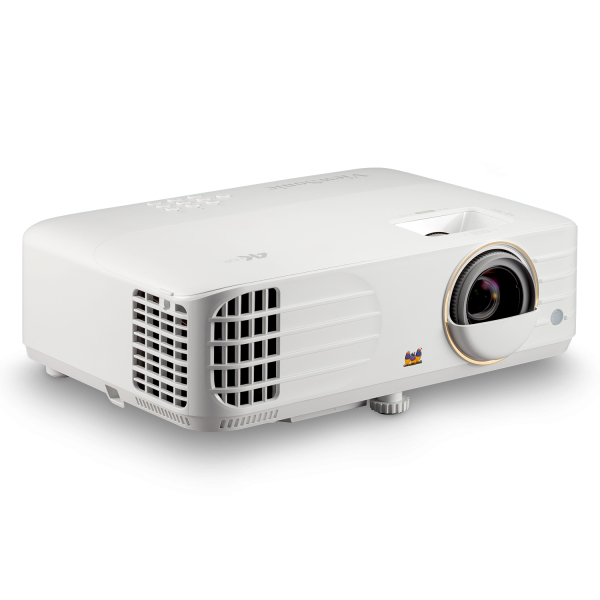

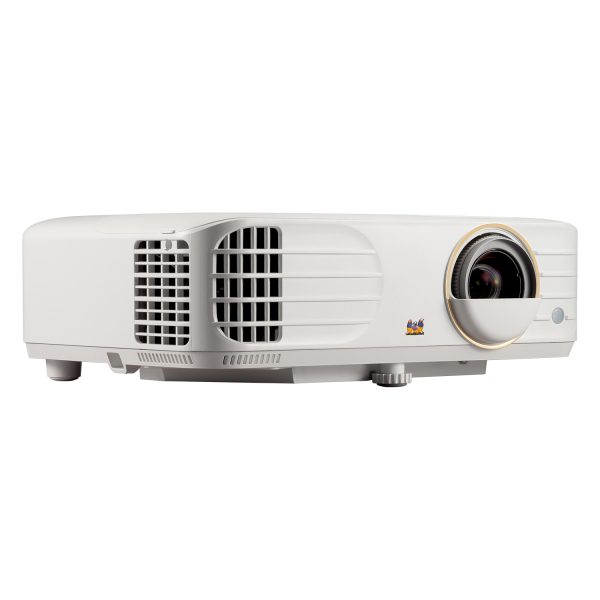

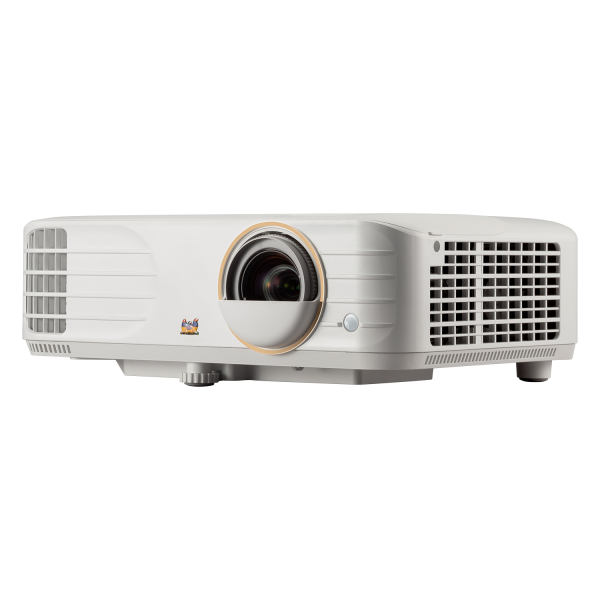

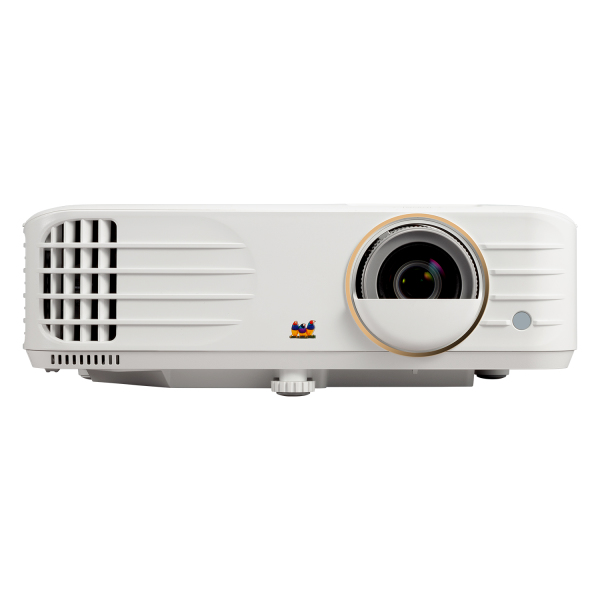

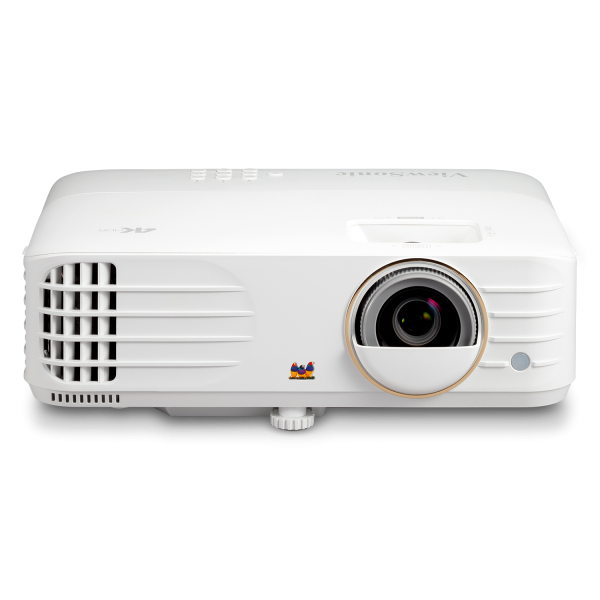

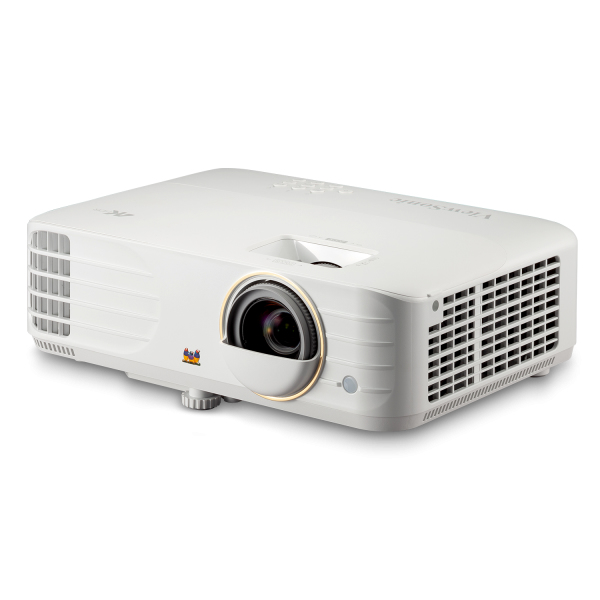

PX748-4K data projector Short throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) White
Model PX748-4KEAN 766907008951
53 specifications
- TypeShort throw projector
- Weight2.8 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- Zoom capabilityYes
Overview
- Type
- Short throw projector
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Zoom capability
- Yes
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PX748-4K
- Part number
- PX748-4K
- EAN / UPC
- 766907008951
- Also known as
- Viewsonic PX748-4K data projector Short throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) White
Specifications
53 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.75 - 9.76 m |
| Contrast ratio (dynamic) | 12000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 129 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, horizontal | 40° |
| Keystone correction, vertical | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Throw ratio | 1.13 - 1.47 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

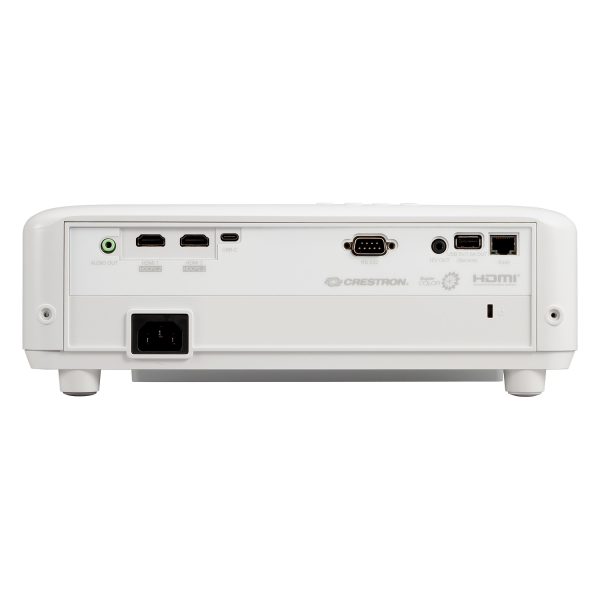

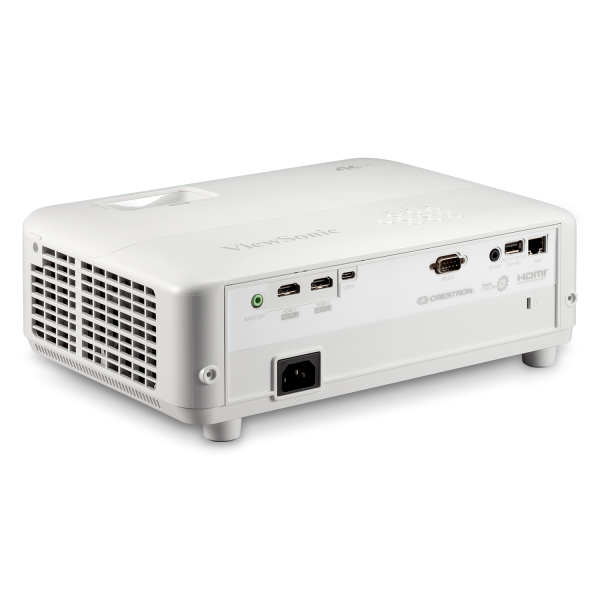

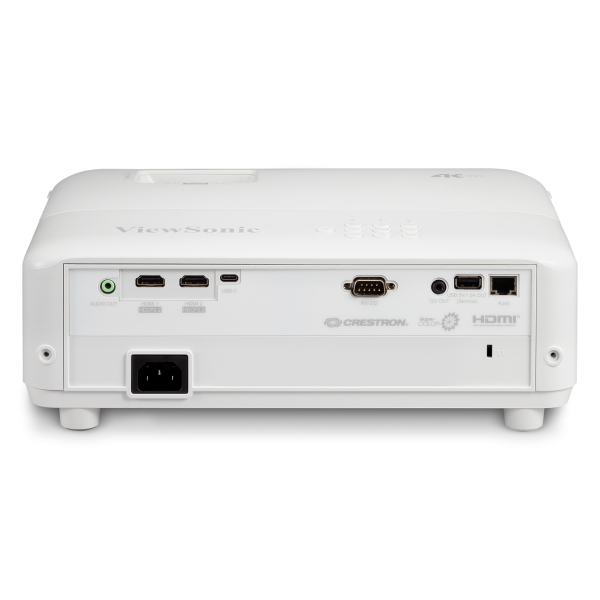

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 312 mm |
| Depth | 108 mm |
| Height | 222 mm |
| Package width | 415 mm |
| Package depth | 168 mm |
| Package height | 297 mm |
| Package weight | 4 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 190.2 cm |
| Pallet gross length | 83.4 cm |
| Pallet gross width | 100.8 cm |
| Products per master (outer) case | 1 pc(s) |
