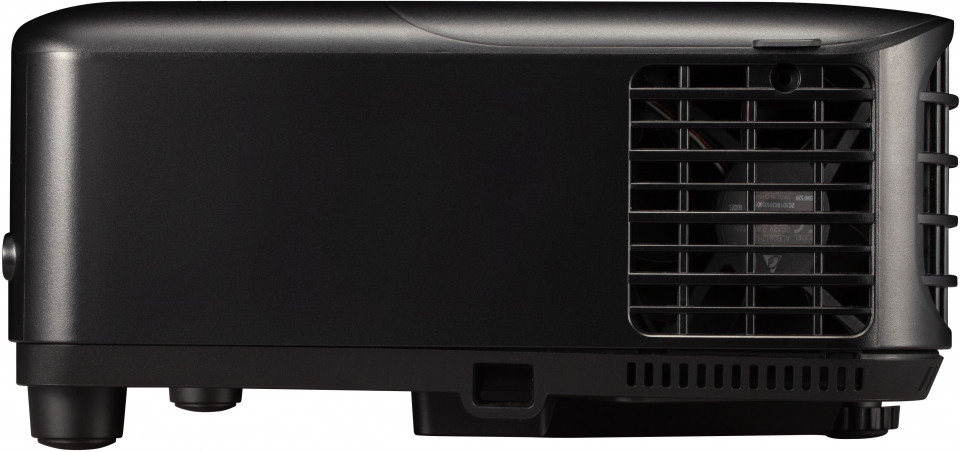

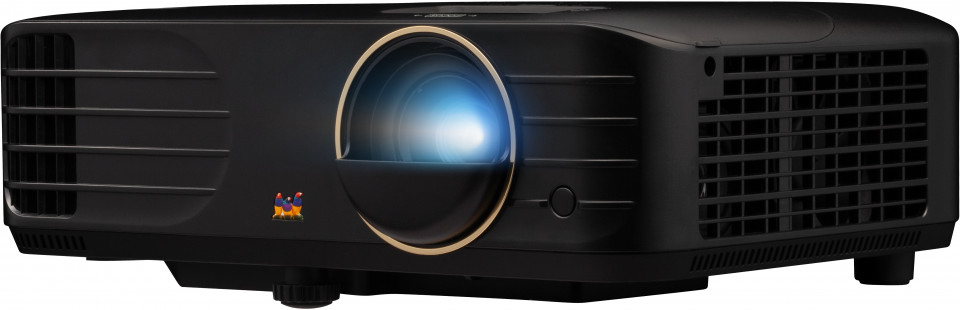

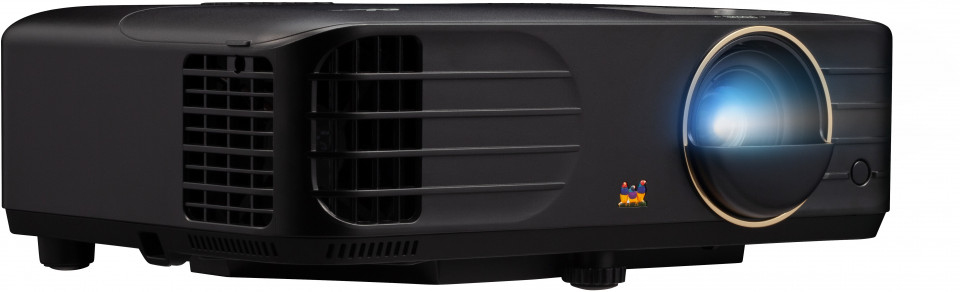

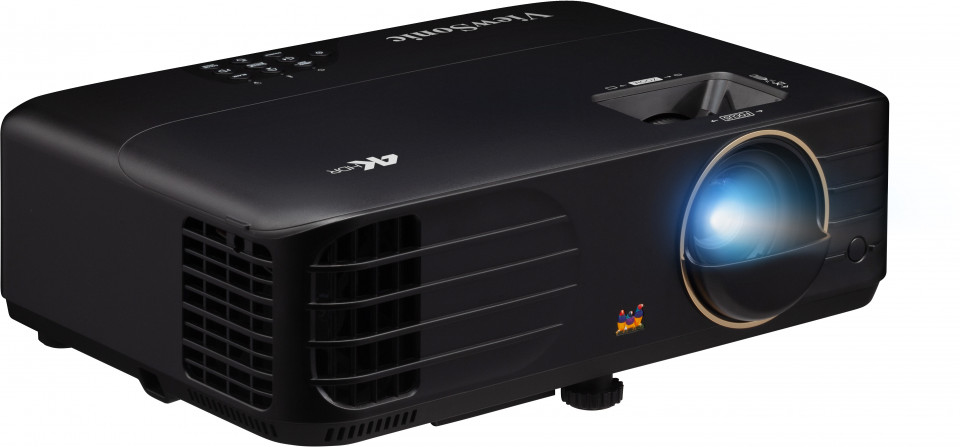

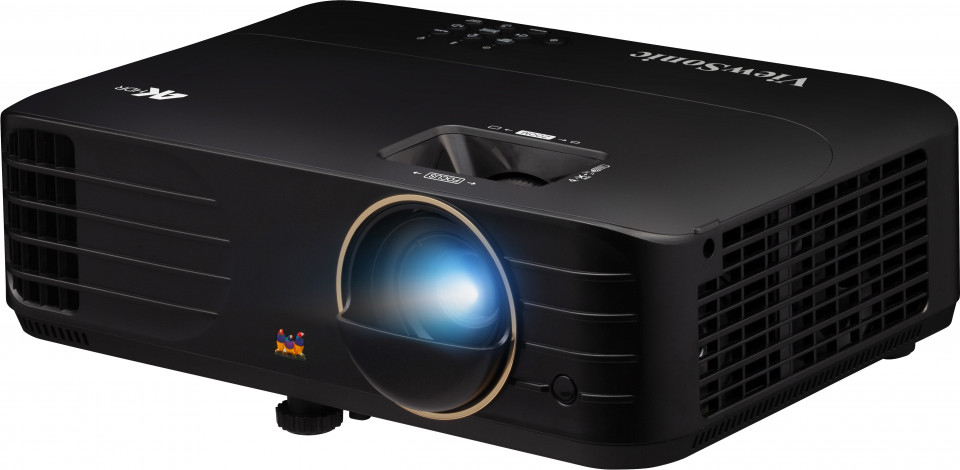

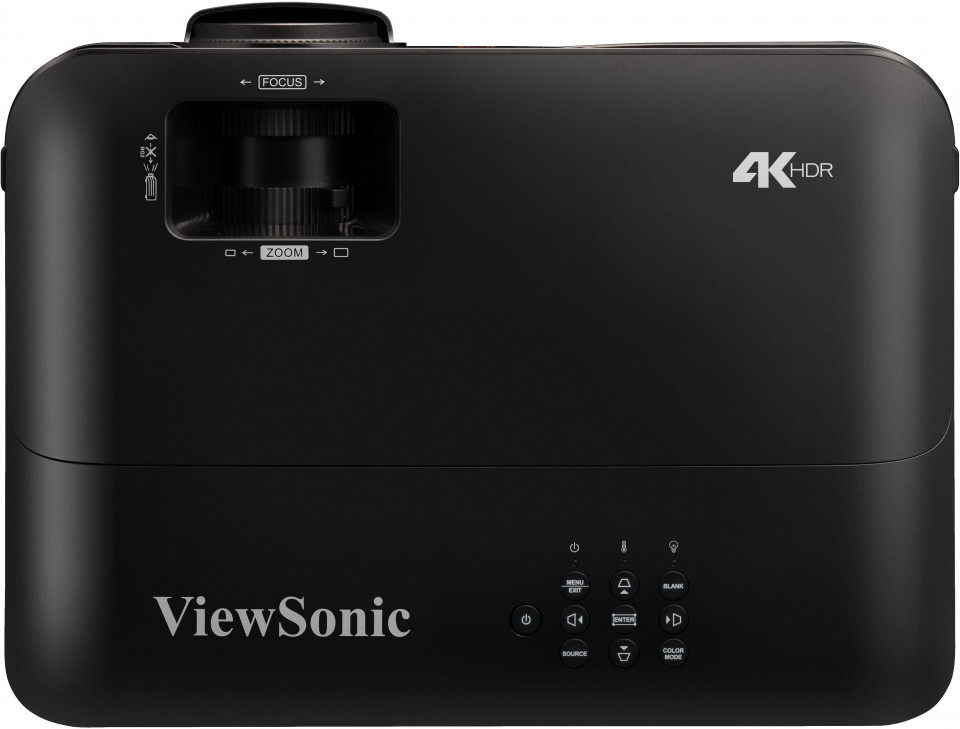

PX728-4K data projector Short throw projector 2000 ANSI lumens UHD 4K (3840x2160) Black
Model PX728-4KEAN 766907008944
64 specifications
- Noise33 dB
- TypeShort throw projector
- Weight2.8 kg
- ColourBlack
- Projector brightness2000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 33 dB
- Type
- Short throw projector
- Weight
- 2.8 kg
- Colour
- Black
- Projector brightness
- 2000 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PX728-4K
- Part number
- PX728-4K
- EAN / UPC
- 766907008944, 4589468731030
- Also known as
- Viewsonic PX728-4K data projector Short throw projector 2000 ANSI lumens UHD 4K (3840x2160) Black
Specifications
64 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 12000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.75 - 9.76 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, horizontal | 40° |
| Keystone correction, vertical | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 12 - 15.6 mm |
| Aperture range (F-F) | 1.94 - 2.12 |
| Zoom capability | Yes |
| Throw ratio | 1.13 - 1.47 |
| Horizontal lens shift range | 0 - 20% |
| Vertical lens shift range | 0 - 20% |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 800 x 500, 8 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |

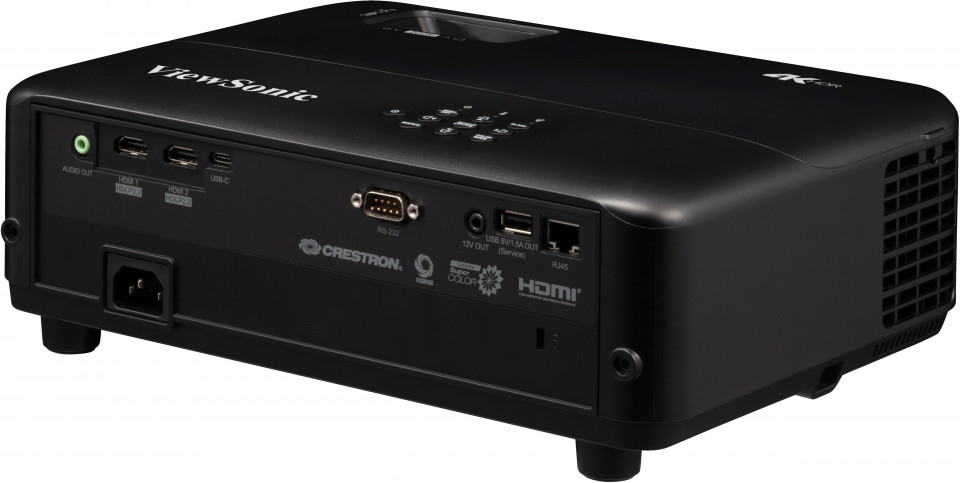

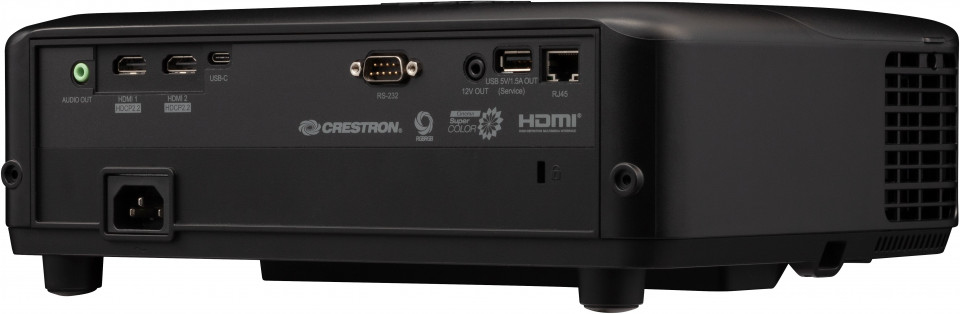

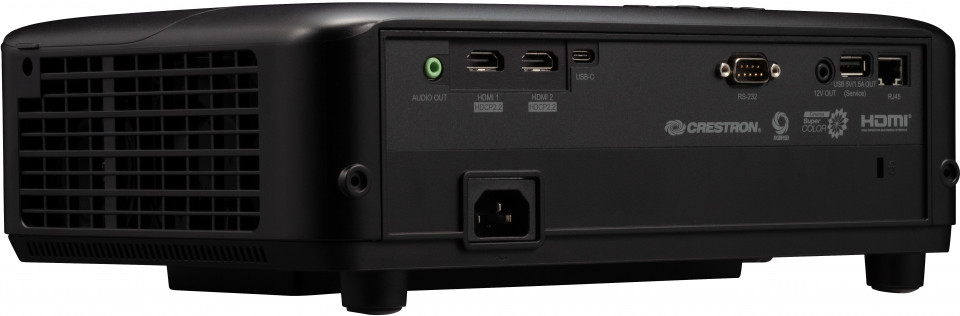

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Home cinema |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 312 mm |
| Depth | 222 mm |
| Height | 108 mm |
| Package width | 415 mm |
| Package depth | 168 mm |
| Package height | 297 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB Type-C |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 190.2 cm |
| Pallet gross length | 83.4 cm |
| Pallet gross width | 100.8 cm |
| Products per master (outer) case | 1 pc(s) |
