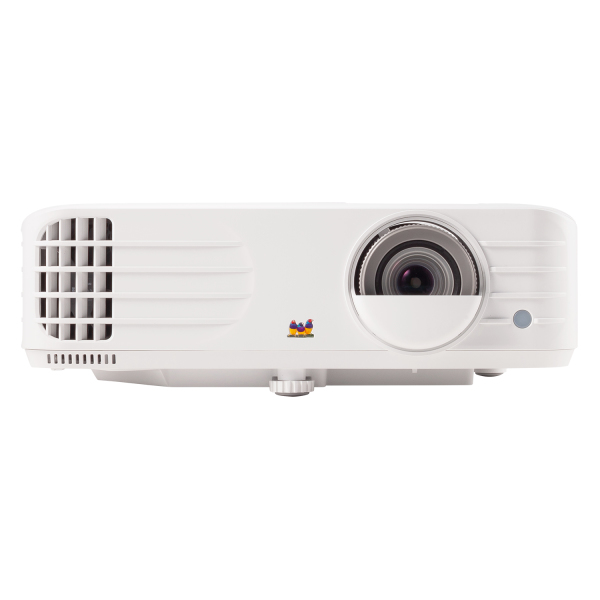

PX727HD data projector Short throw projector 2000 ANSI lumens DLP 1080p (1920x1080) White
Model PX727HDEAN 766907001822
69 specifications
- TypeShort throw projector
- Weight2.8 kg
- ColourWhite
- Projector brightness2000 ANSI lumens
- Light source typeLamp
- Throw ratio1.13-1.47
Overview
- Type
- Short throw projector
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 2000 ANSI lumens
- Light source type
- Lamp
- Throw ratio
- 1.13-1.47
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PX727HD
- Part number
- PX727HD
- EAN / UPC
- 766907001822
- Also known as
- Viewsonic PX727HD data projector Short throw projector 2000 ANSI lumens DLP 1080p (1920x1080) White
Specifications
69 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.7 - 9.8 m |
| Contrast ratio (dynamic) | 12000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | 40° |
| Keystone correction, vertical | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamp power | 245 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Throw ratio | 1.13-1.47 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480p, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| Certification | FCC, cTUVus |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Housing material | Plastic |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 355 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 312 mm |
| Depth | 108 mm |
| Height | 222 mm |
| Package width | 415 mm |
| Package depth | 297 mm |
| Package height | 168 mm |
| Package weight | 3.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
