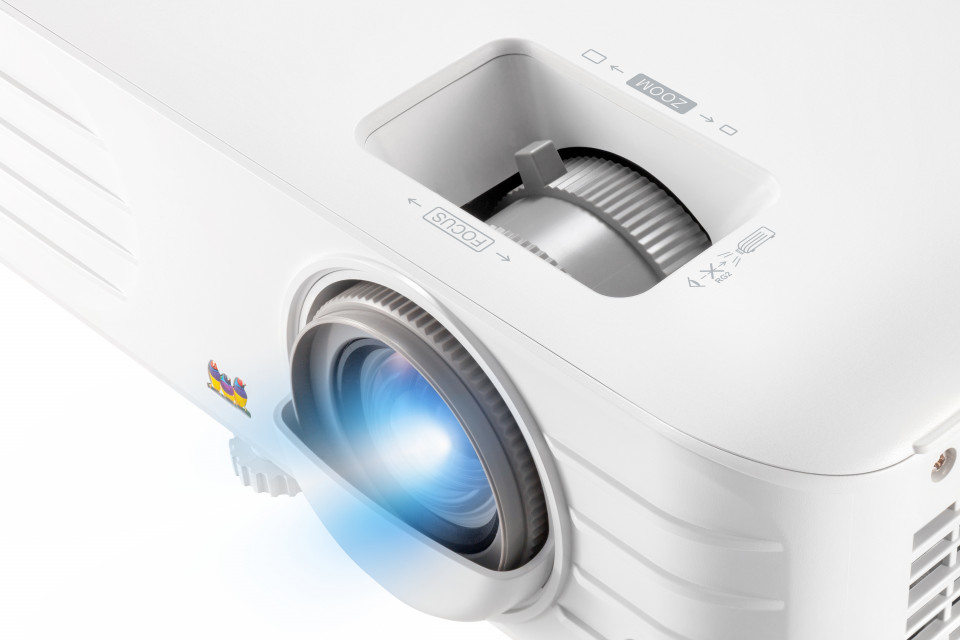

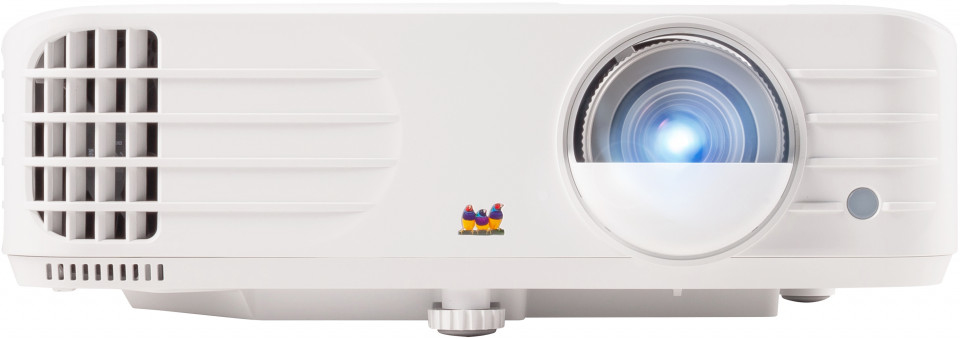

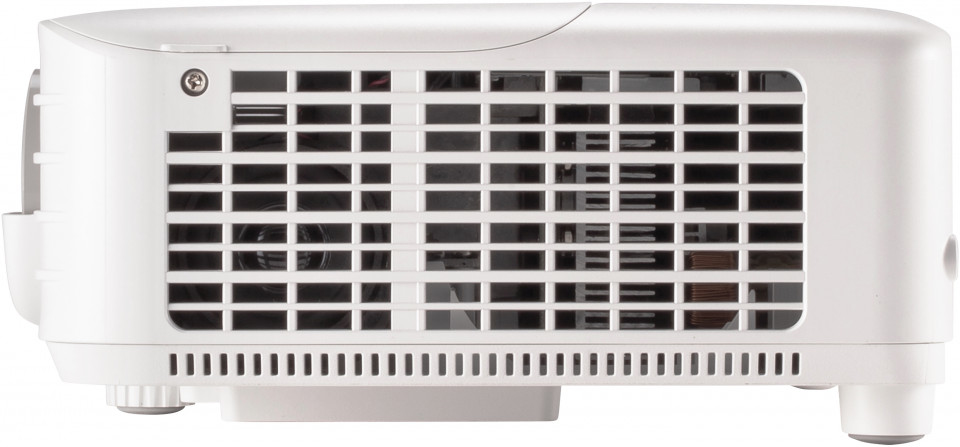

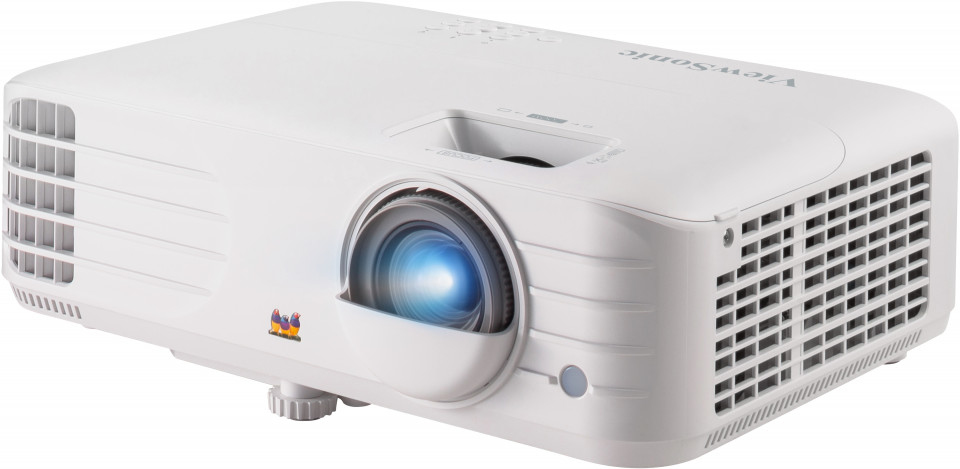

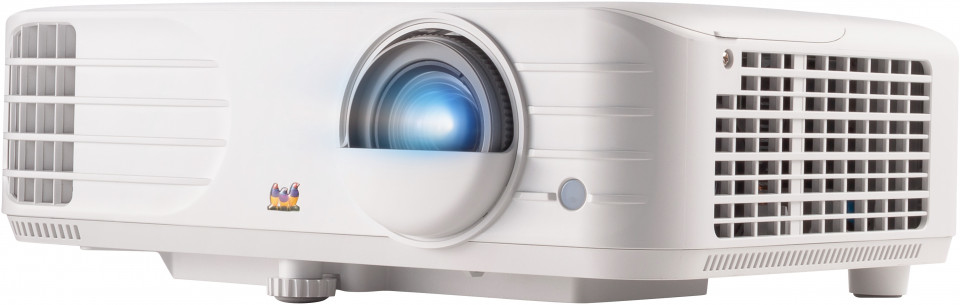

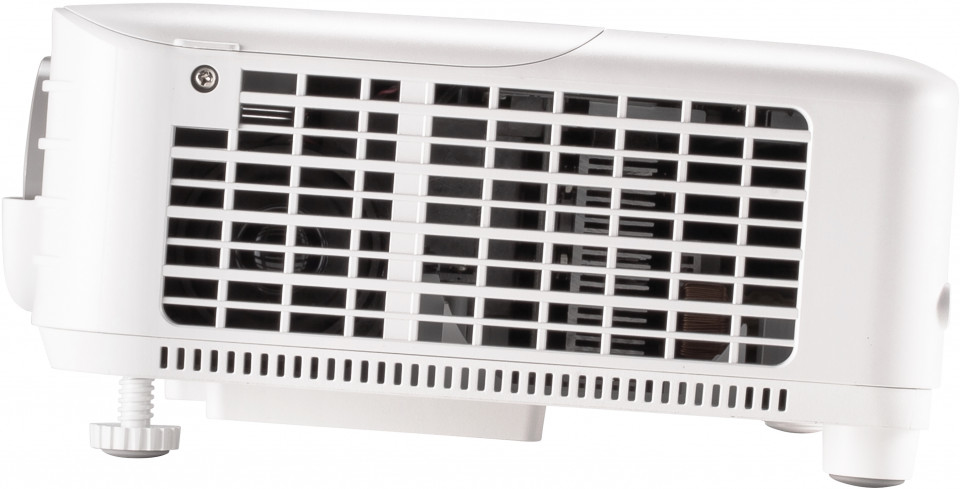

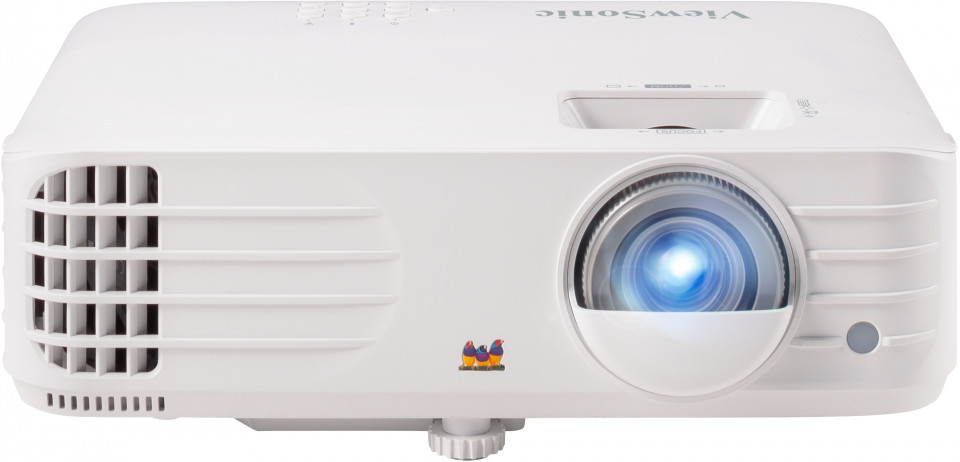

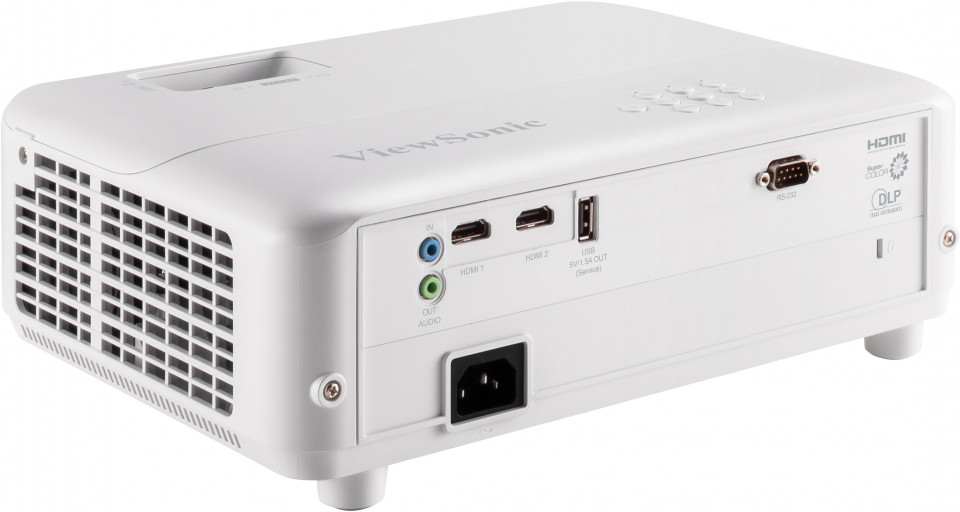

PX703HDH data projector 3500 ANSI lumens DLP 1080p (1920x1080)
Model PX703HDHEAN 766907016765
58 specifications
- Noise31 dB
- Weight2.62 kg
- Projector brightness3500 ANSI lumens
- Light source typeLamp
- FocusAuto
- Analog signal format systemNTSC, PAL, SECAM
Overview
- Noise
- 31 dB
- Weight
- 2.62 kg
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Focus
- Auto
- Analog signal format system
- NTSC, PAL, SECAM
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PX703HDH
- Part number
- PX703HDH
- EAN / UPC
- 766907016765
- Also known as
- Viewsonic PX703HDH data projector 3500 ANSI lumens DLP 1080p (1920x1080)
Specifications
58 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 12000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | 12 - 15.6 mm |
| Aperture range (F-F) | 1.9 - 2.47 |
| Zoom capability | Yes |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.13 - 1.47 |
| Vertical lens shift range | -5 - 5% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Supported graphics resolutions | 640 x 512, 640 x 640, 640 x 160, 640 x 352, 640 x 360, 640 x 400, 640 x 480 (VGA), 640 x 544, 640 x 576, 640 x 960, 704 x 288, 704 x 480, 704 x 576, 720 x 350, 720 x 400, 720 x 480, 720 x 576, 720 x 720, 752 x 582, 768 x 432, 768 x 448, 768 x 494, 768 x 576, 800 x 448, 800 x 450, 800 x 480 (WVGA), 8 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Service port type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hindi, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.62 kg |
| Width | 312 mm |
| Depth | 222 mm |
| Height | 108 mm |
| Package width | 415 mm |
| Package depth | 168 mm |
| Package height | 297 mm |
| Package weight | 3.78 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2.2 m |
| Pallet gross length | 83.4 cm |
| Pallet gross width | 100.8 cm |
| Products per master (outer) case | 1 pc(s) |
