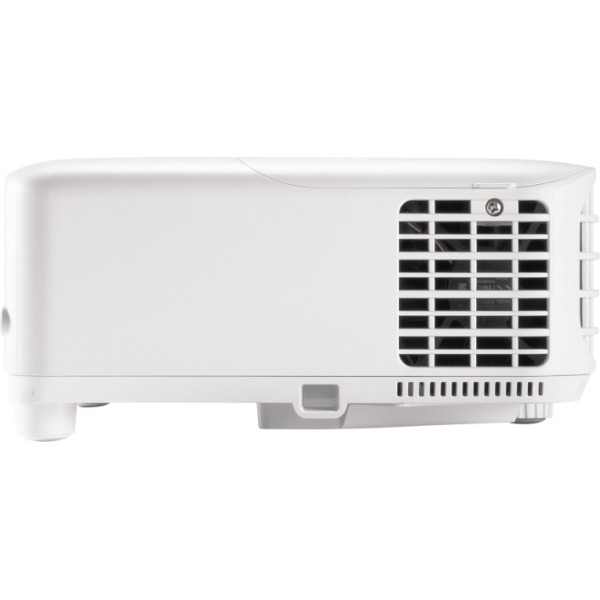

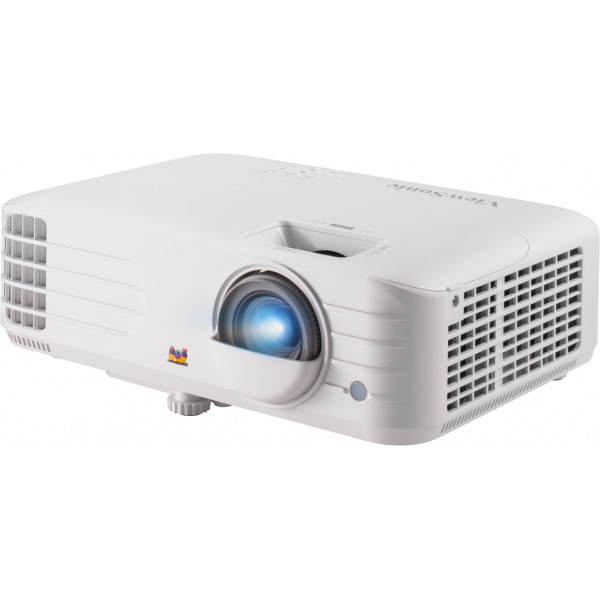

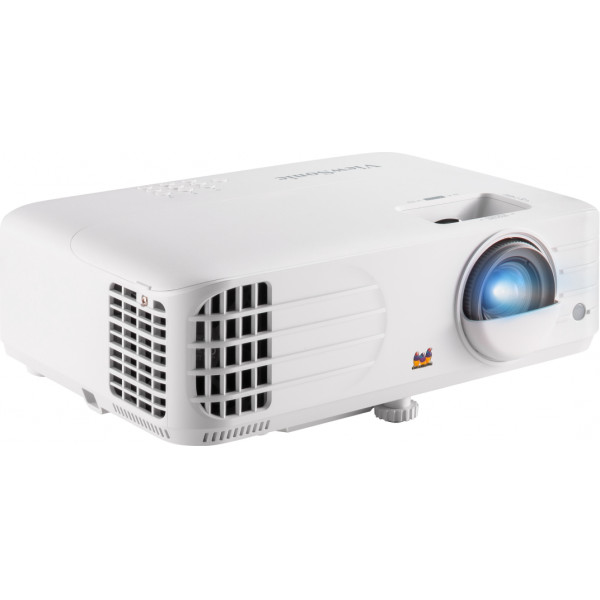

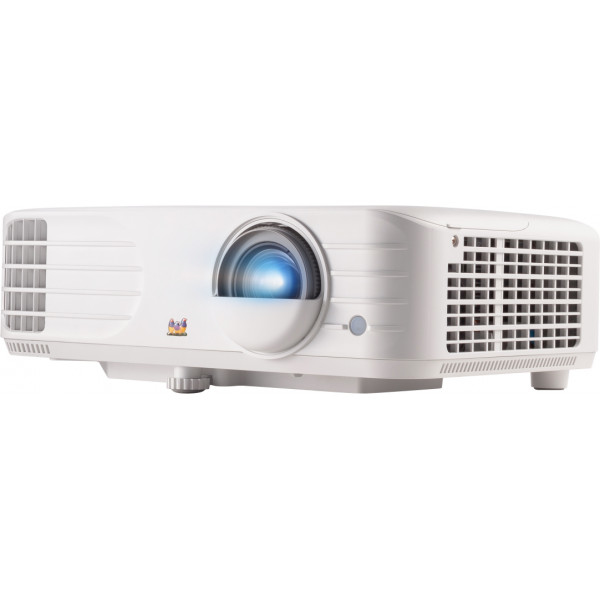

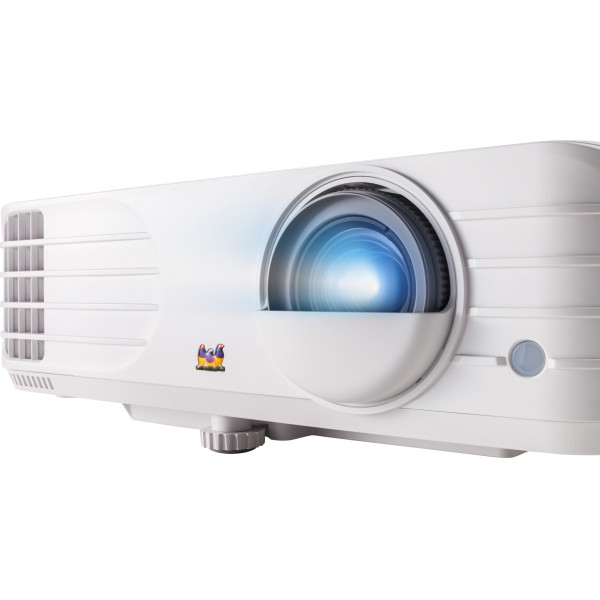

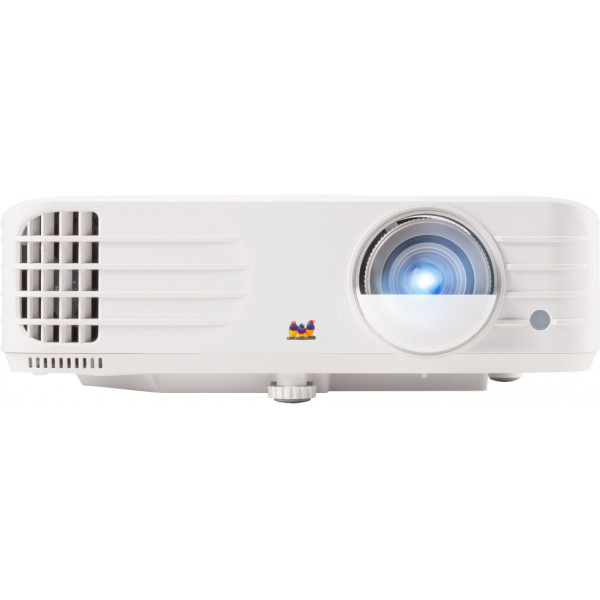

PX703HD data projector Short throw projector 3500 ANSI lumens DLP WUXGA (1920x1200) White
Model PX703HDEAN 766907001778
68 specifications
- Noise31 dB
- TypeShort throw projector
- Weight2.62 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 31 dB
- Type
- Short throw projector
- Weight
- 2.62 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PX703HD
- Part numbers
- PX703HD, VS17690
- EAN / UPC
- 766907001778
- Also known as
- Viewsonic PX703HD data projector Short throw projector 3500 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
68 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 12000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.75 - 9.76 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 12 - 15.6 mm |
| Aperture range (F-F) | 1.9 - 2.47 |
| Zoom capability | Yes |
| Vertical lens shift range | -5 - 5% |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Supported video modes | 480i, 480p, 576i, 576p, 1080i, 1080p |

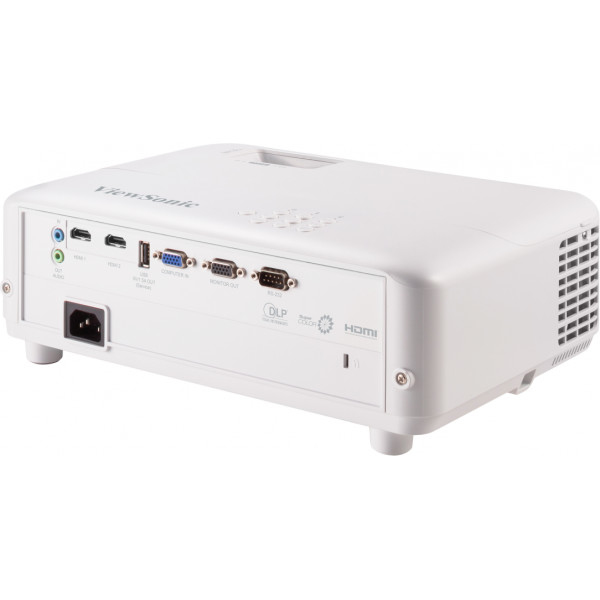

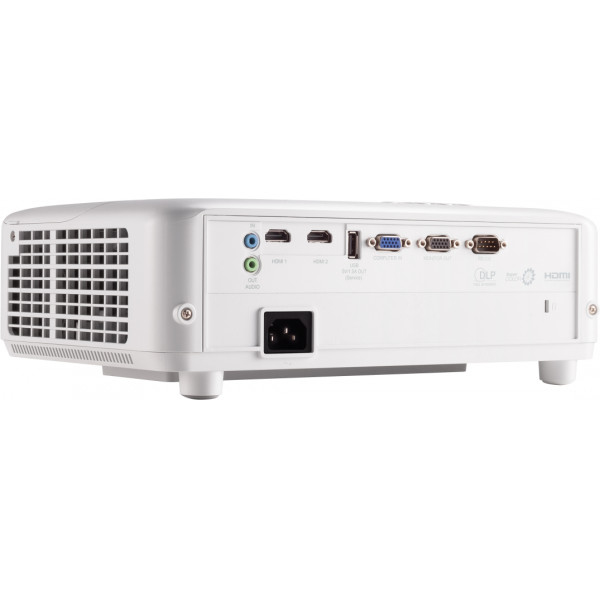

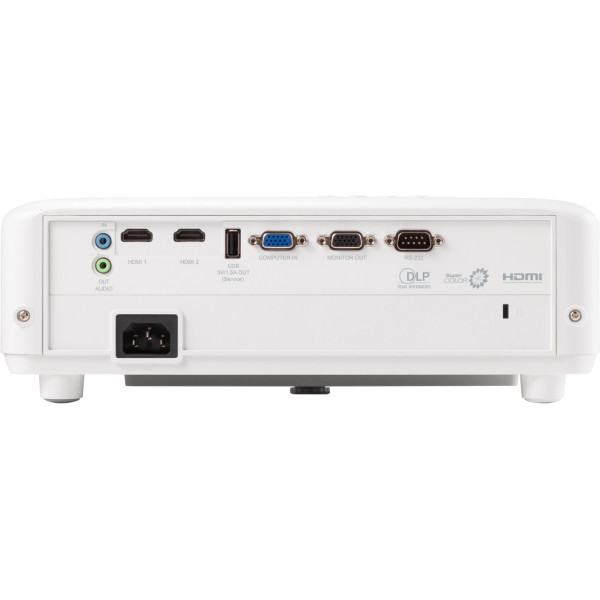

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, INC, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Short throw |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.62 kg |
| Width | 312 mm |
| Depth | 222 mm |
| Height | 108 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
