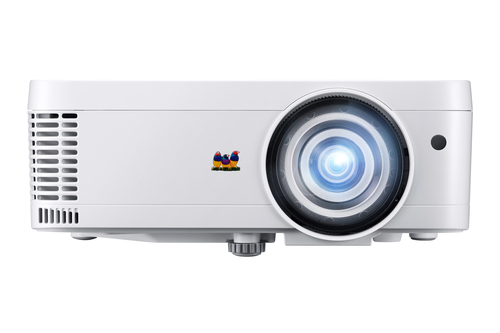

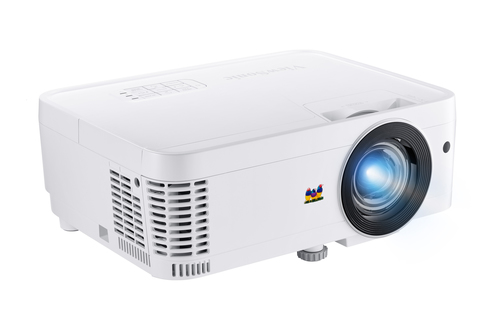

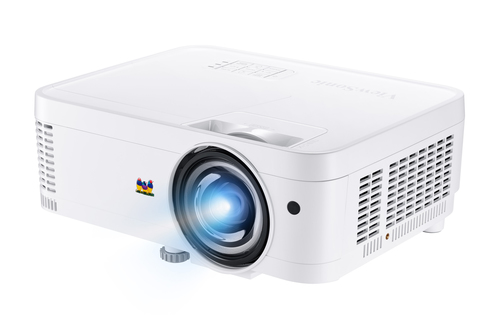

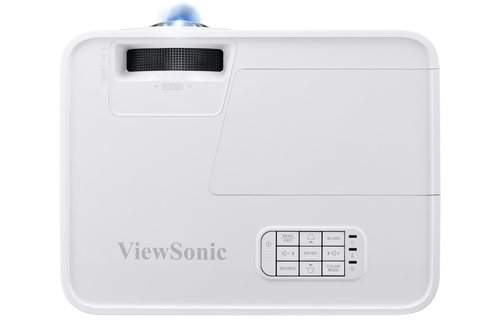

PS501X+ data projector Short throw projector 3400 ANSI lumens XGA (1024x768) 3D White
Model PS501X+EAN 766907996517
70 specifications
- Noise27 dB
- TypeShort throw projector
- Weight3.6 kg
- ColourWhite
- Projector brightness3400 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 27 dB
- Type
- Short throw projector
- Weight
- 3.6 kg
- Colour
- White
- Projector brightness
- 3400 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PS501X+
- Part number
- PS501X+
- EAN / UPC
- 766907996517
- Also known as
- Viewsonic PS501X+ data projector Short throw projector 3400 ANSI lumens XGA (1024x768) 3D White
Specifications
70 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3400 ANSI lumens |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 20000:1 |
| Screen size compatibility | 1016 - 7620 mm (40 - 300") |
| Projection distance | 0.74 - 3.72 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 190 W |
Lens system
| Specification | Value |
|---|---|
| Aperture range (F-F) | 2.6 - 6.9 |
| Zoom capability | Yes |
| Zoom type | Fixed |
| Throw ratio | 0.61 |
| Offset | 130% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

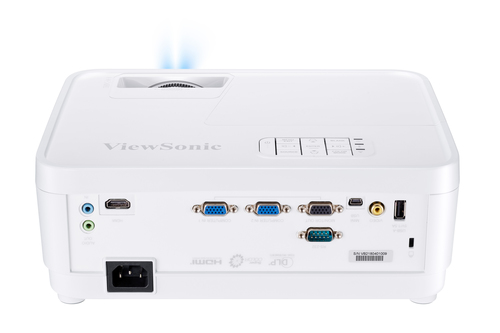

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Interactive input supported | Interactive pen/Touch |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |

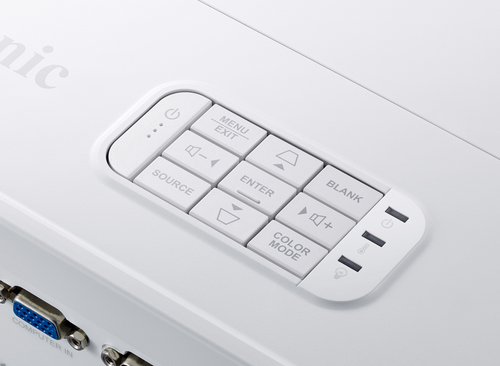

| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Finnish, French, INC, Indonesian, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Sleep timer | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Education |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
| Width | 292 mm |
| Depth | 236 mm |
| Height | 115 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | VGA |
| Carrying case | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
