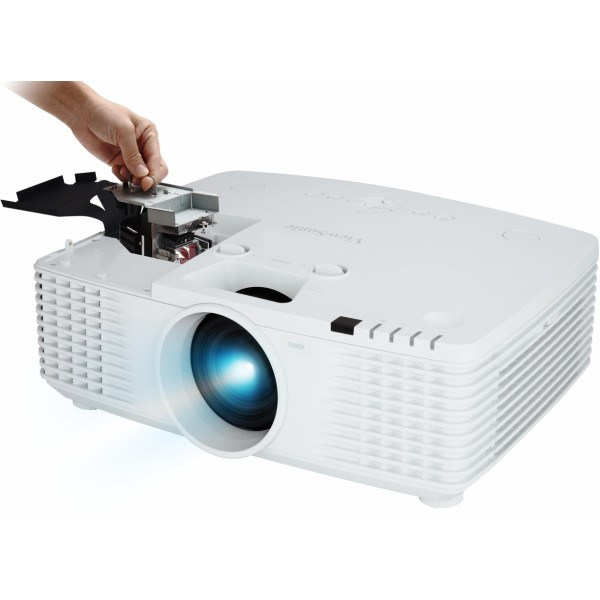

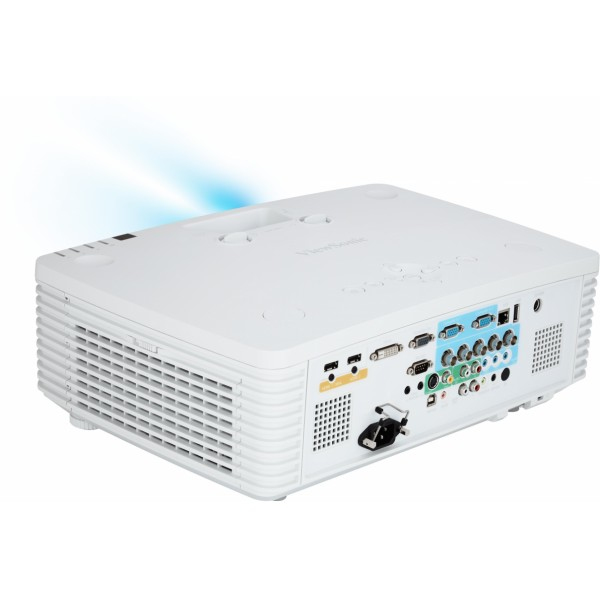

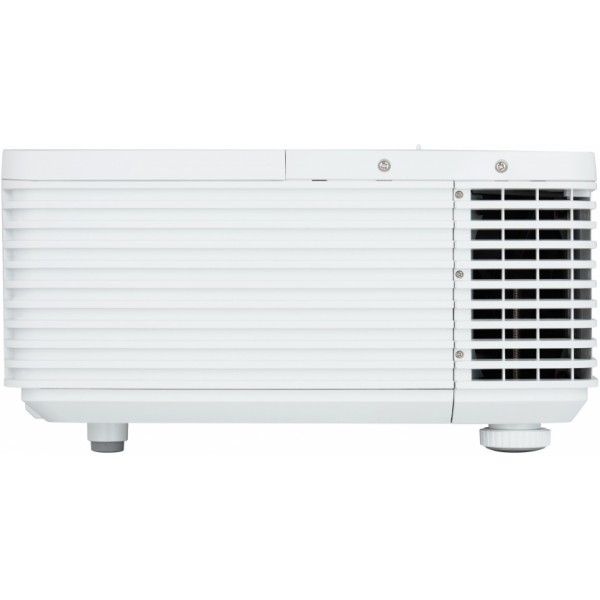

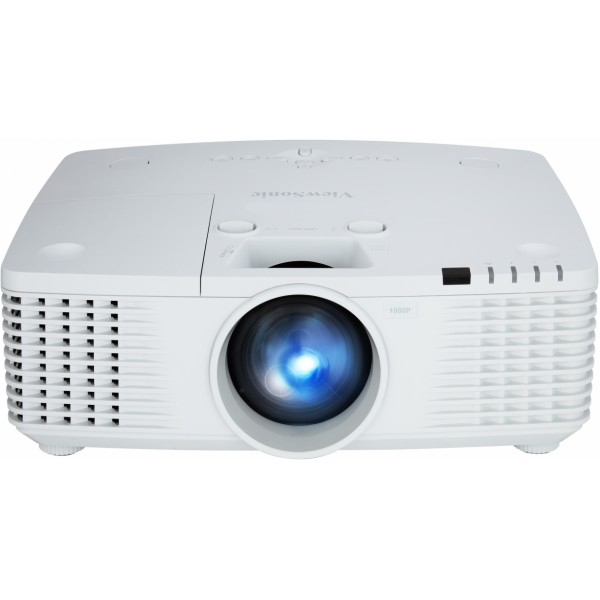

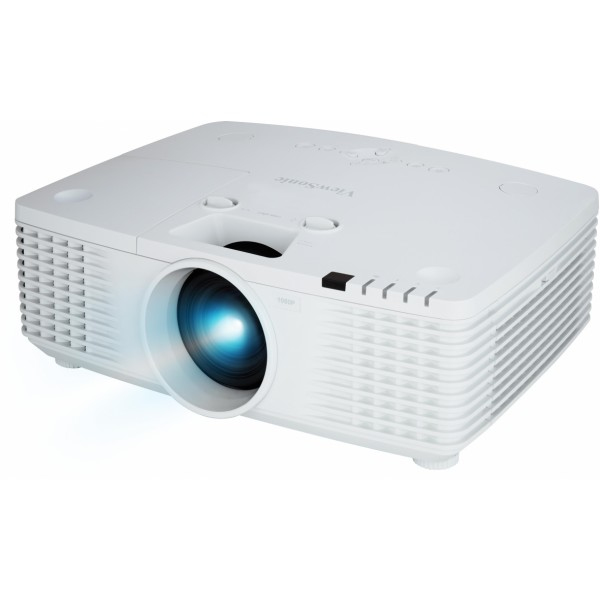

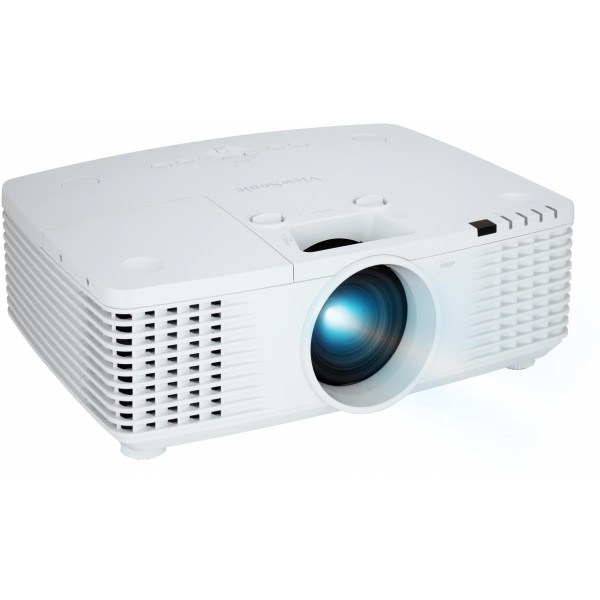

Viewsonic PRO9530HDL data projector Standard throw projector 5200 ANSI lumens DLP 1080p (1920x1080) White

Viewsonic PRO9530HDL data projector Standard throw projector 5200 ANSI lumens DLP 1080p (1920x1080) White

Model PRO9530HDLEAN 766907848113

91 specifications
  • Noise31 dB
  • TypeStandard throw projector
  • Weight8.29 kg
  • ColourWhite
  • Projector brightness5200 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
31 dB
Type
Standard throw projector
Weight
8.29 kg
Colour
White
Projector brightness
5200 ANSI lumens
Light source type
Lamp
Brand
Viewsonic
Model
PRO9530HDL
Part number
PRO9530HDL
EAN / UPC
766907848113
Also known as
Viewsonic PRO9530HDL data projector Standard throw projector 5200 ANSI lumens DLP 1080p (1920x1080) White

Specifications

91 specifications in 17 groups

Projector

Projector brightness5200 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)6000:1
Native aspect ratio16:9
Screen size compatibility538.5 - 9179.6 mm (21.2 - 361.4")
Projection distance1 - 10 m
Contrast ratio (dynamic)15000:1
Number of colours1.073 billion colours
Keystone correction, horizontal-30 - 30°
Keystone correction, vertical-25 - 25°
Matrix size1.65 cm (0.65")

Light source

Light source typeLamp
Service life of light source1500 h
Service life of light source (economic mode)3500 h
Lamp power370 W
Lamp power (economic mode)280 W

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Digital zoom2x
Optical zoom1.7x
Throw ratio1.25 - 2.13:1
Offset135.9%

Video

Analog signal format systemNTSC, NTSC 4.43, PAL B, PAL G, PAL H, SECAM
Full HDYes
3DNo
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)
Supported video modes480i, 480p, 720p, 1080i, 1080p

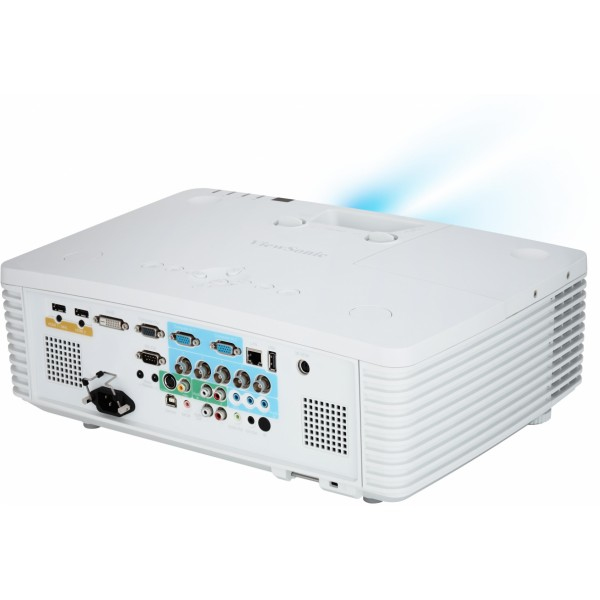

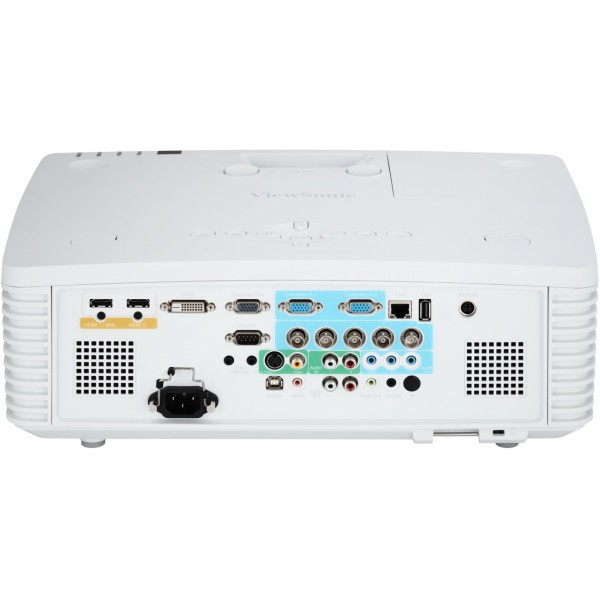

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity2
HDMI connector typeFull-size
HDMI version1.4
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portYes
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in1
Audio (L/R) out1
Microphone inYes
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
BNC input ports1
12V triggerYes
Mobile High-Definition Link (MHL)Yes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedYes
Compatible memory cardsSD

Features

Noise level (economic mode)31 dB
On Screen Display (OSD)Yes
CertificationFCC / CE / EMC, CB / CCC, / REACH / SVHC / WEEE / ErP, NOM / UL / CUL / PSB / RCM

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power14 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)480 W
Power consumption (standby)0.5 W
Power consumption (network standby)3 W
Power consumption (economy mode)380 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)5 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m

Weight & dimensions

Weight8.29 kg
Width445 mm
Depth147.8 mm
Height325.5 mm
Package width576 mm
Package depth291 mm
Package height436 mm
Package weight12.4 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, HDMI, VGA
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
