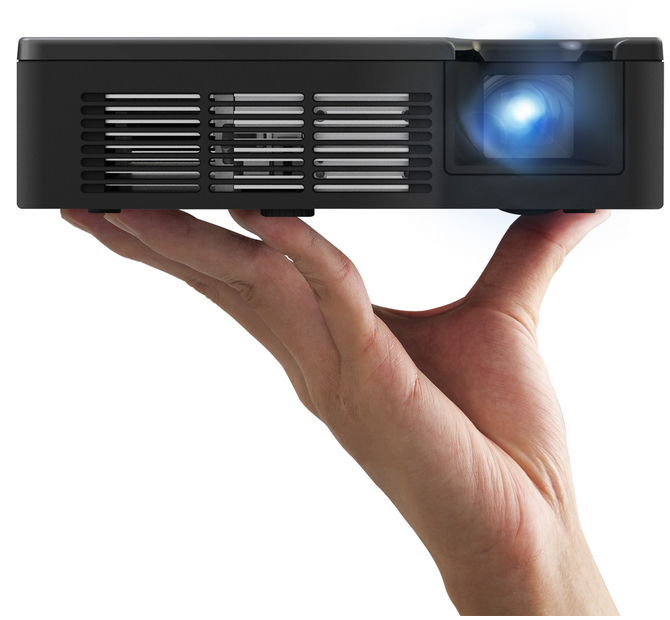

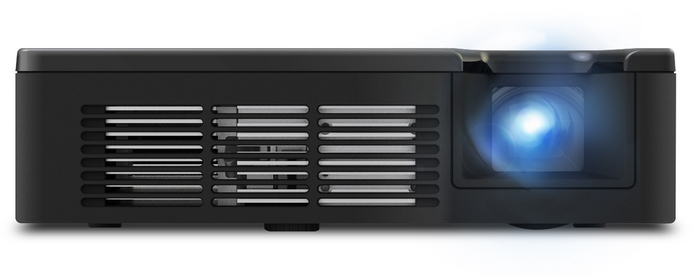

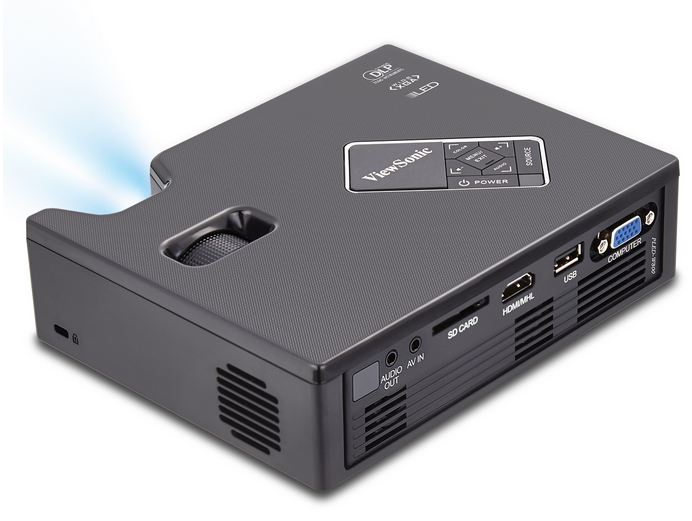

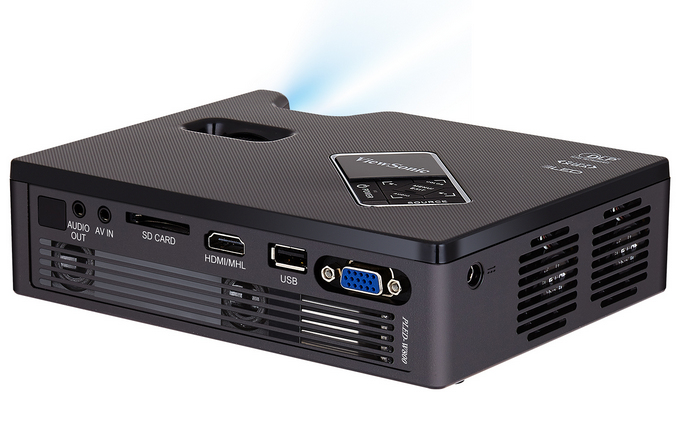

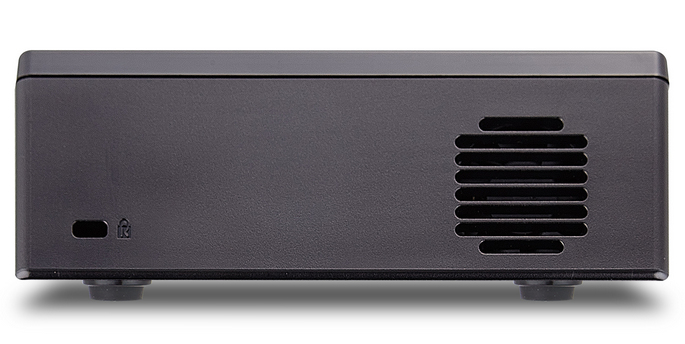

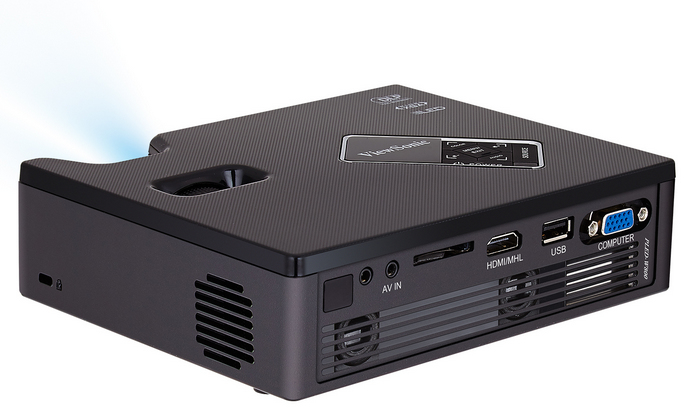

Viewsonic PLED-W800 Short throw projector 800 ANSI lumens DLP WXGA (1280x800) Black

Viewsonic PLED-W800 Short throw projector 800 ANSI lumens DLP WXGA (1280x800) Black

Model PLED-W800EAN 5054629709023

62 specifications
  • TypeShort throw projector
  • Weight830 g
  • ColourBlack
  • Projector brightness800 ANSI lumens
  • Light source typeLED
  • FocusManual
See all specifications

Overview

Type
Short throw projector
Weight
830 g
Colour
Black
Projector brightness
800 ANSI lumens
Light source type
LED
Focus
Manual
Brand
Viewsonic
Model
PLED-W800
Part numbers
PLED-W800, PLEDW800
EAN / UPC
5054629709023, 766907775723, 5052184952175, 7669077757236
Also known as
Viewsonic PLED-W800 Short throw projector 800 ANSI lumens DLP WXGA (1280x800) Black

Specifications

62 specifications in 17 groups

Projector

Projector brightness800 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)120000:1
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility609.6 - 2540 mm (24 - 100")
Projection distance0.7 - 3.02 m
Number of colours1.073 billion colours
Horizontal scan range31 - 100 kHz
Vertical scan range50 - 85 Hz
Keystone correction, horizontal-40 - 40°
Matrix size1.14 cm (0.45")

Light source

Light source typeLED
Service life of light source30000 h

Lens system

FocusManual
Zoom ratio1.4:1

Video

Analog signal format systemNTSC 4.43, NTSC M, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM L
Full HDYes
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

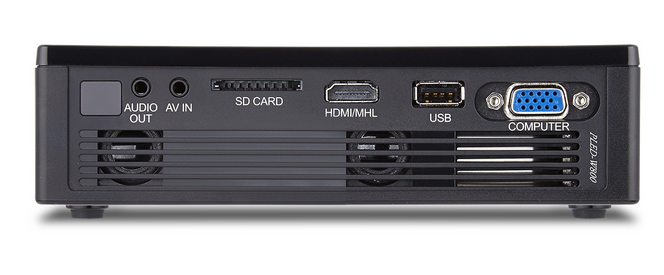

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Composite video in1
DVI portNo
USB 2.0 ports quantity1

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedYes

Features

CertificationREACH, CB, KC, EAC, CE, FCC-B (including ICES003), EAC, NOM, UL /UL-CoC

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power4 W

Design

Product typeShort throw projector
Market positioningPortable
Product colourBlack

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (standby)0.5 W
Power consumption (max)90 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 3048 m

Weight & dimensions

Weight830 g
Width138 mm
Depth51.5 mm
Height175 mm
Package width213 mm
Package depth108 mm
Package height328 mm
Package weight1.79 kg

Packaging content

Remote control includedYes
AC adapter includedYes
Cables includedHDMI
Carrying caseYes
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

Maximum analog resolution1680 x 1050 pixels
RS-232 ports0
