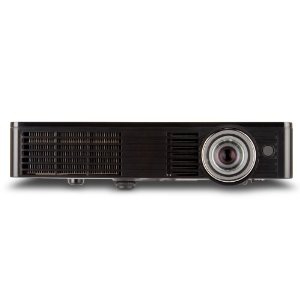

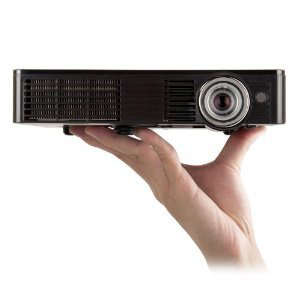

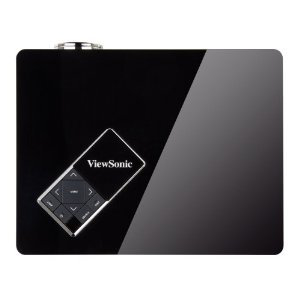

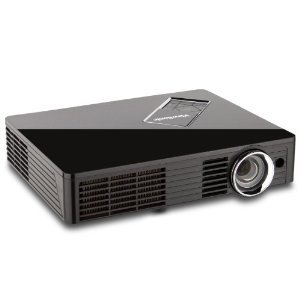

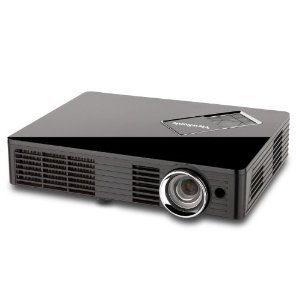

Viewsonic PLED-W500 data projector 500 ANSI lumens DLP WXGA (1280x800) Black

Viewsonic PLED-W500 data projector 500 ANSI lumens DLP WXGA (1280x800) Black

Model PLED-W500EAN 766907548310

63 specifications
  • Storage0.5 GB
  • ConnectivityWired
  • Noise38 dB
  • Weight1.18 kg
  • ColourBlack
  • Projector brightness500 ANSI lumens
See all specifications

Overview

Storage
0.5 GB
Connectivity
Wired
Noise
38 dB
Weight
1.18 kg
Colour
Black
Projector brightness
500 ANSI lumens
Brand
Viewsonic
Model
PLED-W500
Part number
PLED-W500
EAN / UPC
766907548310, 7669075483106
Also known as
Viewsonic PLED-W500 data projector 500 ANSI lumens DLP WXGA (1280x800) Black

Specifications

63 specifications in 15 groups

Projector

Projector brightness500 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)6000:1
Screen size compatibility762 - 2032 mm (30 - 80")
Projection distance0.91 - 2.4 m
Number of colours16.78 million colours
Horizontal scan range31 - 100 kHz
Vertical scan range48 - 120 Hz
Keystone correction, vertical-40 - 40°
Matrix size1.14 cm (0.45")

Light source

Light source typeLED
Service life of light source20000 h
Lamps quantity1 lamp(s)

Lens system

FocusManual

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DNo
3D ReadyNo
Supported graphics resolutions1440 x 1050, 1680 x 1050 (WSXGA+), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

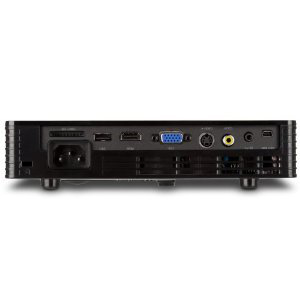

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
PC Audio inYes
USB connector typeUSB Type-A
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedYes
Compatible memory cardsSD
Internal storage capacity0.5 GB

Features

Noise level38 dB
CertificationCE, CB, UL, cUL, FCC (including ICES-003), NOM, TUV-S Argentina, RoHS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W
Video formats supportedH.264, MPEG2, MPEG4
Audio formats supportedMP3

Design

Market positioningPortable
Product colourBlack

Power

Power consumption (typical)144 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Weight1.18 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedVGA
Carrying caseYes

Other features

Aspect ratio16:10
Connectivity technologyWired
Dimensions (WxDxH)214 x 164 x 42 mm
Maximum analog resolution1680 x 1050 pixels
Maximum digital resolution1920 x 1080 pixels
Network readyNo
Resolution1280 x 800 pixels
