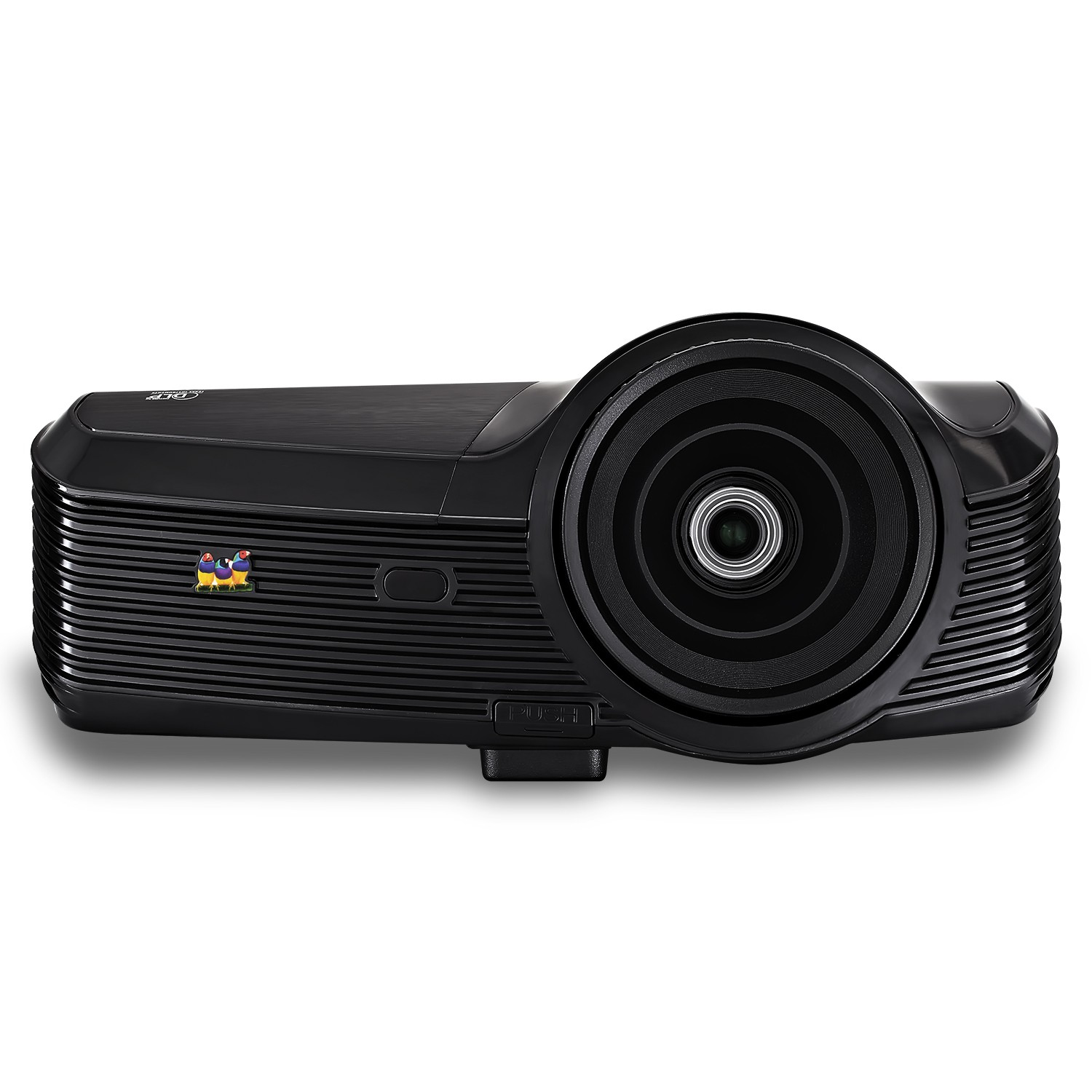

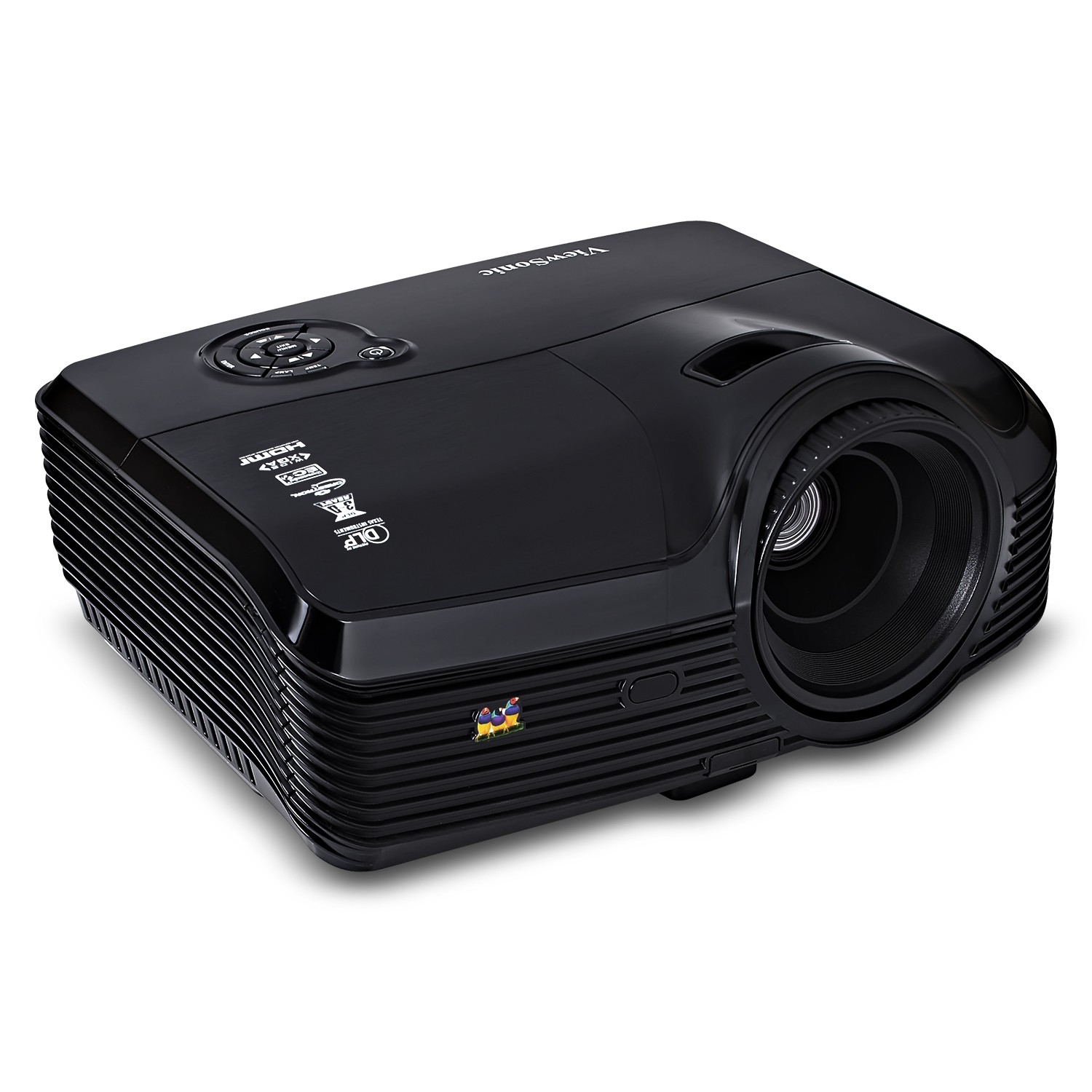

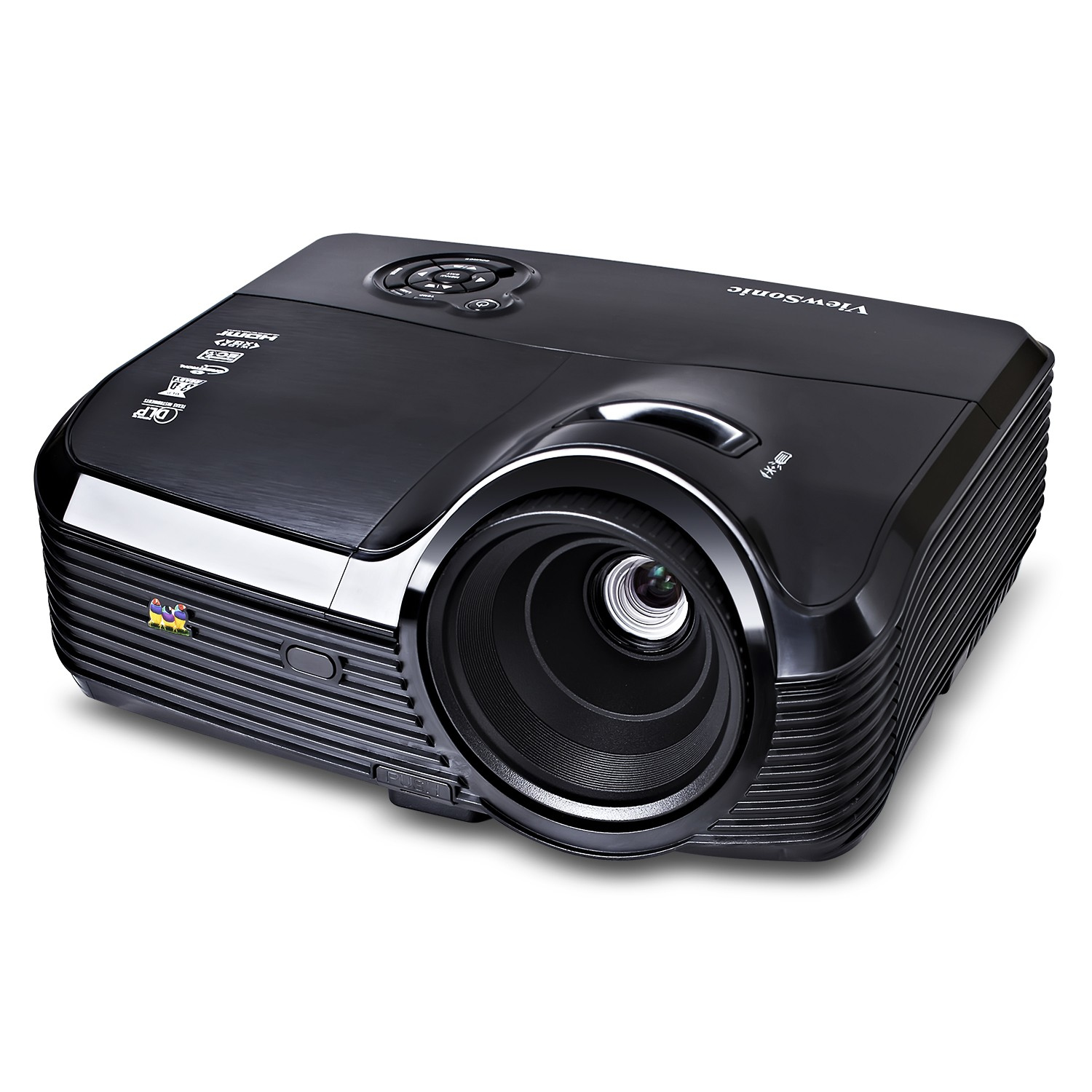

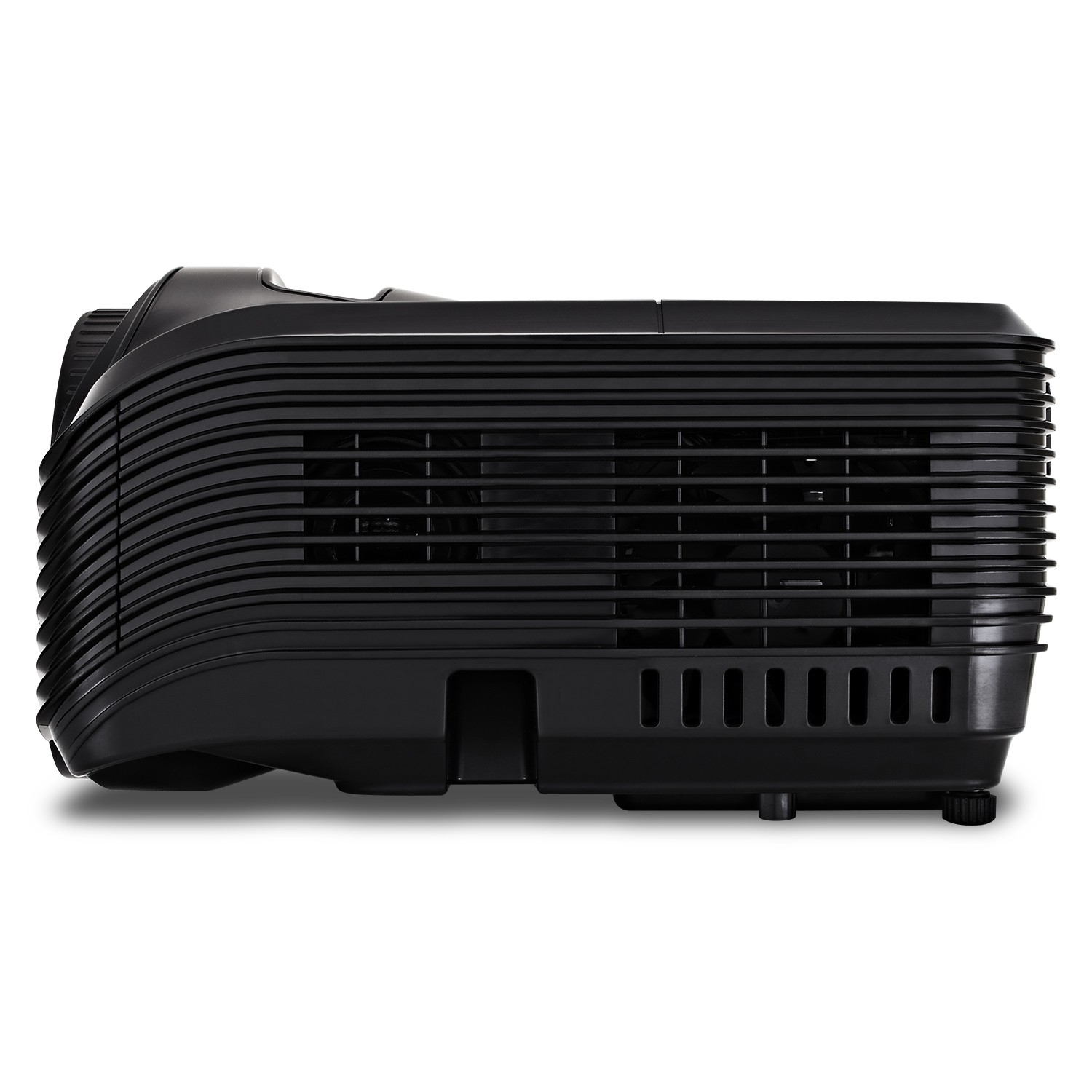

Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black
Model PJD7533wPart no. PJD7533WEAN 7669076666188
82 specifications
- Noise34 dB
- TypeStandard throw projector
- Weight3 kg
- ColourBlack
- Projector brightness4000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 34 dB
- Type
- Standard throw projector
- Weight
- 3 kg
- Colour
- Black
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PJD7533w
- Part number
- PJD7533W
- EAN / UPC
- 7669076666188, 766907666618, 803983017139, 807320177821 +3 more
- Also known as
- Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black
Specifications
82 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.2 - 10 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 31 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 2000 h |
| Service life of light source (economic mode) | 3500 h |
| Lamp power | 330 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Optical zoom | 1.6x |
| Throw ratio | 1.47 - 1.83:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 3.58, NTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | No |
| HD-Ready | Yes |
| 3D | Yes |
| 3D Ready | Yes |

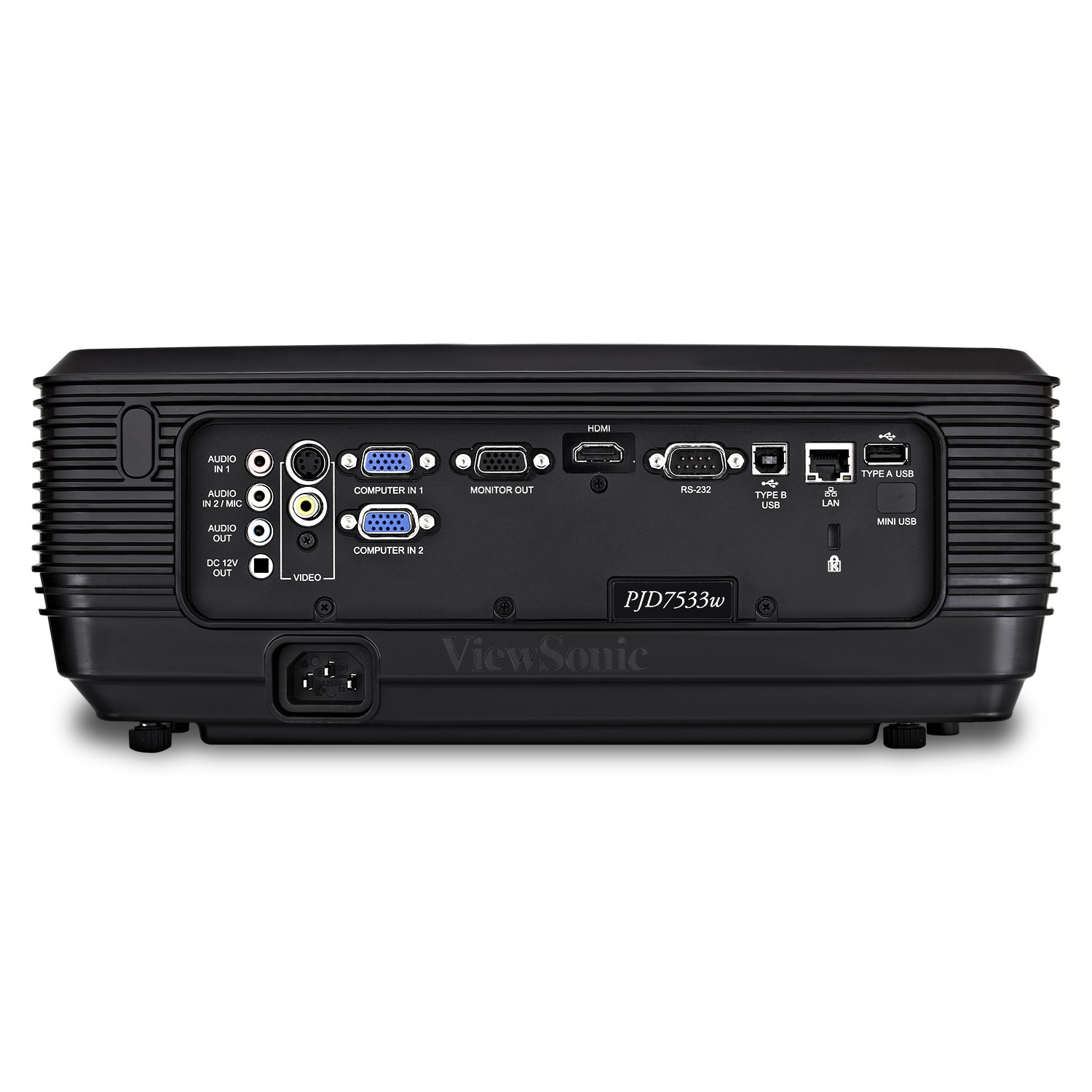

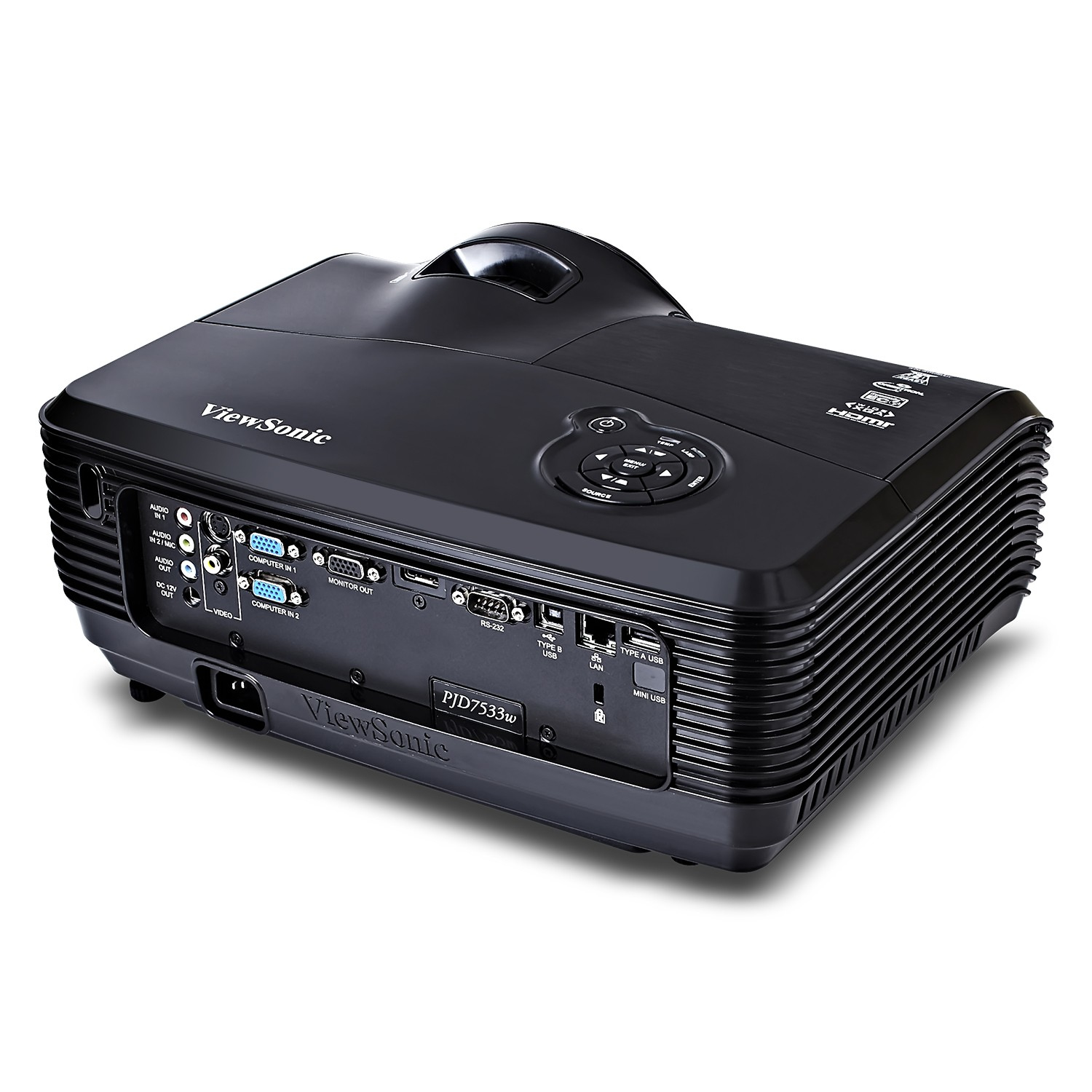

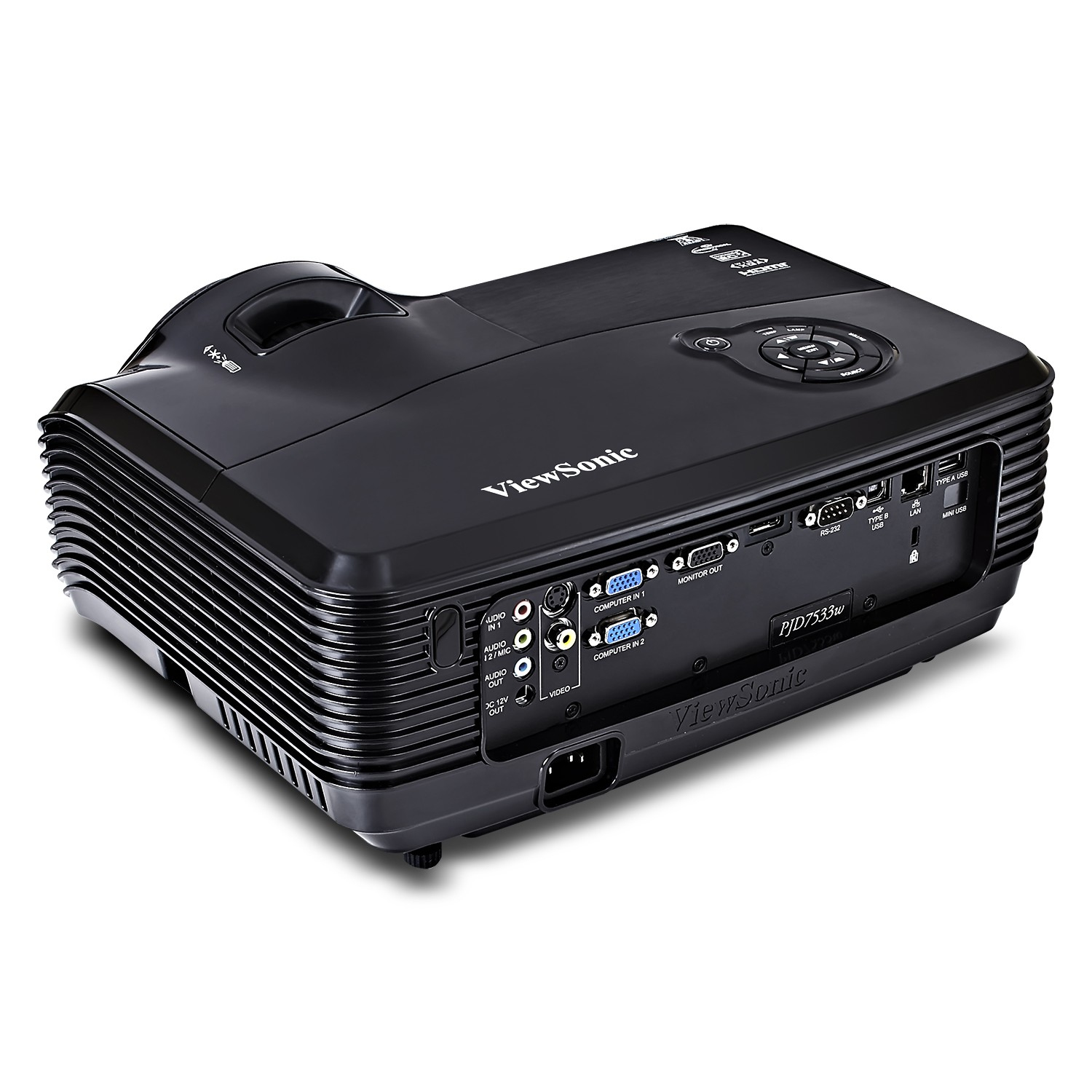

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| USB connector type | USB Type-A, USB Type-B |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 34 dB |
| Noise level (economic mode) | 32 dB |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 350 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 335 mm |
| Depth | 265 mm |
| Height | 128.3 mm |
| Package width | 383 mm |
| Package depth | 342 mm |
| Package height | 242 mm |
| Package weight | 5.1 kg |
Packaging content
| Specification | Value |
|---|---|

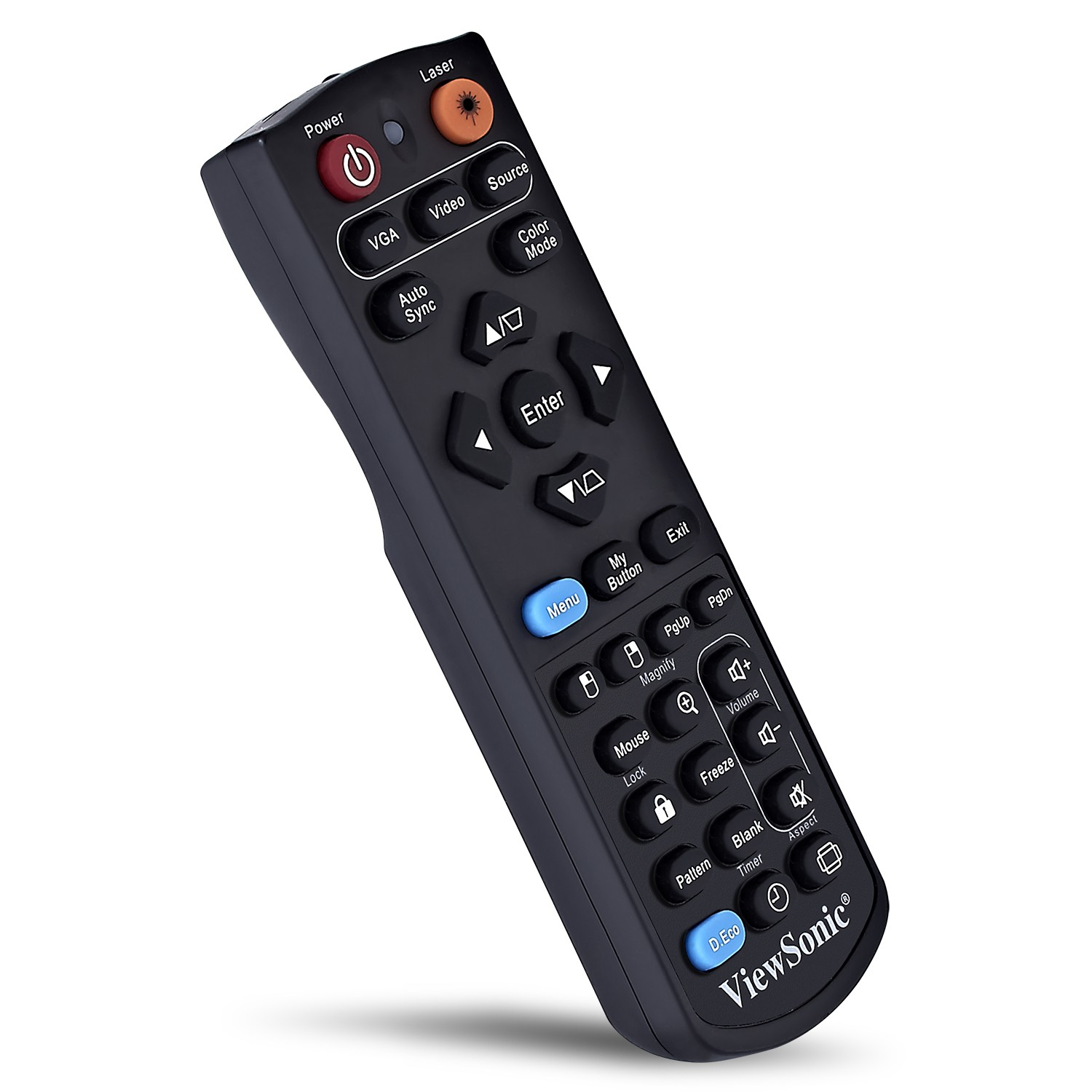

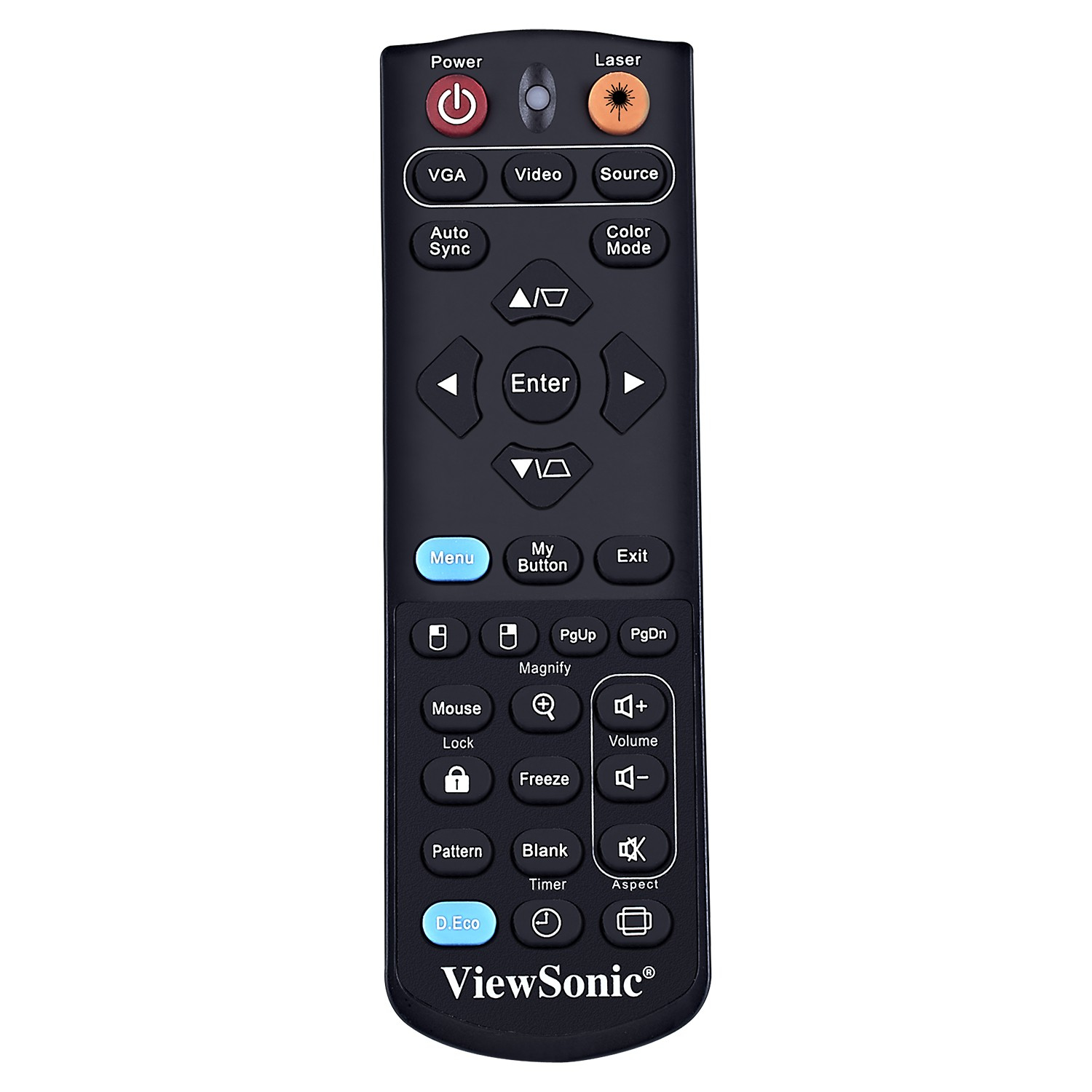

| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Maximum analog resolution | 1600 x 1200 pixels |
| RS-232 ports | 1 |
| USB required | Yes |
What people say
Reviews & ratings
Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black
No reviews yet
Be the first to tell others how Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black
All data projector comparisons- Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black vsViewsonic PJD7333 data projector Portable projector 4000 ANSI lumens DLP XGA (1024x768) BlackCompare specs
- Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black vsViewsonic PJD5234L data projector Standard throw projector 2800 ANSI lumens DLP XGA (1024x768) 3D WhiteCompare specs
- Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black vsViewsonic PJD6345 data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) BlackCompare specs

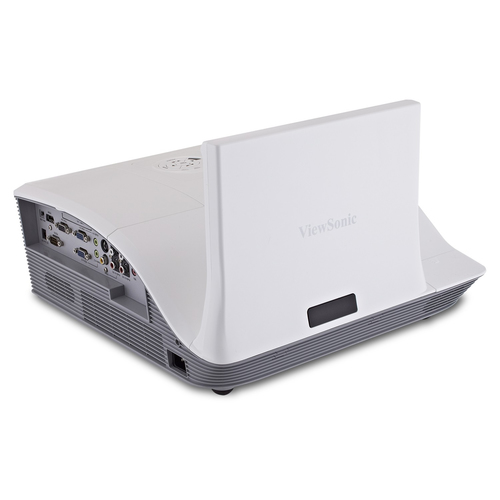

- Viewsonic PJD7533w Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D Black vsViewsonic PJD8653WS data projector Ultra short throw projector 2600 ANSI lumens DLP WXGA (1280x800) WhiteCompare specs
