Viewsonic PJD6683WS data projector Short throw projector 3000 ANSI lumens DLP WXGA (1280x800) Black
Model PJD6683WSPart no. PJD6683W(S)EAN 7669076544240
77 specifications
- ConnectivityWired
- Noise33 dB
- TypeShort throw projector
- Weight3 kg
- ColourBlack
- Projector brightness3000 ANSI lumens
Overview
- Connectivity
- Wired
- Noise
- 33 dB
- Type
- Short throw projector
- Weight
- 3 kg
- Colour
- Black
- Projector brightness
- 3000 ANSI lumens
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PJD6683WS
- Part numbers
- PJD6683W(S), PJD6683WS
- EAN / UPC
- 7669076544240, 100177421100, 102930970924, 151903137338 +8 more
- Also known as
- Viewsonic PJD6683WS data projector Short throw projector 3000 ANSI lumens DLP WXGA (1280x800) Black
Specifications
77 specifications in 18 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.3 - 3.2 m |
| Contrast ratio (dynamic) | 15000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 31 - 100 kHz |
| Vertical scan range | 48 - 120 Hz |
| Keystone correction, vertical | ± 40° |
| Matrix size | 1.65 cm (0.65") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Throw ratio | 0.5 - 0.5:1 |
| Offset | 130% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | Yes |
| 3D Ready | Yes |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 720p |

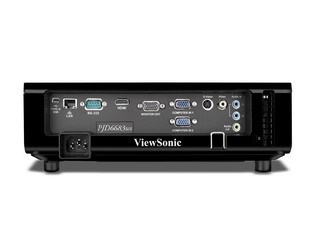

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| USB connector type | Mini-USB B |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| On Screen Display (OSD) | Yes |
| Certification | CB, UL, cUL, FCC, CE, WEEE |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1800 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3 kg |
| Width | 294 mm |
| Depth | 242 mm |
| Height | 84 mm |
| Package weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 16:10 |
| Package dimensions (WxDxH) | 360 x 192 x 380 mm |
| Connectivity technology | Wired |
| RS-232 ports | 1 |
