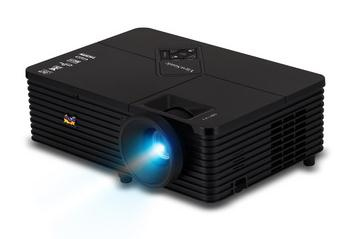

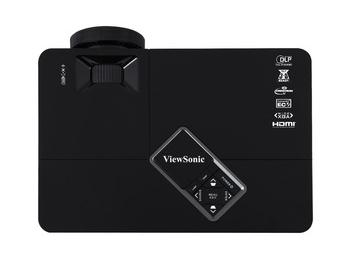

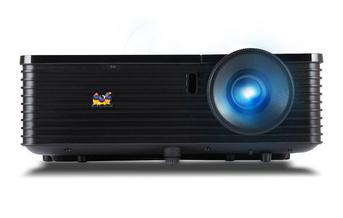

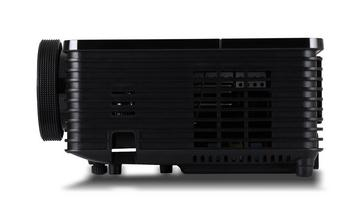

Viewsonic PJD6544w 3500 ANSI lumens DLP WXGA (1280x800) Black

Viewsonic PJD6544w 3500 ANSI lumens DLP WXGA (1280x800) Black

Model PJD6544wPart no. PJD6544WEAN 7669076693122

62 specifications
  • ColourBlack
  • Projector brightness3500 ANSI lumens
  • Service life of light source3000 h
  • Zoom ratio1.2:1
  • Analog signal format systemNTSC, PAL, SECAM
  • VGA (D-Sub) ports quantity3
See all specifications

Overview

Colour
Black
Projector brightness
3500 ANSI lumens
Service life of light source
3000 h
Zoom ratio
1.2:1
Analog signal format system
NTSC, PAL, SECAM
VGA (D-Sub) ports quantity
3
Brand
Viewsonic
Model
PJD6544w
Part number
PJD6544W
EAN / UPC
7669076693122, 021111205269, 059702145434, 102930971341 +5 more
Also known as
Viewsonic PJD6544w 3500 ANSI lumens DLP WXGA (1280x800) Black

Specifications

62 specifications in 15 groups

Projector

Projector brightness3500 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Native aspect ratio16:10
Supported aspect ratios16:10
Screen size compatibility762 - 3810 mm (30 - 150")
Projection distance1.2 - 10 m
Contrast ratio (dynamic)15000:1
Horizontal scan range31 - 100 kHz
Vertical scan range48 - 120 Hz
Keystone correction, horizontal40°
Keystone correction, vertical-40°

Light source

Service life of light source3000 h
Service life of light source (economic mode)4000 h
Lamp typeOSRAM

Lens system

Zoom ratio1.2:1
Throw ratio1.47 - 1.83:1

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDNo
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

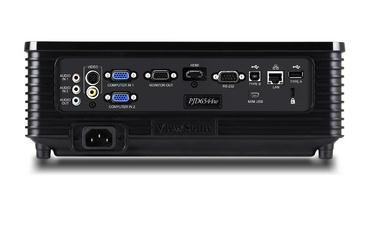

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
HDMI version1.4
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity3
Audio (L/R) in0
Headphone outputs2
Microphone inYes
Serial interface typeRS-232
PC Audio inYes
AUX inYes
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W
TV tuner integratedNo

Design

Market positioningPresentation
Product colourBlack

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)315 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 1828 m

Weight & dimensions

Width335 mm
Depth265 mm
Height128.3 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
Quick start guideYes
Warranty cardYes

Other features

RS-232 ports1
