Viewsonic PJD6352LS data projector Short throw projector 3500 ANSI lumens DLP XGA (1024x768) White
Model PJD6352LSEAN 766907133110
81 specifications
- Noise32 dB
- TypeShort throw projector
- Weight2.2 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Short throw projector
- Weight
- 2.2 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PJD6352LS
- Part number
- PJD6352LS
- EAN / UPC
- 766907133110, 766907780918
- Also known as
- Viewsonic PJD6352LS data projector Short throw projector 3500 ANSI lumens DLP XGA (1024x768) White
Specifications
81 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 1270 - 6350 mm (50 - 250") |
| Projection distance | 0.61 - 3.09 m |
| Contrast ratio (dynamic) | 22000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Matrix size | 1.4 cm (0.55") |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Throw ratio | 0.61:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 4.43, NTSC M, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM L |
| Full HD | Yes |
| Supported graphics resolutions | 1024 x 768 (XGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |

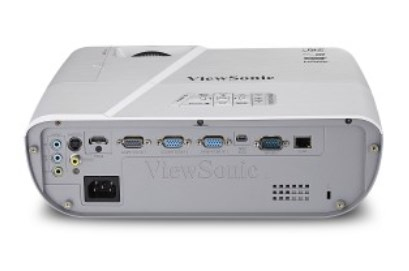

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| USB connector type | Mini-USB B |
| Mobile High-Definition Link (MHL) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | No |
| On Screen Display (OSD) | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 330 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
| Width | 316 mm |
| Depth | 228 mm |
| Height | 103.7 mm |
| Package width | 410 mm |
| Package depth | 450 mm |
| Package height | 225 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
