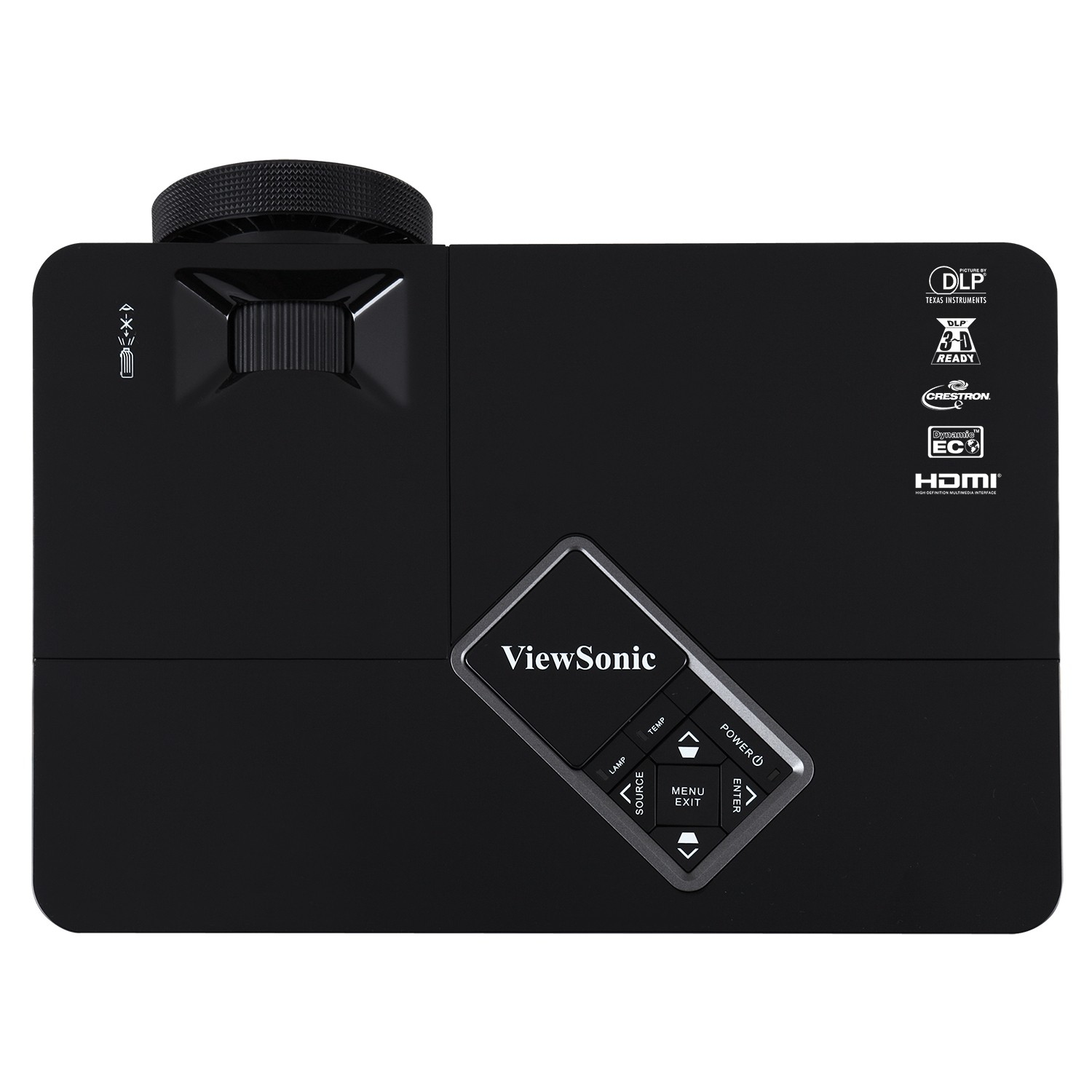

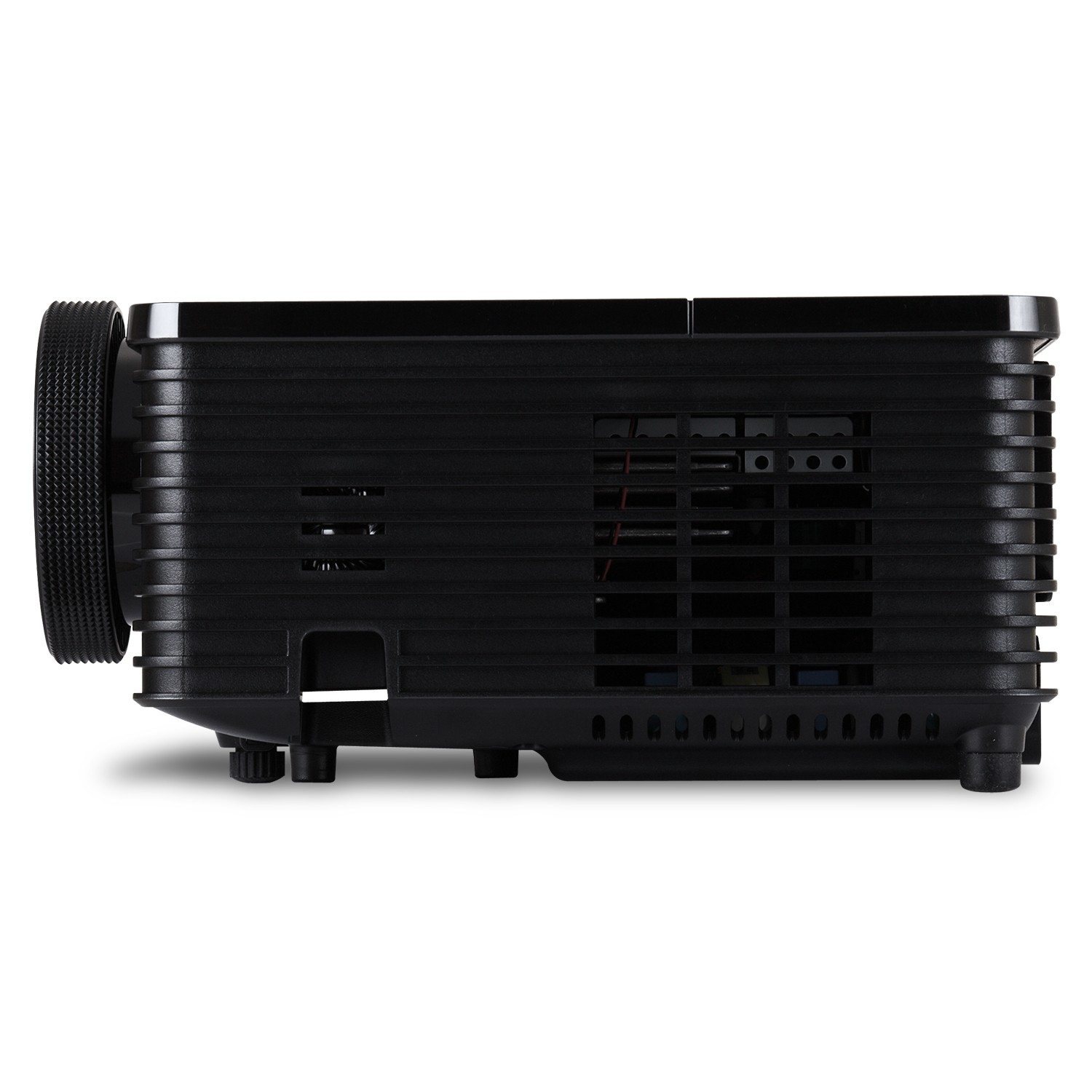

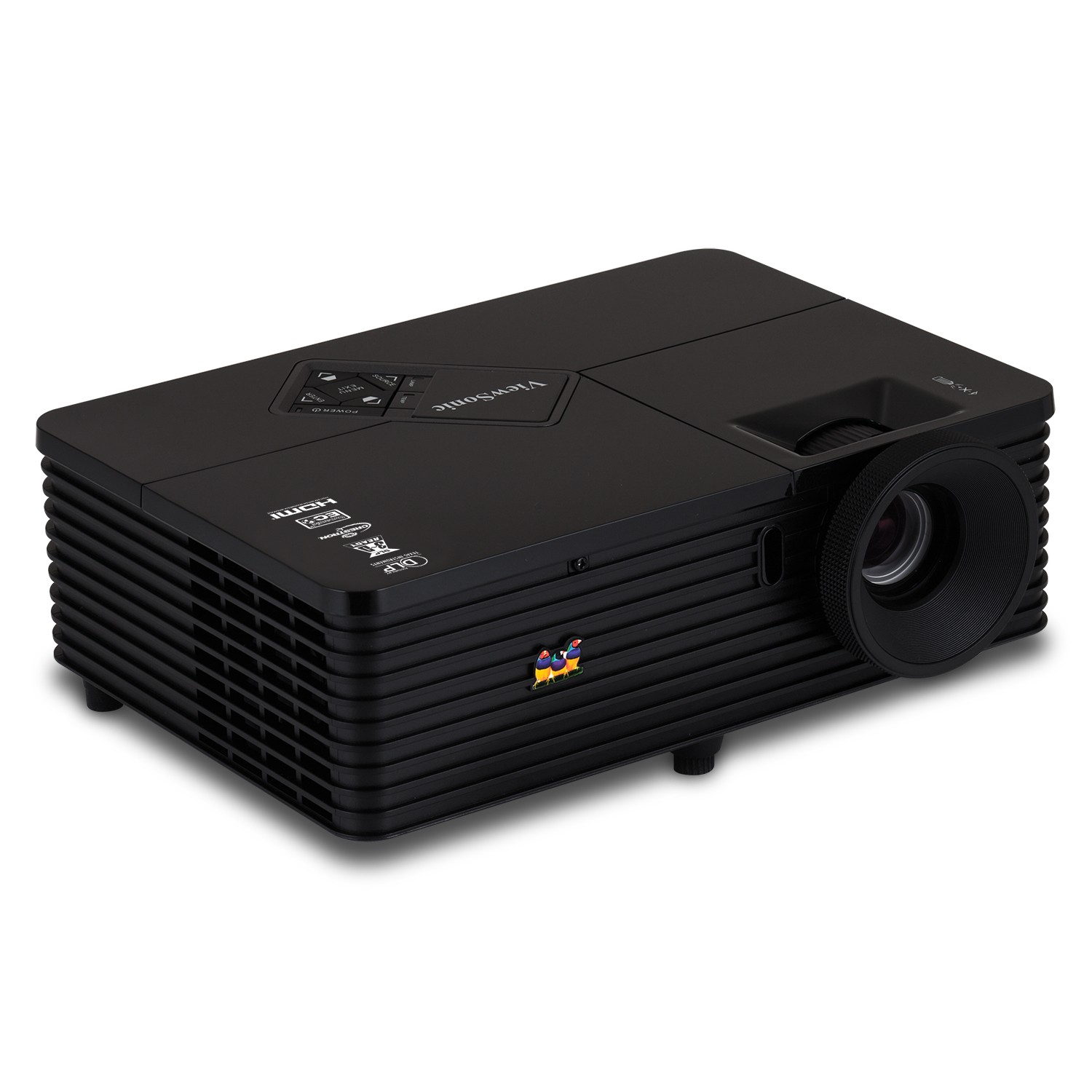

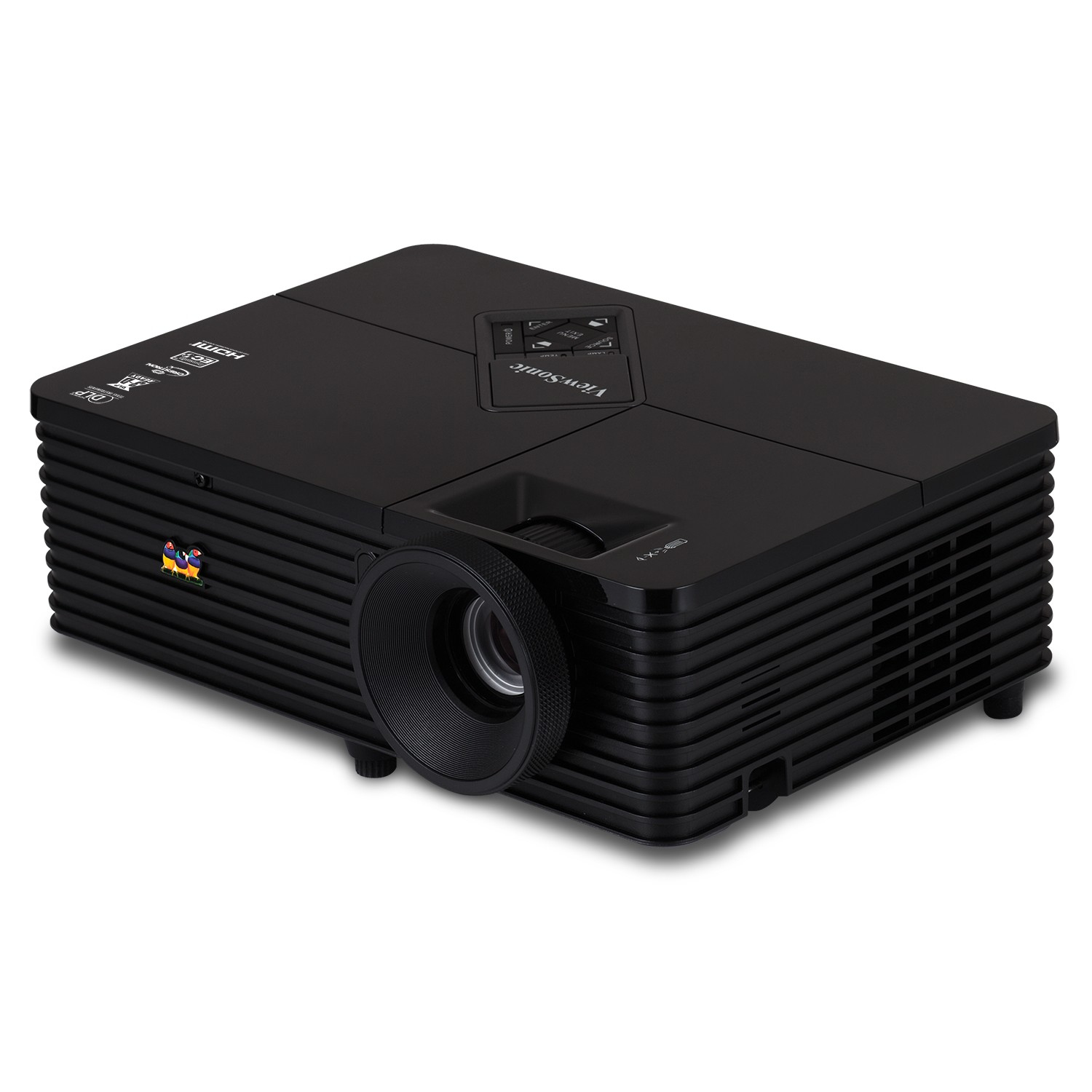

Viewsonic PJD6345 data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) Black

Viewsonic PJD6345 data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) Black

Model PJD6345EAN 5054484447191

76 specifications
  • Noise34 dB
  • TypeStandard throw projector
  • Weight2.1 kg
  • ColourBlack
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
34 dB
Type
Standard throw projector
Weight
2.1 kg
Colour
Black
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
Viewsonic
Model
PJD6345
Part number
PJD6345
EAN / UPC
5054484447191, 357814380423, 766907669114, 5054533447196 +1 more
Also known as
Viewsonic PJD6345 data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) Black

Specifications

76 specifications in 18 groups

Projector

Projector brightness3500 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)15000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility711.2 - 7620 mm (28 - 300")
Projection distance1.2 - 13.2 m
Keystone correction, vertical-40 - 40°

Light source

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)5000 h
Lamp power240 W

Lens system

FocusManual
Optical zoom1.1x

Video

Analog signal format systemNTSC M, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HDNo
HD-ReadyYes
Supported graphics resolutions1600 x 1200 (UXGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

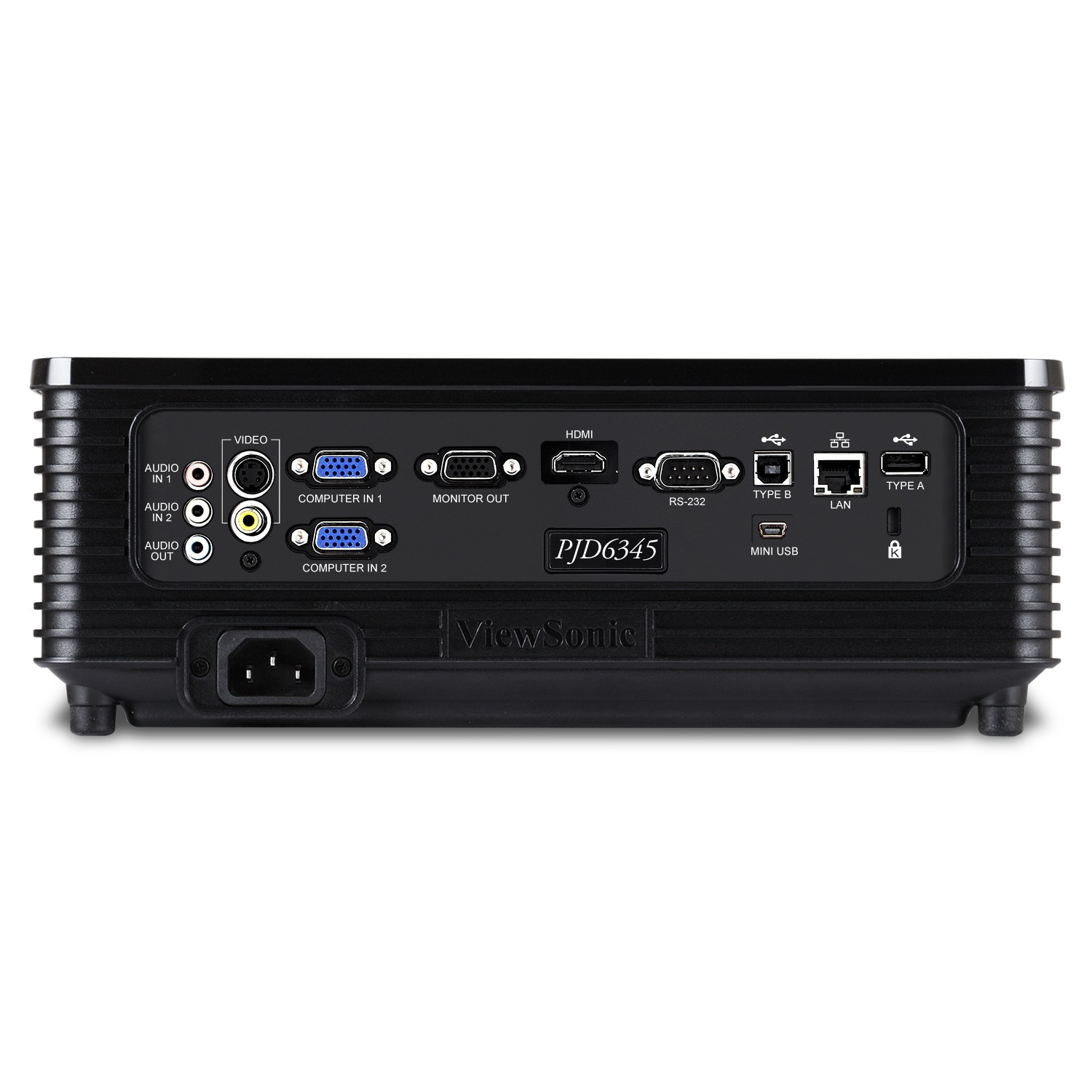

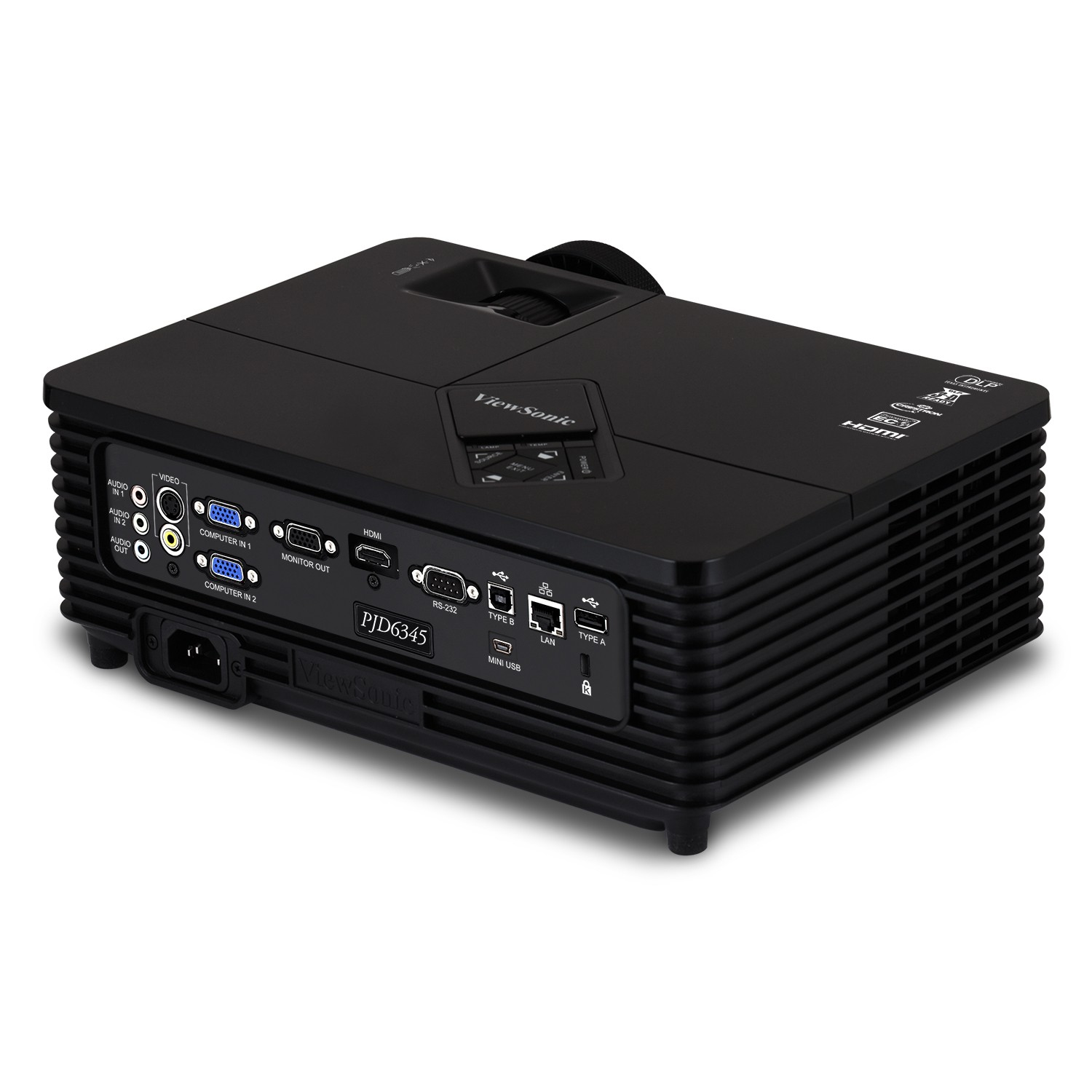

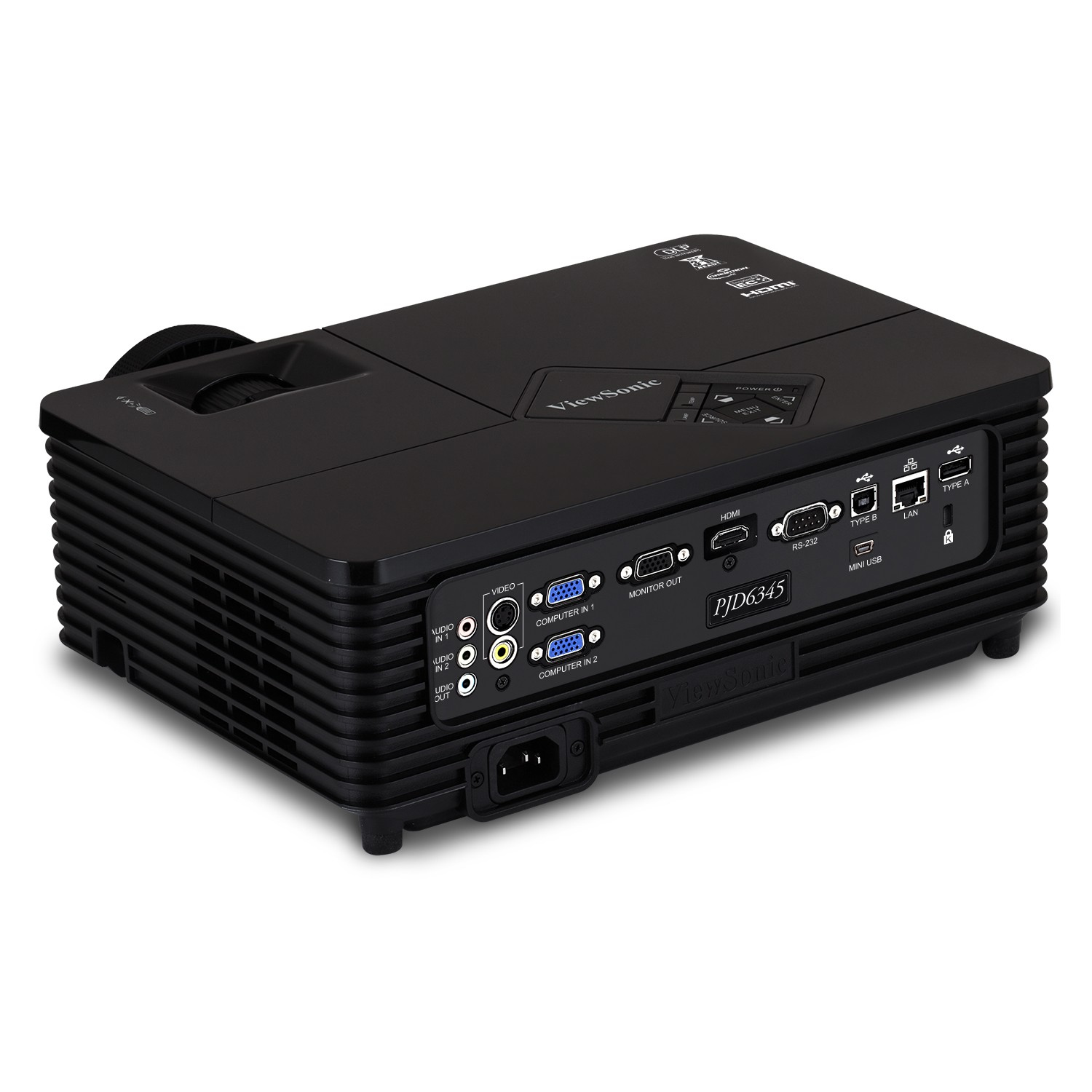

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity3
Audio (L/R) in2
Audio (L/R) out1
Microphone inYes
Serial interface typeRS-232
USB connector typeUSB Type-A, USB Type-B

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level34 dB
Noise level (economic mode)32 dB
HDCPNo
On Screen Display (OSD)Yes
Noise reductionYes

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power16 W

Design

Product typeStandard throw projector
Market positioningPresentation
Product colourBlack
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)305 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Windows operating systems supportedYes
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 3048 m

Weight & dimensions

Weight2.1 kg
Width294 mm
Depth219 mm
Height113 mm
Package width352 mm
Package depth180 mm
Package height310 mm
Package weight3.3 kg

Packaging content

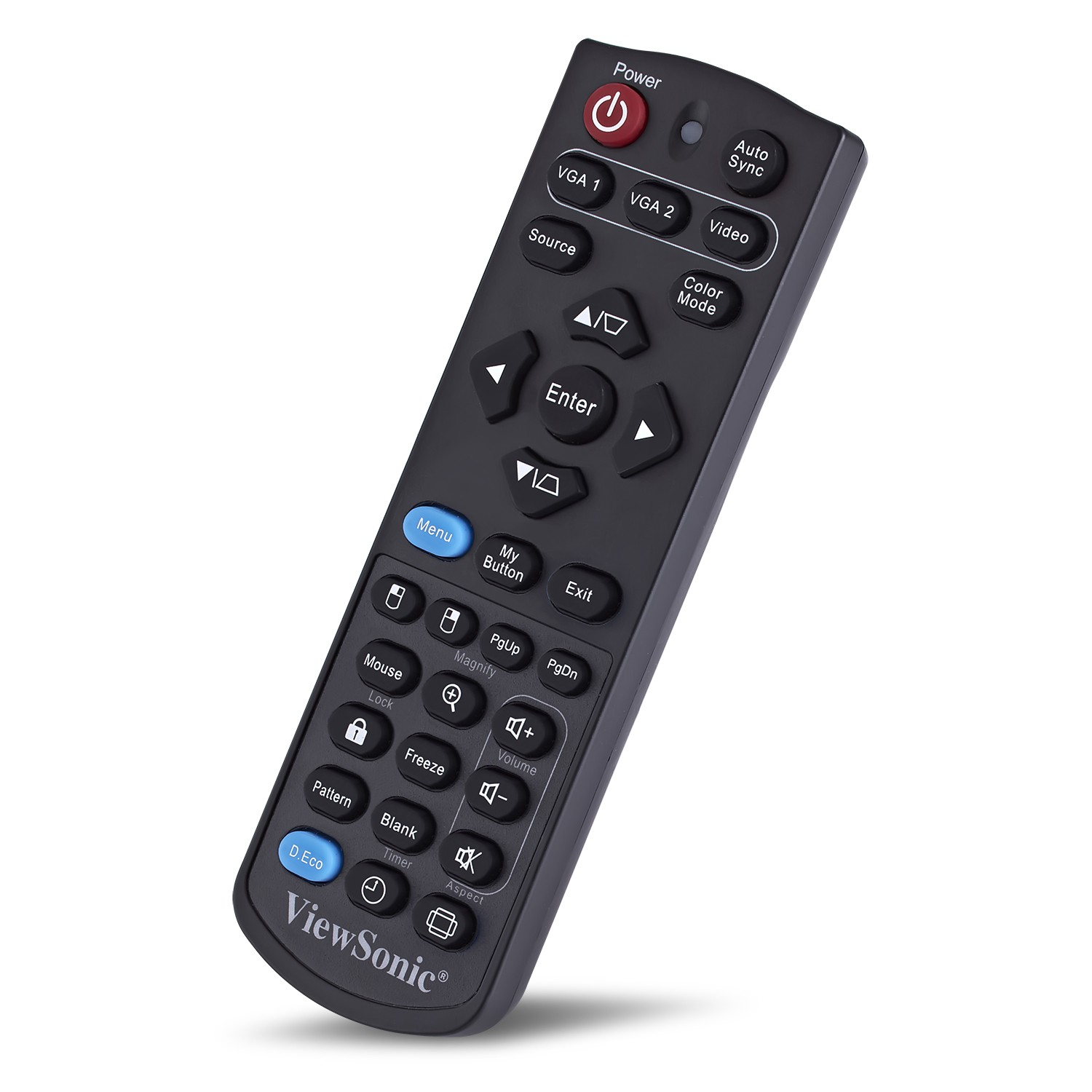

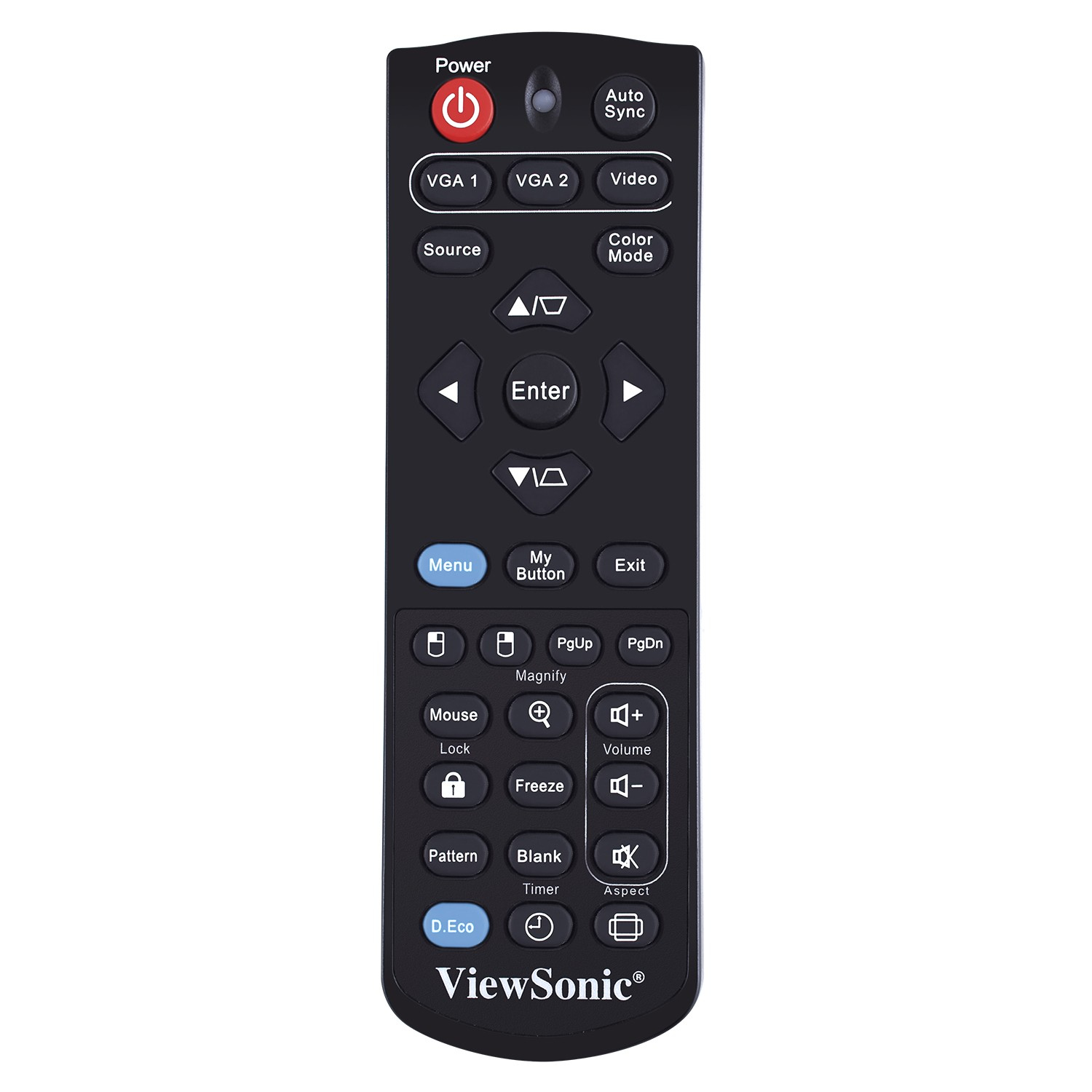

Remote control includedYes
Batteries includedYes
Cables includedAC, VGA
ManualYes
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
