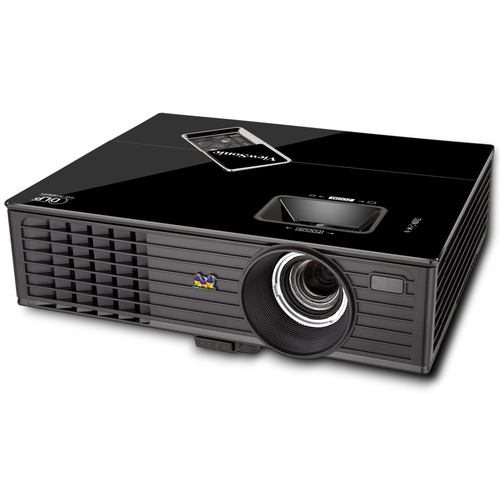

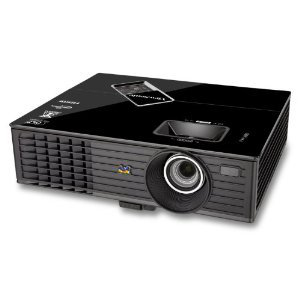

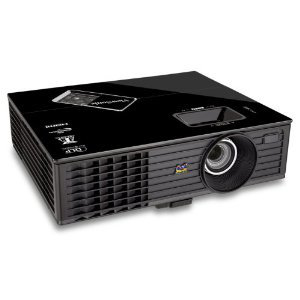

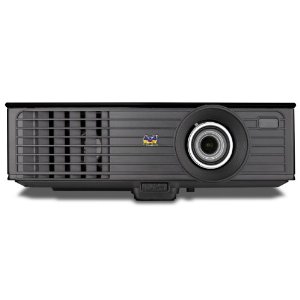

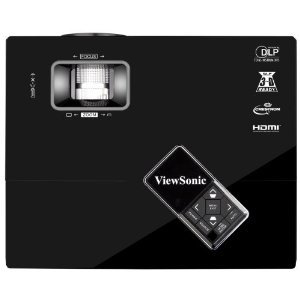

Viewsonic PJD6253 data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) 3D Black
Model PJD6253EAN 151902961705
78 specifications
- ConnectivityWired
- Noise33 dB
- TypeStandard throw projector
- Weight2.6 kg
- ColourBlack
- Projector brightness3500 ANSI lumens
Overview
- Connectivity
- Wired
- Noise
- 33 dB
- Type
- Standard throw projector
- Weight
- 2.6 kg
- Colour
- Black
- Projector brightness
- 3500 ANSI lumens
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PJD6253
- Part number
- PJD6253
- EAN / UPC
- 151902961705, 163120857869, 763615954112, 766907567311
- Also known as
- Viewsonic PJD6253 data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) 3D Black
Specifications
78 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.2 - 9.2 m |
| Contrast ratio (dynamic) | 15000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 31 - 100 kHz |
| Vertical scan range | 48 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.4 cm (0.55") |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 5000 h |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.3:1 |
| Throw ratio | 1.51 - 1.97:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC 3.58, NTSC 4.43, NTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | No |
| 3D | Yes |
| 3D Ready | Yes |
| Supported graphics resolutions | 1600 x 1200 (UXGA), 640 x 480 (VGA) |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |

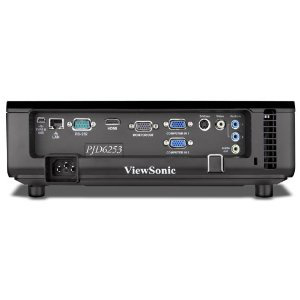

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| USB connector type | Mini-USB B |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| Certification | CB, UL, cUL, FCC (ICES-003), CE, UL-Argentina, NOM, TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE, RoHS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Desktop, Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1800 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 294 mm |
| Depth | 242 mm |
| Height | 84 mm |
| Package weight | 4.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | VGA |
Other features
| Specification | Value |
|---|---|
| Aspect ratio | 4:3, 16:9 |
| Package dimensions (WxDxH) | 380 x 192 x 345 mm |
| Connectivity technology | Wired |
| Maximum operating altitude | 3048 m |
| Network ready | Yes |
| RS-232 ports | 1 |
| Resolution | 1024 x 768 pixels |
