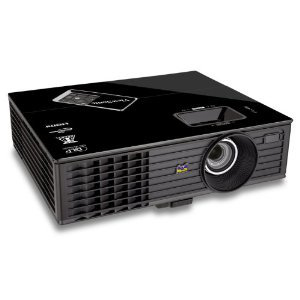

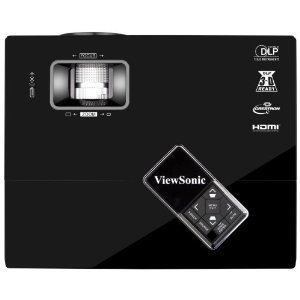

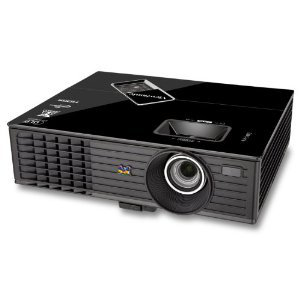

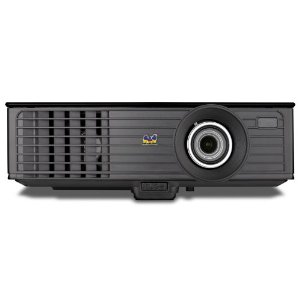

Viewsonic PJD6223 data projector 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Viewsonic PJD6223 data projector 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Model PJD6223EAN 033584153329

70 specifications
  • ConnectivityWired
  • Noise32 dB
  • Weight2.6 kg
  • ColourBlack
  • Projector brightness2700 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Connectivity
Wired
Noise
32 dB
Weight
2.6 kg
Colour
Black
Projector brightness
2700 ANSI lumens
Light source type
Lamp
Brand
Viewsonic
Model
PJD6223
Part number
PJD6223
EAN / UPC
033584153329, 115971220538, 766907567113
Also known as
Viewsonic PJD6223 data projector 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Specifications

70 specifications in 15 groups

Projector

Projector brightness2700 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.5 - 11.4 m
Number of colours1.073 billion colours
Horizontal scan range31 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, vertical-40 - 40°
Matrix size1.4 cm (0.55")

Light source

Light source typeLamp
Service life of light source4500 h
Service life of light source (economic mode)6000 h
Lamp power180 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Throw ratio1.86 - 2.04:1

Video

Analog signal format systemNTSC 3.58, NTSC 4.43, NTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HDNo
3DYes
3D ReadyYes
Supported graphics resolutions1600 x 1200 (UXGA), 640 x 480 (VGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

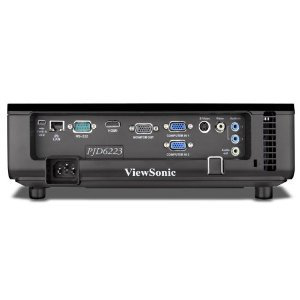

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
PC Audio inYes
USB connector typeMini-USB B
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level32 dB
Noise level (economic mode)27 dB
CertificationCB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE, RoHS

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power10 W

Design

Market positioningPresentation
Product colourBlack
PlacementCeiling

Power

Power consumption (typical)250 W
Power consumption (standby)1 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 1080 m

Weight & dimensions

Weight2.6 kg
Package weight4.1 kg

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedVGA

Other features

Aspect ratio4:3, 16:9
Package dimensions (WxDxH)380 x 192 x 345 mm
Connectivity technologyWired
Dimensions (WxDxH)294 x 242 x 84 mm
Maximum analog resolution1600 x 1200 pixels
Maximum digital resolution1920 x 1080 pixels
Maximum operating altitude3048 m
Network readyYes
Resolution1024 x 768 pixels
