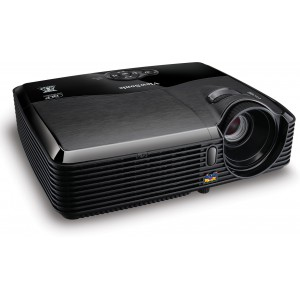

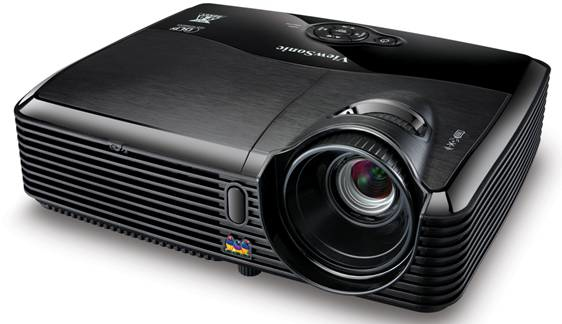

Viewsonic PJD5523W data projector 2700 ANSI lumens DLP WXGA (1280x800) Black

Viewsonic PJD5523W data projector 2700 ANSI lumens DLP WXGA (1280x800) Black

Model PJD5523WEAN 766907526714

77 specifications
  • ConnectivityHDMI
  • Noise32 dB
  • Weight2.6 kg
  • ColourBlack
  • Projector brightness2700 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Connectivity
HDMI
Noise
32 dB
Weight
2.6 kg
Colour
Black
Projector brightness
2700 ANSI lumens
Light source type
Lamp
Brand
Viewsonic
Model
PJD5523W
Part number
PJD5523W
EAN / UPC
766907526714
Also known as
Viewsonic PJD5523W data projector 2700 ANSI lumens DLP WXGA (1280x800) Black

Specifications

77 specifications in 17 groups

Projector

Projector brightness2700 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Contrast ratio (typical)2000:1
Native aspect ratio16:10
Supported aspect ratios4:3, 16:9
Screen size compatibility685.8 - 7620 mm (27 - 300")
Projection distance1.4 - 8 m
Number of colours16.78 million colours
Horizontal scan range31 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, horizontal±40°

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp power180 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Zoom ratio1.2:1

Video

Analog signal format systemNTSC 4.43, NTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1
Full HDNo
HD-ReadyYes
3DNo
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.3
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity0
Audio (L/R) in1
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level32 dB
Noise level (economic mode)30 dB
CertificationCB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr, ErP, SVHC list & REACH DoC, UL, FCC (including ICES-003), cUL/CSA, Argen, NOM

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power1 W

Design

Market positioningPresentation
Product colourBlack
Cable lock slotNo
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)235 W
Power consumption (standby)1 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%

Weight & dimensions

Weight2.6 kg
Width284 mm
Depth234 mm
Height82 mm
Package weight3.4 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA

Technical details

Compliance certificatesRoHS

Other features

Aspect ratio16:10
Package dimensions (WxDxH)330 x 140 x 330 mm
Audio input1
Audio output1
Dimensions (WxDxH)284 x 234 x 82 mm
InterfaceHDMI
Power LEDYes
RS-232 ports1
Video inYes
Video outYes
