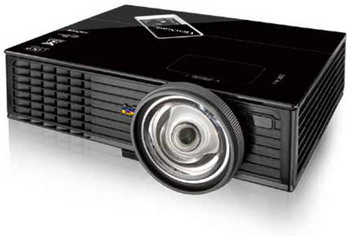

Viewsonic PJD5483s 3000 ANSI lumens LCD XGA (1024x768) Black

Viewsonic PJD5483s 3000 ANSI lumens LCD XGA (1024x768) Black

Model PJD5483sPart no. PJD5483SEAN 766907682410

56 specifications
  • Weight2.14 kg
  • ColourBlack
  • Projector brightness3000 ANSI lumens
  • Service life of light source3500 h
  • Throw ratio0.62:1
  • Full HDYes
See all specifications

Overview

Weight
2.14 kg
Colour
Black
Projector brightness
3000 ANSI lumens
Service life of light source
3500 h
Throw ratio
0.62:1
Full HD
Yes
Brand
Viewsonic
Model
PJD5483s
Part number
PJD5483S
EAN / UPC
766907682410
Also known as
Viewsonic PJD5483s 3000 ANSI lumens LCD XGA (1024x768) Black

Specifications

56 specifications in 17 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)15000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 16:9
Screen size compatibility1016 - 7620 mm (40 - 300")
Projection distance0.5 - 4 m
Horizontal scan range31 - 100 kHz
Vertical scan range48 - 120 Hz
Keystone correction, vertical-40 - 40°

Light source

Service life of light source3500 h
Service life of light source (economic mode)7000 h
Lamp typeOSRAM

Lens system

Throw ratio0.62:1

Video

Analog signal format systemNTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HDYes
3DNo
Supported video modes1080i, 1080p, 480i, 480p, 540p, 576i, 720p

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in1
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Headphone outputs2
Microphone inYes
Serial interface typeRS-232

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

CertificationREACH, SVHC, WEEE, ErP

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power4 W

Design

Market positioningPresentation
Product colourBlack

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)315 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 1800 m

Weight & dimensions

Weight2.14 kg
Width294 mm
Depth202 mm
Height95 mm

Packaging content

Remote control includedYes
Cables includedAC, VGA
ManualYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
