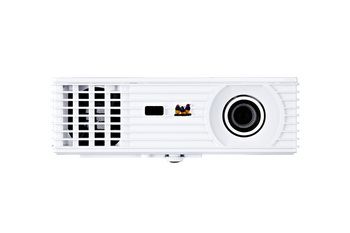

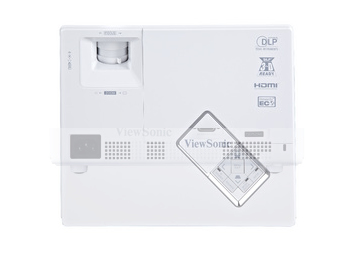

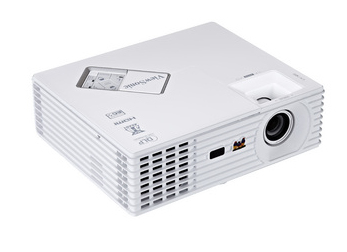

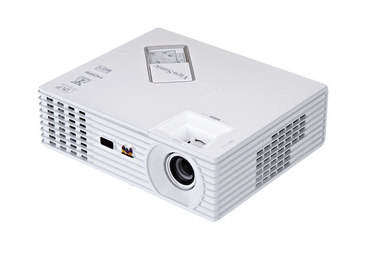

Viewsonic PJD5234L data projector Standard throw projector 2800 ANSI lumens DLP XGA (1024x768) 3D White

Viewsonic PJD5234L data projector Standard throw projector 2800 ANSI lumens DLP XGA (1024x768) 3D White

Model PJD5234LEAN 7887117199284

65 specifications
  • TypeStandard throw projector
  • Weight2.1 kg
  • ColourWhite
  • Projector brightness2800 ANSI lumens
  • Service life of light source4500 h
  • Zoom ratio1.1:1
See all specifications

Overview

Type
Standard throw projector
Weight
2.1 kg
Colour
White
Projector brightness
2800 ANSI lumens
Service life of light source
4500 h
Zoom ratio
1.1:1
Brand
Viewsonic
Model
PJD5234L
Part number
PJD5234L
EAN / UPC
7887117199284, 041114169221, 132018331279, 766907664218 +4 more
Also known as
Viewsonic PJD5234L data projector Standard throw projector 2800 ANSI lumens DLP XGA (1024x768) 3D White

Specifications

65 specifications in 16 groups

Projector

Projector brightness2800 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)15000:1
Native aspect ratio4:3
Supported aspect ratios4:3
Screen size compatibility609.6 - 5384.8 mm (24 - 212")
Projection distance1 - 8 m
Horizontal scan range31 - 100 kHz
Vertical scan range48 - 120 Hz
Keystone correction, vertical-40 - 40°

Light source

Service life of light source4500 h
Service life of light source (economic mode)6000 h

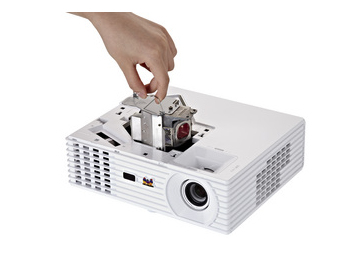

Lamps quantity1 lamp(s)

Lens system

Zoom ratio1.1:1
Throw ratio1.86 - 2.04:1

Video

Analog signal format systemNTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HDNo
3DYes
3D ReadyYes
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

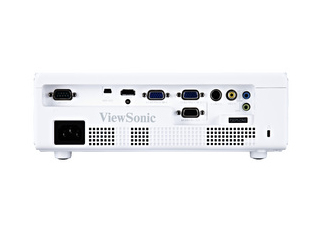

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
HDMI version1.4
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Headphone outputs1
Serial interface typeRS-232
USB connector typeUSB Type-B
CardBus PCMCIA slot typeNo

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo
BluetoothNo

Storage

Card reader integratedNo

Features

On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Portuguese, Russian, Swedish, Turkish
CertificationCB, UL, cUL, FCC, CE, UL-Argentina, NOM, TUV-GS, GOST-R, SASO, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power4 W

Design

Product typeStandard throw projector
Market positioningPresentation
Product colourWhite
PlacementDesktop

Power

Power sourceAC
Power consumption (typical)250 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 1828.8 m

Weight & dimensions

Weight2.1 kg
Width268 mm
Depth221 mm
Height84.4 mm

Packaging content

Remote control includedYes
Batteries includedYes
Cables includedVGA
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
