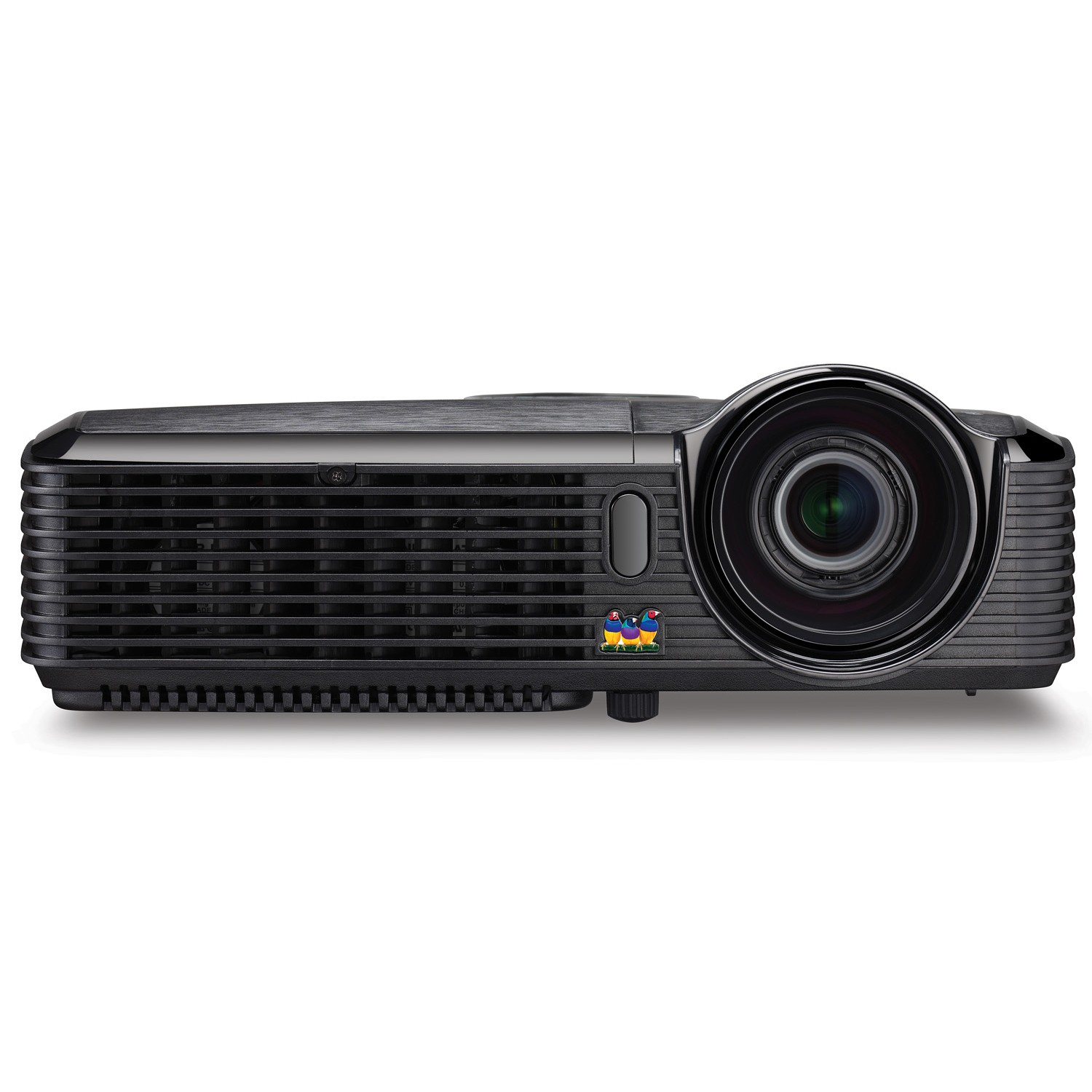

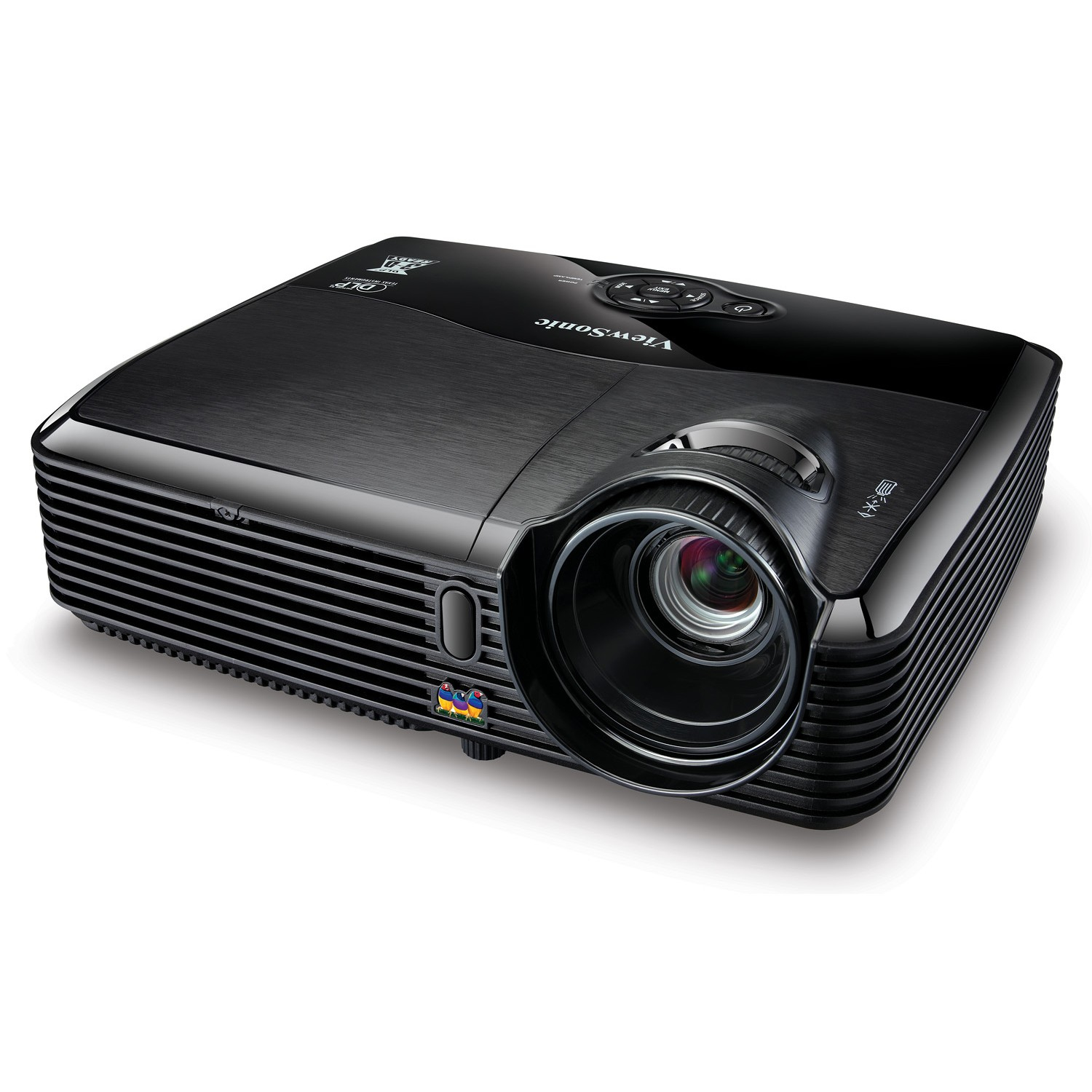

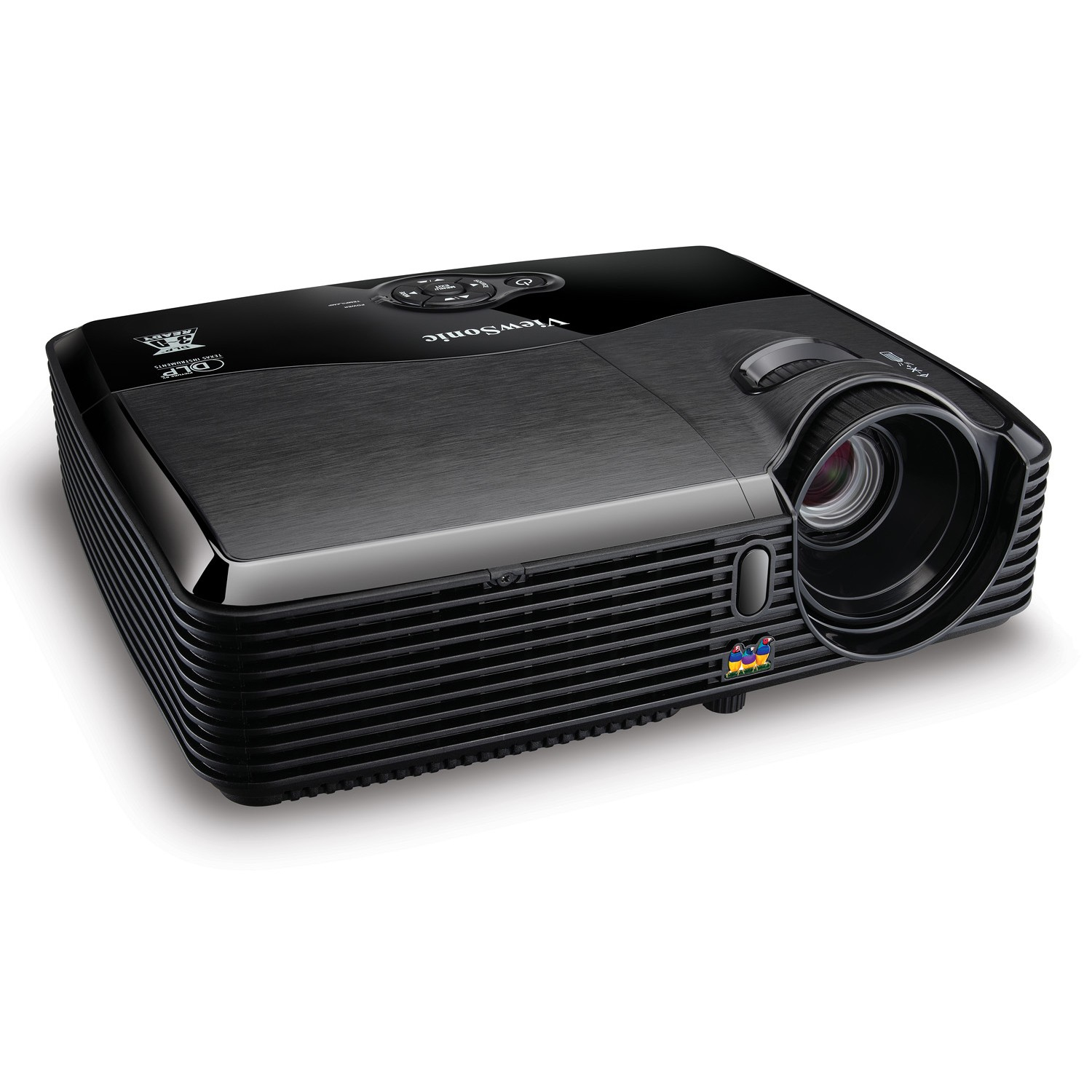

Viewsonic PJD5233 data projector Standard throw projector 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Viewsonic PJD5233 data projector Standard throw projector 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Model PJD5233EAN 766907556919

79 specifications
  • ConnectivityWired
  • Noise32 dB
  • TypeStandard throw projector
  • Weight2.6 kg
  • ColourBlack
  • Projector brightness2700 ANSI lumens
See all specifications

Overview

Connectivity
Wired
Noise
32 dB
Type
Standard throw projector
Weight
2.6 kg
Colour
Black
Projector brightness
2700 ANSI lumens
Brand
Viewsonic
Model
PJD5233
Part number
PJD5233
EAN / UPC
766907556919, 778889287361
Also known as
Viewsonic PJD5233 data projector Standard throw projector 2700 ANSI lumens DLP XGA (1024x768) 3D Black

Specifications

79 specifications in 17 groups

Projector

Projector brightness2700 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)2000:1
Native aspect ratio4:3
Supported aspect ratios4:3, 16:9, 16:10
Screen size compatibility685.8 - 7620 mm (27 - 300")
Projection distance1.2 - 10 m
Number of colours16.78 million colours
Horizontal scan range31 - 100 kHz
Vertical scan range50 - 120 Hz
Keystone correction, vertical± 40°
Matrix size1.4 cm (0.55")

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)6000 h
Lamp power180 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Optical zoom1.1x

Video

Analog signal format systemNTSC 3.58, NTSC 4.43, NTSC M, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L
Full HDNo
3DYes
Supported graphics resolutions1024 x 768 (XGA)
Supported video modes1080i, 1080p, 480i, 480p, 576i, 576p, 720p

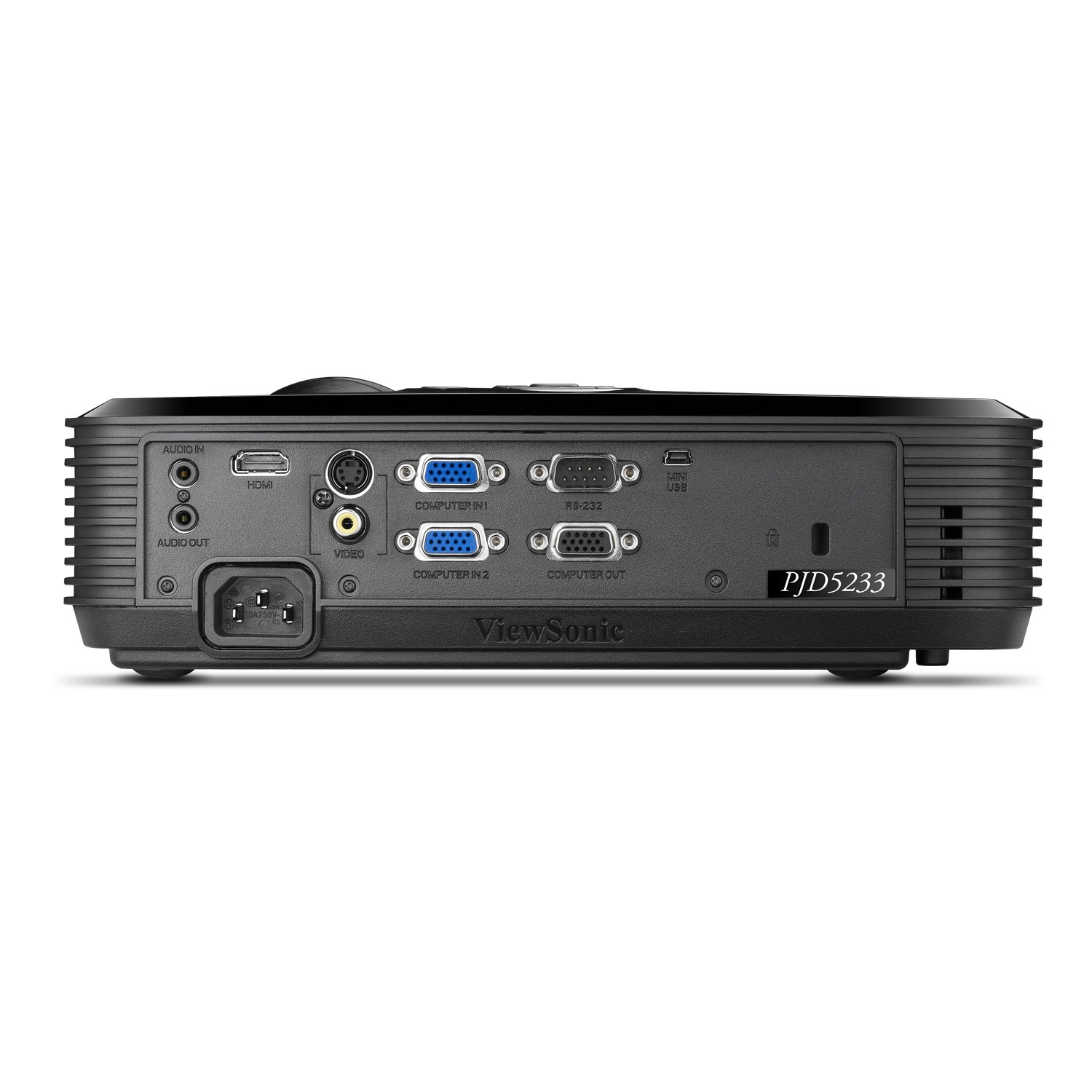

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
Component video (YPbPr/YCbCr) in2
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
USB connector typeUSB Type-B
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

Noise level32 dB
Noise level (economic mode)30 dB
HDCPNo

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers1
RMS rated power2 W

Design

Product typeStandard throw projector
Market positioningPresentation
Product colourBlack
LED indicatorsYes

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)235 W
Power consumption (standby)0.1 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Storage temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%

Weight & dimensions

Weight2.6 kg
Width284 mm
Depth234 mm
Height82 mm
Package weight3.4 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
Bundled softwareCB, CCC, PSB,C-tick, KC, SASO, CE, GOST-R, Ukr, ErP, SVHC list & REACH DoC, UL, FCC

Technical details

Compliance certificatesRoHS

Other features

Aspect ratio16:10
Package dimensions (WxDxH)330 x 140 x 330 mm
Audio input1
Audio output1
CompatibilityPC, Mac
Connectivity technologyWired
Dimensions (WxDxH)284 x 234 x 82 mm
InterfaceUSB
Power LEDYes
RS-232 ports1
