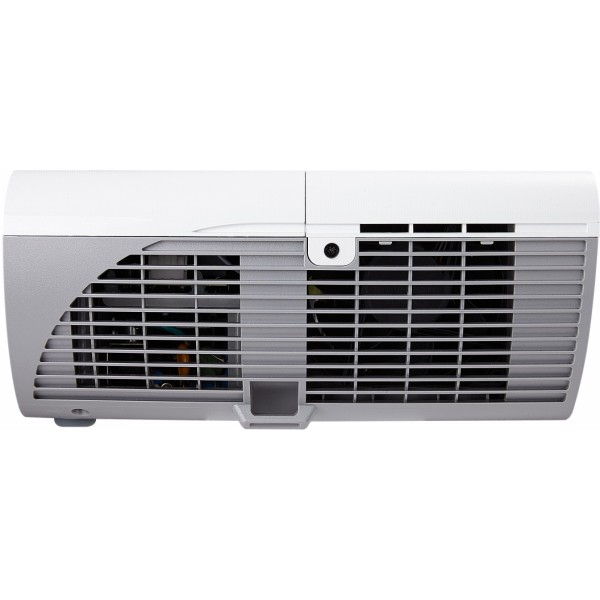

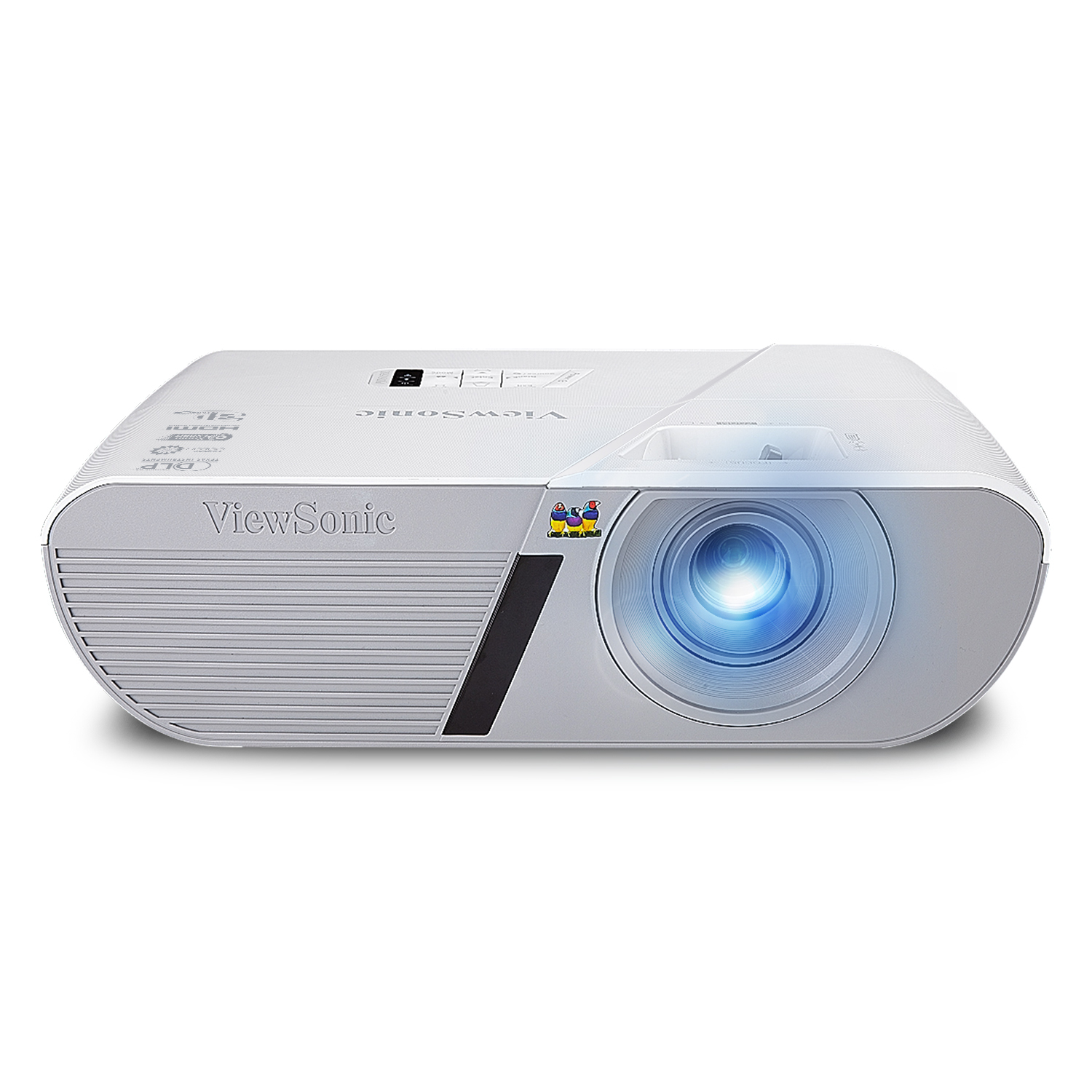

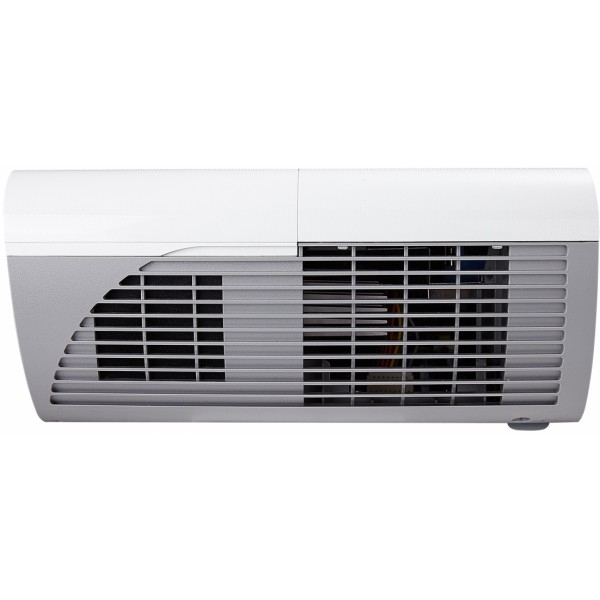

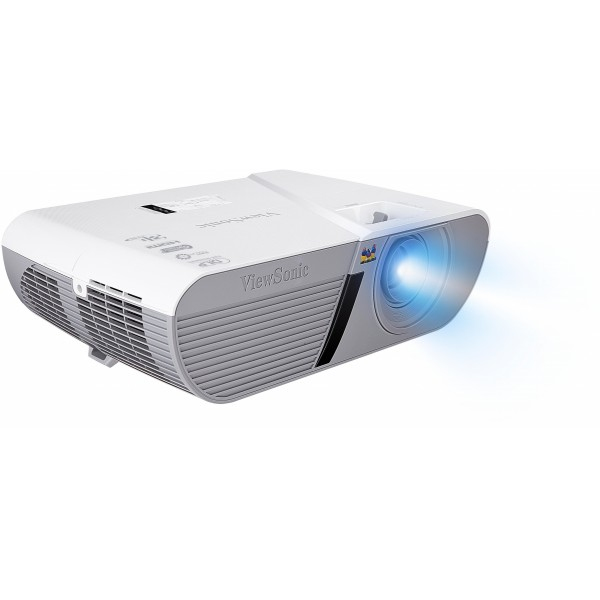

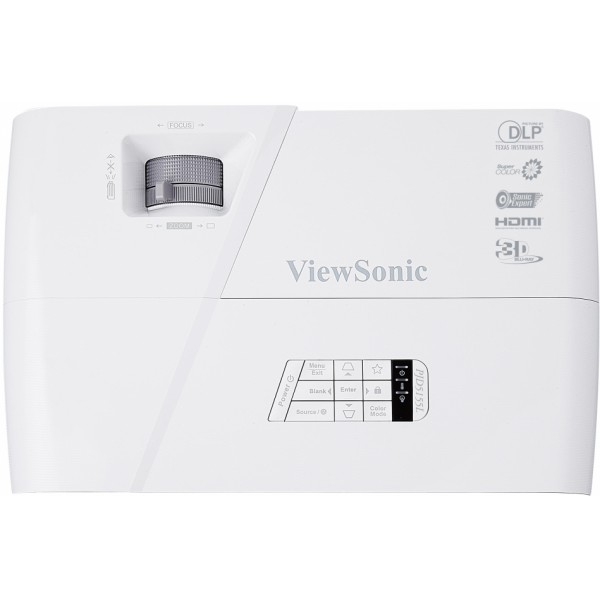

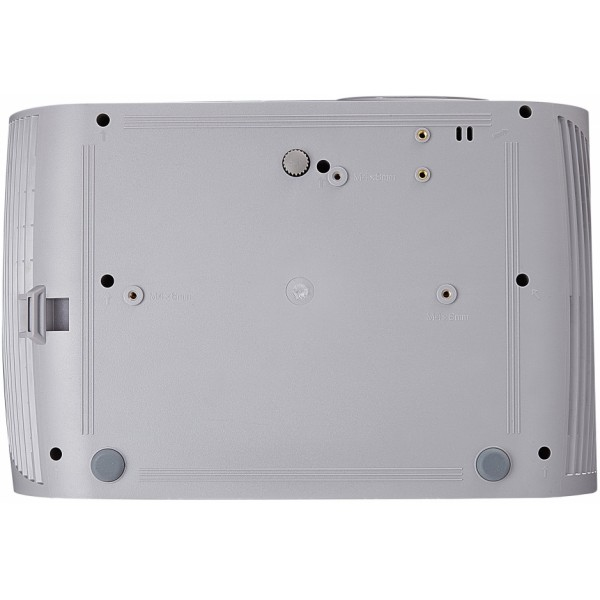

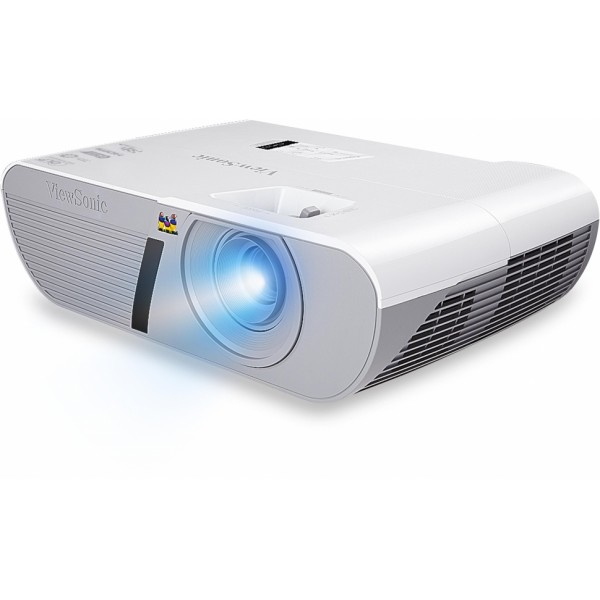

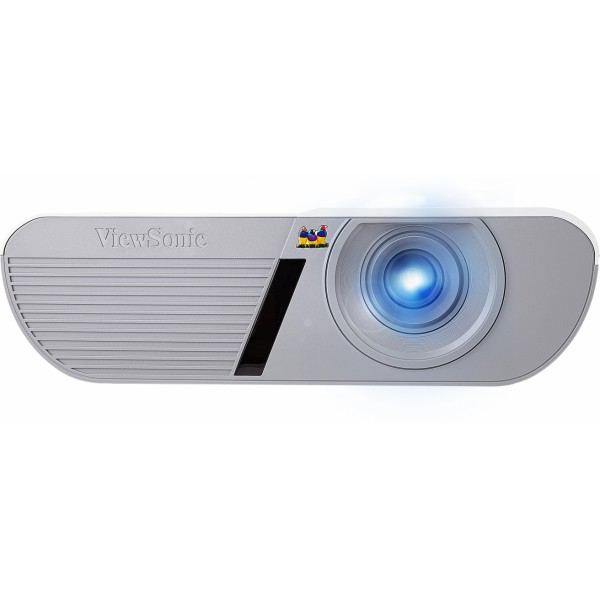

Viewsonic PJD5155L data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) 3D Grey, White
Model PJD5155LEAN 799916381630
78 specifications
- Noise32 dB
- TypeStandard throw projector
- Weight2.4 kg
- ColourGrey, White
- Projector brightness3300 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 32 dB
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- Grey, White
- Projector brightness
- 3300 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PJD5155L
- Part number
- PJD5155L
- EAN / UPC
- 799916381630
- Also known as
- Viewsonic PJD5155L data projector Standard throw projector 3300 ANSI lumens DLP SVGA (800x600) 3D Grey, White
Specifications
78 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3300 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Contrast ratio (dynamic) | 20000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 10000 h |
| Service life of light source (economic mode) | 6000 h |
| Lamp power | 200 W |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 2x |
| Optical zoom | 1.1x |
| Throw ratio | 1.95 - 2.15:1 |
| Offset | 130% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM B, SECAM D, SECAM G, SECAM L |
| Full HD | No |
| 3D | Yes |
| Supported video modes | 1080i, 1080p, 480i, 480p, 576i, 576p, 720p |
| Video processing | 30 bit |

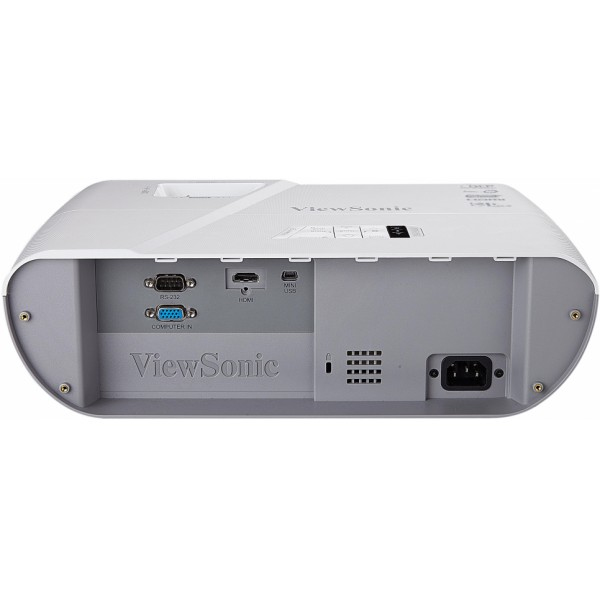

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| USB connector type | Mini-USB B |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 32 dB |
| Noise level (economic mode) | 28 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Password protection | Yes |
| Certification | CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, TUV-GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CECP, CCC, WEEE, RoHS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | Grey, White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 265 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 362 mm |
| Depth | 231 mm |
| Height | 109 mm |
| Package width | 465 mm |
| Package depth | 165 mm |
| Package height | 315 mm |
| Package weight | 3.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| 3D glasses included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
