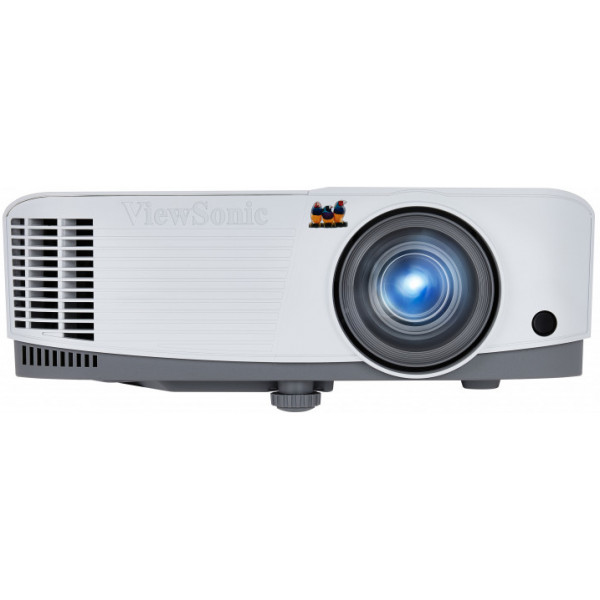

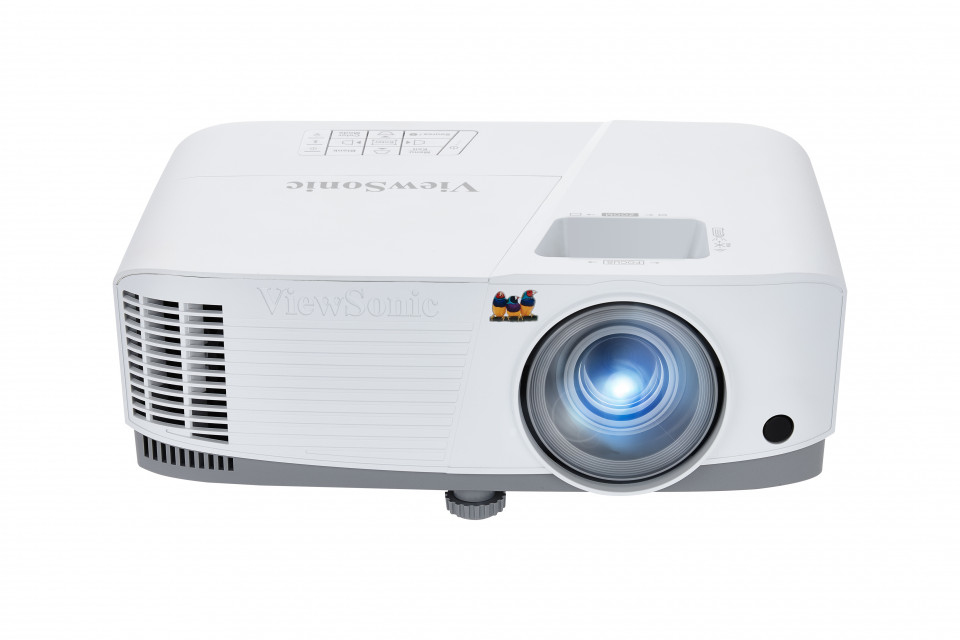

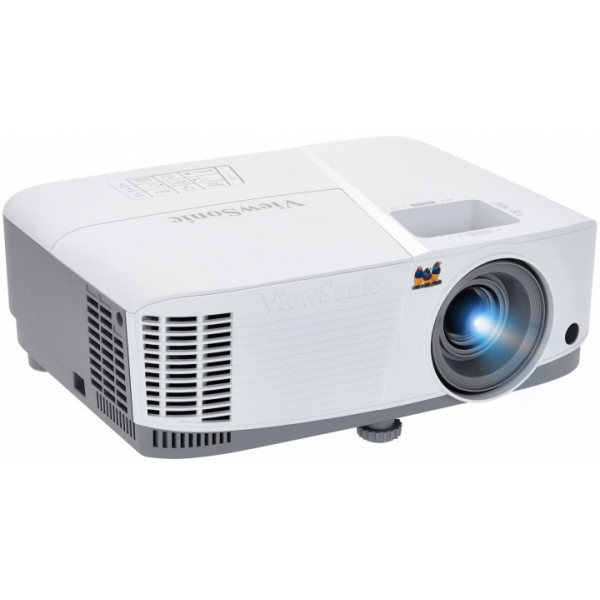

Viewsonic PG707X data projector Standard throw projector 4000 ANSI lumens DMD XGA (1024x768) White
Viewsonic

PG707X data projector Standard throw projector 4000 ANSI lumens DMD XGA (1024x768) White

Model PG707XEAN 766907006193

82 specifications
  • Noise32 dB
  • TypeStandard throw projector
  • Weight2.35 kg
  • ColourWhite
  • Projector brightness4000 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
32 dB
Type
Standard throw projector
Weight
2.35 kg
Colour
White
Projector brightness
4000 ANSI lumens
Light source type
Lamp
Brand
Viewsonic
Model
PG707X
Part number
PG707X
EAN / UPC
766907006193
Also known as
Viewsonic PG707X data projector Standard throw projector 4000 ANSI lumens DMD XGA (1024x768) White

Specifications

82 specifications in 16 groups

Projector

Projector brightness4000 ANSI lumens
Projection technologyDMD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)22000:1
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.9 - 12 m
Number of colours1.07 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, horizontal-40 - 40°
Keystone correction, vertical-40 - 40°
Matrix size1.4 cm (0.55")

Light source

Light source typeLamp
Service life of light source6000 h
Service life of light source (economic mode)20000 h
Lamp power203 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Focal length range16.88 - 21.88 mm
Aperture range (F-F)2.59 - 2.87
Zoom capabilityYes
Zoom ratio2.0:1
Throw ratio1.51-1.97
Offset115%

Video

Analog signal format systemNTSC, PAL, SECAM
Supported graphics resolutions640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p

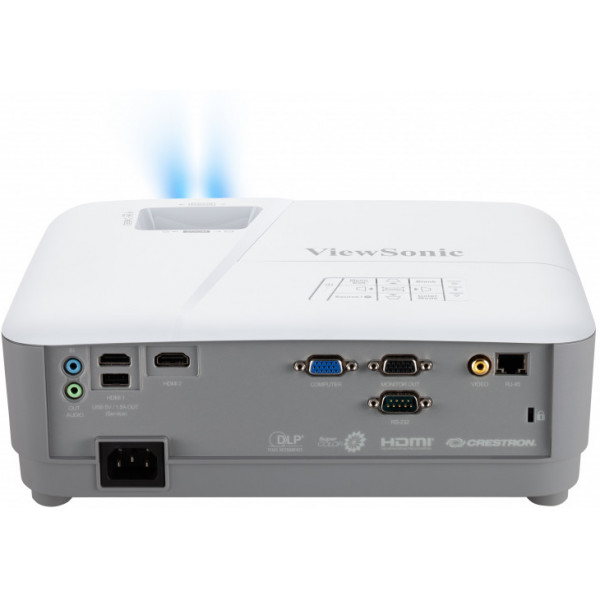

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity2
HDMI connector typeFull-size
HDMI version1.4
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
AC (power) inYes

Network

Smart TVNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

InteractiveNo
Noise level32 dB
Noise level (economic mode)28 dB
HDCPYes
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesArabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages23

Multimedia

Built-in speaker(s)Yes
RMS rated power10 W

Design

Product typeStandard throw projector
Market positioningPresentation
Product colourWhite
PlacementDesktop, Ceiling

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)280 W
Power consumption (standby)0.5 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight2.35 kg
Width294 mm
Depth218 mm
Height110 mm
Package width415 mm
Package depth168 mm
Package height297 mm
Package weight3.56 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
ManualYes

Logistics data

Harmonized System (HS) code8528620000
Pallet gross height2.2 m
Pallet gross length83.4 cm
Pallet gross width100.8 cm
Products per master (outer) case1 pc(s)
