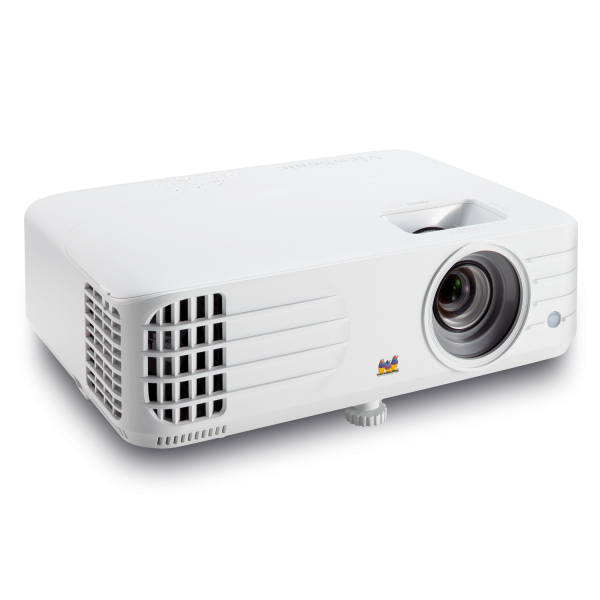

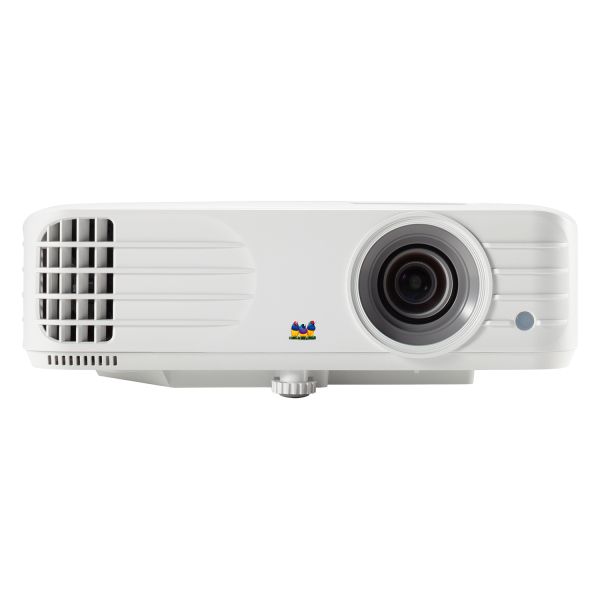

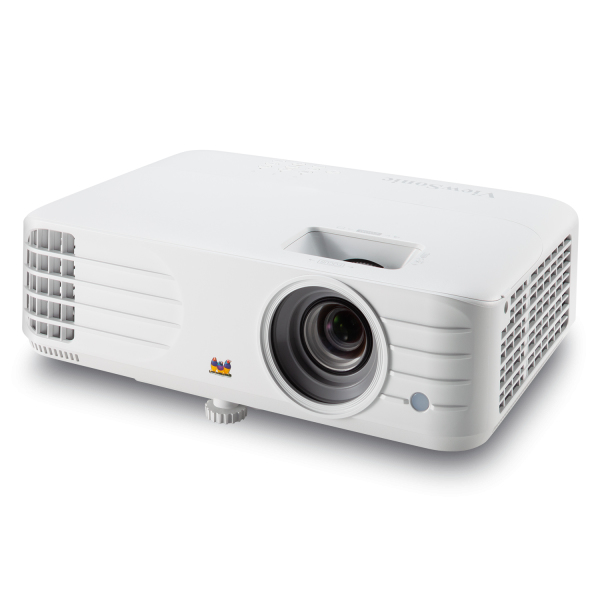

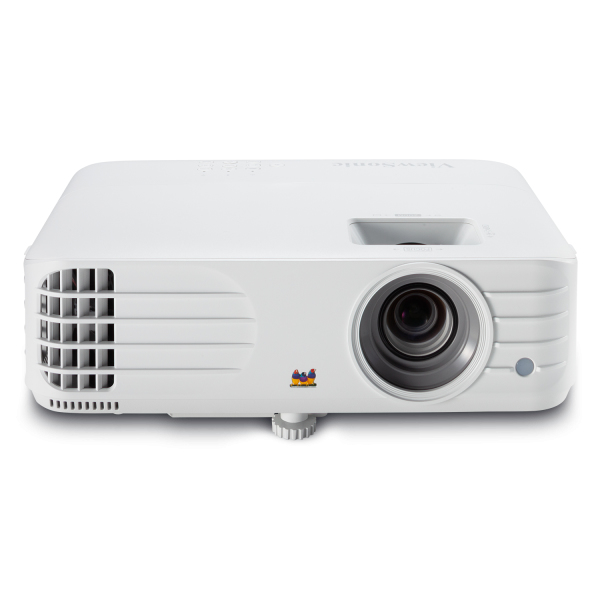

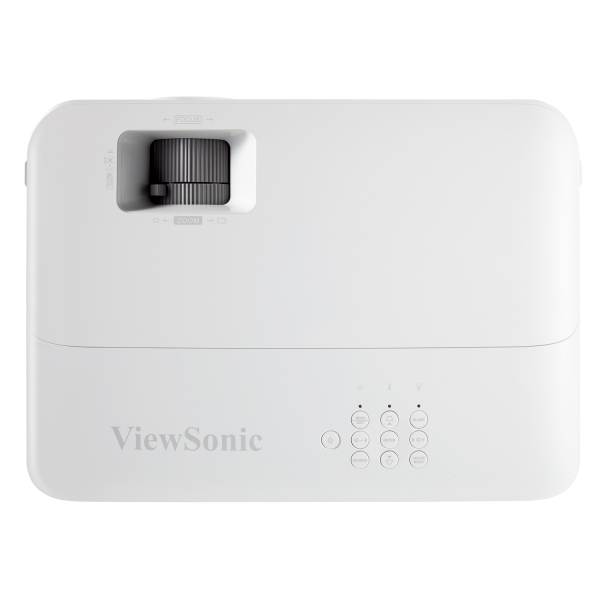

PG706WU data projector Standard throw projector 4000 ANSI lumens DLP WUXGA (1920x1200) 3D White
Model PG706WUEAN 766907001808
63 specifications
- TypeStandard throw projector
- Weight2.8 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Service life of light source4000 h
- Zoom capabilityYes
Overview
- Type
- Standard throw projector
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Service life of light source
- 4000 h
- Zoom capability
- Yes
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PG706WU
- Part number
- PG706WU
- EAN / UPC
- 766907001808
- Also known as
- Viewsonic PG706WU data projector Standard throw projector 4000 ANSI lumens DLP WUXGA (1920x1200) 3D White
Specifications
63 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1 - 11 m |
| Contrast ratio (dynamic) | 12000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 20000 h |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Throw ratio | 1.5 - 1.65 |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |

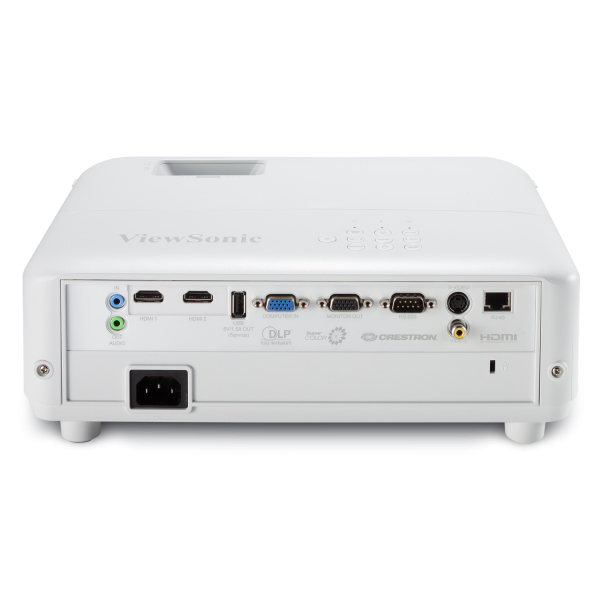

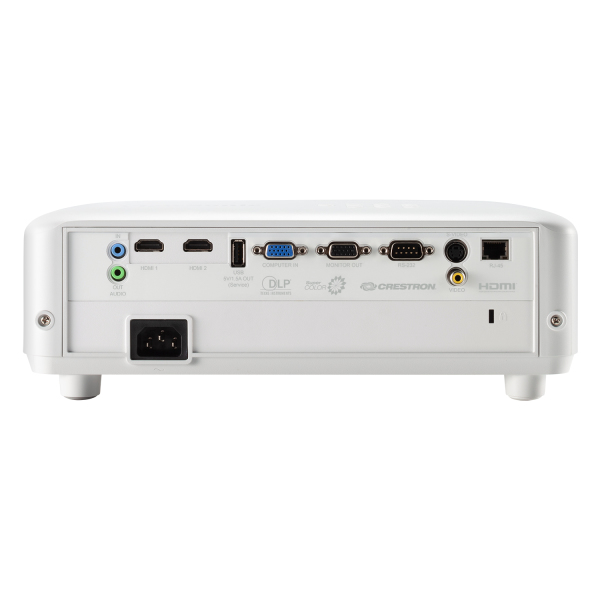

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Headphone outputs | 1 |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| Certification | FCC, cTUVus, ROHS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling, Floor |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 355 W |
| Power consumption (standby) | 0.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 312 mm |
| Depth | 222 mm |
| Height | 108 mm |
| Package width | 415 mm |
| Package depth | 168 mm |
| Package height | 297 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
