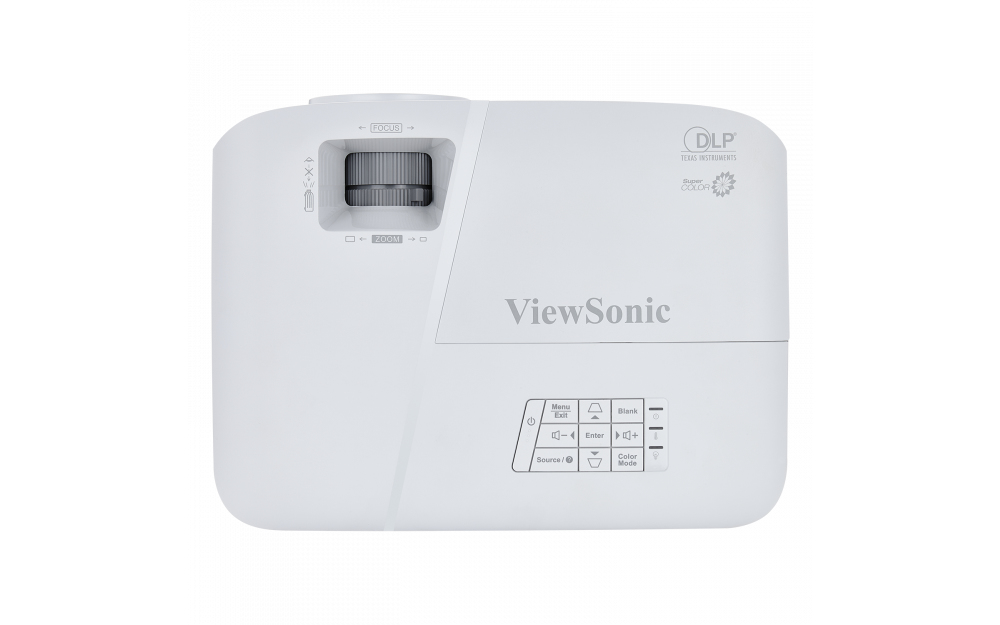

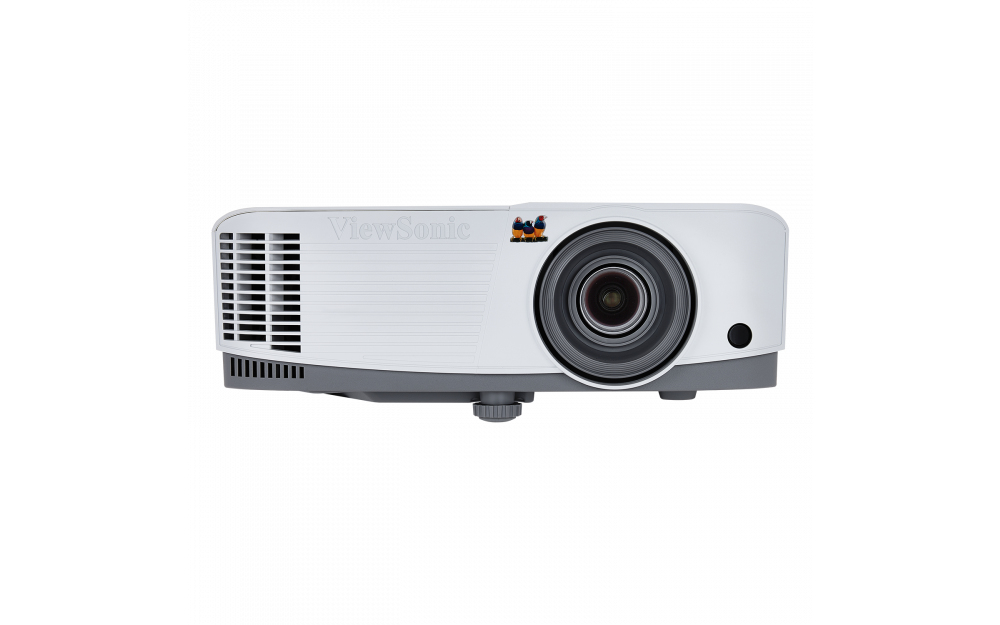

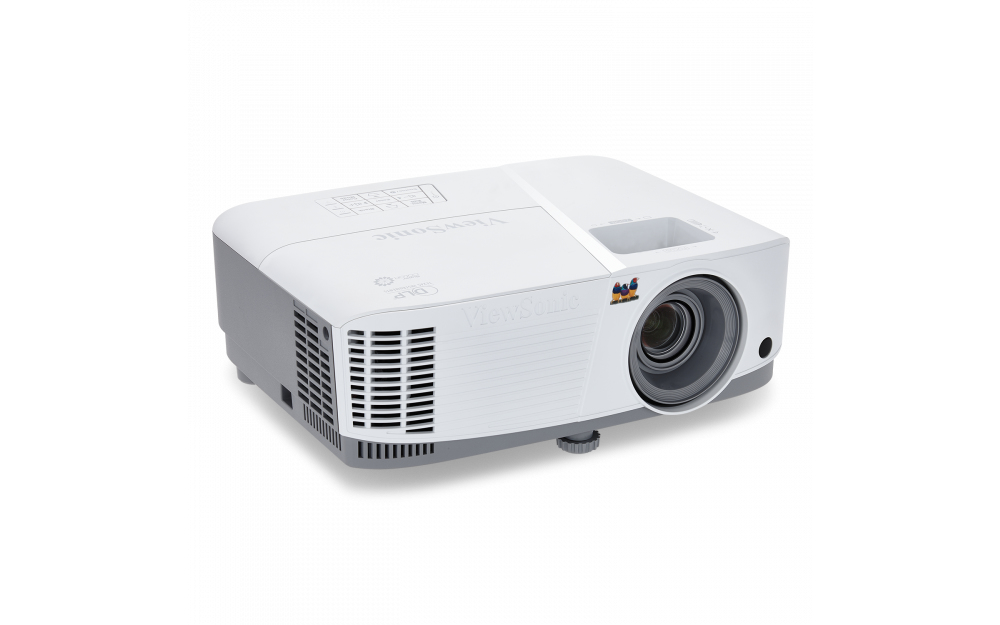

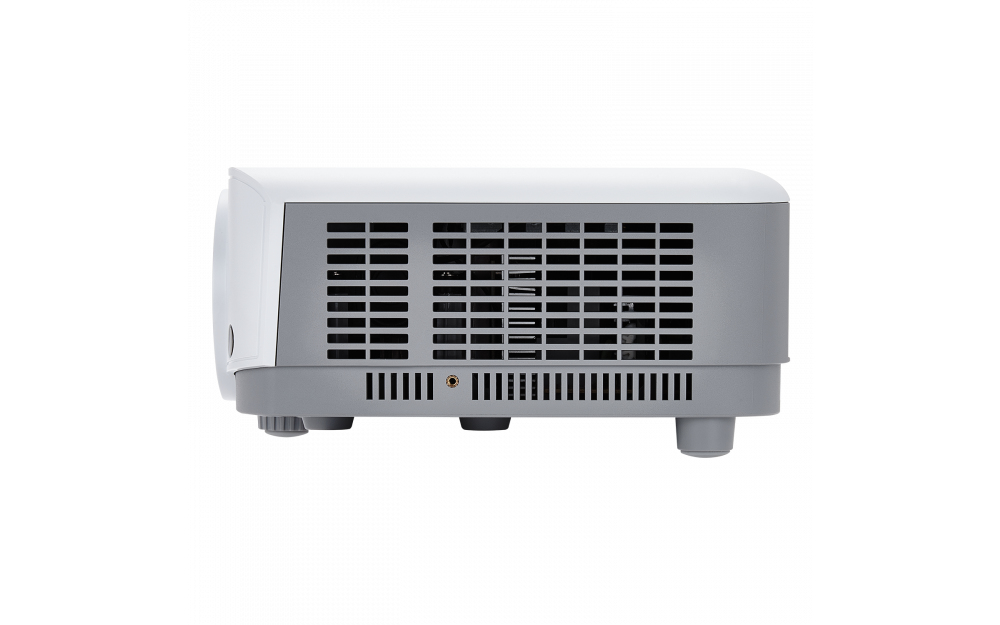

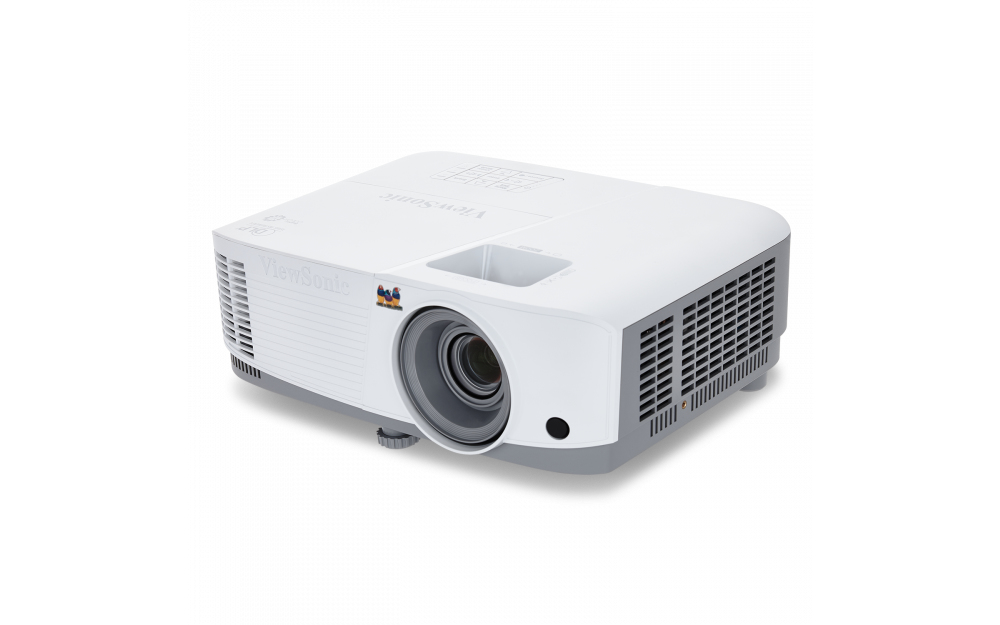

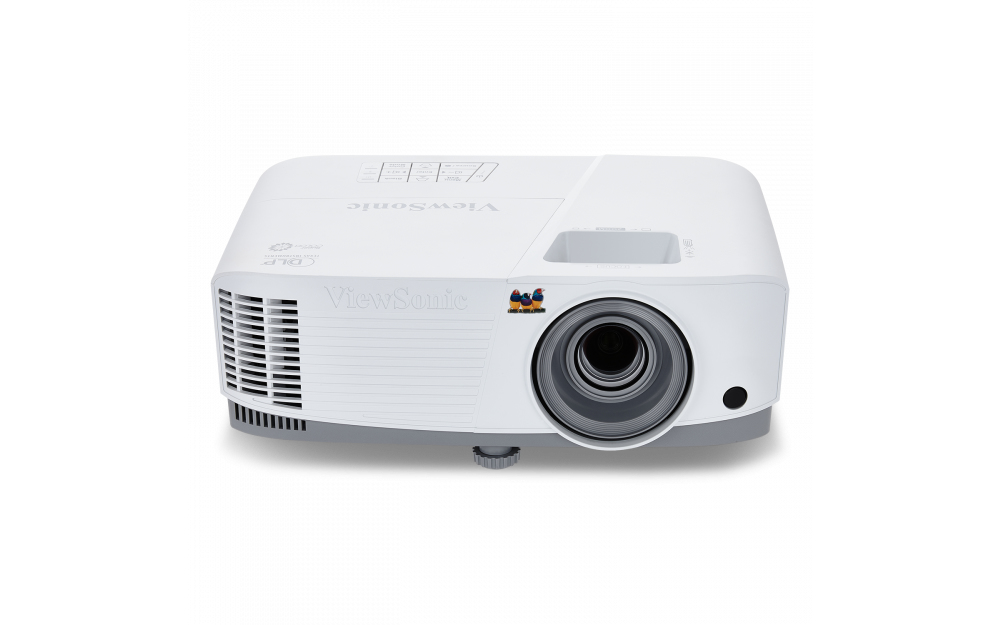

Viewsonic PG703W data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) Grey, White
Model PG703WEAN 766907916119
70 specifications
- TypeStandard throw projector
- Weight2.4 kg
- ColourGrey, White
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- Optical zoom1.1x
Overview
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- Grey, White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Optical zoom
- 1.1x
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PG703W
- Part number
- PG703W
- EAN / UPC
- 766907916119
- Also known as
- Viewsonic PG703W data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) Grey, White
Specifications
70 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1 - 10.98 m |
| Contrast ratio (dynamic) | 22000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 1.1x |
| Throw ratio | 1.55 - 1.7:1 |
Video
| Specification | Value |
|---|---|
| 3D | No |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |

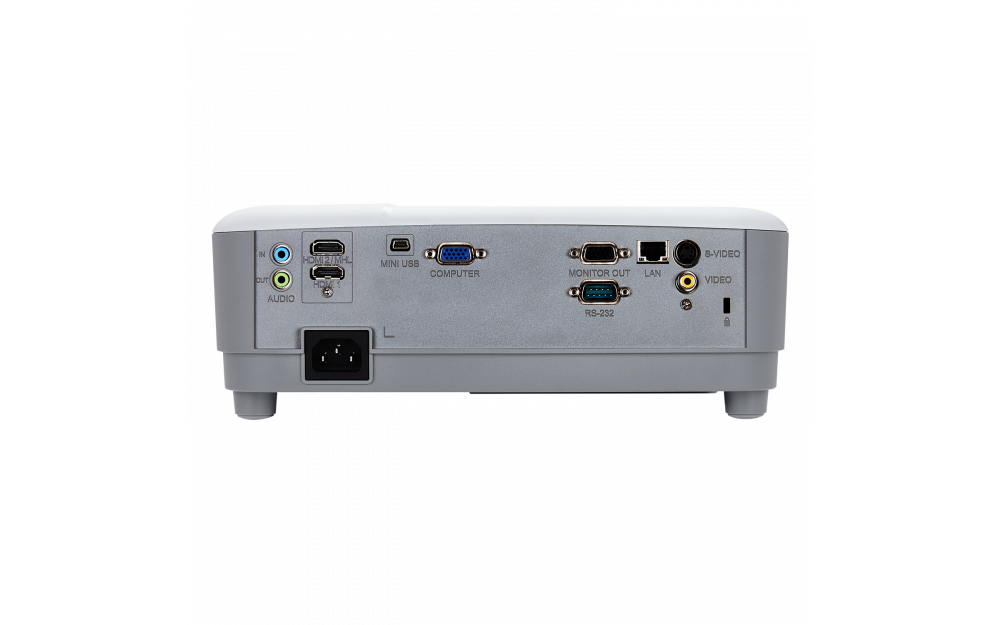

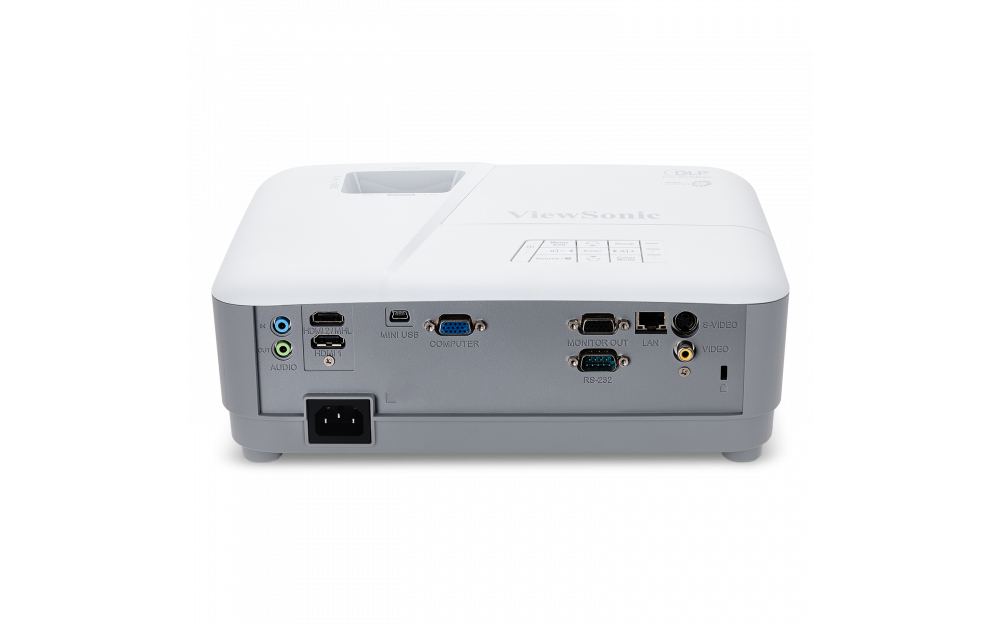

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Remote (IR) output | 1 |
| Mobile High-Definition Link (MHL) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Grey, White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 350 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Software
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 1499 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 294 mm |
| Depth | 110 mm |
| Height | 218 mm |
| Package width | 365 mm |
| Package depth | 188 mm |
| Package height | 300 mm |
| Package weight | 3.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
