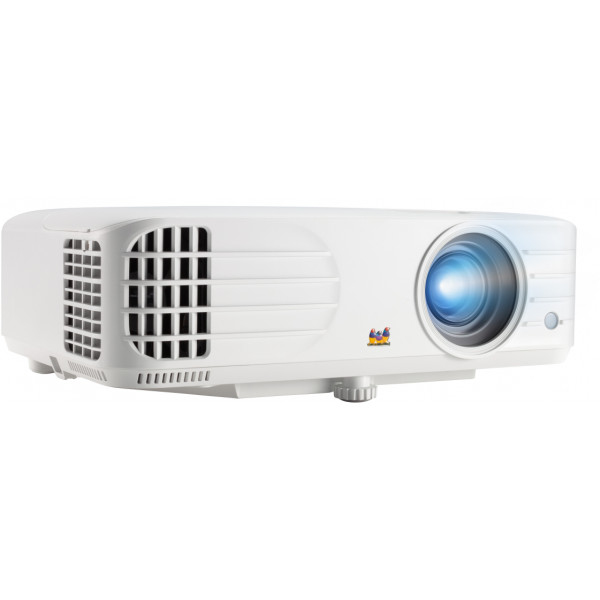

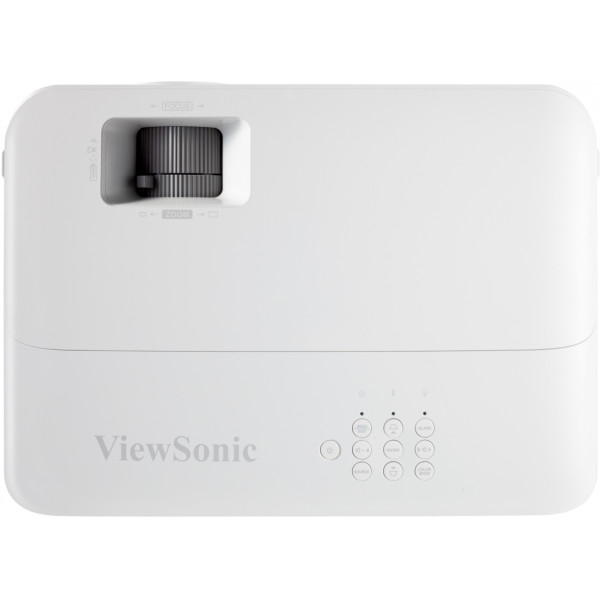

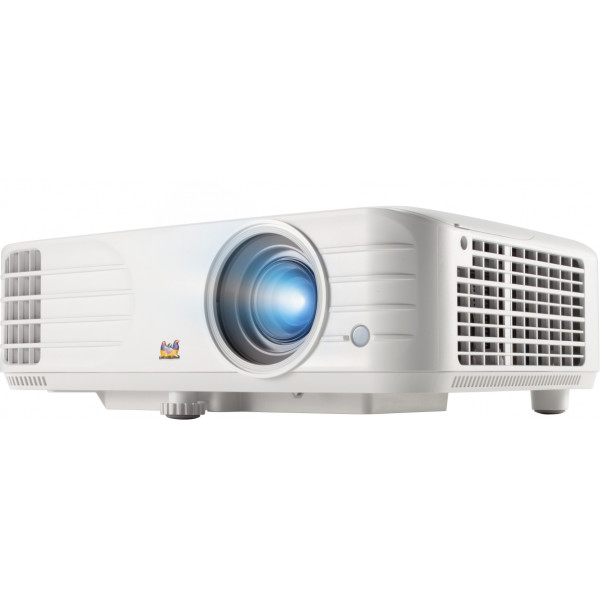

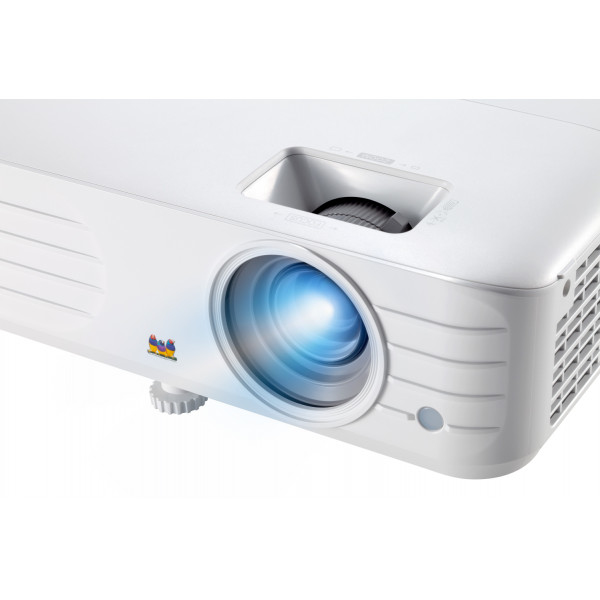

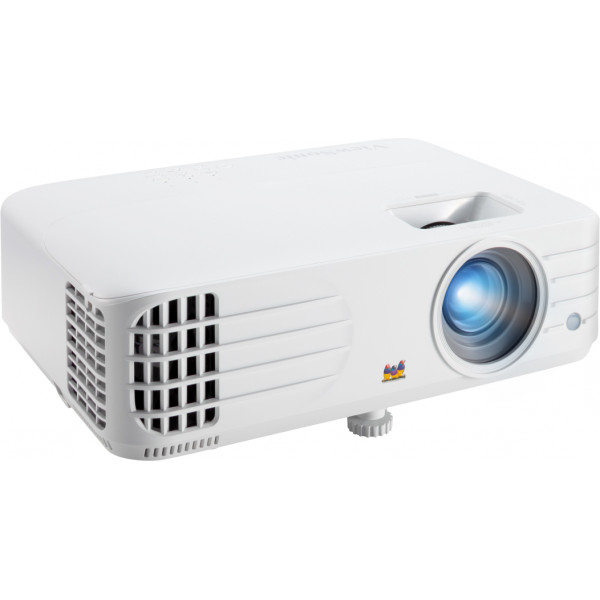

PG701WU data projector Standard throw projector 3500 ANSI lumens DMD WUXGA (1920x1200) White
Model PG701WUEAN 766907001747
74 specifications
- Noise31 dB
- TypeStandard throw projector
- Weight2.57 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 31 dB
- Type
- Standard throw projector
- Weight
- 2.57 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PG701WU
- Part number
- PG701WU
- EAN / UPC
- 766907001747
- Also known as
- Viewsonic PG701WU data projector Standard throw projector 3500 ANSI lumens DMD WUXGA (1920x1200) White
Specifications
74 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 12000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.97 - 10.67 m |
| Contrast ratio (dynamic) | 12000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 120 kHz |
| Vertical scan range | 23 - 120 Hz |
| Horizontal synchronization (max) | 120 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.023 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamp power | 230 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Focal length range | 5.843 - 17.445 mm |
| Aperture range (F-F) | 2 - 2.05 |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Zoom ratio | 1.1:1 |
| Digital zoom | 2x |
| Optical zoom | 1.1x |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| HD-Ready | Yes |
| Supported video modes | 480i, 480p, 525i, 540p, 576i, 576p, 720p, 1080i, 1080p |

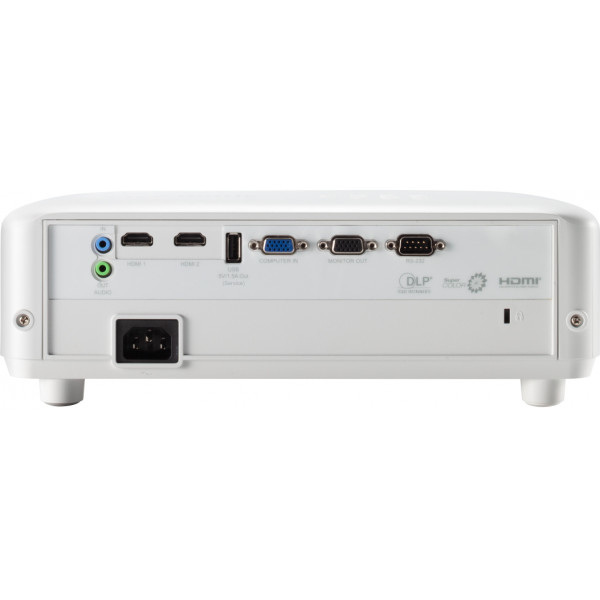

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| Projection modes | Front |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, INC, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.57 kg |
| Width | 312 mm |
| Depth | 222 mm |
| Height | 108 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
Other features
| Specification | Value |
|---|---|
| Light source | RLC-119 |
