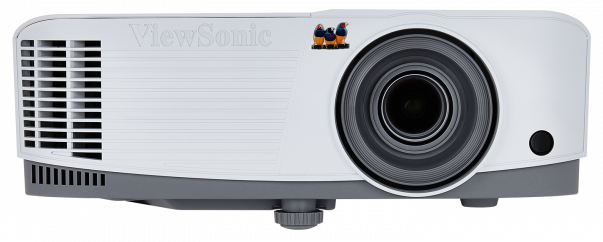

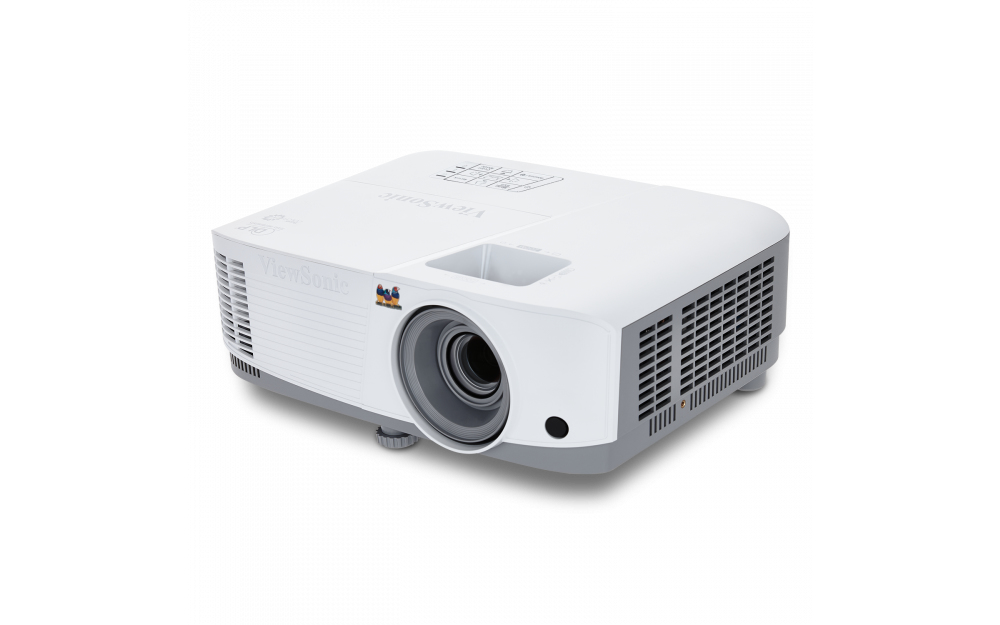

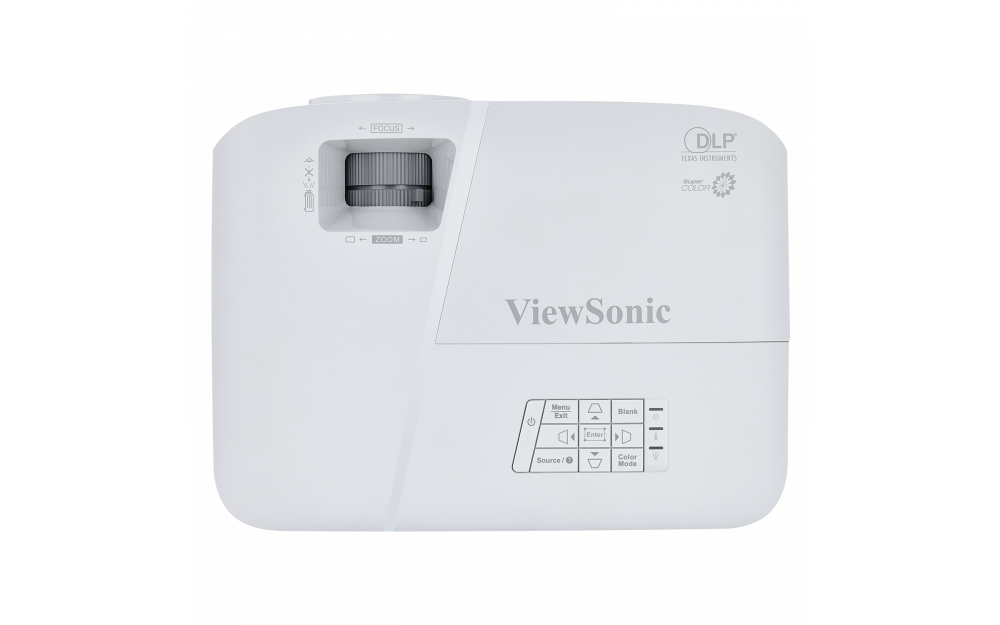

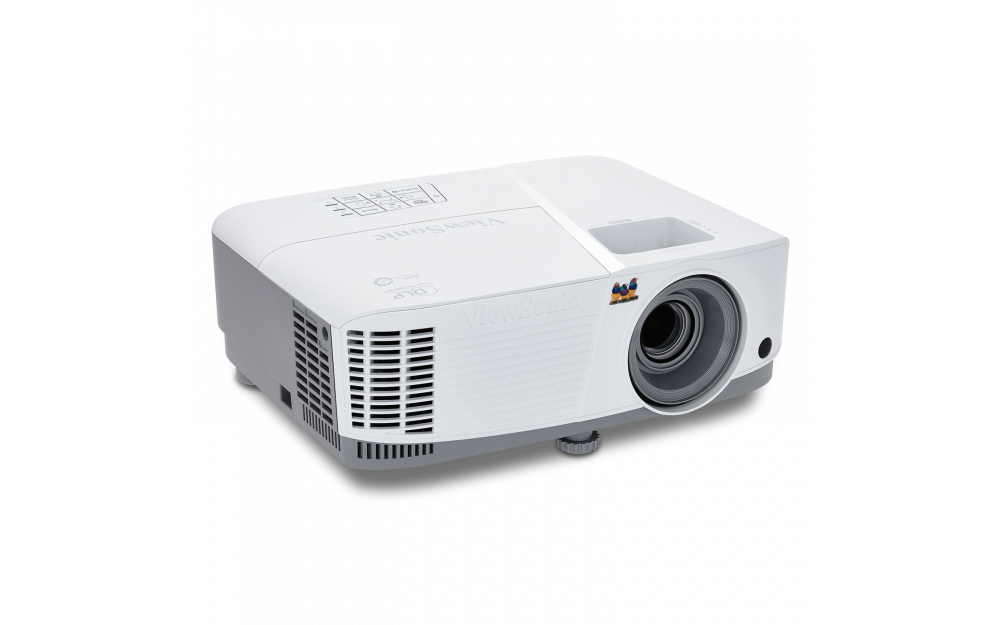

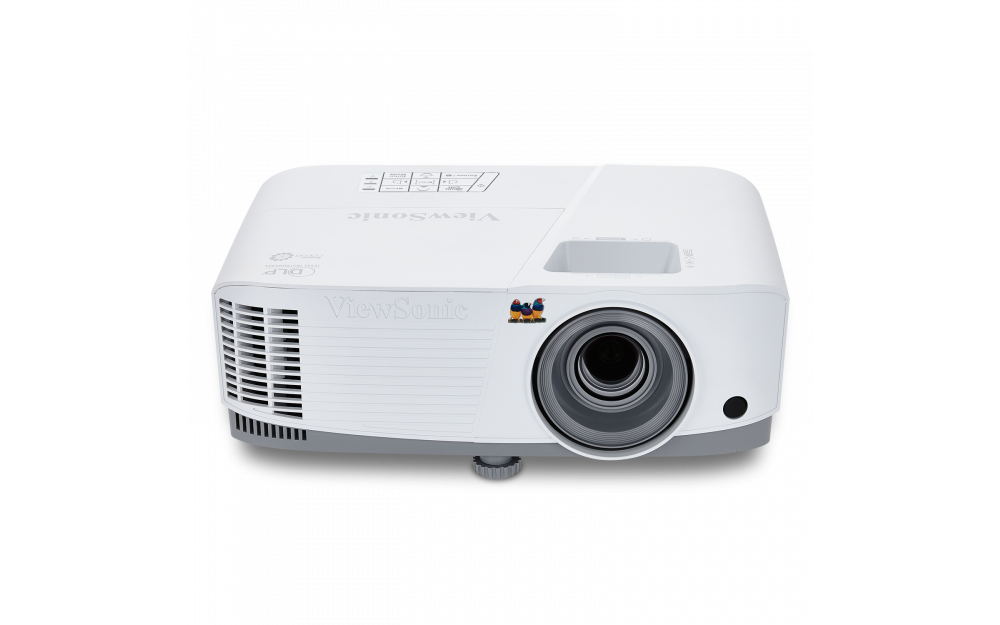

Viewsonic PG603X data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) Grey, White

Viewsonic PG603X data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) Grey, White

Model PG603XEAN 766907915617

67 specifications
  • TypeStandard throw projector
  • Weight2.3 kg
  • ColourGrey, White
  • Projector brightness3600 ANSI lumens
  • Light source typeLamp
  • Optical zoom1.1x
See all specifications

Overview

Type
Standard throw projector
Weight
2.3 kg
Colour
Grey, White
Projector brightness
3600 ANSI lumens
Light source type
Lamp
Optical zoom
1.1x
Brand
Viewsonic
Model
PG603X
Part number
PG603X
EAN / UPC
766907915617
Also known as
Viewsonic PG603X data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) Grey, White

Specifications

67 specifications in 17 groups

Projector

Projector brightness3600 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Native aspect ratio16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1 - 11 m
Contrast ratio (dynamic)22000:1
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Horizontal synchronization (max)102 kHz
Horizontal synchronization (min)15 kHz
Keystone correction, horizontal-20 - 20°
Keystone correction, vertical-30 - 30°
Vertical synchronization (max)0.12 kHz
Vertical synchronization (min)0.023 kHz

Light source

Light source typeLamp
Service life of light source5000 h
Service life of light source (economic mode)15000 h
Lamp power190 W

Lens system

Optical zoom1.1x
Throw ratio1.96 - 2.15:1

Video

Full HDYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1080 (HD 1080)

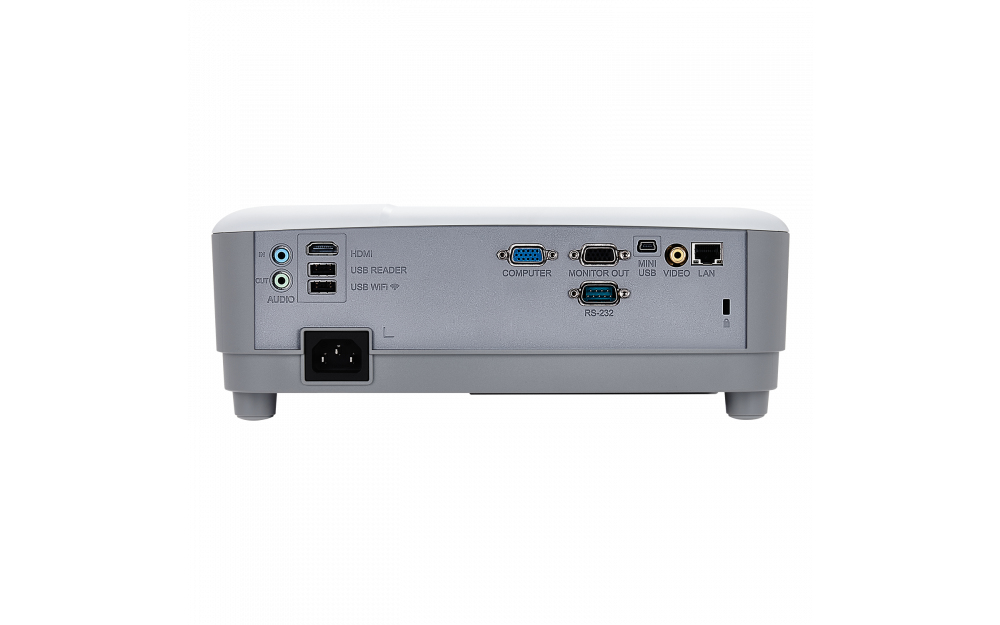

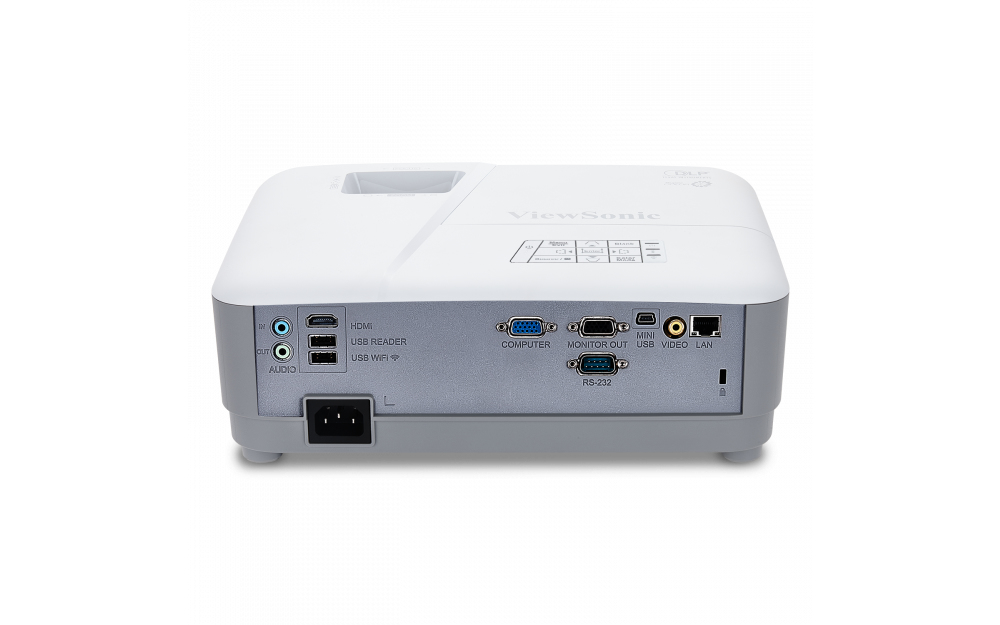

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity1
Composite video in1
DVI portNo
USB 2.0 ports quantity2
Serial interface typeRS-232

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1

Storage

Card reader integratedYes

Features

On Screen Display (OSD)Yes
CertificationFCC, cTUVus, NOM

Multimedia

Built-in speaker(s)Yes
RMS rated power10 W

Design

Product typeStandard throw projector
Product colourGrey, White
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)270 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Weight2.3 kg
Width294 mm
Depth218 mm
Height110 mm
Package width365 mm
Package depth300 mm
Package height188 mm
Package weight3.3 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
Quick start guideYes

Logistics data

Harmonized System (HS) code8528620000
Pallet gross height2.21 m
Pallet gross length74 cm
Pallet gross width90 cm
Products per master (outer) case1 pc(s)

Other features

RS-232 ports1
