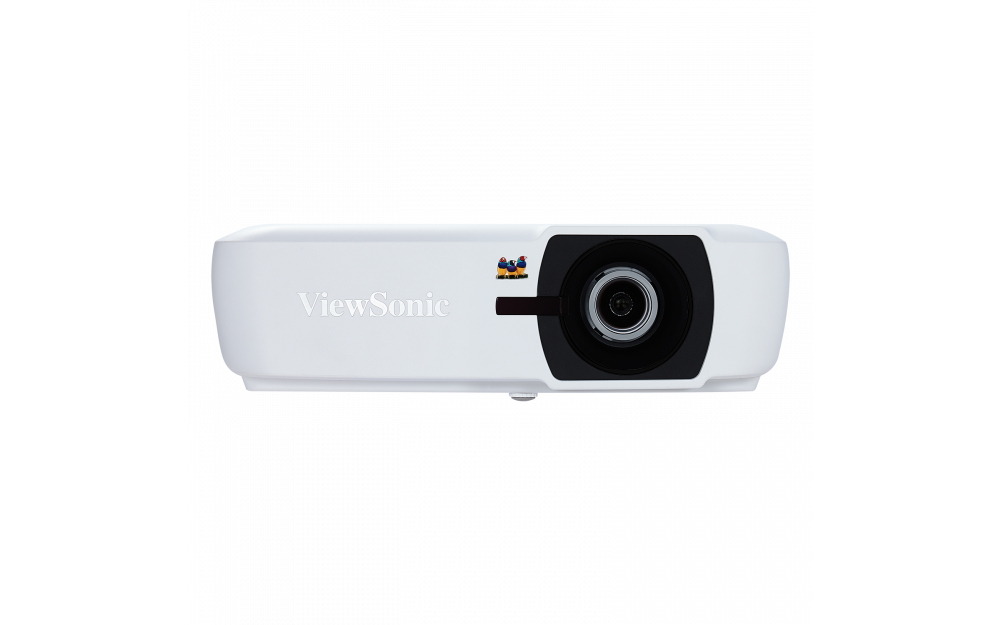

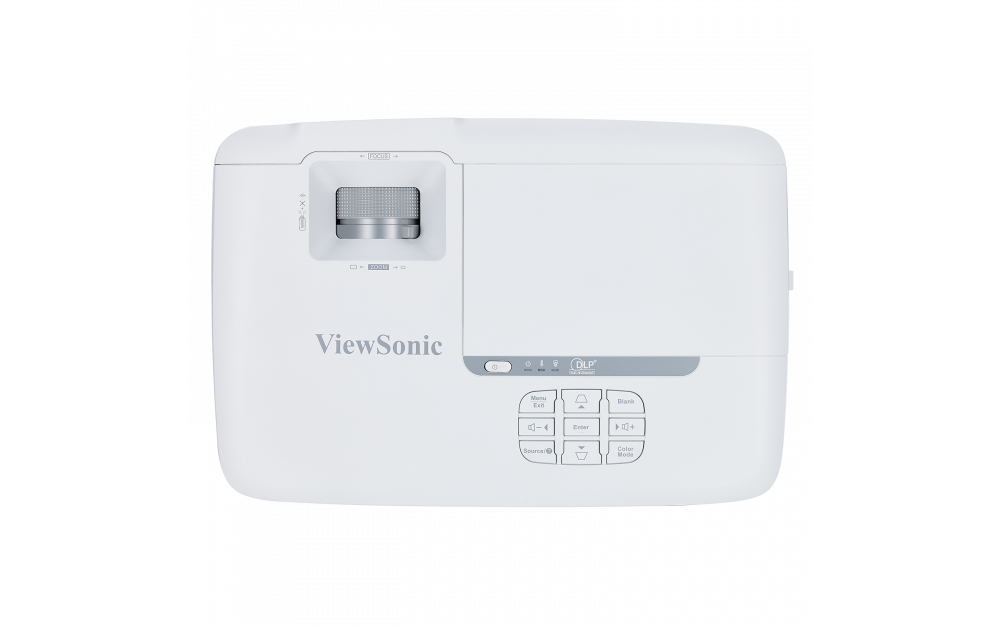

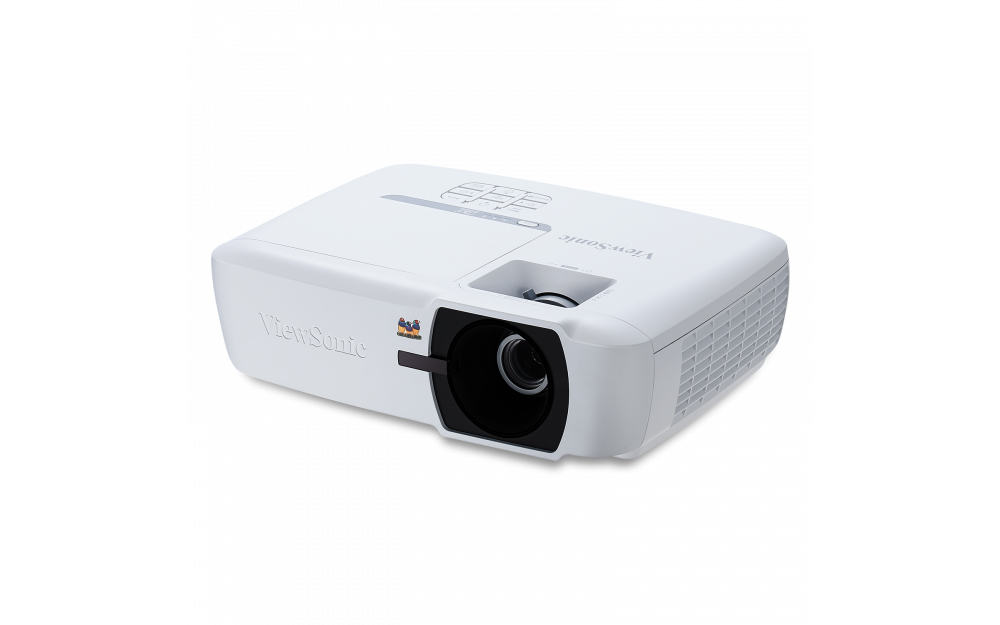

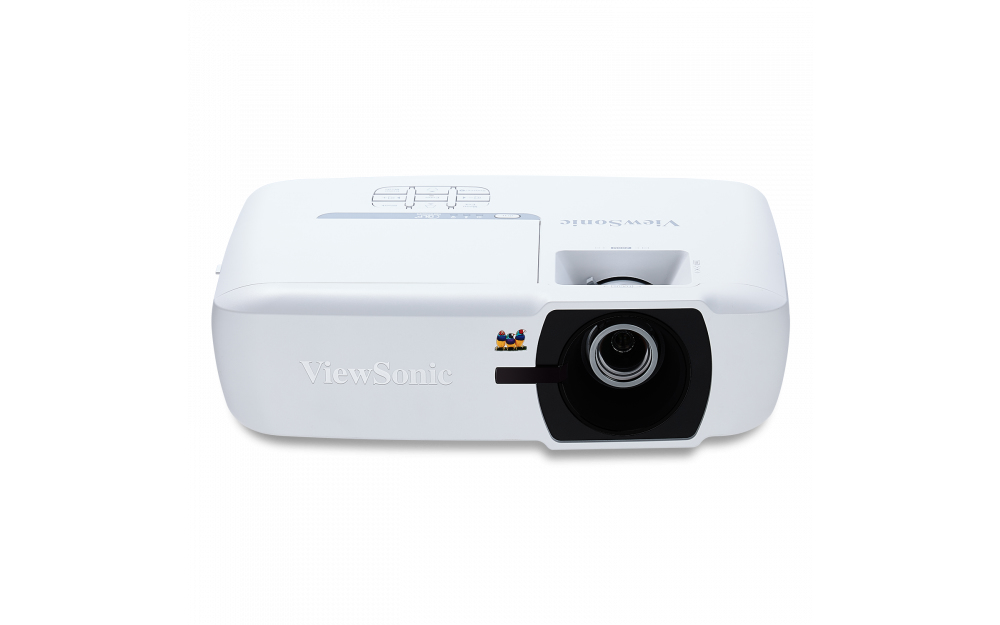

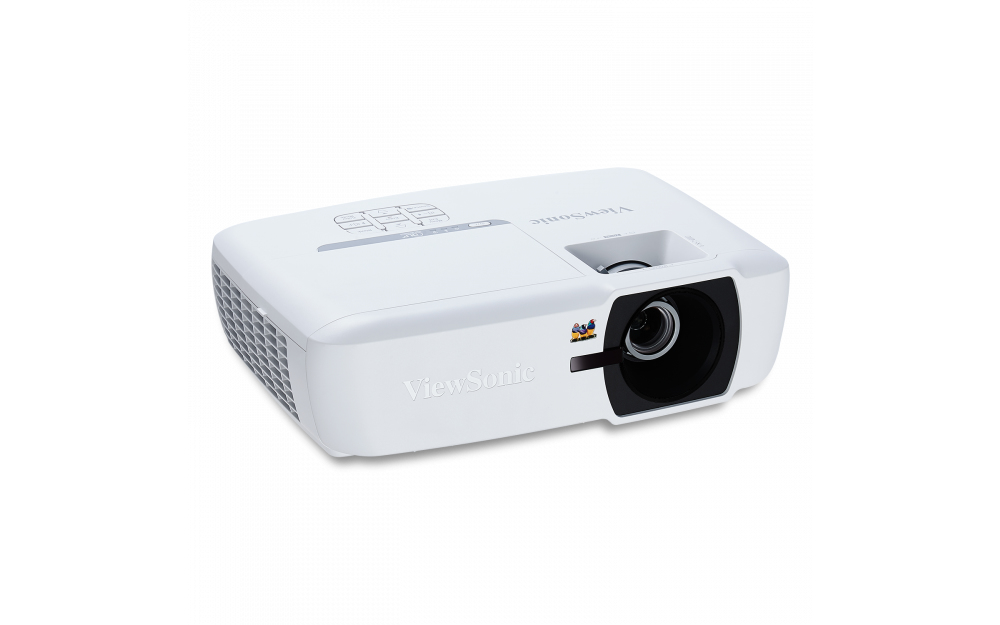

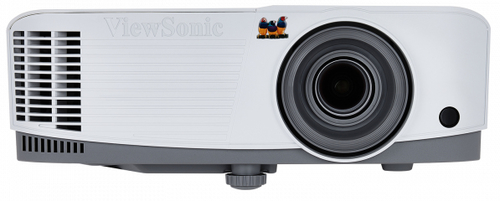

Viewsonic PA505W data projector Standard throw projector 3500 ANSI lumens DLP WXGA (1280x800) White

Viewsonic PA505W data projector Standard throw projector 3500 ANSI lumens DLP WXGA (1280x800) White

Model PA505WEAN 766907913613

66 specifications
  • TypeStandard throw projector
  • Weight2.9 kg
  • ColourWhite
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
  • Optical zoom1.1x
See all specifications

Overview

Type
Standard throw projector
Weight
2.9 kg
Colour
White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Optical zoom
1.1x
Brand
Viewsonic
Model
PA505W
Part number
PA505W
EAN / UPC
766907913613
Also known as
Viewsonic PA505W data projector Standard throw projector 3500 ANSI lumens DLP WXGA (1280x800) White

Specifications

66 specifications in 17 groups

Projector

Projector brightness3500 ANSI lumens
Projection technologyDLP
Projector native resolutionWXGA (1280x800)
Native aspect ratio16:10
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1 - 11 m
Contrast ratio (dynamic)22000:1
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, vertical-40 - 40°

Light source

Light source typeLamp
Service life of light source3500 h
Service life of light source (economic mode)7000 h
Lamp power240 W
Lamps quantity1 lamp(s)

Lens system

Optical zoom1.1x
Throw ratio1.54 - 1.71:1

Video

Full HDNo
3DNo

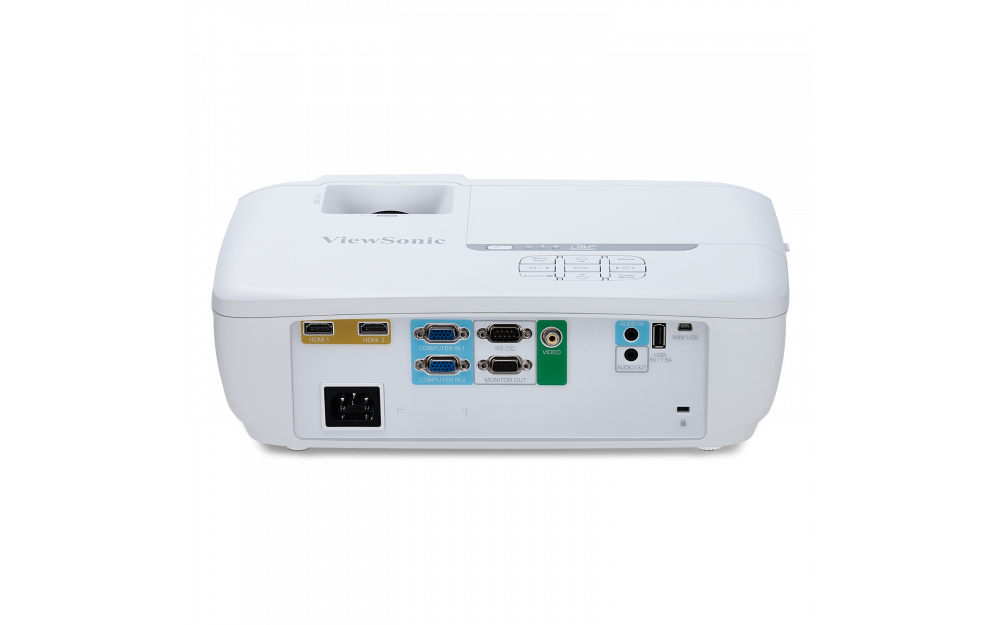

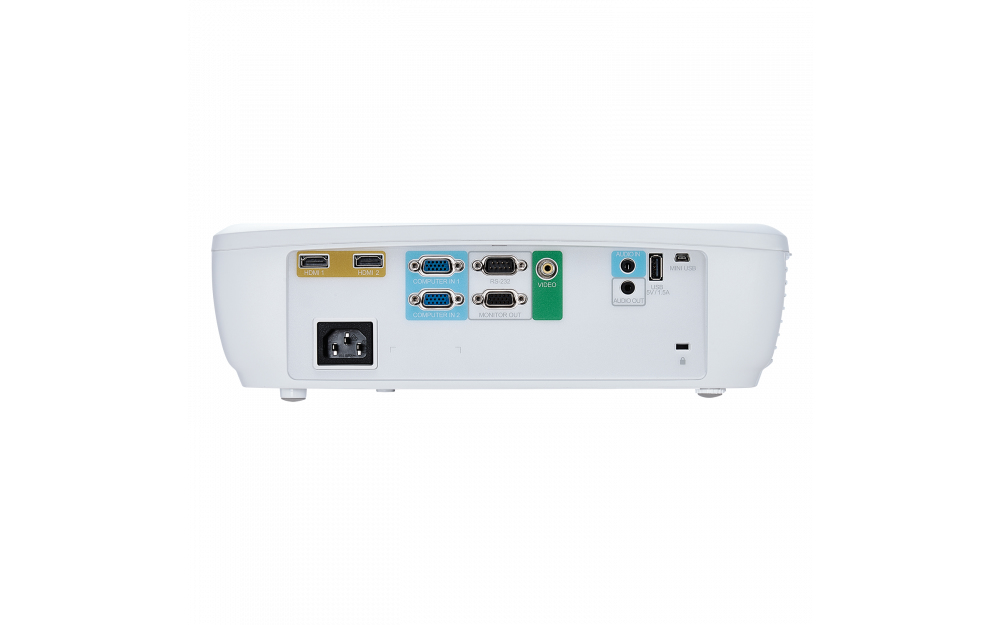

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity2
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity1
Audio (L/R) in0
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Features

CertificationFCC, UL/CUL

Multimedia

Built-in speaker(s)Yes
RMS rated power8 W

Design

Product typeStandard throw projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)310 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Software

Mac compatibilityYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Weight2.9 kg
Width348 mm
Depth107 mm
Height234 mm
Package width413 mm
Package depth182 mm
Package height331 mm
Package weight3.9 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
Quick start guideYes

Other features

RS-232 ports1
