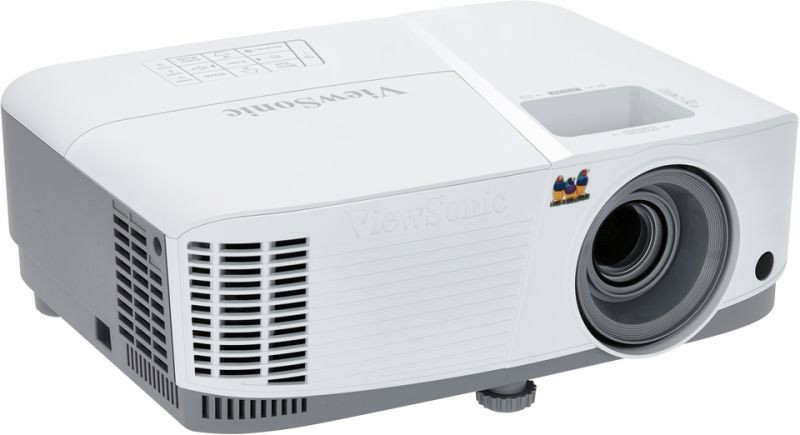

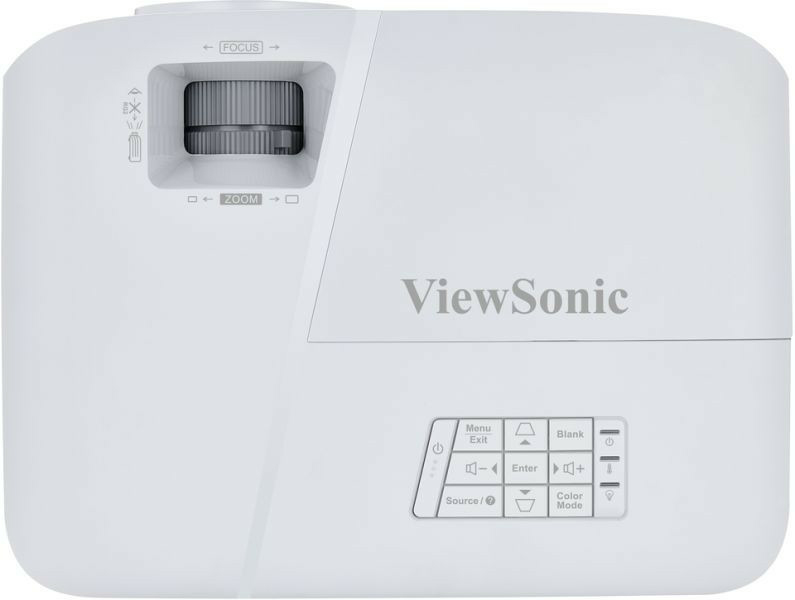

PA504W data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) White
Model PA504WEAN 766907026306
58 specifications
- TypeStandard throw projector
- Weight2.33 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- Throw ratio1.21 - 1.57
Overview
- Type
- Standard throw projector
- Weight
- 2.33 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Throw ratio
- 1.21 - 1.57
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PA504W
- Part number
- PA504W
- EAN / UPC
- 766907026306
- Also known as
- Viewsonic PA504W data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) White
Specifications
58 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.78 - 10.14 m |
| Contrast ratio (dynamic) | 22000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 200 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Throw ratio | 1.21 - 1.57 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

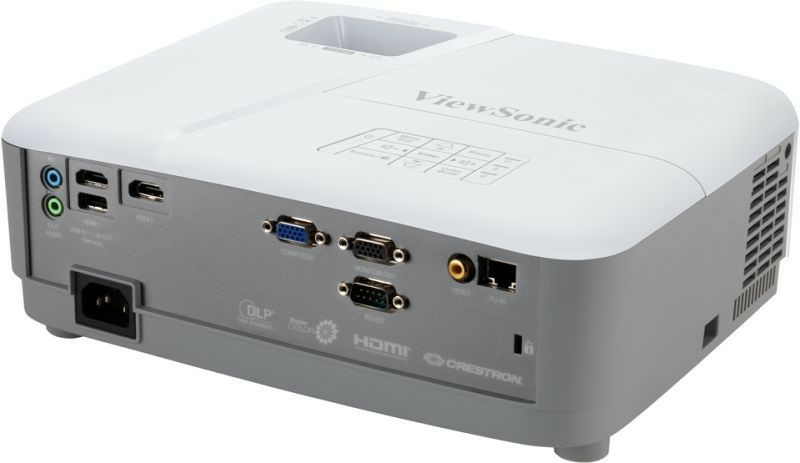

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Education |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.33 kg |
| Package width | 415 mm |
| Package depth | 168 mm |
| Package height | 297 mm |
| Package weight | 3.54 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 190.5 cm |
| Pallet gross length | 83.4 cm |
| Pallet gross width | 100.8 cm |
| Products per master (outer) case | 1 pc(s) |
