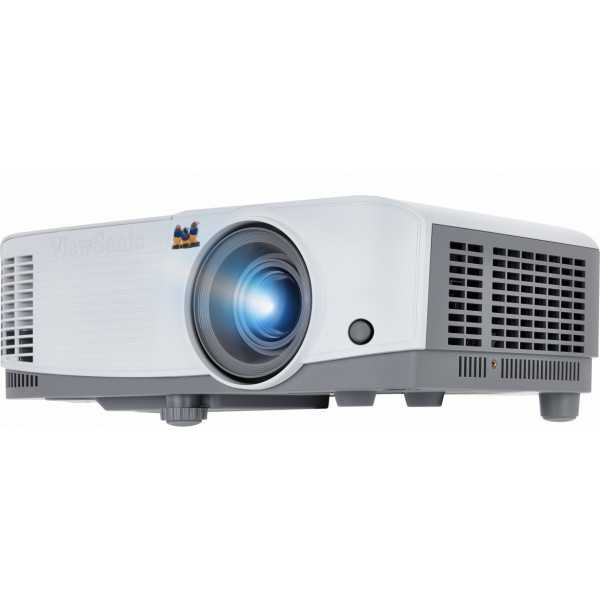

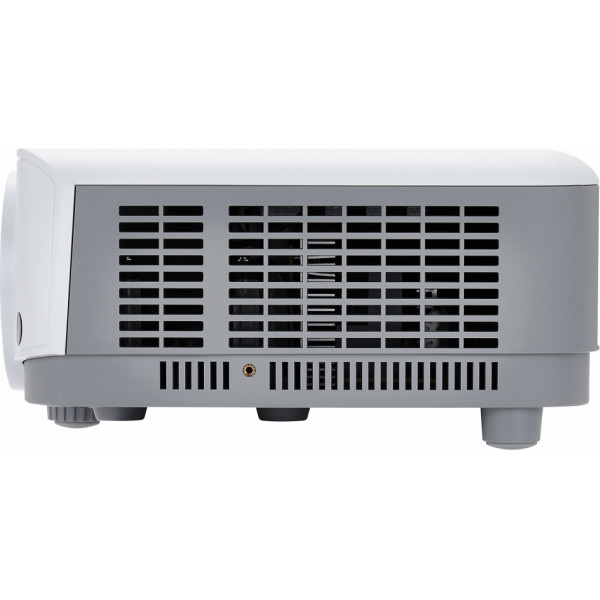

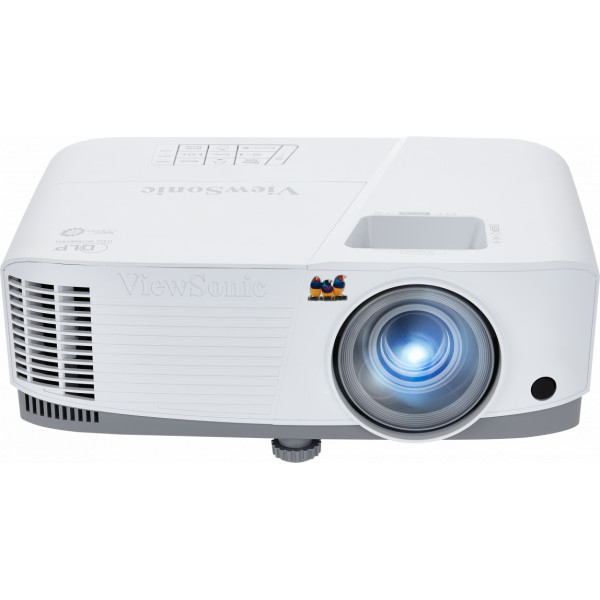

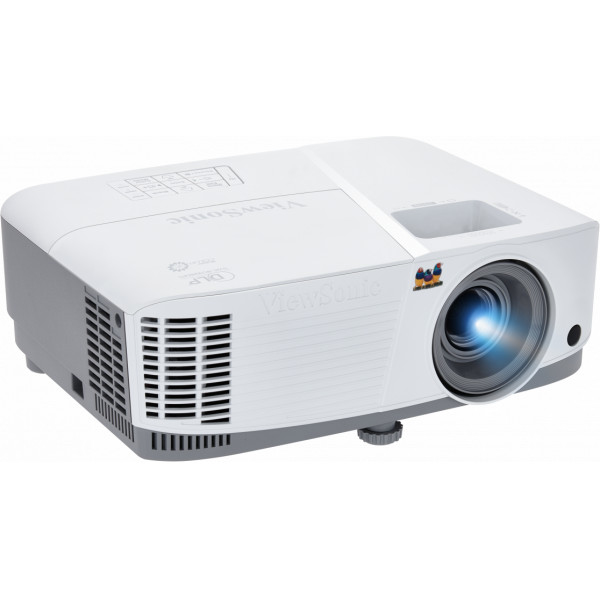

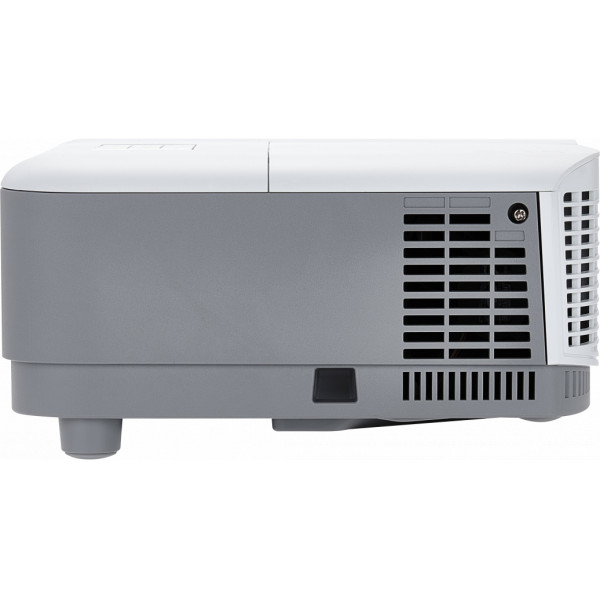

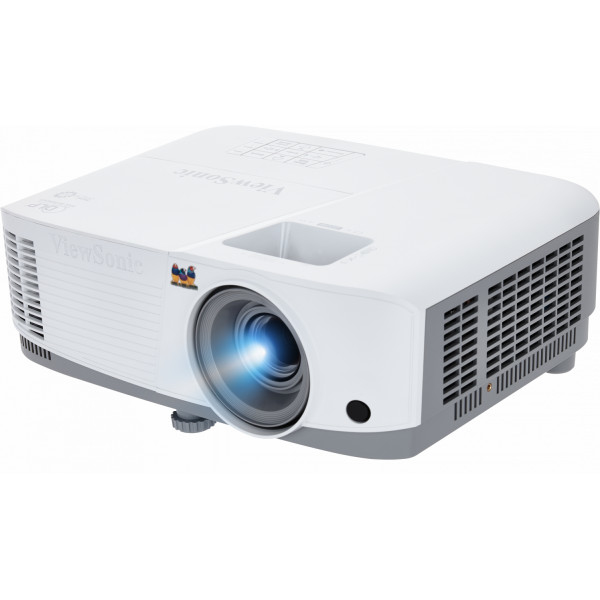

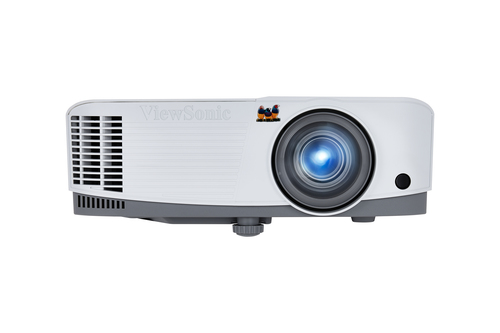

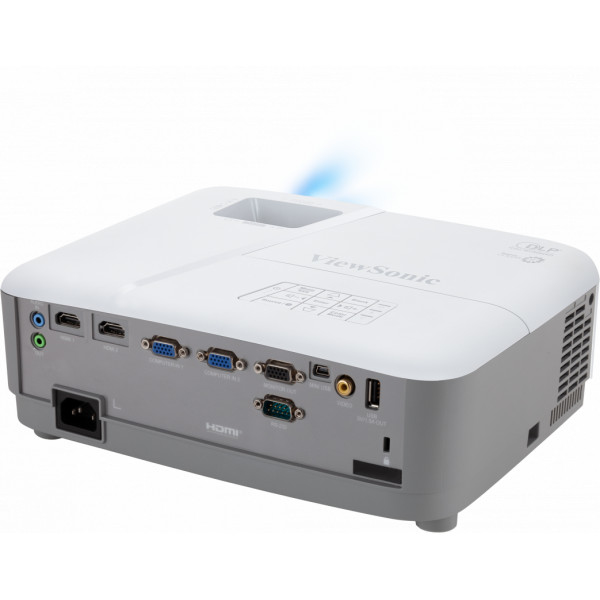

PA503XP data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) 3D Grey, White
Model PA503XPEAN 766907975710
52 specifications
- Noise31 dB
- TypeStandard throw projector
- Weight2.2 kg
- ColourGrey, White
- Projector brightness3600 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 31 dB
- Type
- Standard throw projector
- Weight
- 2.2 kg
- Colour
- Grey, White
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PA503XP
- Part number
- PA503XP
- EAN / UPC
- 766907975710
- Also known as
- Viewsonic PA503XP data projector Standard throw projector 3600 ANSI lumens DLP XGA (1024x768) 3D Grey, White
Specifications
52 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 22000:1 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.19 - 13.11 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 15000 h |
| Lamp power | 190 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 22 - 24.1 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Digital zoom | 2x |
| Optical zoom | 1.1x |
| Throw ratio | 1.96 - 2.15 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Grey, White |
| Placement | Desktop |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| RS-232 ports | 1 |
