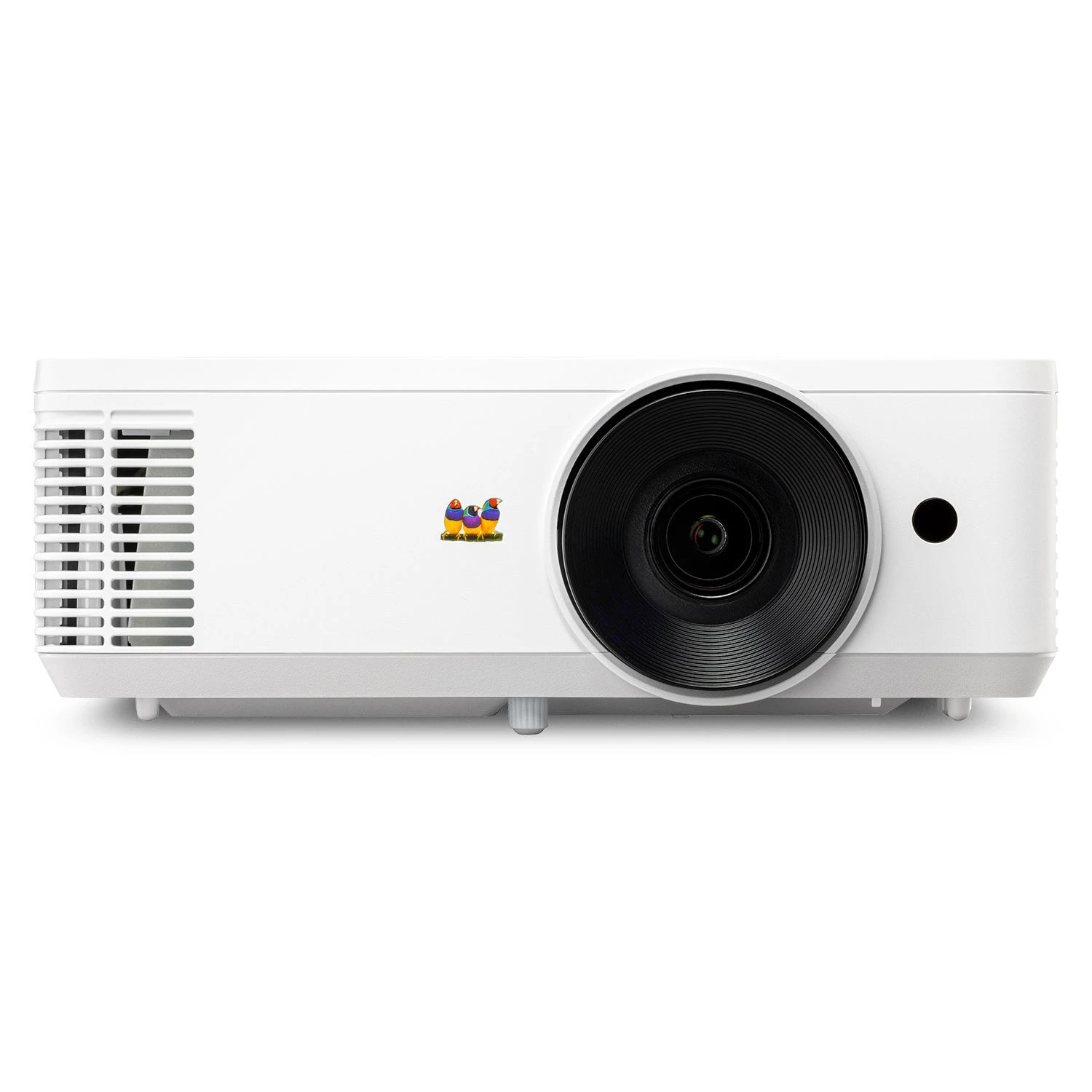

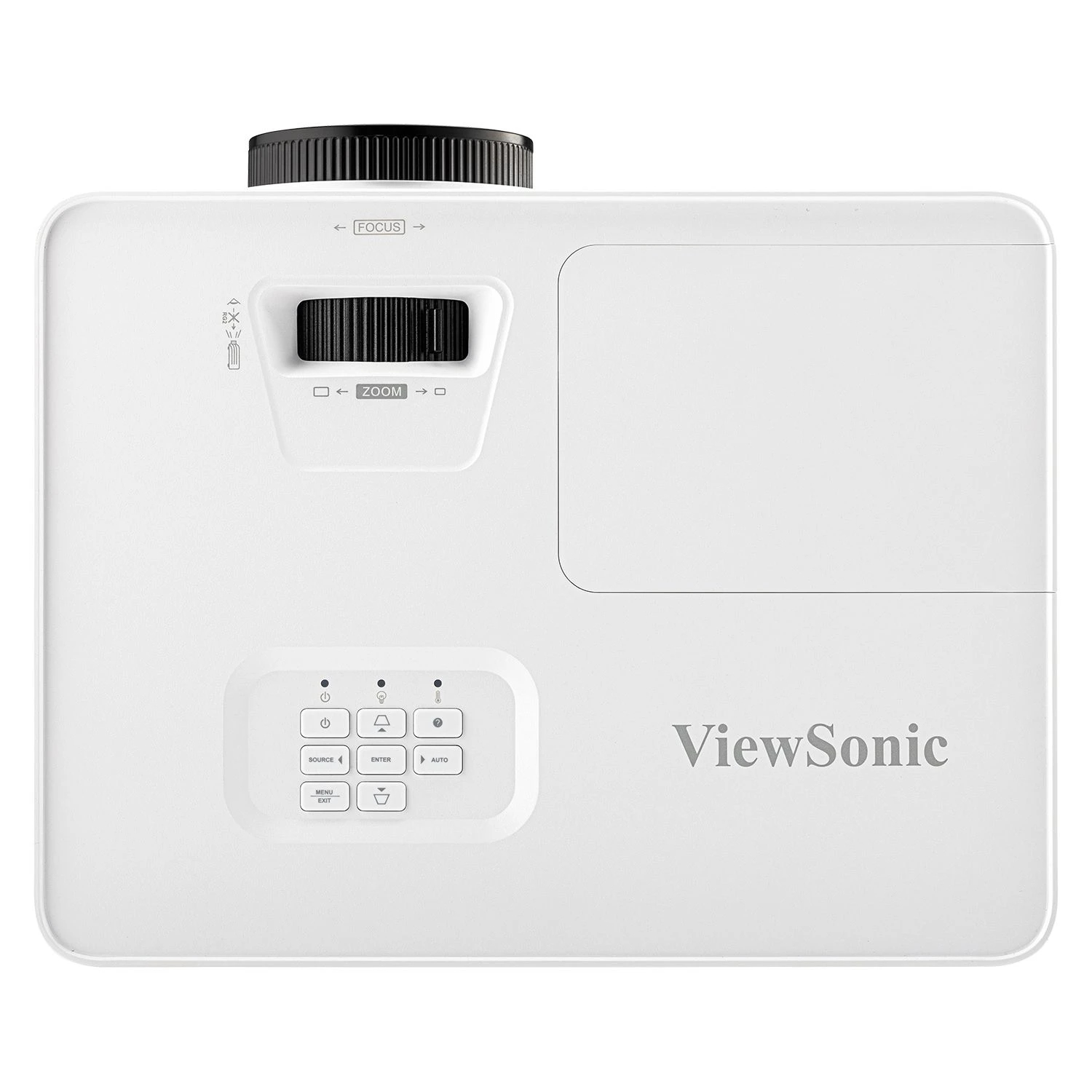

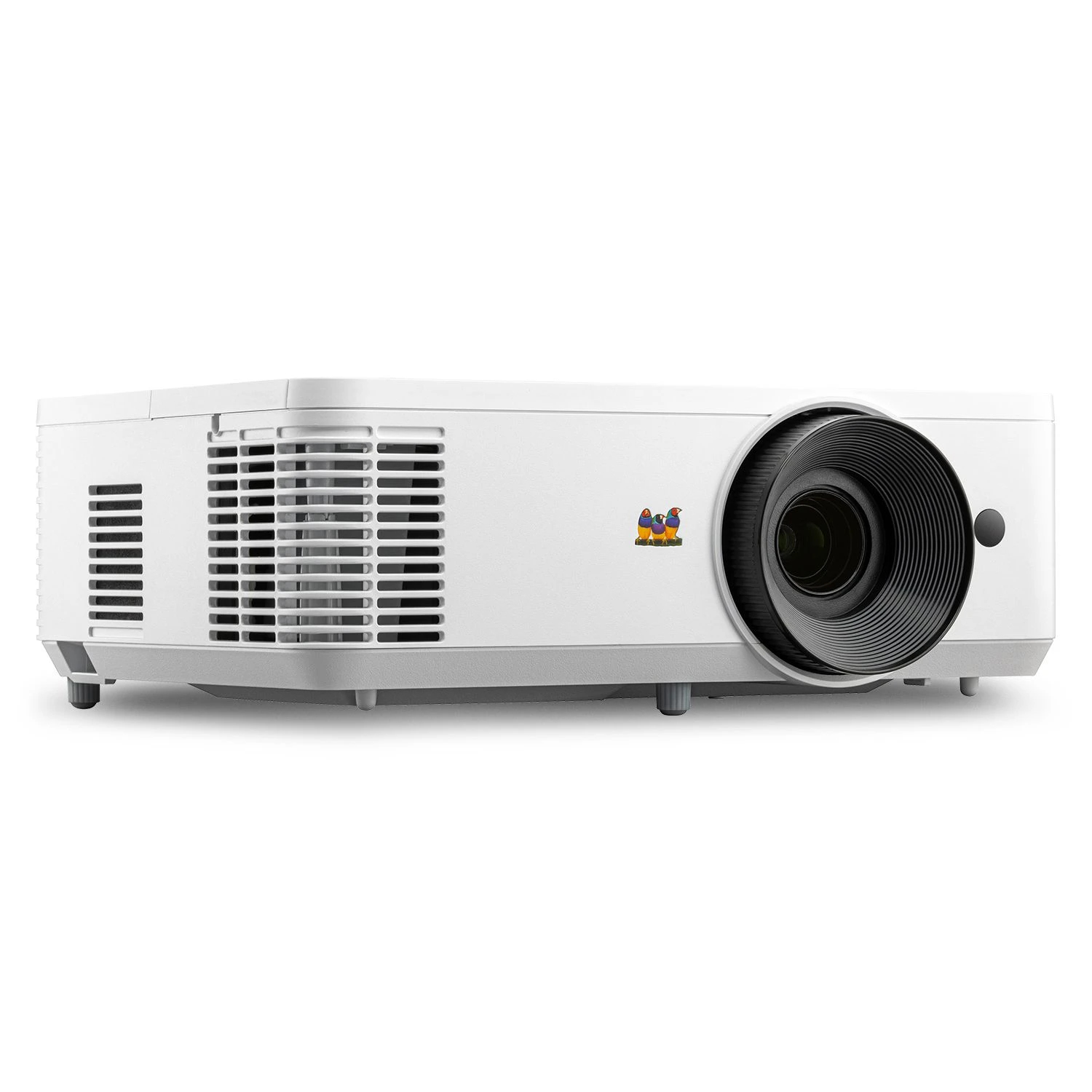

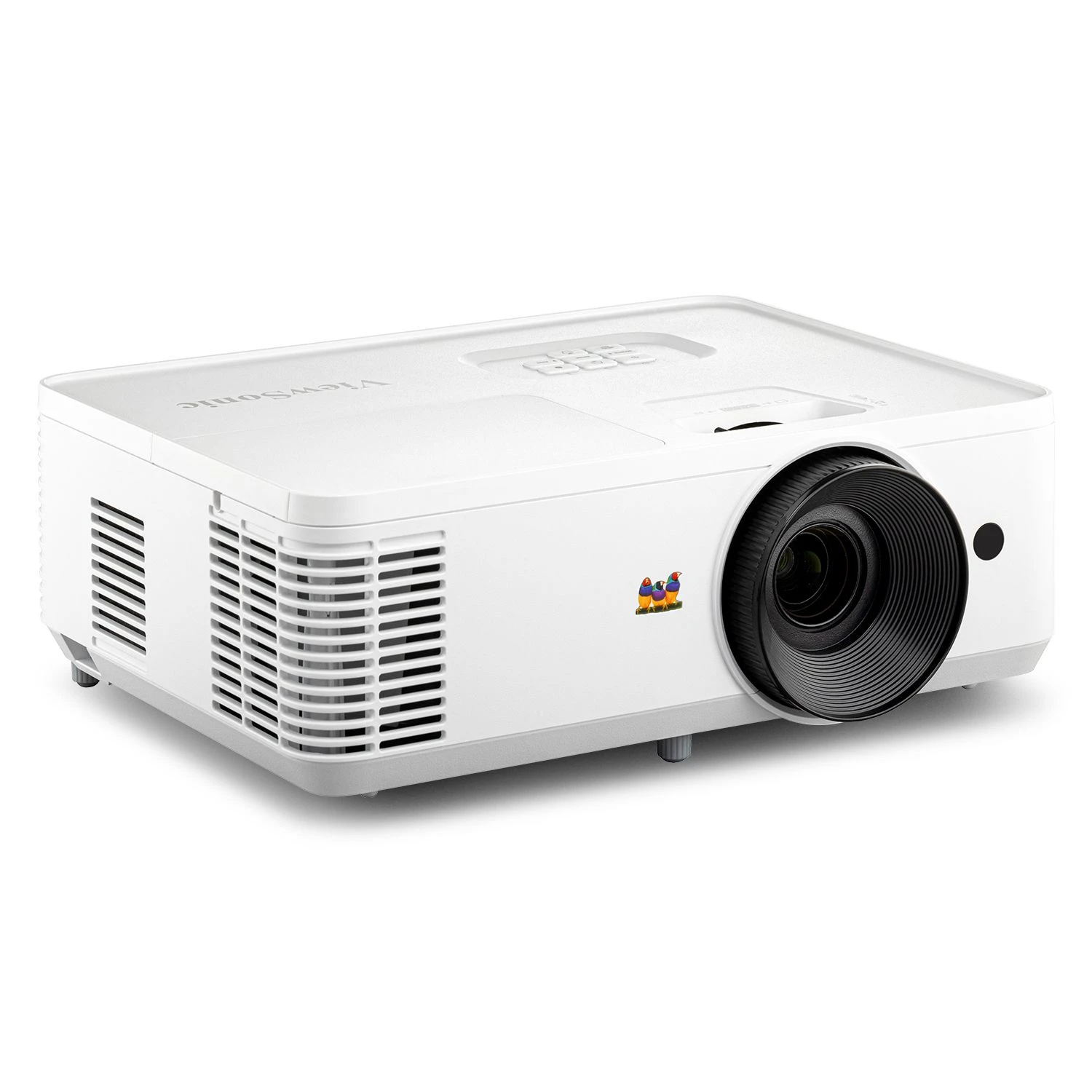

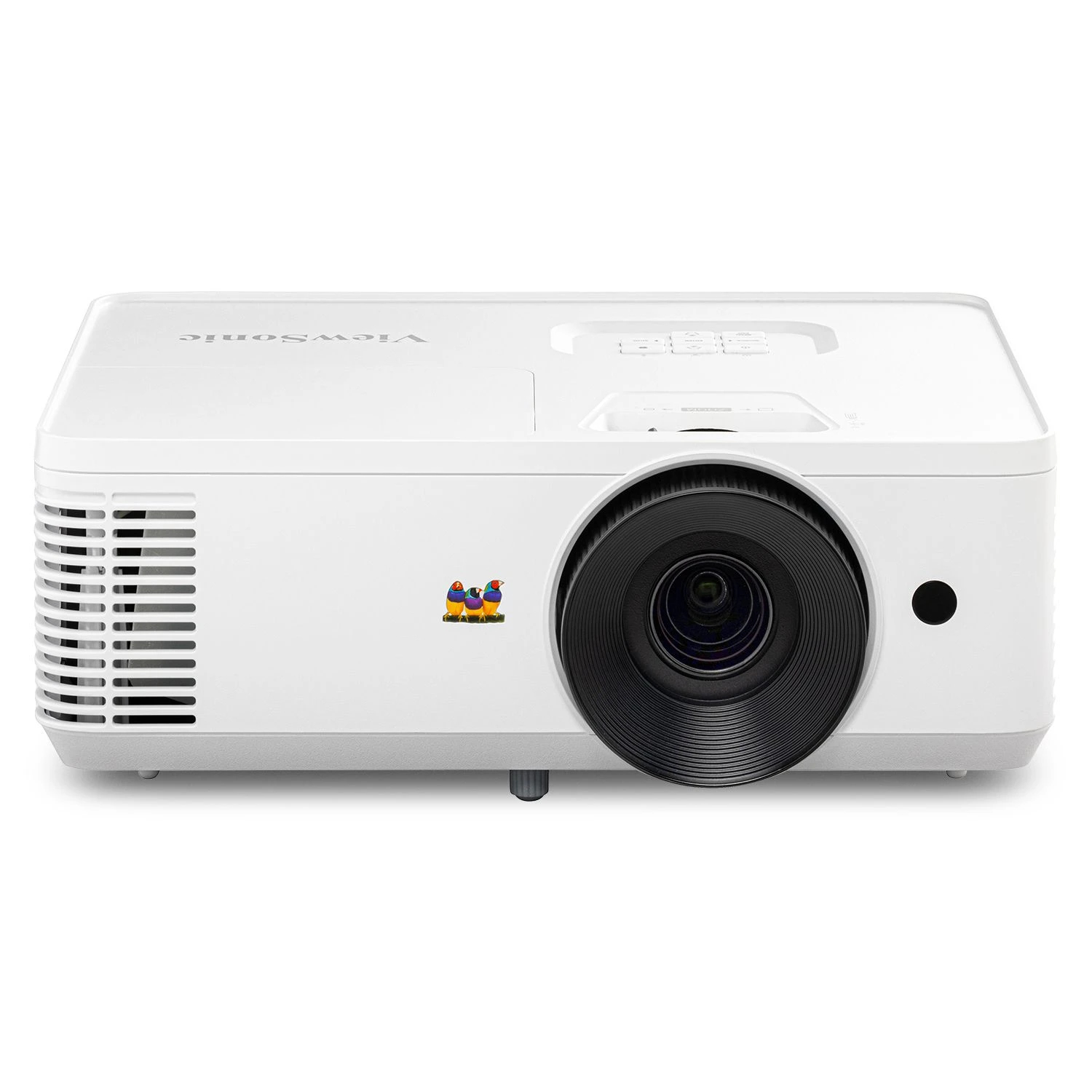

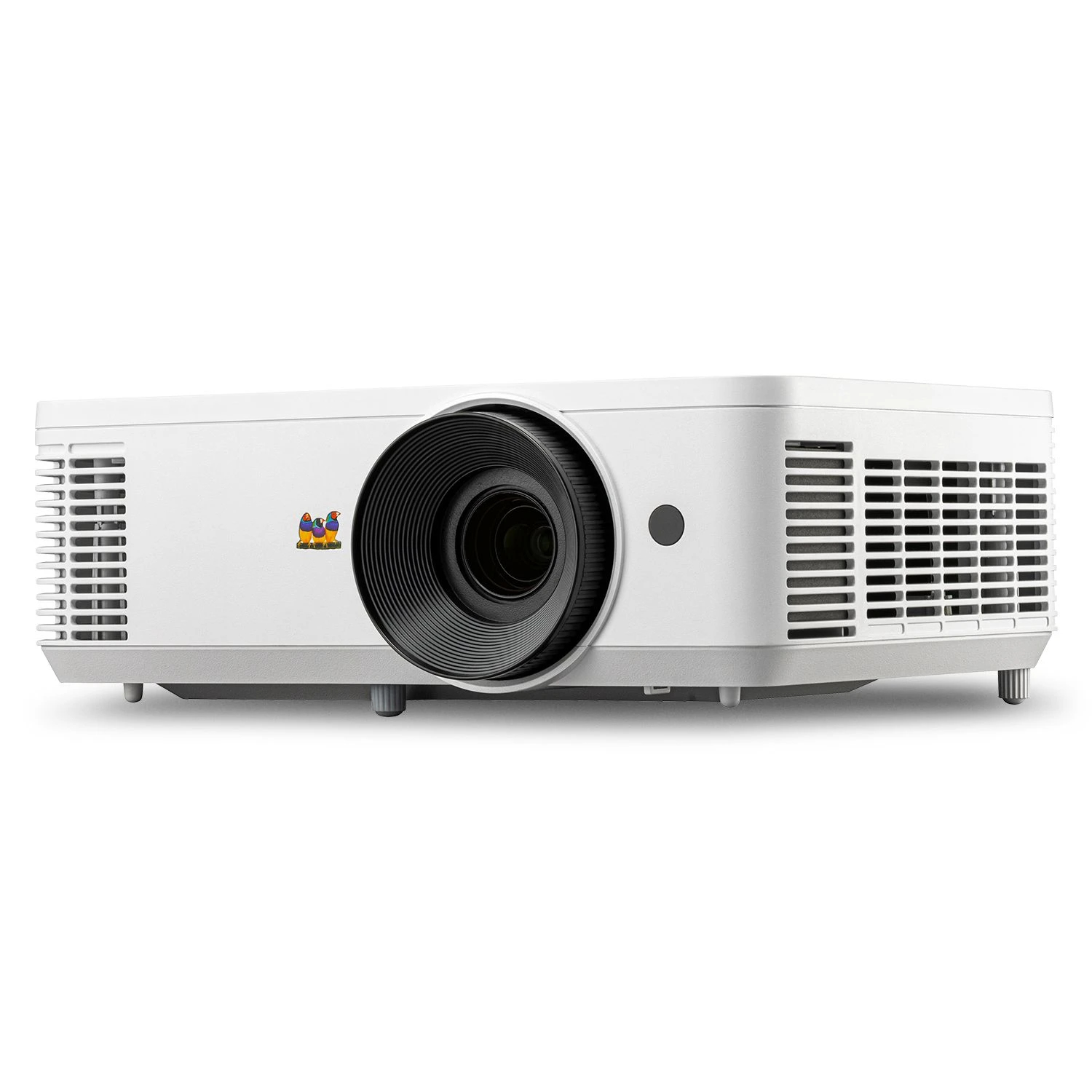

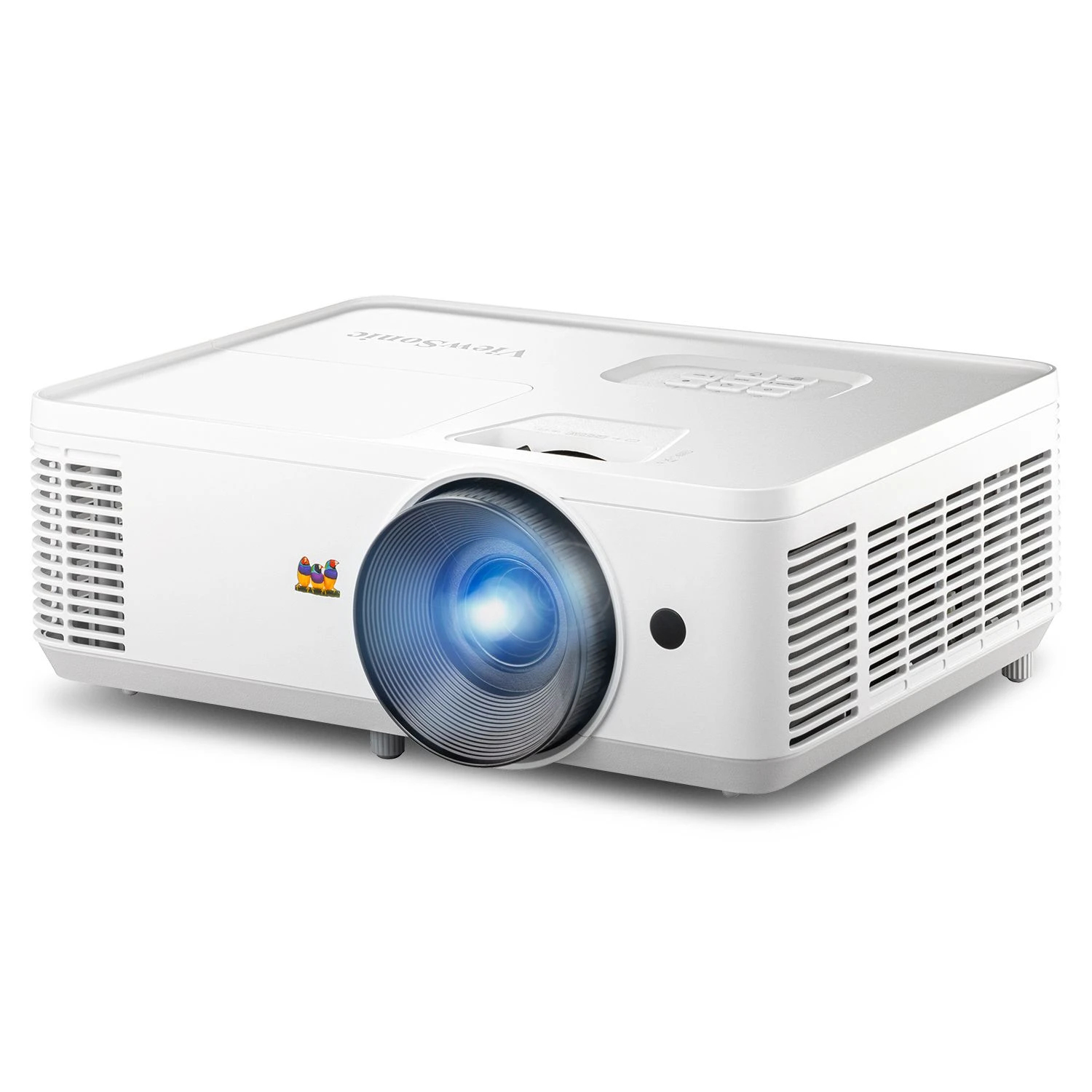

PA503HD data projector 4000 ANSI lumens DLP 1080p (1920x1080) White
Model PA503HDEAN 766907024470
57 specifications
- Weight2.7 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Service life of light source4000 h
- Throw ratio1.48-1.62
- Analog signal format systemNot supported
Overview
- Weight
- 2.7 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Service life of light source
- 4000 h
- Throw ratio
- 1.48-1.62
- Analog signal format system
- Not supported
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- PA503HD
- Part number
- PA503HD
- EAN / UPC
- 766907024470
- Also known as
- Viewsonic PA503HD data projector 4000 ANSI lumens DLP 1080p (1920x1080) White
Specifications
57 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.76 - 7.62 m |
| Contrast ratio (dynamic) | 22000:1 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23000 - 120000 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.65 cm (0.65") |
| Matrix type | DMD |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 15000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Throw ratio | 1.48-1.62 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

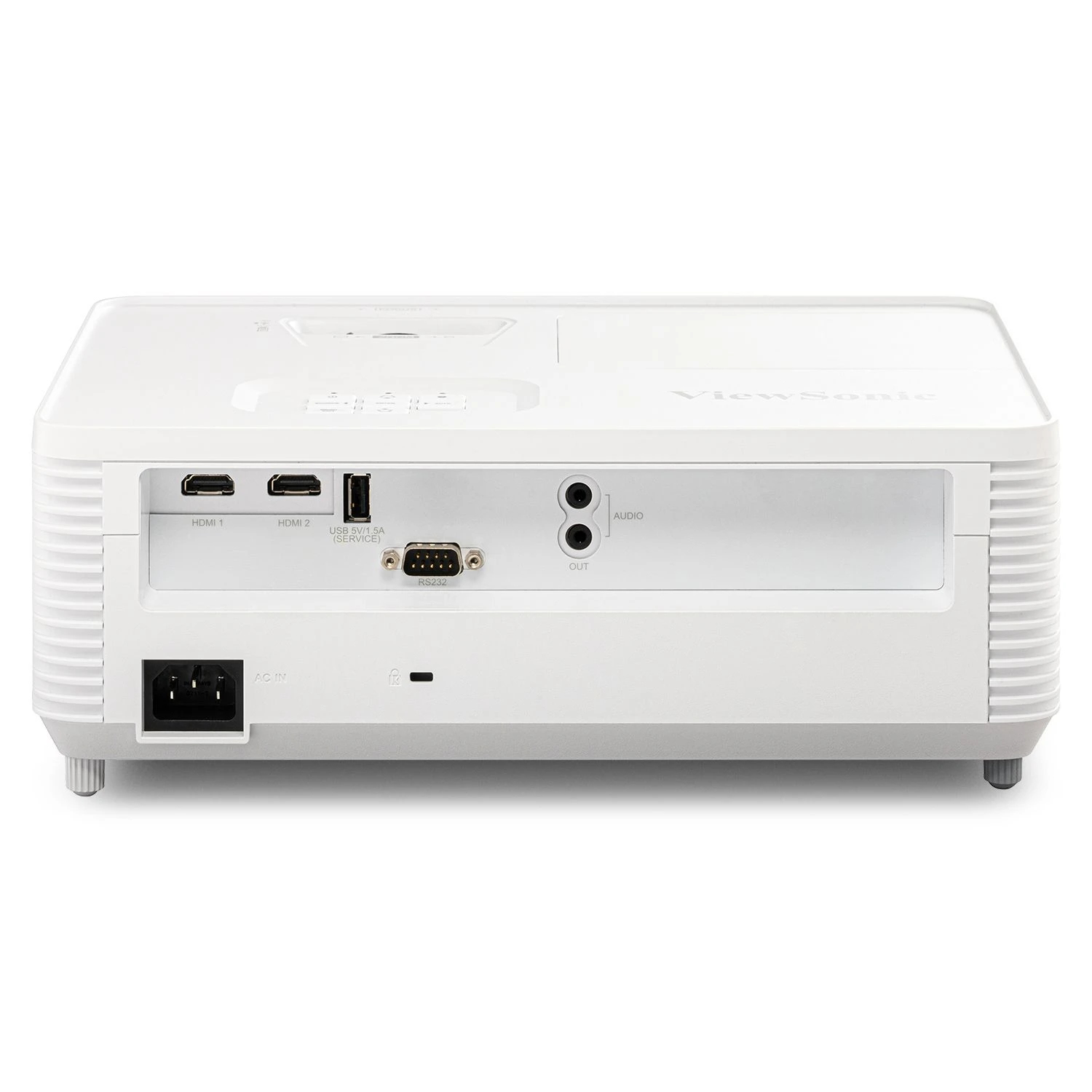

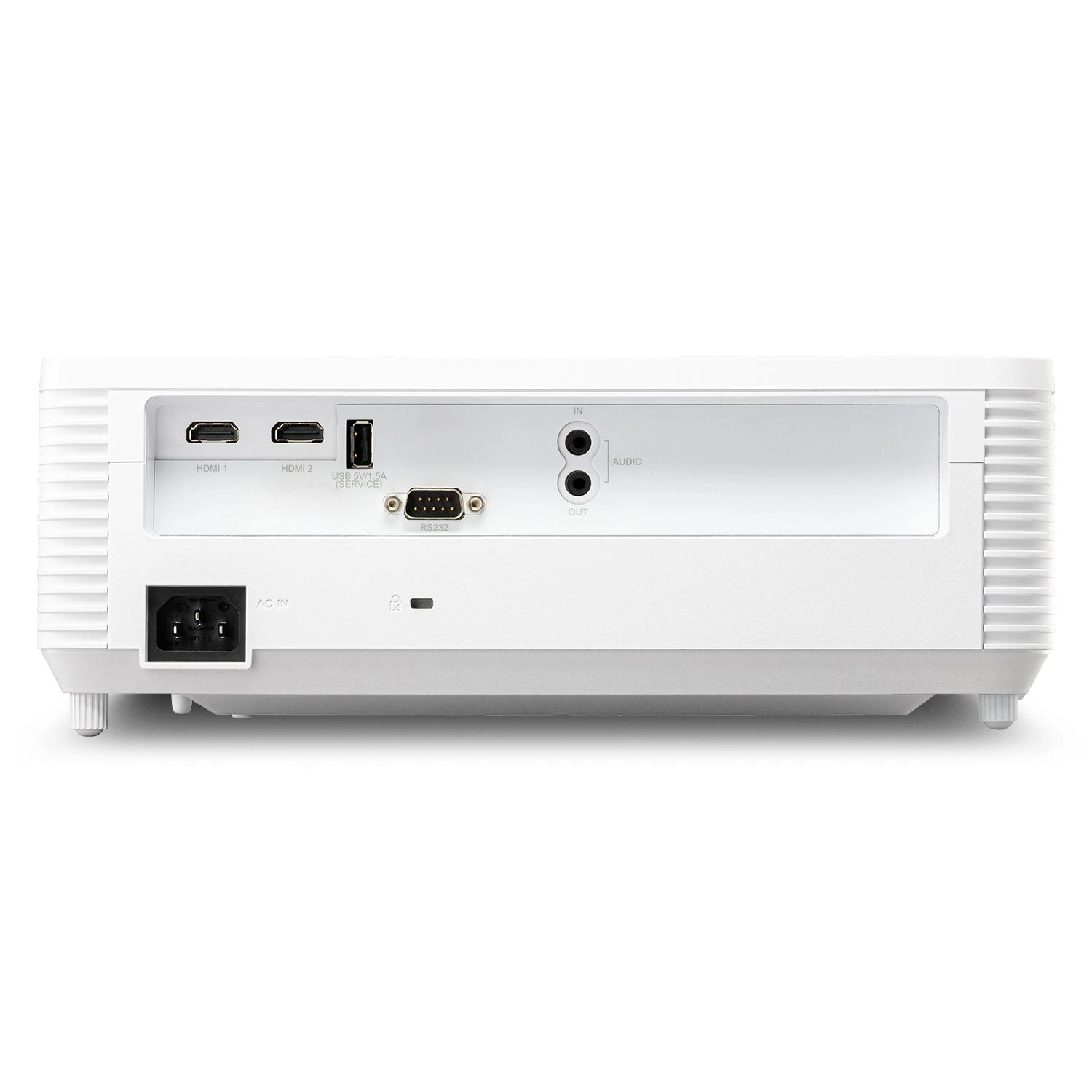

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Width | 309 mm |
| Depth | 234 mm |
| Height | 115 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
