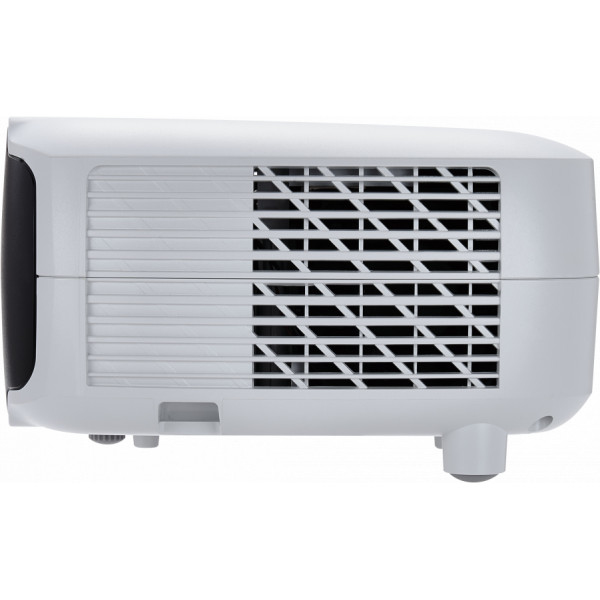

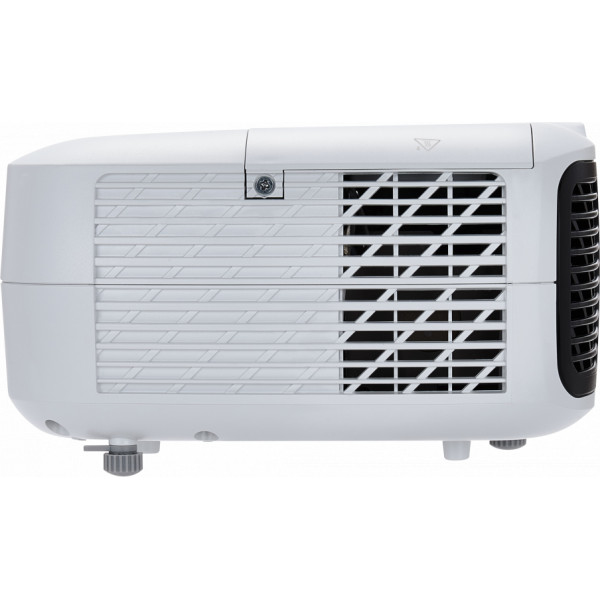

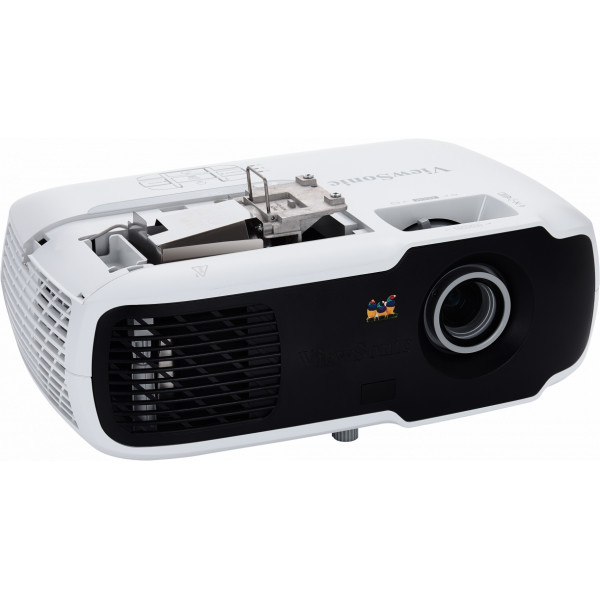

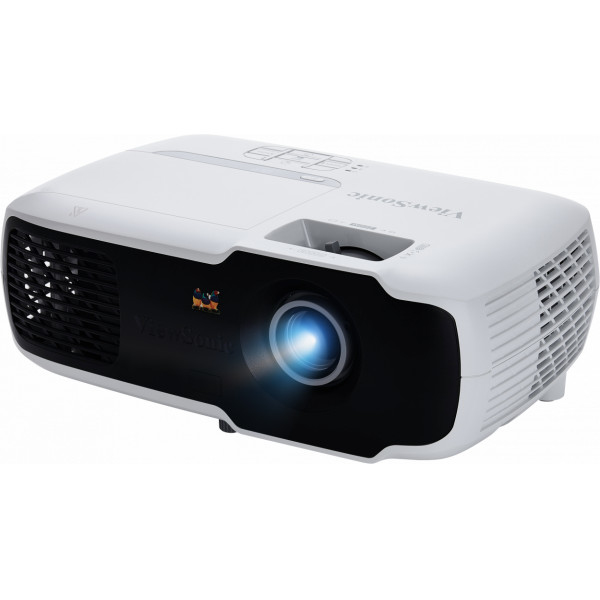

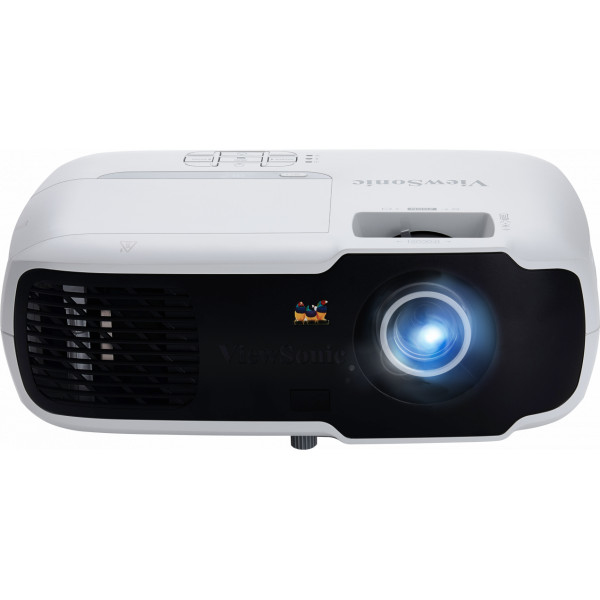

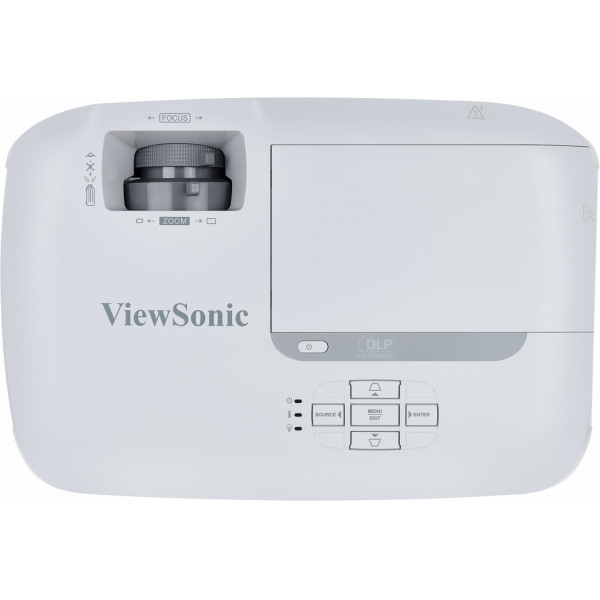

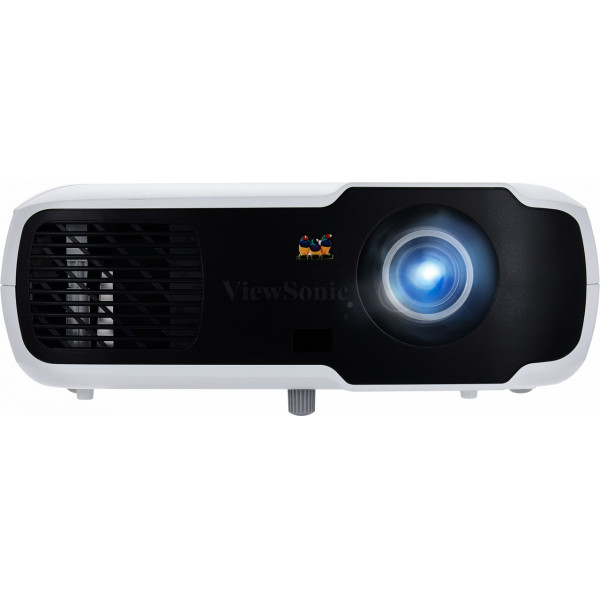

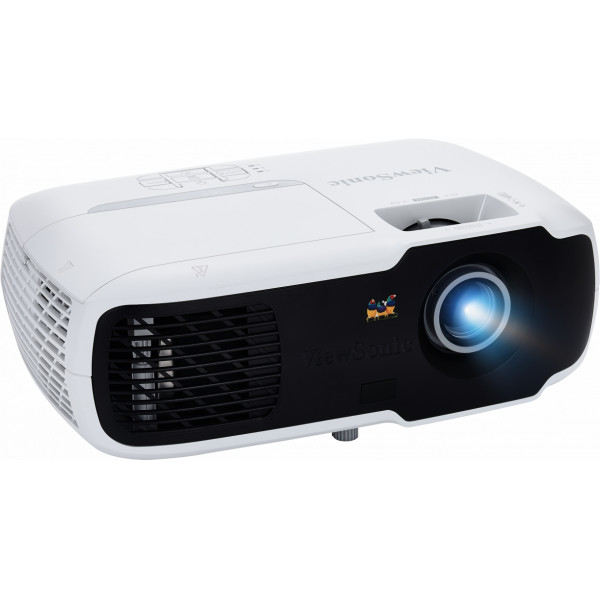

Viewsonic PA502XP data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) 3D Black, White

Viewsonic PA502XP data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) 3D Black, White

Model PA502XPEAN 766907975321

53 specifications
  • Noise30 dB
  • TypeStandard throw projector
  • Weight2.1 kg
  • ColourBlack, White
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
See all specifications

Overview

Noise
30 dB
Type
Standard throw projector
Weight
2.1 kg
Colour
Black, White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Brand
Viewsonic
Model
PA502XP
Part number
PA502XP
EAN / UPC
766907975321
Also known as
Viewsonic PA502XP data projector Standard throw projector 3500 ANSI lumens DLP XGA (1024x768) 3D Black, White

Specifications

53 specifications in 13 groups

Projector

Projector brightness3500 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)22000:1
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.16 - 13.42 m
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, vertical40°

Light source

Light source typeLamp
Service life of light source15000 h
Lamp power190 W

Lens system

Focal length range22.08 - 24.28 mm
Aperture range (F-F)2.5 - 2.7
Optical zoom1.1x
Throw ratio1.97-2.17
Offset125%

Video

Analog signal format systemNTSC, PAL, SECAM
Full HDYes
3DYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1080 (HD 1080)

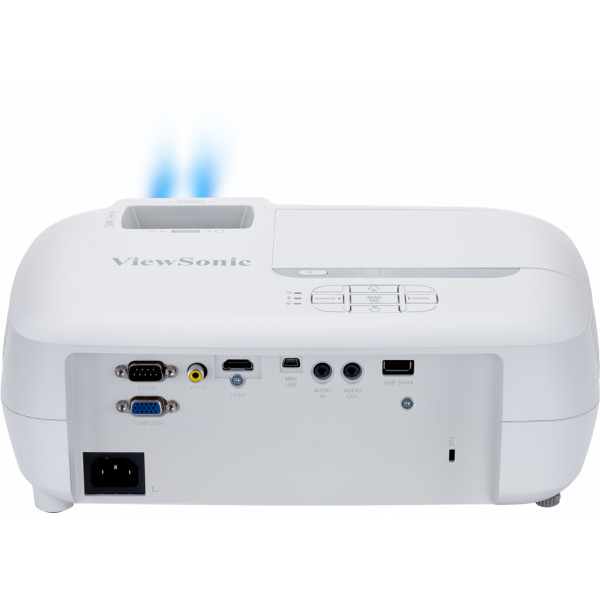

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
Composite video in1
USB 2.0 ports quantity1
USB 2.0 Type-B ports quantity1
Audio (L/R) in1
Audio (L/R) out1
Serial interface typeRS-232

Features

Noise level30 dB
HDCPYes

Multimedia

Built-in speaker(s)Yes
RMS rated power2 W

Design

Product typeStandard throw projector
Market positioningBusiness
Product colourBlack, White
PlacementDesktop

Power

Power sourceAC
Power consumption (typical)240 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Weight2.1 kg
Width320 mm
Depth210 mm
Height123 mm

Packaging content

Remote control includedYes
Cables includedAC, VGA
Quick start guideYes

Other features

RS-232 ports1
