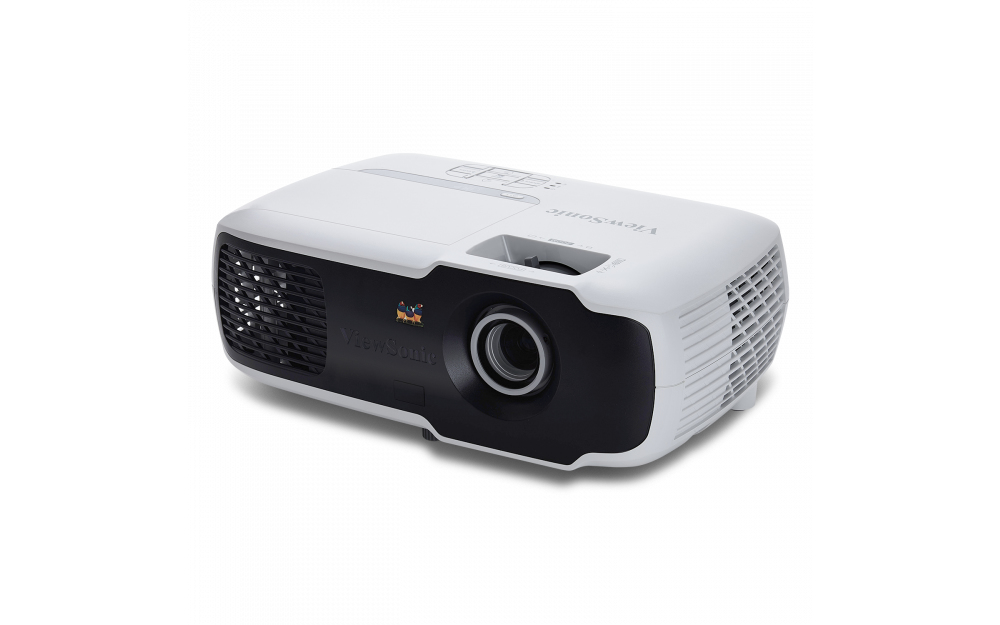

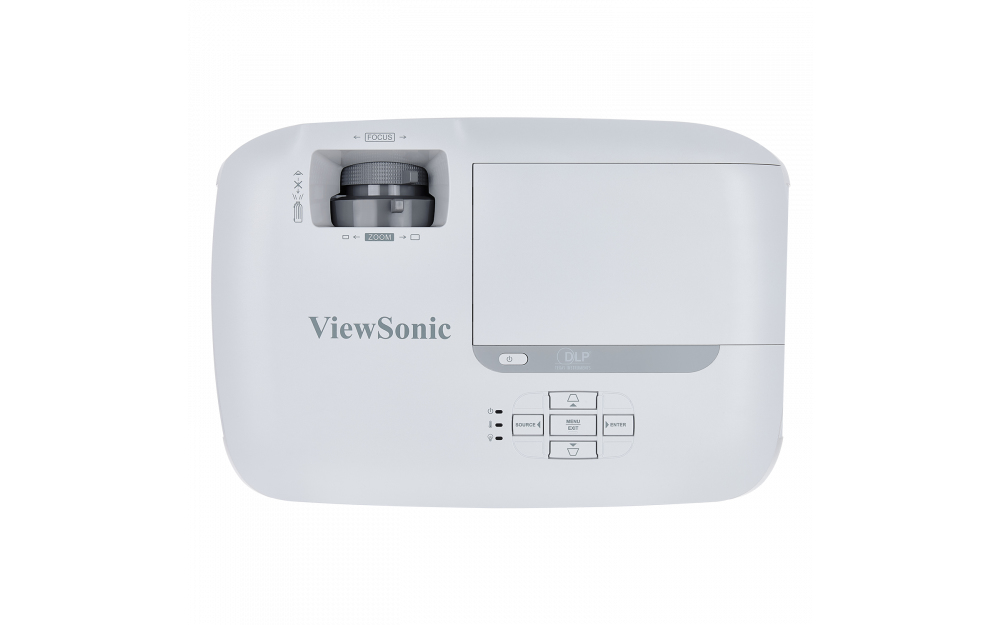

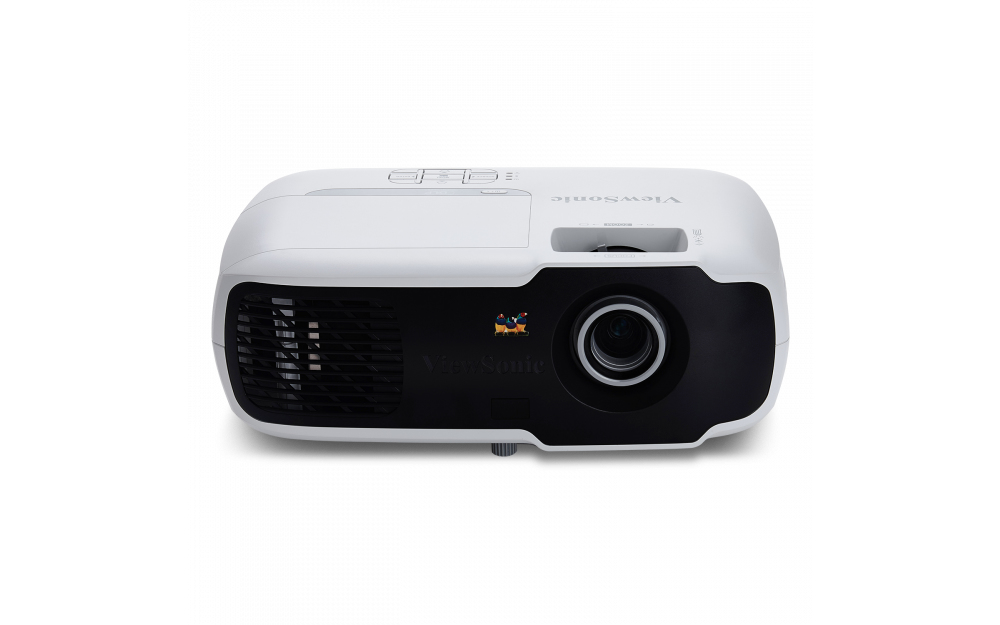

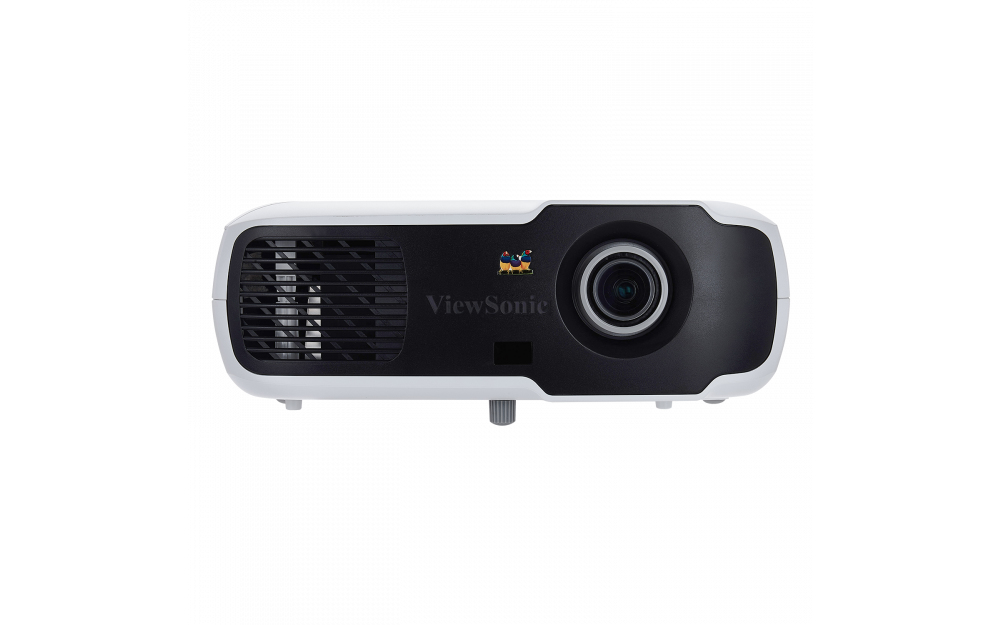

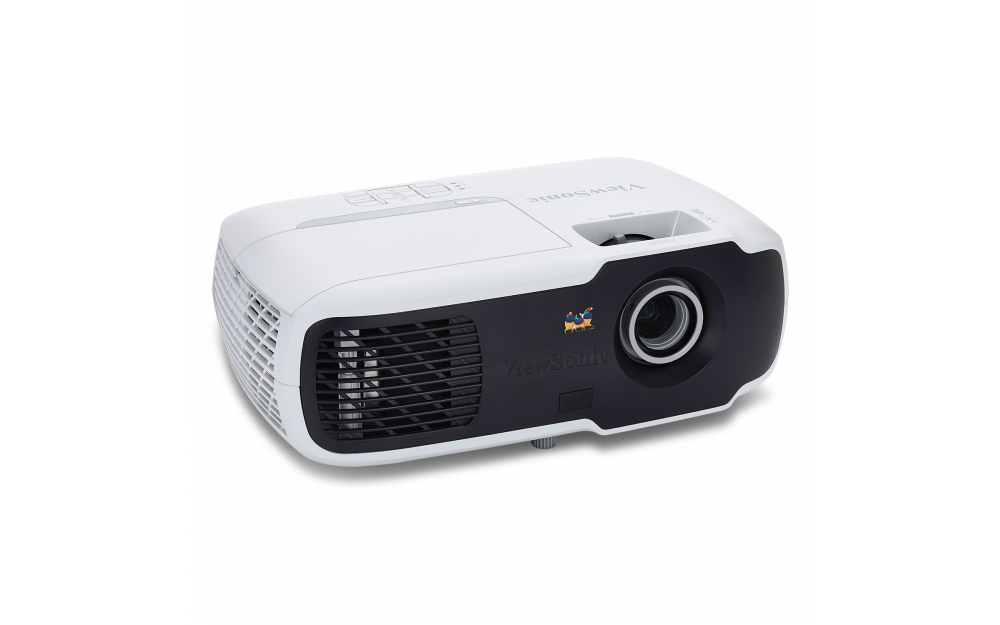

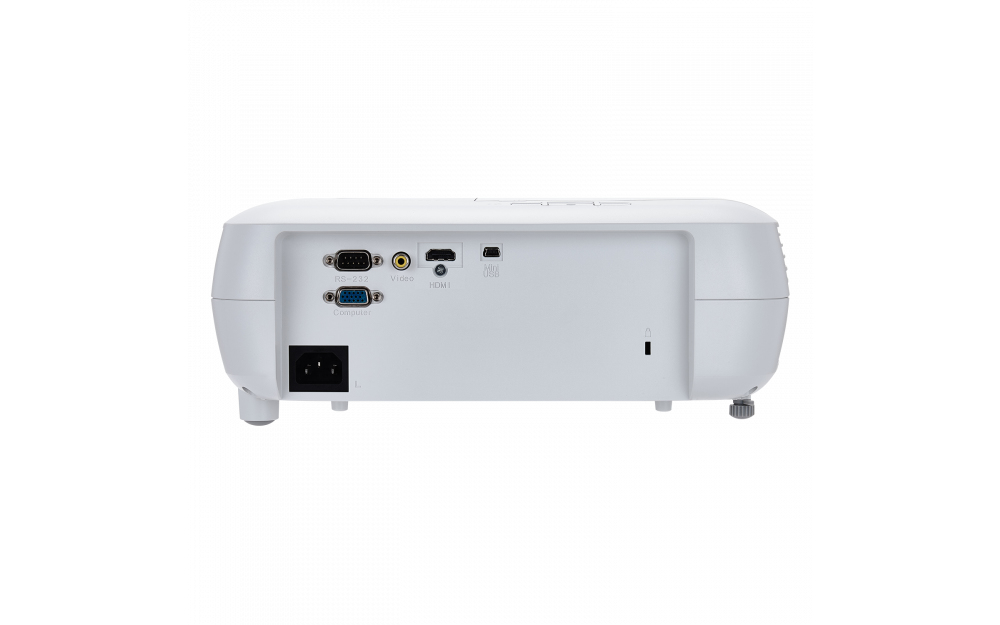

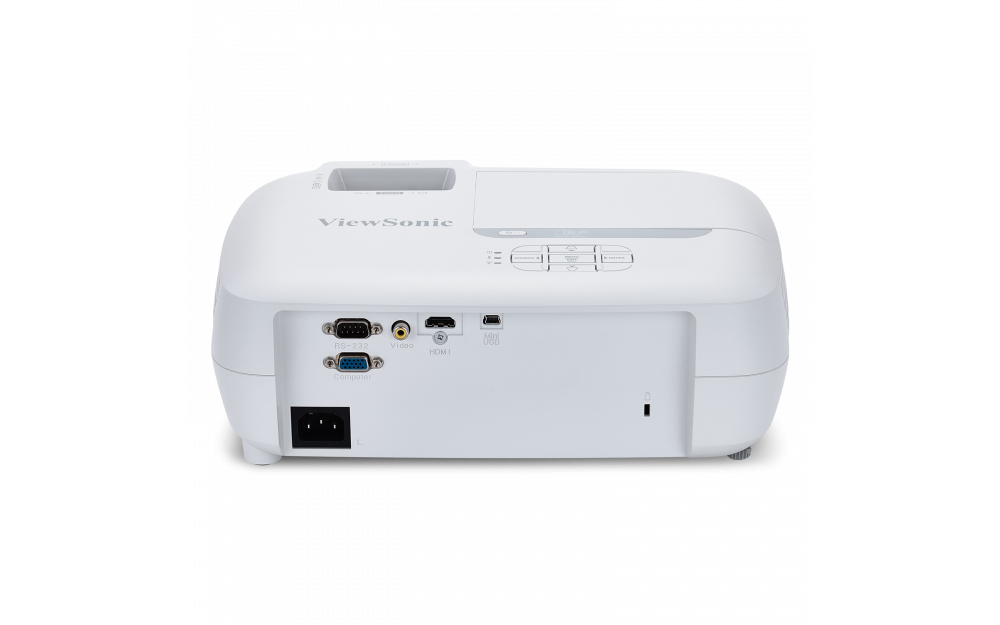

Viewsonic PA502S data projector Standard throw projector 3500 ANSI lumens DLP SVGA (800x600) Black, White

Viewsonic PA502S data projector Standard throw projector 3500 ANSI lumens DLP SVGA (800x600) Black, White

Model PA502SEAN 766907914313

63 specifications
  • TypeStandard throw projector
  • Weight2.1 kg
  • ColourBlack, White
  • Projector brightness3500 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Type
Standard throw projector
Weight
2.1 kg
Colour
Black, White
Projector brightness
3500 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
Viewsonic
Model
PA502S
Part number
PA502S
EAN / UPC
766907914313
Also known as
Viewsonic PA502S data projector Standard throw projector 3500 ANSI lumens DLP SVGA (800x600) Black, White

Specifications

63 specifications in 14 groups

Projector

Projector brightness3500 ANSI lumens
Projection technologyDLP
Projector native resolutionSVGA (800x600)
Native aspect ratio4:3
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.1 - 13 m
Contrast ratio (dynamic)22000:1
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, vertical-40 - 40°

Light source

Light source typeLamp
Service life of light source4500 h
Service life of light source (economic mode)15000 h
Lamp power190 W
Lamps quantity1 lamp(s)

Lens system

FocusManual
Zoom capabilityYes
Zoom typeManual
Optical zoom1.1x
Throw ratio1.97 - 2.17:1

Video

Supported graphics resolutions640 x 480 (VGA), 1920 x 1200 (WUXGA)

Ports & interfaces

VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version1.4
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
USB 2.0 ports quantity0
Audio (L/R) in0
Serial interface typeRS-232
AC (power) inYes

Network

Ethernet LANNo
Ethernet LAN (RJ-45) ports0
Wi-FiNo

Storage

Card reader integratedNo

Multimedia

Built-in speaker(s)No

Design

Product typeStandard throw projector
Product colourBlack, White
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Power

Power sourceAC
Power consumption (typical)240 W
Power consumption (standby)0.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Operating altitude0 - 1499 m

Weight & dimensions

Weight2.1 kg
Width320 mm
Depth122.7 mm
Height209.8 mm
Package width382 mm
Package depth166 mm
Package height316 mm
Package weight3.2 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
Quick start guideYes

Other features

RS-232 ports1
