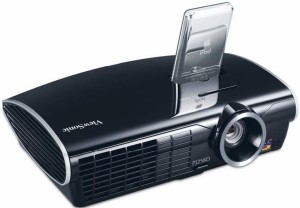

Viewsonic MICRO-PORTABLE DLP® VIEWDOCK™ PROJECTOR

Viewsonic MICRO-PORTABLE DLP® VIEWDOCK™ PROJECTOR

Model MICRO-PORTABLE DLP® VIEWDOCK™ PROJECTORPart no. VS11542

35 specifications
  • ConnectivityWired
  • Weight1.8 kg
  • Projector brightness2000 ANSI lumens
  • Light source typeLamp
  • FocusManual
  • Analog signal format systemNTSC 4.43
See all specifications

Overview

Connectivity
Wired
Weight
1.8 kg
Projector brightness
2000 ANSI lumens
Light source type
Lamp
Focus
Manual
Analog signal format system
NTSC 4.43
Brand
Viewsonic
Model
MICRO-PORTABLE DLP® VIEWDOCK™ PROJECTOR
Part number
VS11542
Also known as
Viewsonic MICRO-PORTABLE DLP® VIEWDOCK™ PROJECTOR 2000 ANSI lumens XGA (1024x768)

Specifications

35 specifications in 11 groups

Projector

Projector brightness2000 ANSI lumens
Projection technologyDLP
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)2000:1
Screen size compatibility1016 - 7620 mm (40 - 300")
Vertical scan range56 - 85 Hz
Keystone correction, horizontal15°
Keystone correction, vertical15°

Light source

Light source typeLamp
Service life of light source2000 h
Lamp power200 W

Lens system

FocusManual
Focal length range20.2 - 24.2 mm

Video

Analog signal format systemNTSC 4.43

Ports & interfaces

Component video (YPbPr/YCbCr) in1
Composite video in1
S-Video inputs quantity1
USB 2.0 ports quantity1
Headphone outputs1

Features

CertificationCE, CB, TÜV/GS, GOST, UL, CUL, FCC-B, CCC, PSB, NOM, WEEE, RoHS

Multimedia

RMS rated power2 W

Power

Power consumption (typical)280 W

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Weight1.8 kg
Package weight4.6 kg

Other features

Aspect ratio4:3, 16:9
Package dimensions (WxDxH)332 x 195 x 315 mm
Connectivity technologyWired
Dimensions (WxDxH)288 x 190 x 83 mm
InterfaceUSB
Lens focal range2.3–2.75
Power requirementsAC 100–240V, 50/60Hz
Video in31-79.8
I/O ports1 x 15-pin mini D-sub 1 x RCA jack 1 x 4-pin mini-DIN 15-pin mini D-sub to 3 x RCA 1 x 3.5mm stereo mini jack
