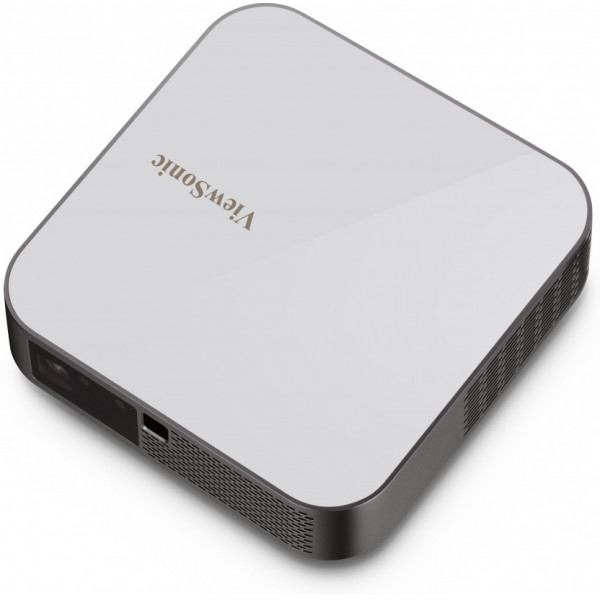

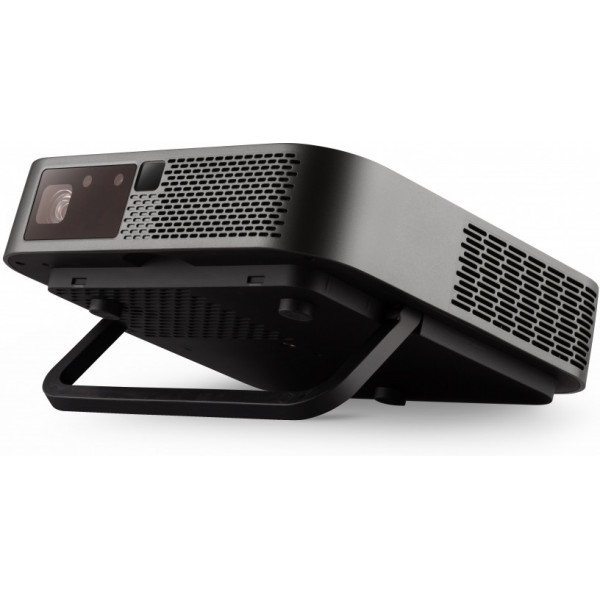

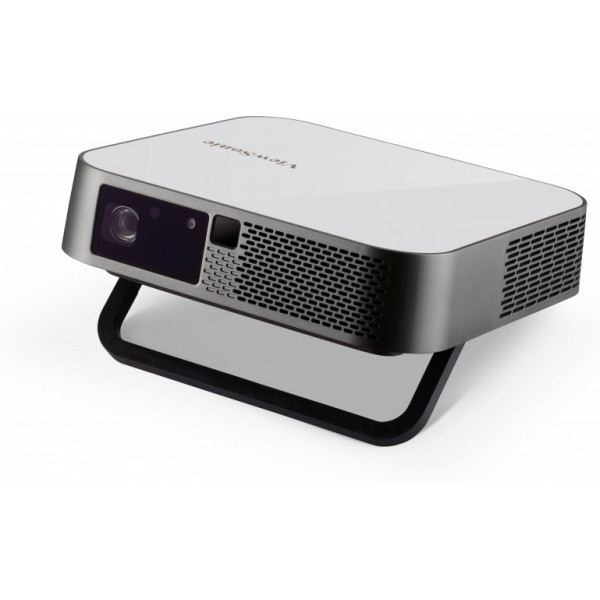

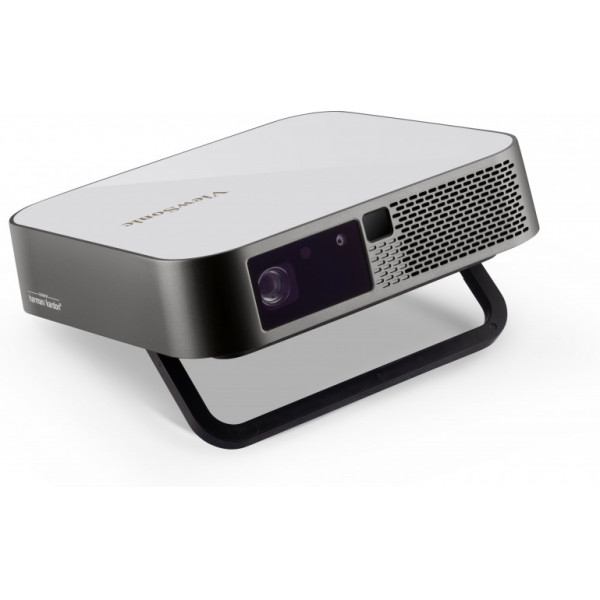

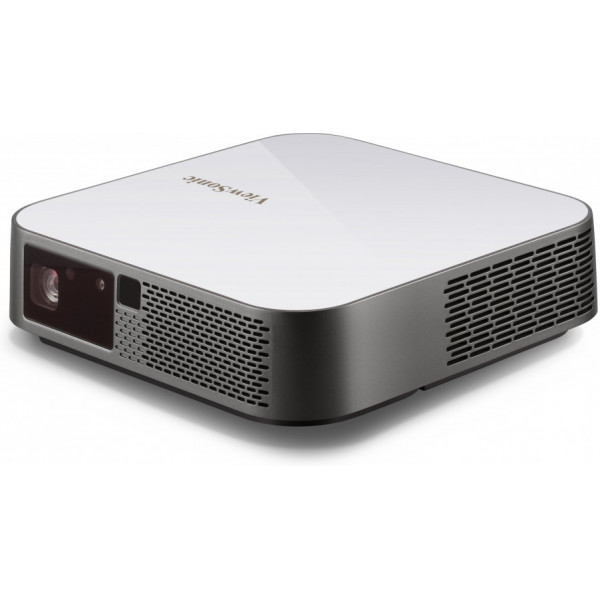

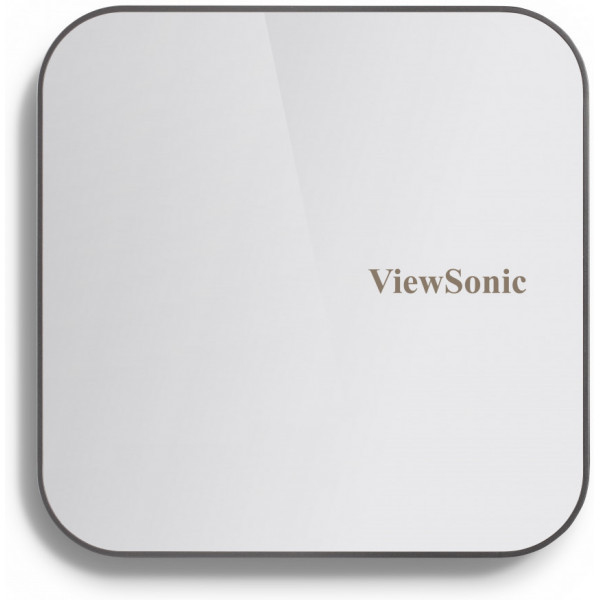

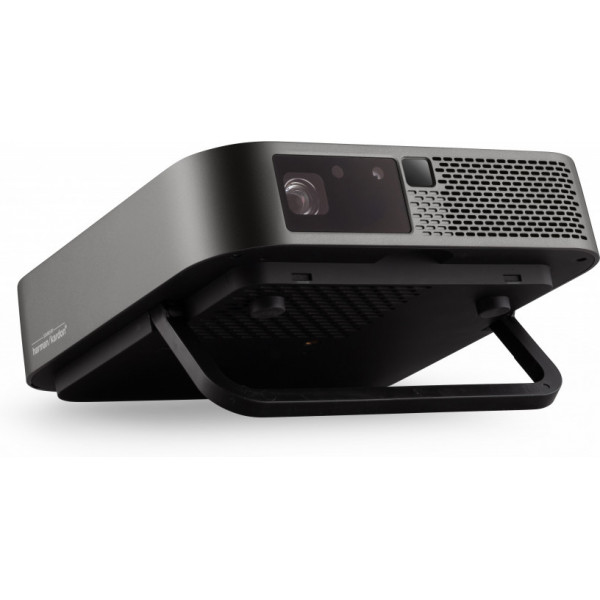

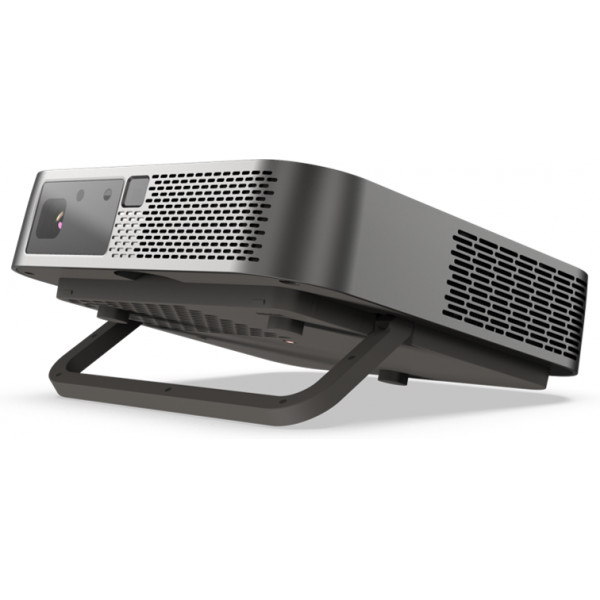

M2e Short throw projector 1000 ANSI lumens LED 1080p (1920x1080) 3D Grey, White
Model M2ePart no. VS18294EAN 766907008456
78 specifications
- Storage16 GB
- Noise26 dB
- TypeShort throw projector
- Weight1 kg
- ColourGrey, White
- Projector brightness1000 ANSI lumens
Overview
- Storage
- 16 GB
- Noise
- 26 dB
- Type
- Short throw projector
- Weight
- 1 kg
- Colour
- Grey, White
- Projector brightness
- 1000 ANSI lumens
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- M2e
- Part numbers
- VS18294, W125922525
- EAN / UPC
- 766907008456
- Also known as
- Viewsonic M2e Short throw projector 1000 ANSI lumens LED 1080p (1920x1080) 3D Grey, White
Specifications
78 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 1000 ANSI lumens |
| Projection technology | LED |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3000000:1 |
| Screen size compatibility | 609.6 - 2540 mm (24 - 100") |
| Projection distance | 0.65 - 2.68 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 5.84 mm (0.23") |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Fixed focal length | 6.35 mm |
| Aperture range (F-F) | 1.7 - 1.7 |
| Zoom capability | Yes |
| Zoom type | Fixed |
| Zoom ratio | 0.8-1:1 |
| Throw ratio | 1.21 |
| Offset | 100% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

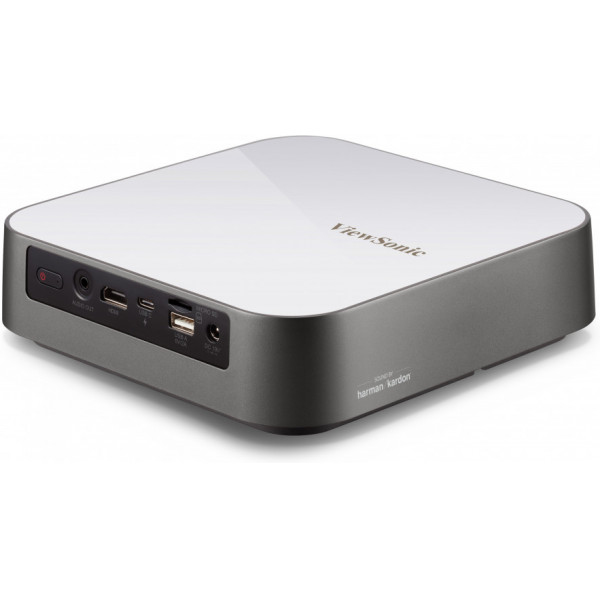

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| PC Audio out | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDXC |
| Maximum memory card size | 64 GB |
| Internal storage capacity | 16 GB |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 26 dB |
| Noise level (economic mode) | 24 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 6 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Portable |
| Product colour | Grey, White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 75 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
| Width | 184 mm |
| Depth | 184 mm |
| Height | 54 mm |
| Package width | 258 mm |
| Package depth | 255 mm |
| Package height | 167 mm |
| Package weight | 2.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB Type-C |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
