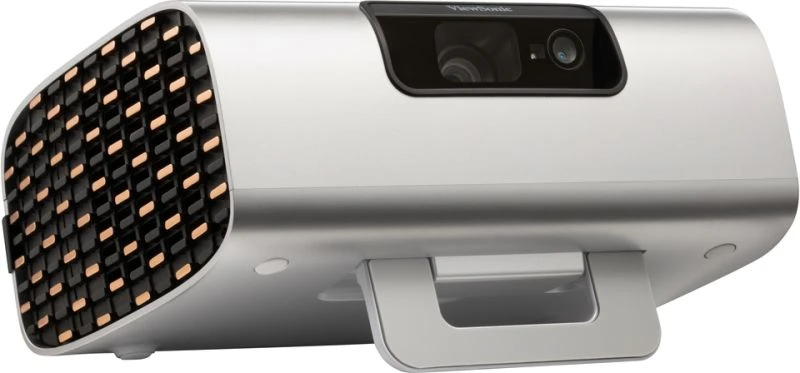

M10E data projector 2200 ANSI lumens 1080p (1920x1080) Black, Silver
Model M10EEAN 766907023831
72 specifications
- Storage16 GB
- Noise29 dB
- Weight1.36 kg
- ColourBlack, Silver
- Projector brightness2200 ANSI lumens
- Light source typeLaser
Overview
- Storage
- 16 GB
- Noise
- 29 dB
- Weight
- 1.36 kg
- Colour
- Black, Silver
- Projector brightness
- 2200 ANSI lumens
- Light source type
- Laser
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- M10E
- Part number
- M10E
- EAN / UPC
- 766907023831, 766907026979
- Also known as
- Viewsonic M10E data projector 2200 ANSI lumens 1080p (1920x1080) Black, Silver
Specifications
72 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2200 ANSI lumens |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 3500000:1 |
| Screen size compatibility | 1016 - 4572 mm (40 - 180") |
| Projection distance | 1.06 - 4.78 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Fixed focal length | 6.25 mm |
| F-number (relative aperture) | 2.1 |
| Zoom capability | Yes |
| Zoom ratio | 0.8-1:1 |
| Throw ratio | 1.2 |
| Offset | 100% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1440p |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 Type-C ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Storage
| Specification | Value |
|---|---|
| Internal storage capacity | 16 GB |
Features
| Specification | Value |
|---|---|
| Noise level | 29 dB |
| Noise level (economic mode) | 26 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 24 |
| Screen mirroring | Yes |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG) |
| Video apps | Apple TV, Roku Channel |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 7 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Heavy metals free | Hg (mercury) |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 51.3 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.36 kg |
| Width | 202 mm |
| Depth | 165 mm |
| Height | 92 mm |
| Package width | 338 mm |
| Package depth | 218 mm |
| Package height | 139 mm |
| Package weight | 2.78 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB Type-C |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | TÜV mark |
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2.1 m |
| Pallet gross length | 100 cm |
| Pallet gross width | 125 cm |
| Products per master (outer) case | 4 pc(s) |
