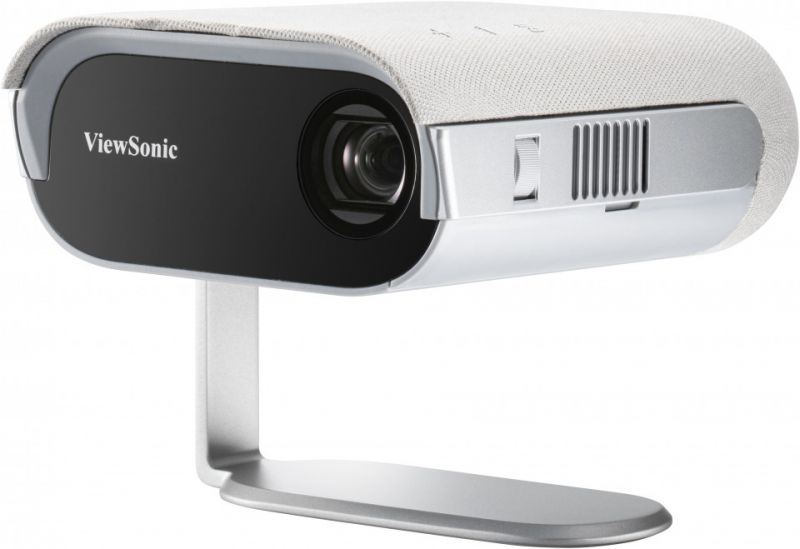

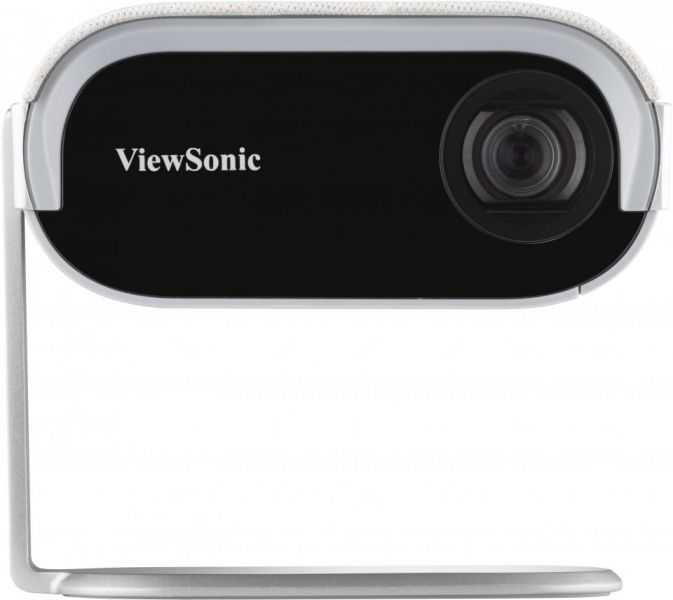

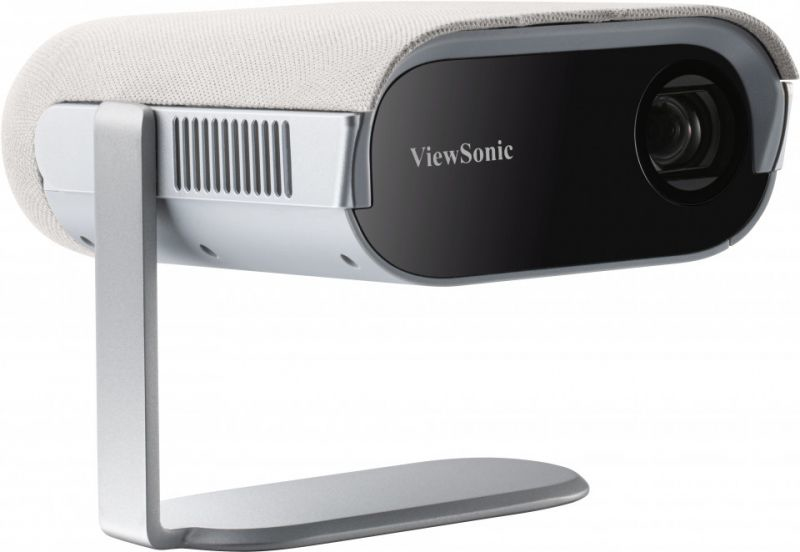

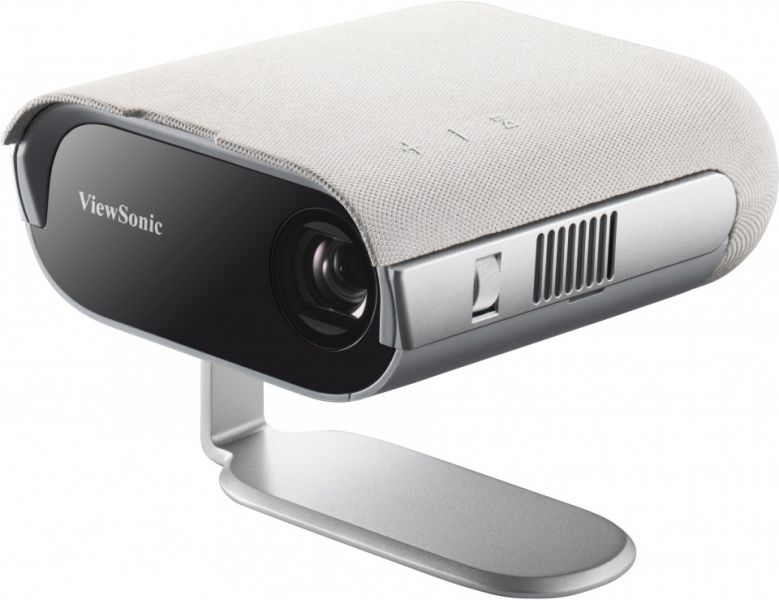

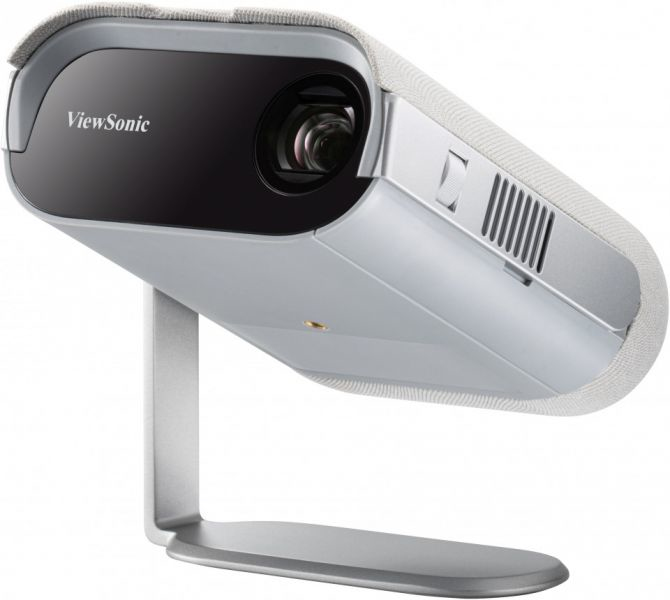

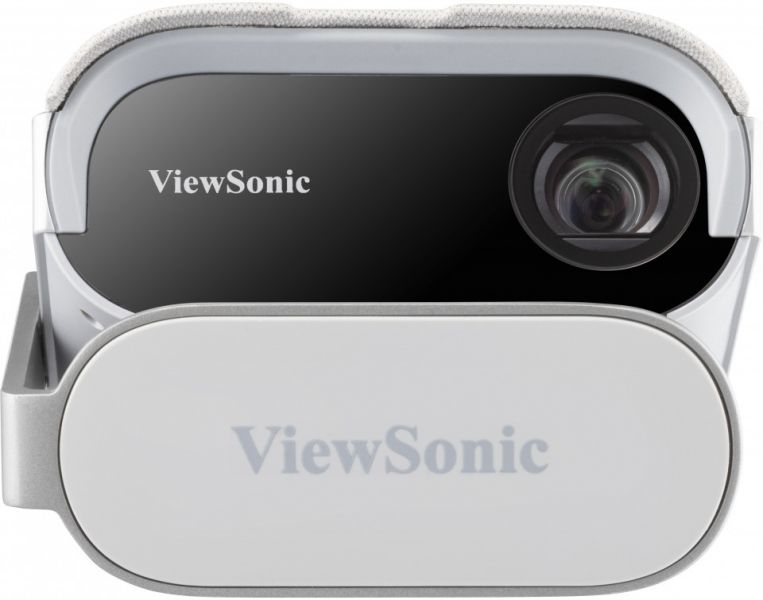

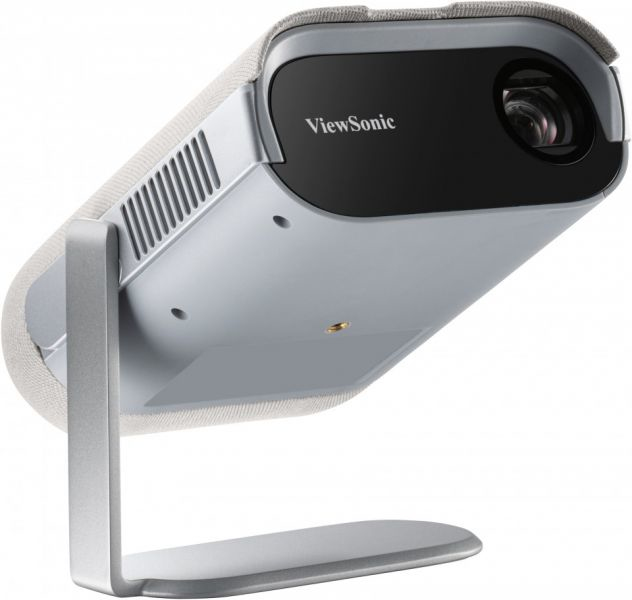

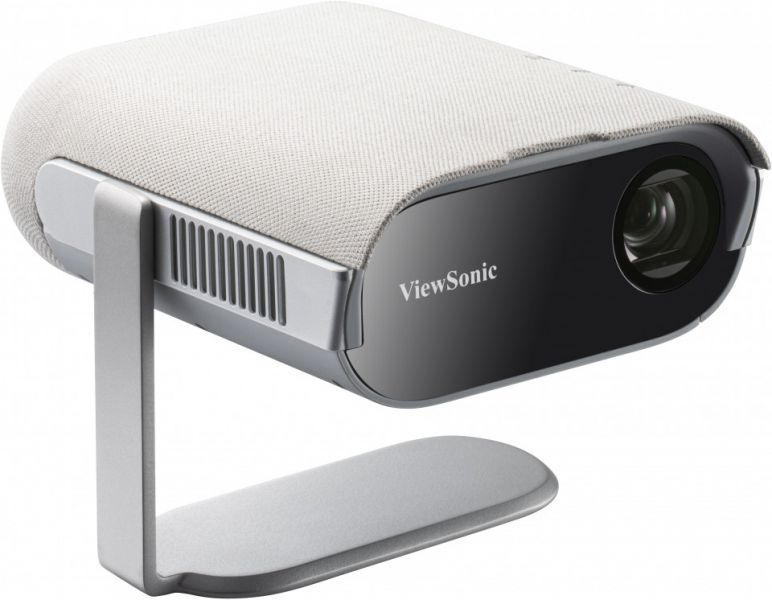

M1 PRO
Model M1 PROEAN 766907018608
56 specifications
- Battery12000 mAh
- Noise26 dB
- TypeStandard throw projector
- Weight950 g
- ColourWhite
- Projector brightness600 LED lumens
Overview
- Battery
- 12000 mAh
- Noise
- 26 dB
- Type
- Standard throw projector
- Weight
- 950 g
- Colour
- White
- Projector brightness
- 600 LED lumens
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- M1 PRO
- Part number
- M1 PRO
- EAN / UPC
- 766907018608
- Also known as
- Viewsonic M1 PRO data projector Standard throw projector LED 720p (1280x720) 3D White
Specifications
56 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 600 LED lumens |
| Projection technology | LED |
| Projector native resolution | 720p (1280x720) |
| Contrast ratio (typical) | 120000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 1016 - 3810 mm (40 - 150") |
| Projection distance | 0.94 - 3.52 m |
| Keystone correction, horizontal | 40° |
| Keystone correction, vertical | 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Aperture range (F-F) | 1.7 - 7.4 |
| Zoom capability | Yes |
| Zoom ratio | 0.8-1:1 |
| Throw ratio | 1.07 |
| Offset | 100% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |

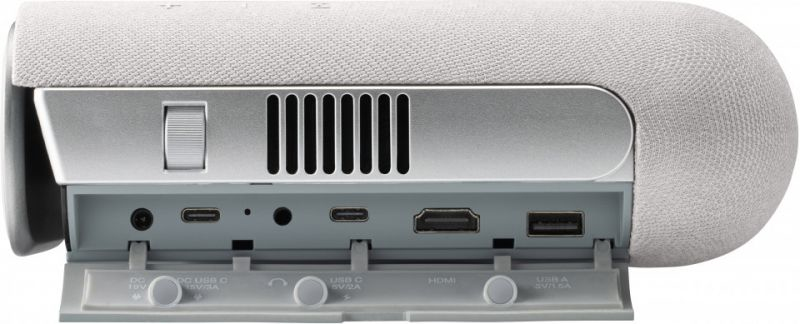

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Audio (L/R) out | 1 |
| AC (power) in | Yes |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Features
| Specification | Value |
|---|---|
| Noise level | 26 dB |
| Noise level (economic mode) | 25 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | BEL, Simplified Chinese, Dutch, English, Spanish, Finnish, French, Italian, Polish, Portuguese, Romanian, Russian, Turkish |
| Number of OSD languages | 24 |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power source | AC/Battery |
| Power consumption (typical) | 45 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 -2 40 V |
| Battery life (max) | 2 h |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 12000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 950 g |
| Width | 182 mm |
| Depth | 140 mm |
| Height | 62 mm |
| Package width | 453 mm |
| Package depth | 242 mm |
| Package height | 94 mm |
| Package weight | 2.8 kg |
