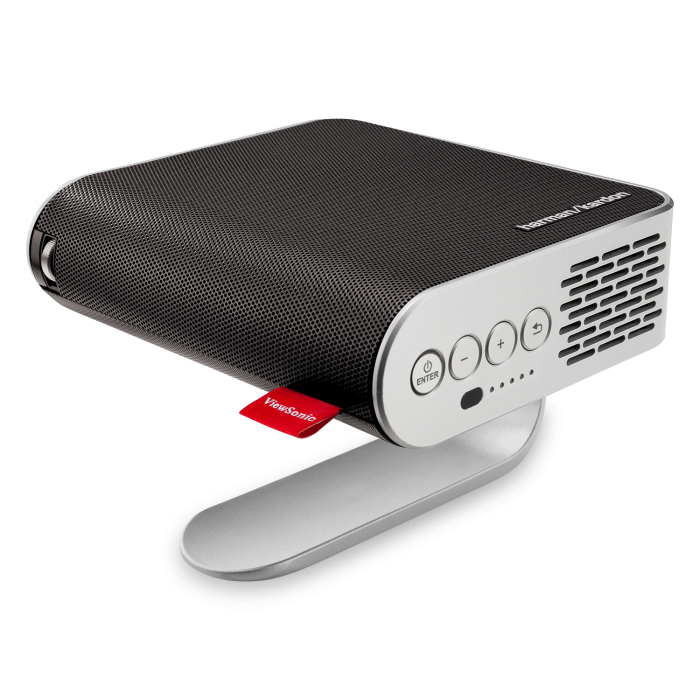

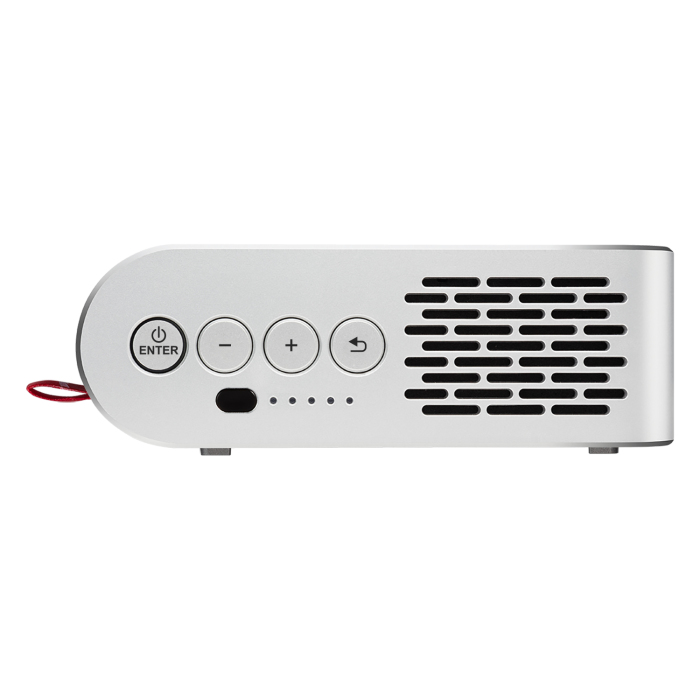

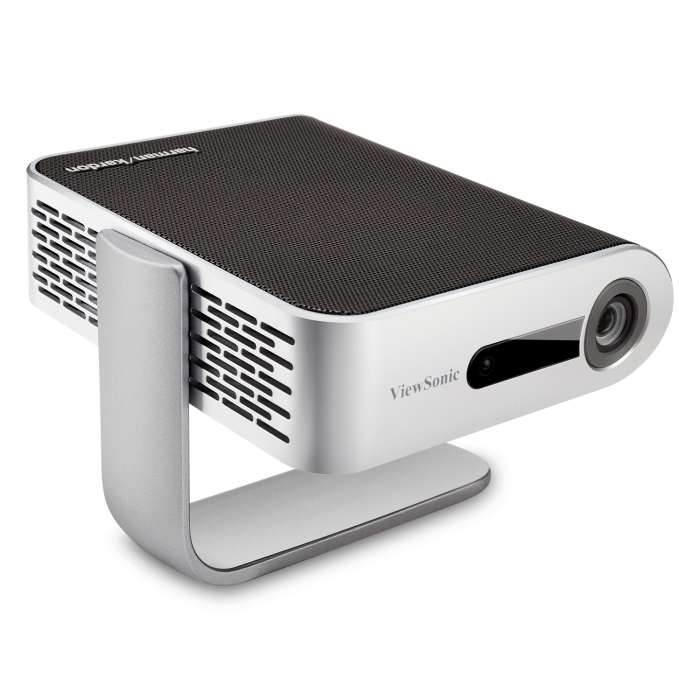

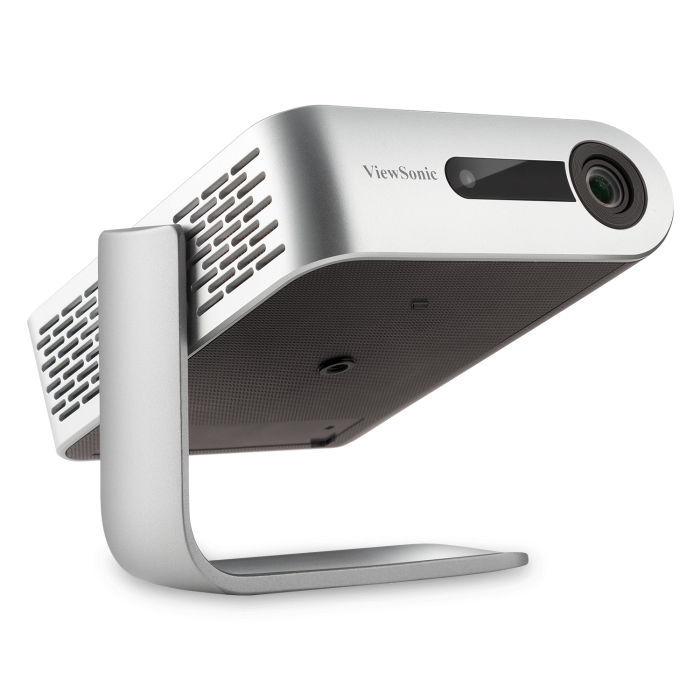

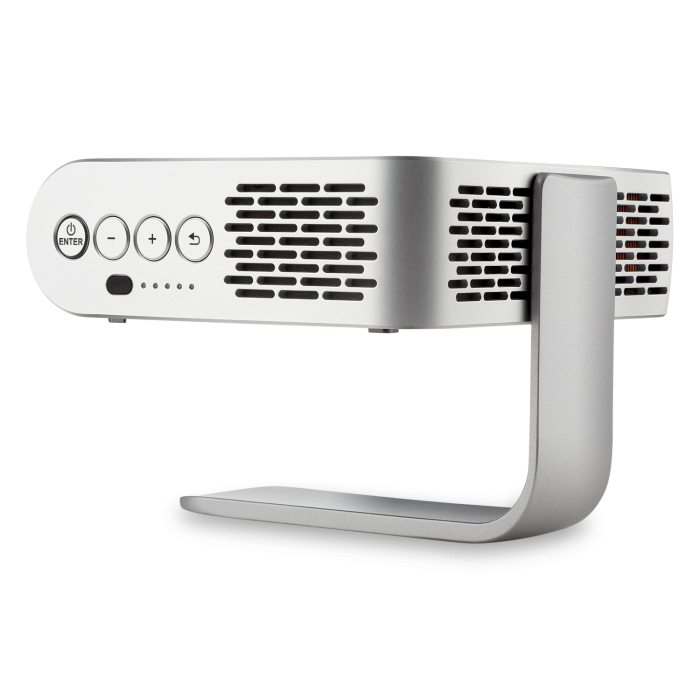

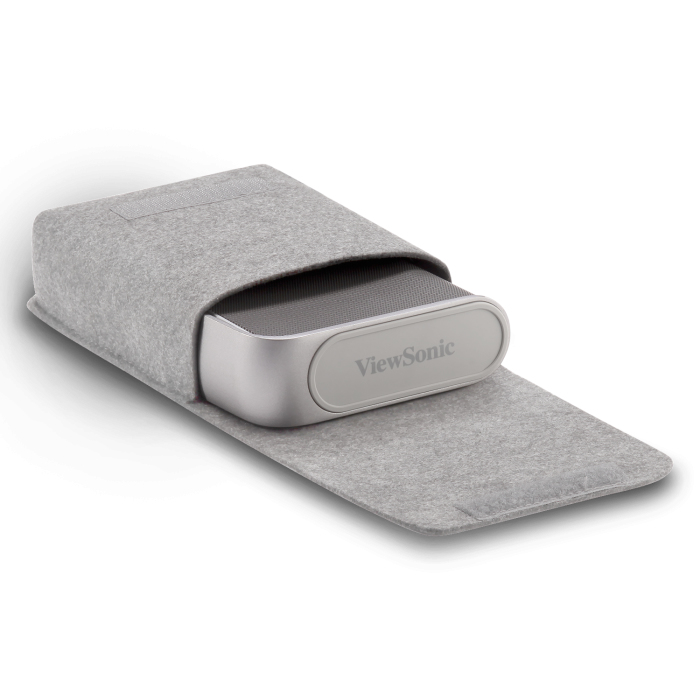

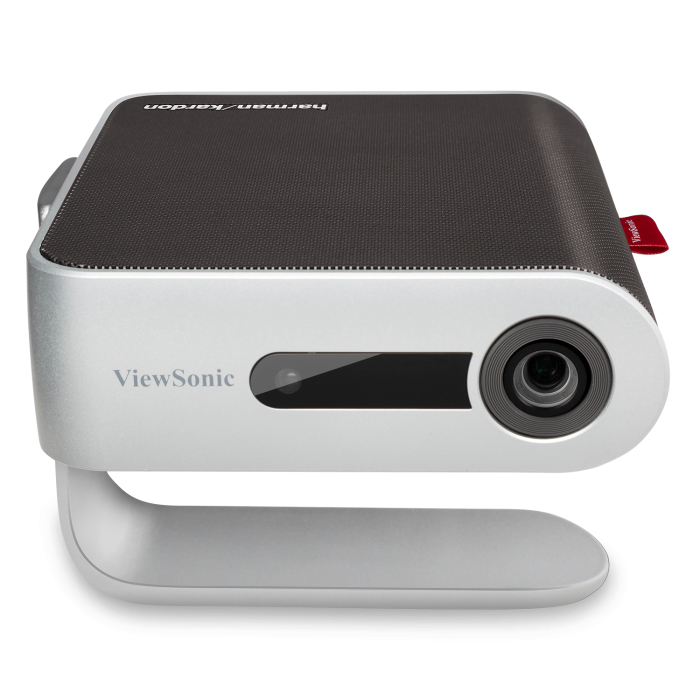

M1+-2 data projector Standard throw projector 125 ANSI lumens DLP WVGA (854x480) Silver
Model M1+-2
59 specifications
- Battery12000 mAh
- TypeStandard throw projector
- Weight700 g
- ColourSilver
- Projector brightness125 ANSI lumens
- Light source typeLED
Overview
- Battery
- 12000 mAh
- Type
- Standard throw projector
- Weight
- 700 g
- Colour
- Silver
- Projector brightness
- 125 ANSI lumens
- Light source type
- LED
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- M1+-2
- Part number
- M1+-2
- Also known as
- Viewsonic M1+-2 data projector Standard throw projector 125 ANSI lumens DLP WVGA (854x480) Silver
Specifications
59 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 125 ANSI lumens |
| Projector brightness | 300 LED lumens |
| Projection technology | DLP |
| Projector native resolution | WVGA (854x480) |
| Native aspect ratio | 16:9 |
| Smart projector | Yes |
| Screen size compatibility | 609.6 - 2540 mm (24 - 100") |
| Projection distance | 0.64 - 2.66 m |
| Contrast ratio (dynamic) | 120000:1 |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Throw ratio | 1.2 |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |

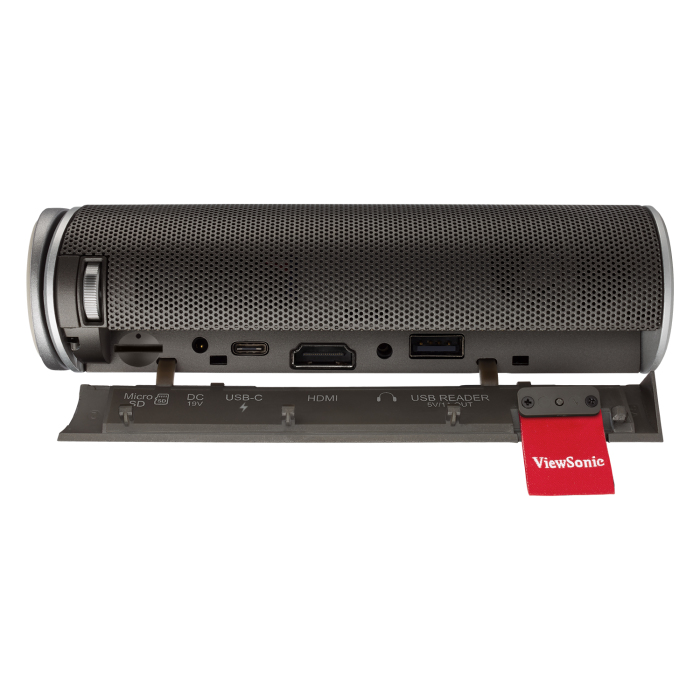

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio (L/R) in | 0 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 6 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | Silver |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC/Battery |
| Power consumption (typical) | 35 W |
| Power consumption (standby) | 0.5 W |
| AC adapter output voltage | 100 - 240 V |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 12000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 700 g |
| Width | 151 mm |
| Depth | 126 mm |
| Height | 40 mm |
| Package width | 219 mm |
| Package depth | 190 mm |
| Package height | 119 mm |
| Package weight | 1.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB Type-C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
