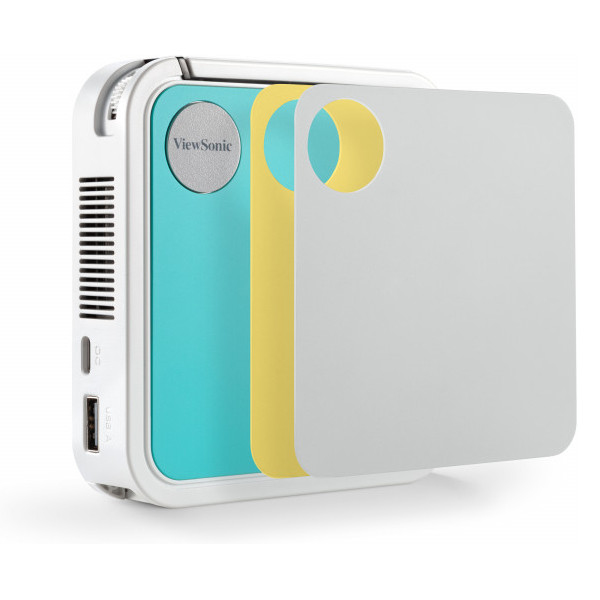

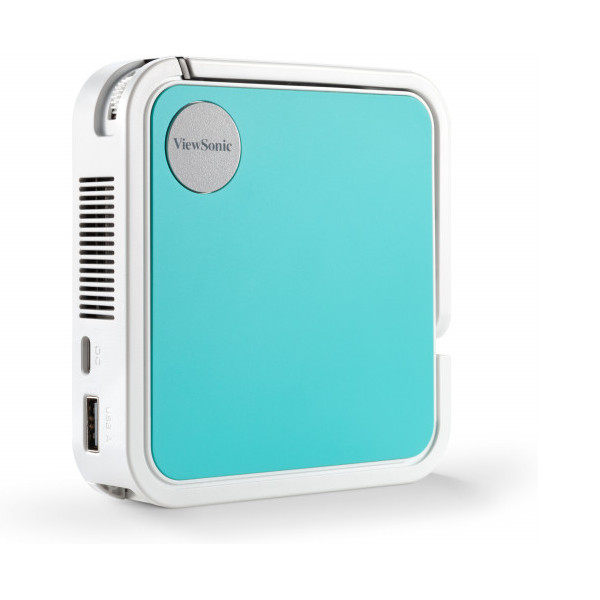

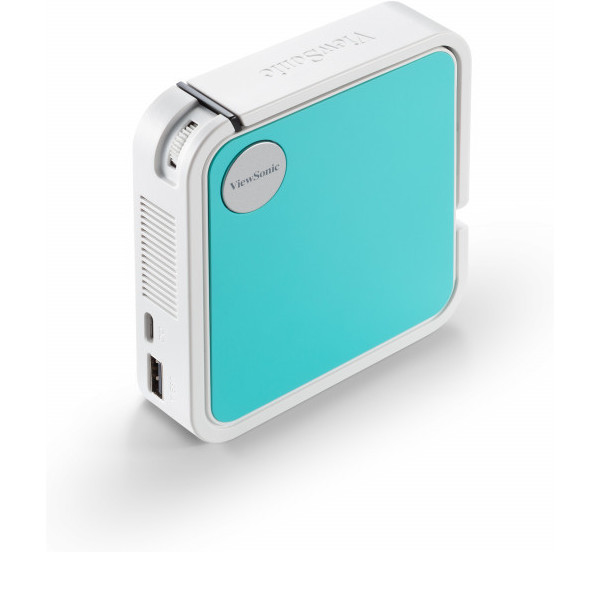

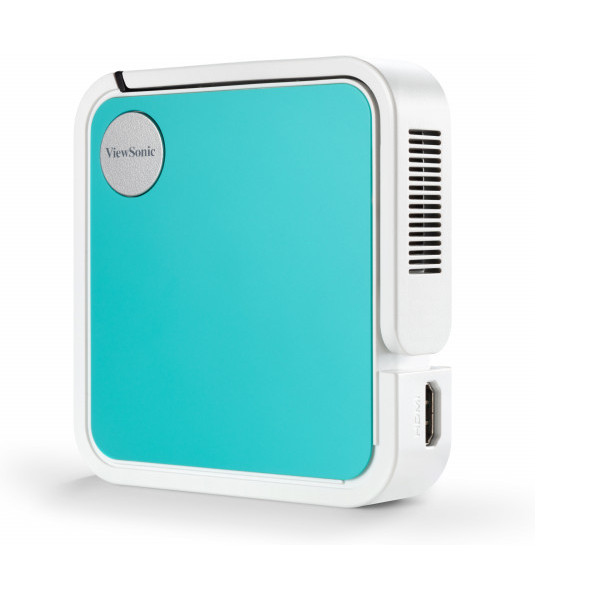

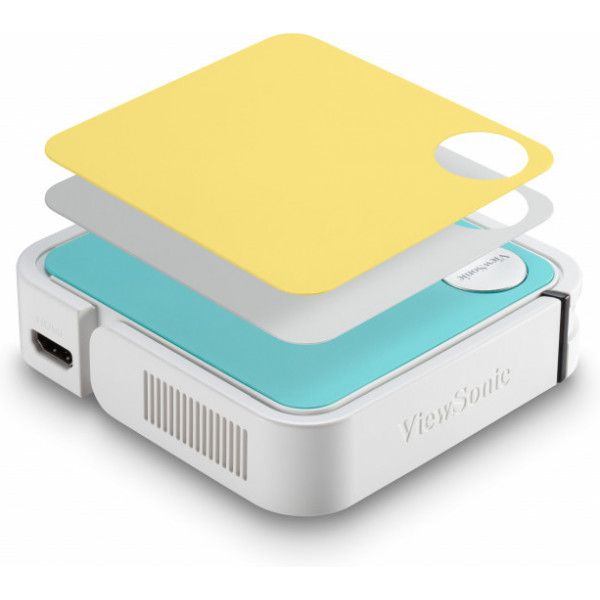

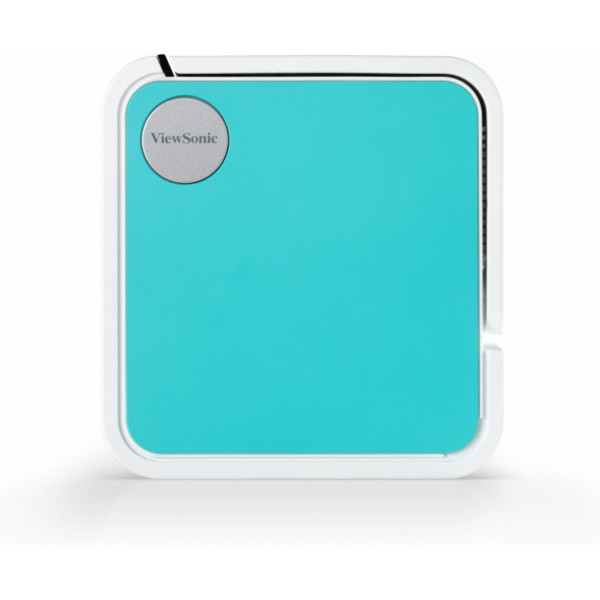

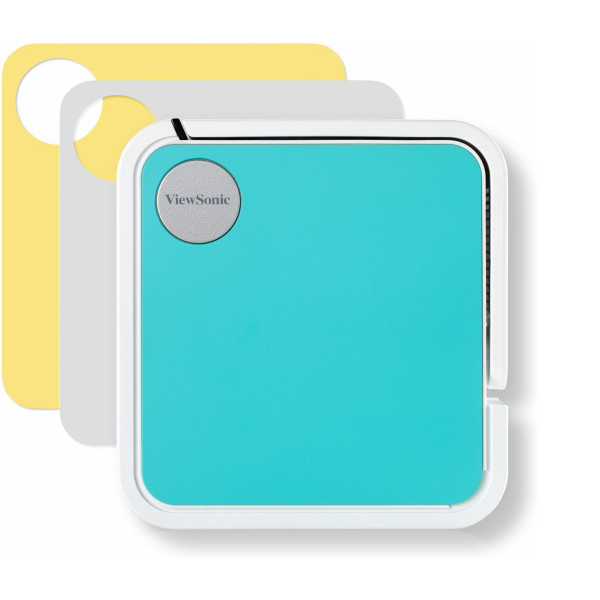

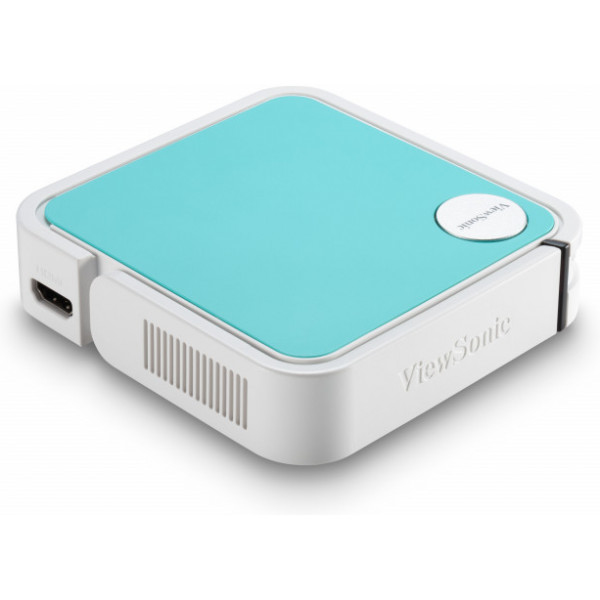

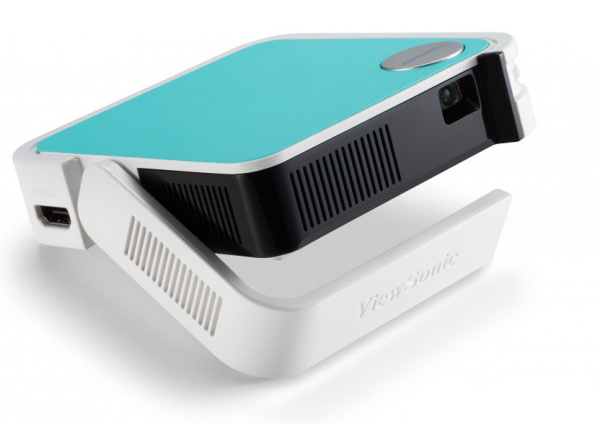

M1 mini Plus
Model M1 mini PlusEAN 766907006384
67 specifications
- Storage8 GB
- Battery5000 mAh
- Noise26 dB
- TypeShort throw projector
- Weight280 g
- ColourWhite
Overview
- Storage
- 8 GB
- Battery
- 5000 mAh
- Noise
- 26 dB
- Type
- Short throw projector
- Weight
- 280 g
- Colour
- White
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- M1 mini Plus
- Part number
- M1 mini Plus
- EAN / UPC
- 766907006384
- Also known as
- Viewsonic M1 mini Plus data projector Short throw projector 120 ANSI lumens LED WVGA (854x480) White
Specifications
67 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 120 ANSI lumens |
| Projection technology | LED |
| Projector native resolution | WVGA (854x480) |
| Contrast ratio (typical) | 500:1 |
| Screen size compatibility | 609.6 - 2540 mm (24 - 100") |
| Projection distance | 0.64 - 2.66 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 5.08 mm (0.2") |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 7.5 mm |
| Aperture range (F-F) | 1.7 - 1.7 |
| Zoom type | Fixed |
| Throw ratio | 1.2 |
| Offset | 0.5% |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Internal storage capacity | 8 GB |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 26 dB |
| Noise level (economic mode) | 25 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Portable |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | USB/Battery |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 0.5 W |
| Battery life (max) | 1.5 h |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 5000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 280 g |
| Width | 110 mm |
| Depth | 104 mm |
| Height | 27 mm |
| Package width | 185 mm |
| Package depth | 150 mm |
| Package height | 65 mm |
| Package weight | 780 g |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
