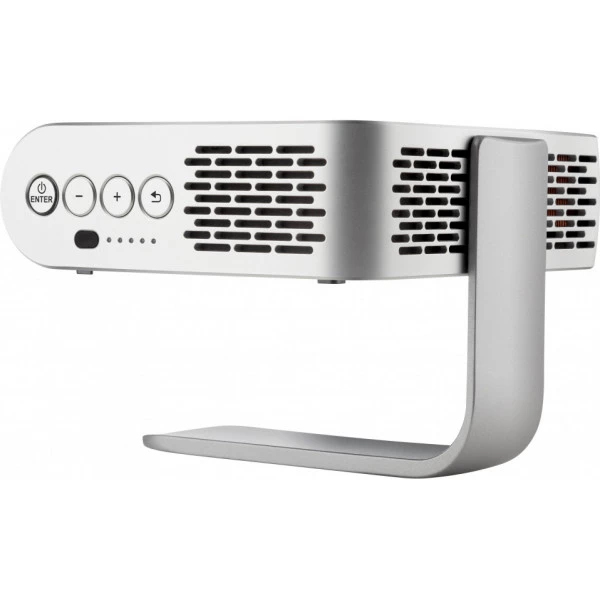

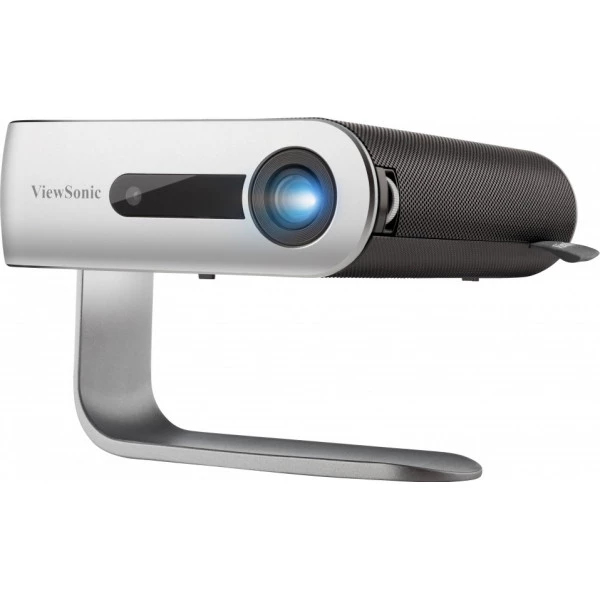

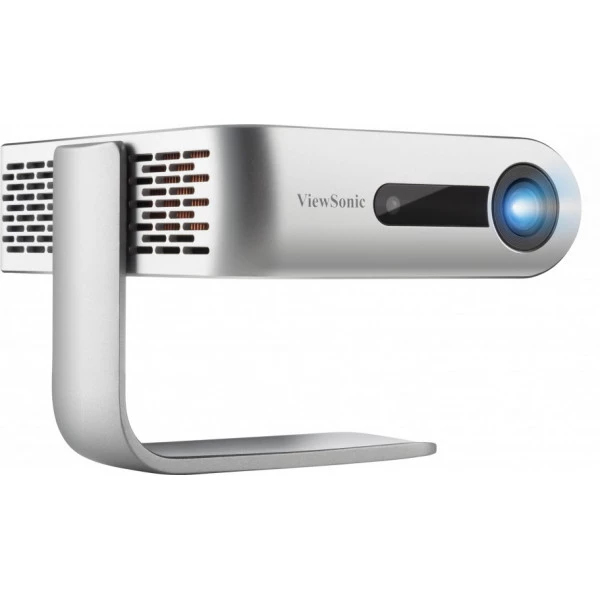

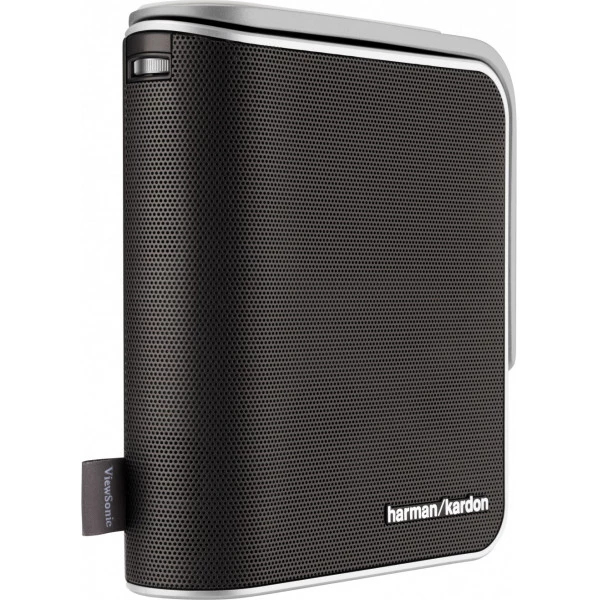

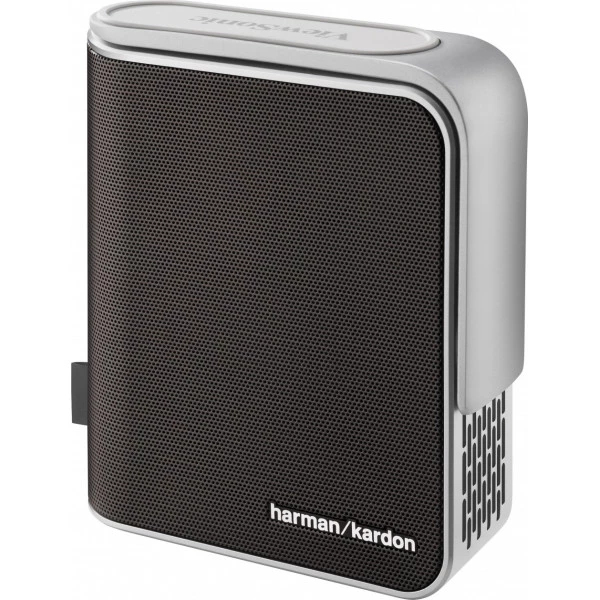

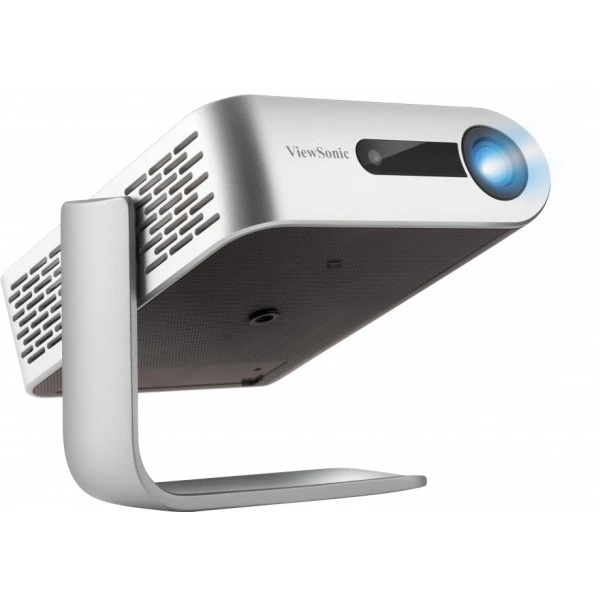

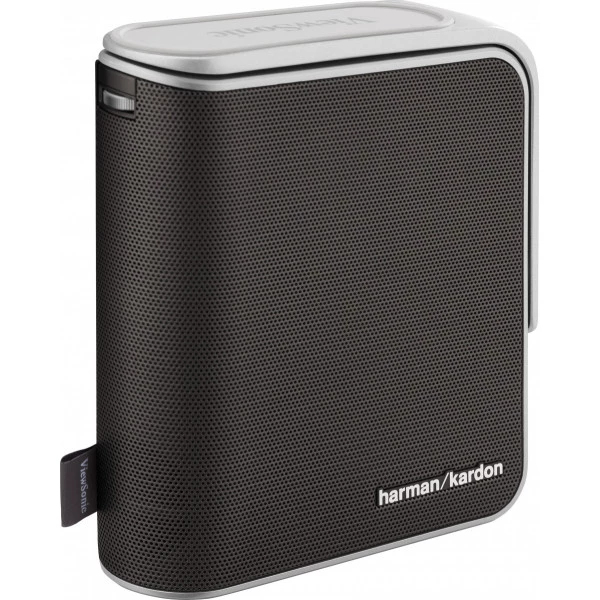

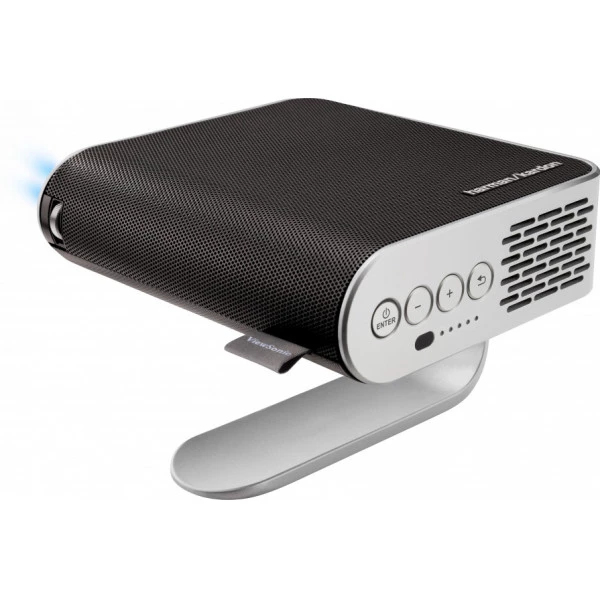

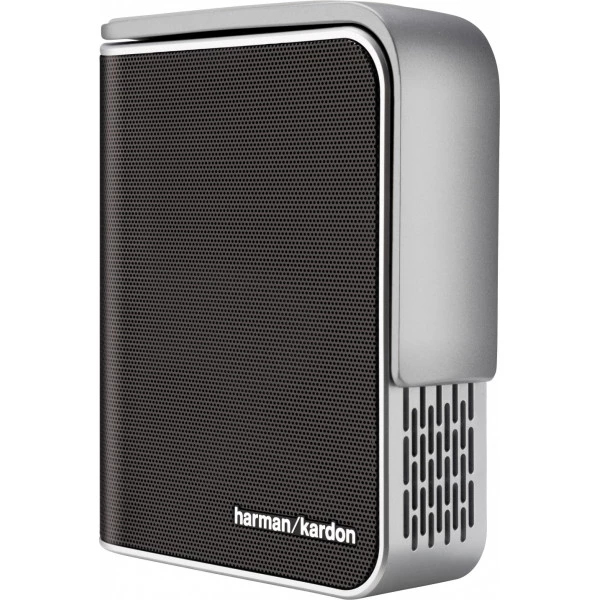

M1 data projector Short throw projector 250 ANSI lumens LED WVGA (854x480) 3D Silver
Model M1EAN 766907000658
80 specifications
- Storage16 GB
- Battery12000 mAh
- Noise26 dB
- TypeShort throw projector
- Weight700 g
- ColourSilver
Overview
- Storage
- 16 GB
- Battery
- 12000 mAh
- Noise
- 26 dB
- Type
- Short throw projector
- Weight
- 700 g
- Colour
- Silver
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- M1
- Part number
- M1
- EAN / UPC
- 766907000658
- Also known as
- Viewsonic M1 data projector Short throw projector 250 ANSI lumens LED WVGA (854x480) 3D Silver
Specifications
80 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 250 ANSI lumens |
| Projection technology | LED |
| Projector native resolution | WVGA (854x480) |
| Contrast ratio (typical) | 120000:1 |
| Screen size compatibility | 609.6 - 2540 mm (24 - 100") |
| Projection distance | 0.64 - 2.66 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 5.08 mm (0.2") |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Fixed focal length | 5.5 mm |
| Aperture range (F-F) | 1.7 - 1.7 |
| Zoom type | Fixed |
| Throw ratio | 1.2 |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 32 GB |
| Internal storage capacity | 16 GB |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 26 dB |
| Noise level (economic mode) | 25 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 6 W |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Portable |
| Product colour | Silver |
| Placement | Tripod |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC/Battery |
| Power consumption (typical) | 45 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Battery life (max) | 3 h |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 12000 mAh |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 700 g |
| Width | 146 mm |
| Depth | 126 mm |
| Height | 40 mm |
| Package width | 191 mm |
| Package depth | 220 mm |
| Package height | 117 mm |
| Package weight | 1.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, USB Type-C |
| Carrying case | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 2.18 m |
| Pallet gross length | 100 cm |
| Pallet gross width | 125 cm |
| Products per master (outer) case | 6 pc(s) |
