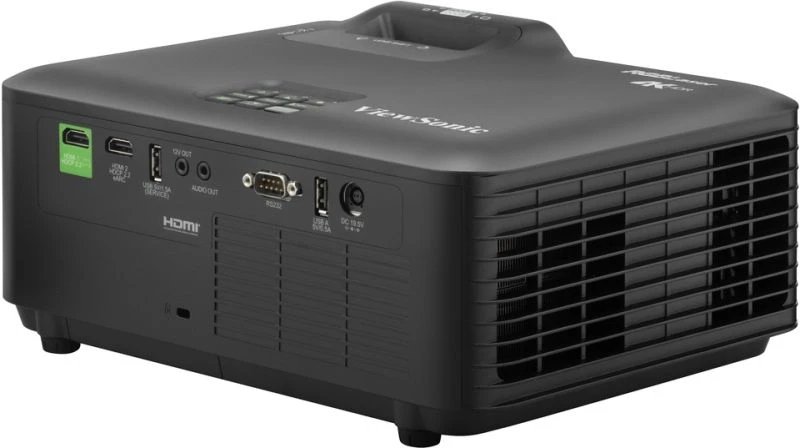

LX700-4KB 5200 ANSI lumens DMD UHD 4K (3840x2160) Black
Model LX700-4KBPart no. 766907030464EAN 766907030464
77 specifications
- Noise30 dB
- Weight2.7 kg
- ColourBlack
- Projector brightness5200 ANSI lumens
- Light source typeLaser
- FocusManual
Overview
- Noise
- 30 dB
- Weight
- 2.7 kg
- Colour
- Black
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Laser
- Focus
- Manual
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LX700-4KB
- Part number
- 766907030464
- EAN / UPC
- 766907030464
- Also known as
- Viewsonic LX700-4KB 5200 ANSI lumens DMD UHD 4K (3840x2160) Black
Specifications
77 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:9 |
| Smart projector | No |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 255 kHz |
| Vertical scan range | 23 - 240 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 20.911 - 32.62 mm |
| Aperture range (F-F) | 2.5 - 3.26 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Digital zoom | 2x |
| Optical zoom | 1.6x |
| Throw ratio | 1.4 - 2.24 |
| Vertical lens shift range | -15 - 0% |
| Offset | 137% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 3840 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| Service port type | USB Type-A |
| USB 2.0 Type-A ports quantity | 2 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| DC-in jack | Yes |
| Audio Return Channel (ARC) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 30 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, English, Spanish, Finnish, French, Greek, Indonesian, Japanese, Korean, Polish, Russian, Swedish, Thai, Vietnamese |
| Number of OSD languages | 23 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 15 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 145 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 129 mm |
| Package width | 400 mm |
| Package depth | 280 mm |
| Package height | 155 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Image lag time | 4.2 ms |
