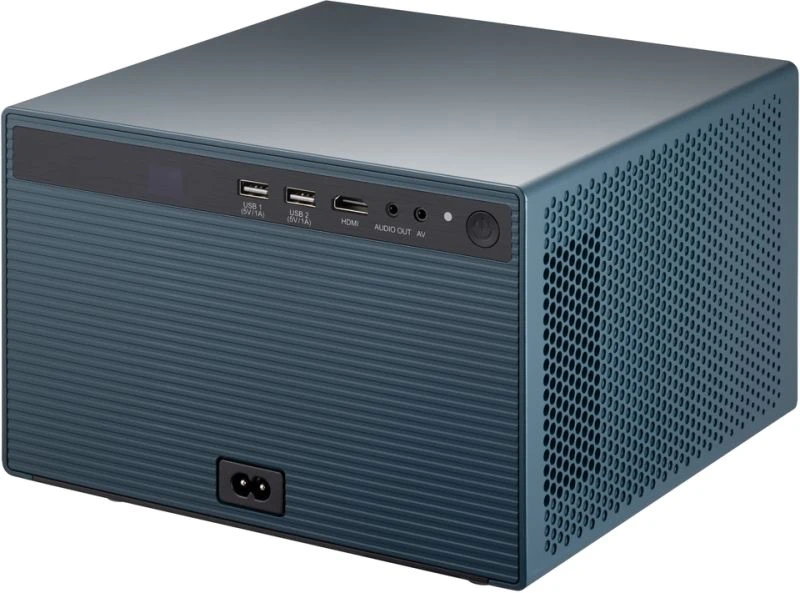

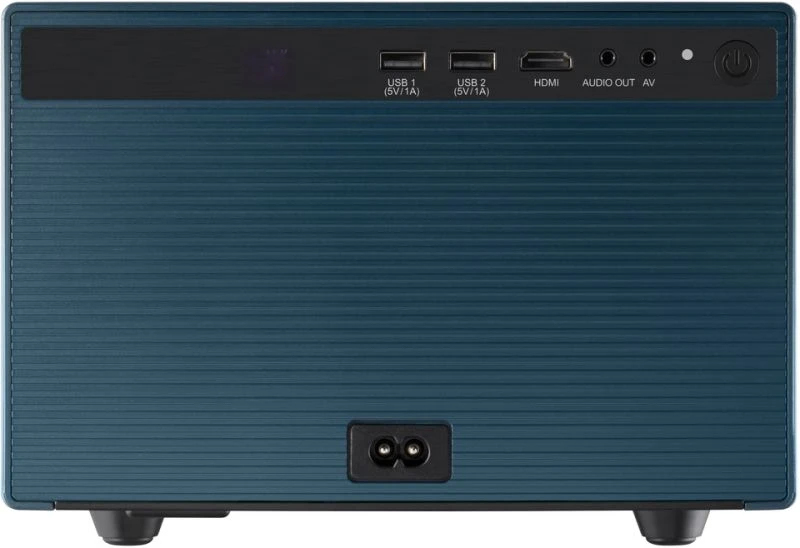

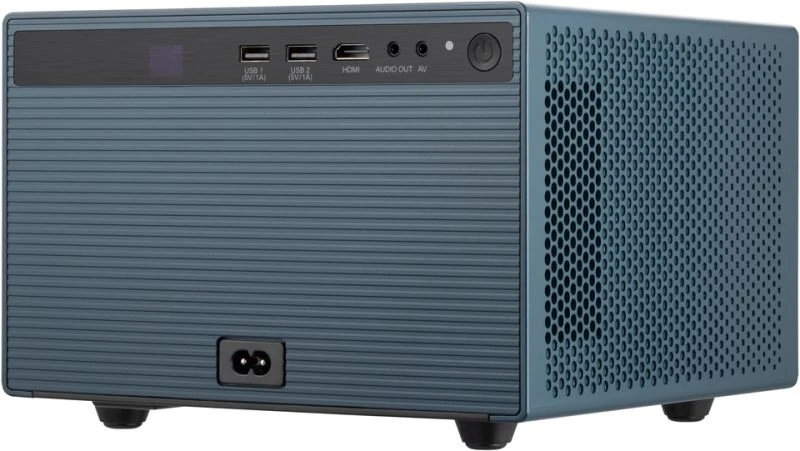

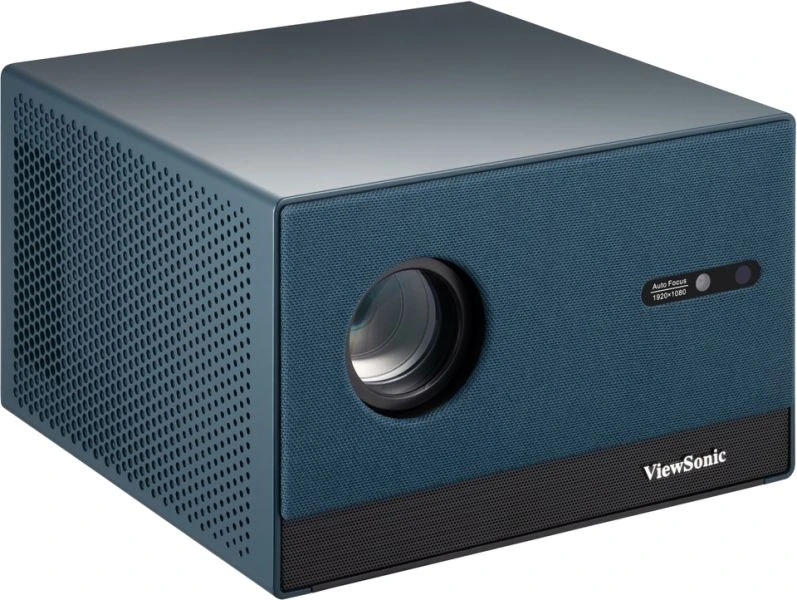

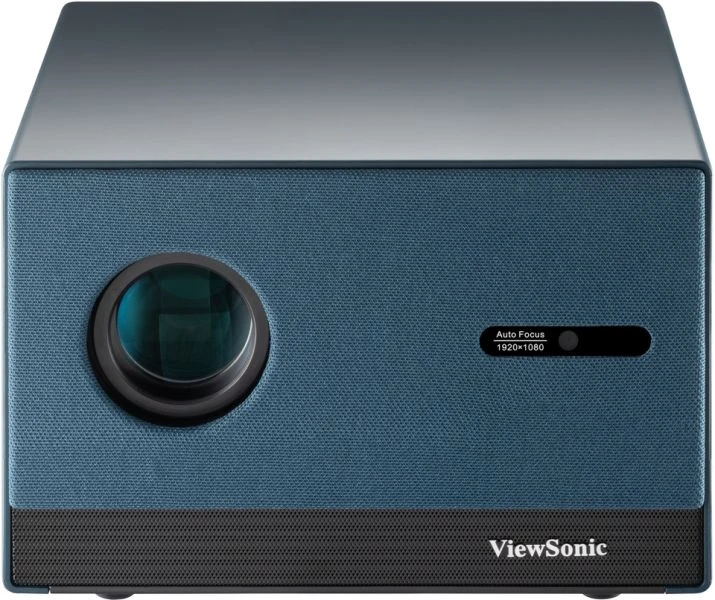

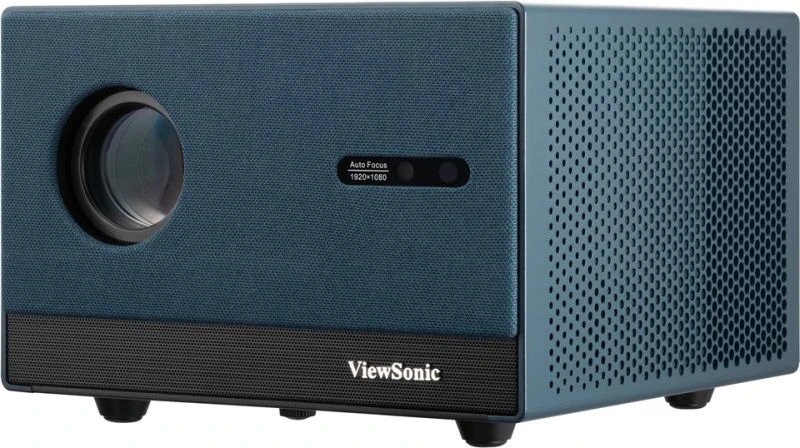

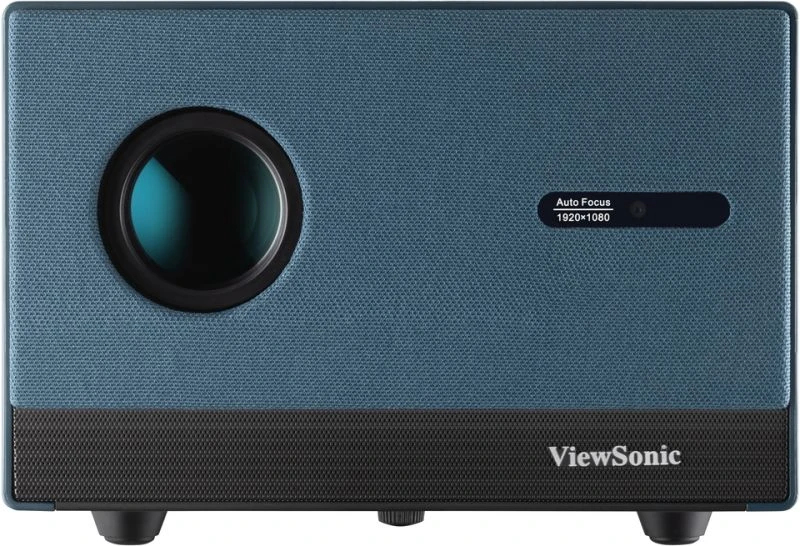

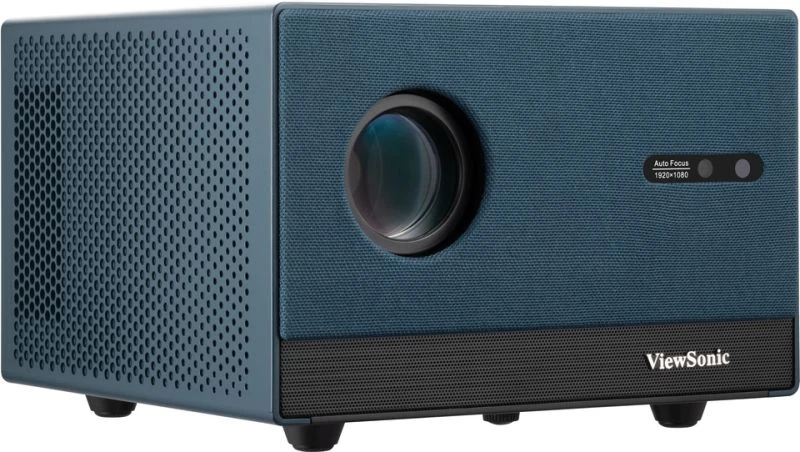

LX60HD data projector Projector module 630 ANSI lumens LCD 1080p (1920x1080) Black, Blue
Model LX60HDEAN 766907028386
70 specifications
- Storage8 GB
- Noise40 dB
- TypeProjector module
- Weight3.13 kg
- ColourBlack, Blue
- Projector brightness630 ANSI lumens
Overview
- Storage
- 8 GB
- Noise
- 40 dB
- Type
- Projector module
- Weight
- 3.13 kg
- Colour
- Black, Blue
- Projector brightness
- 630 ANSI lumens
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LX60HD
- Part number
- LX60HD
- EAN / UPC
- 766907028386
- Also known as
- Viewsonic LX60HD data projector Projector module 630 ANSI lumens LCD 1080p (1920x1080) Black, Blue
Specifications
70 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 630 ANSI lumens |
| Projection technology | LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 4200:1 |
| Smart projector | Yes |
| Screen size compatibility | 1270 - 3556 mm (50 - 140") |
| Projection distance | 1.42 - 3.8 m |
| Number of colours | 16.7 million colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 85 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | - 40 -40° |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Service life of light source | 20000 h |
| Light source brightness | 630 lm |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Fixed focal length | 125 mm |
| F-number (relative aperture) | 2.9 |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 0.8-1:1 |
| Throw ratio | 1.2 |
| Offset | 0% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| USB 2.0 Type-A ports quantity | 2 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
| Internal storage capacity | 8 GB |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 40 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, English, Finnish, French, Japanese, Korean, Polish, Romanian, Swedish, Turkish |
| Number of OSD languages | 24 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Projector module |
| Market positioning | Home cinema |
| Product colour | Black, Blue |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 144 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.13 kg |
| Width | 228 mm |
| Depth | 227 mm |
| Height | 159 mm |
| Package width | 315 mm |
| Package depth | 232 mm |
| Package height | 323 mm |
| Package weight | 4.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | Bluetooth |
| Cables included | Power |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Image lag time | 163 ms |
