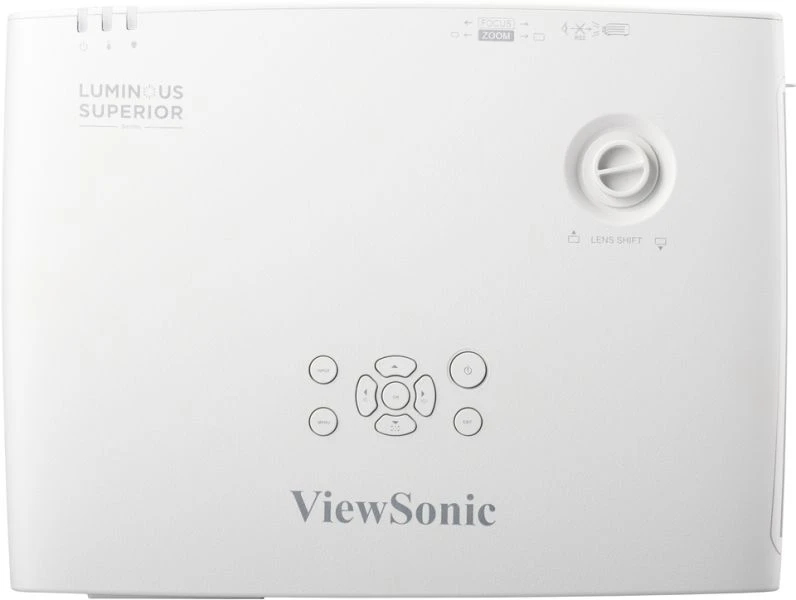

LSC520WU data projector Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White
Model LSC520WUEAN 766907029154
63 specifications
- Noise35 dB
- TypeStandard throw projector
- Weight5.2 kg
- ColourWhite
- Projector brightness5200 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 35 dB
- Type
- Standard throw projector
- Weight
- 5.2 kg
- Colour
- White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Lamp
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LSC520WU
- Part number
- LSC520WU
- EAN / UPC
- 766907029154, 766907029161
- Also known as
- Viewsonic LSC520WU data projector Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White
Specifications
63 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10, 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 0.7 - 11.37 m |
| Number of colours | 1.07 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 0.085 kHz |
| Vertical synchronization (min) | 0.023 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.3 - 24.6 mm |
| Aperture range (F-F) | 1.58 - 2.02 |
| Zoom capability | Yes |
| Throw ratio | 1.08 - 1.76 |
| Offset | 5% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 35 dB |
| Noise level (economic mode) | 26 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 16 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Education |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 230 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.2 kg |
| Width | 390 mm |
| Depth | 294 mm |
| Height | 128 mm |
| Package width | 492 mm |
| Package depth | 443 mm |
| Package height | 239 mm |
| Package weight | 7.23 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8528620000 |
| Pallet gross height | 181 cm |
| Pallet gross length | 100 cm |
| Pallet gross width | 100 cm |
| Products per master (outer) case | 1 pc(s) |
