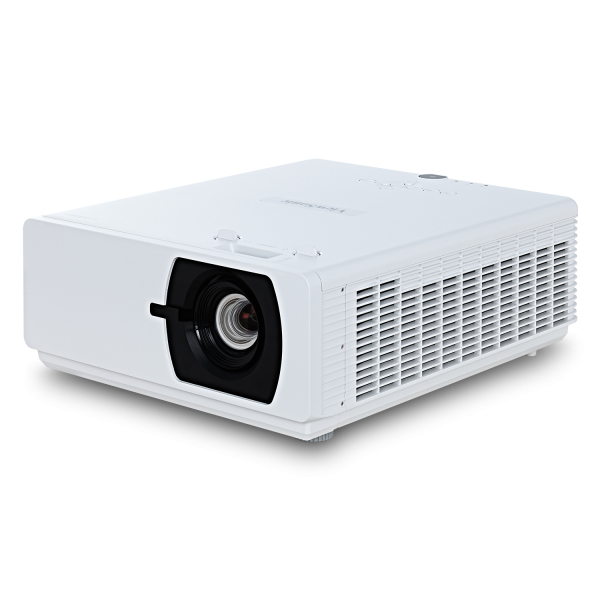

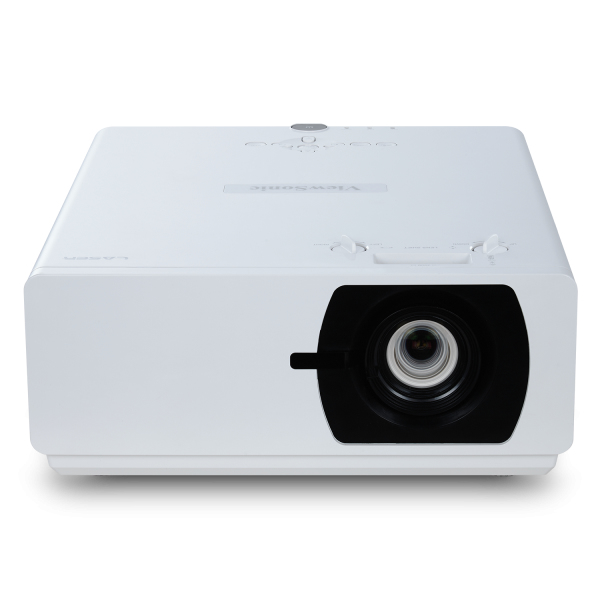

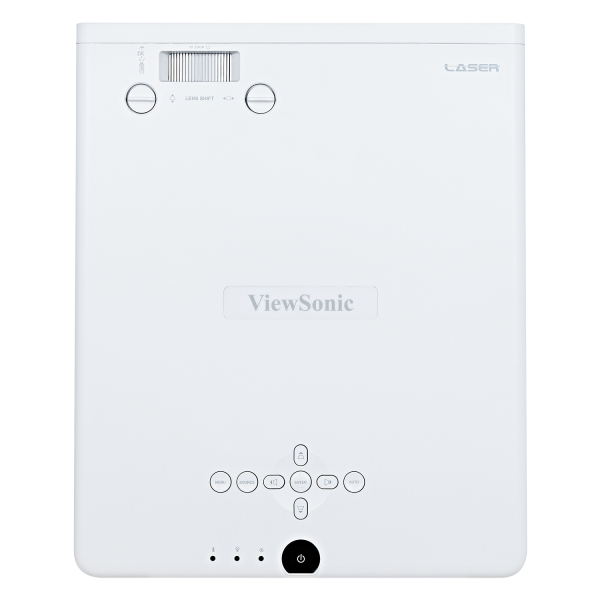

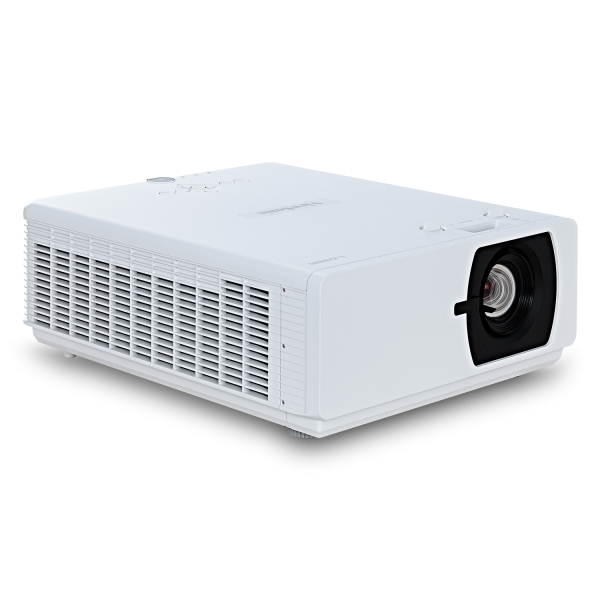

LS900WU data projector Large venue projector 6000 ANSI lumens DLP WUXGA (1920x1200) White
Model LS900WUEAN 766907001242
64 specifications
- TypeLarge venue projector
- Weight11 kg
- ColourWhite
- Projector brightness6000 ANSI lumens
- Light source typeLaser
- Zoom capabilityYes
Overview
- Type
- Large venue projector
- Weight
- 11 kg
- Colour
- White
- Projector brightness
- 6000 ANSI lumens
- Light source type
- Laser
- Zoom capability
- Yes
- Brand
- Viewsonic
- Category
- Data Projector
- Model
- LS900WU
- Part number
- LS900WU
- EAN / UPC
- 766907001242
- Also known as
- Viewsonic LS900WU data projector Large venue projector 6000 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
64 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Native aspect ratio | 16:10 |
| Screen size compatibility | 1270 - 7620 mm (50 - 300") |
| Projection distance | 1.24 - 7.43 m |
| Contrast ratio (dynamic) | 100000:1 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -25 - 25° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Zoom ratio | 1.65:1 |
| Throw ratio | 1.2 - 1.9 |
| Horizontal lens shift range | -2.5 - 2.5% |
| Vertical lens shift range | 2.4 - 9.2% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |

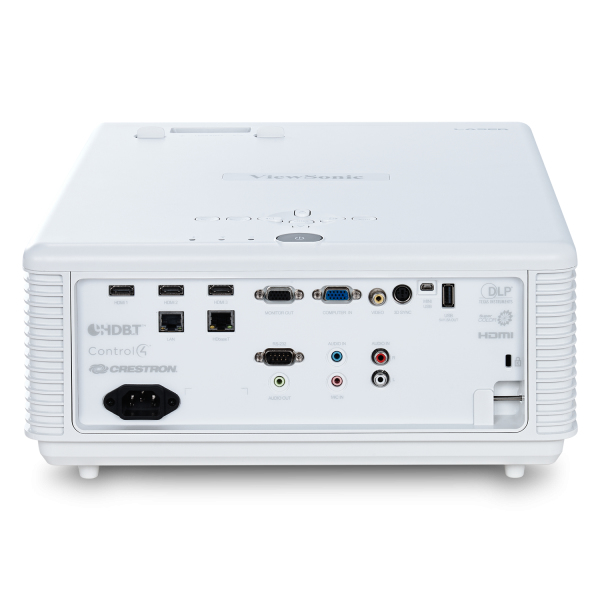

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Features
| Specification | Value |
|---|---|
| On Screen Display (OSD) | Yes |
| Certification | FCC, UL/CUL |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Large venue projector |
| Product colour | White |
| Placement | Desktop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 430 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 11 kg |
| Width | 360 mm |
| Depth | 440 mm |
| Height | 161 mm |
| Package width | 559 mm |
| Package depth | 469 mm |
| Package height | 301 mm |
| Package weight | 13.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
