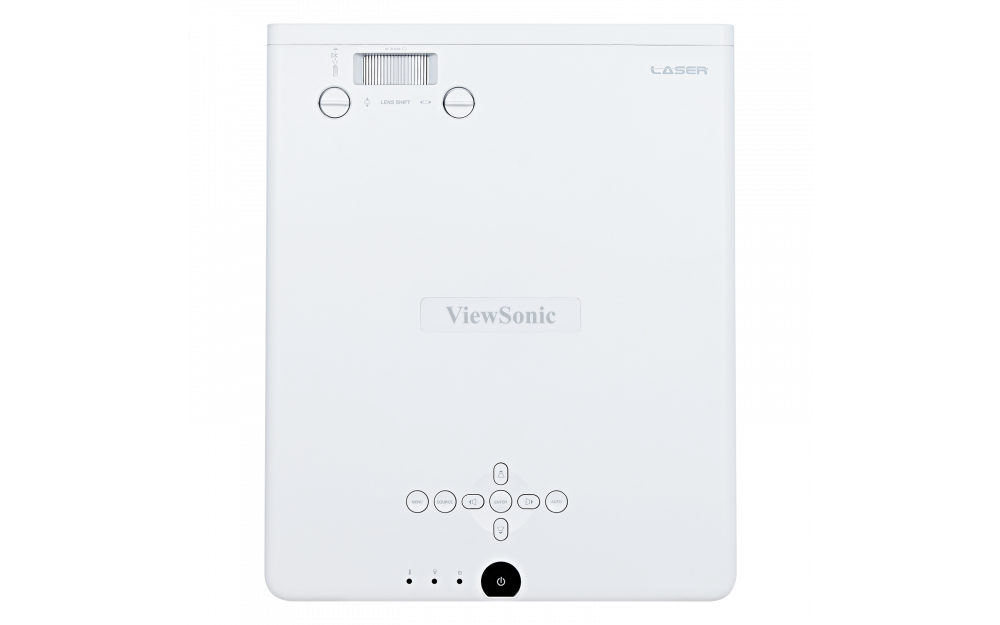

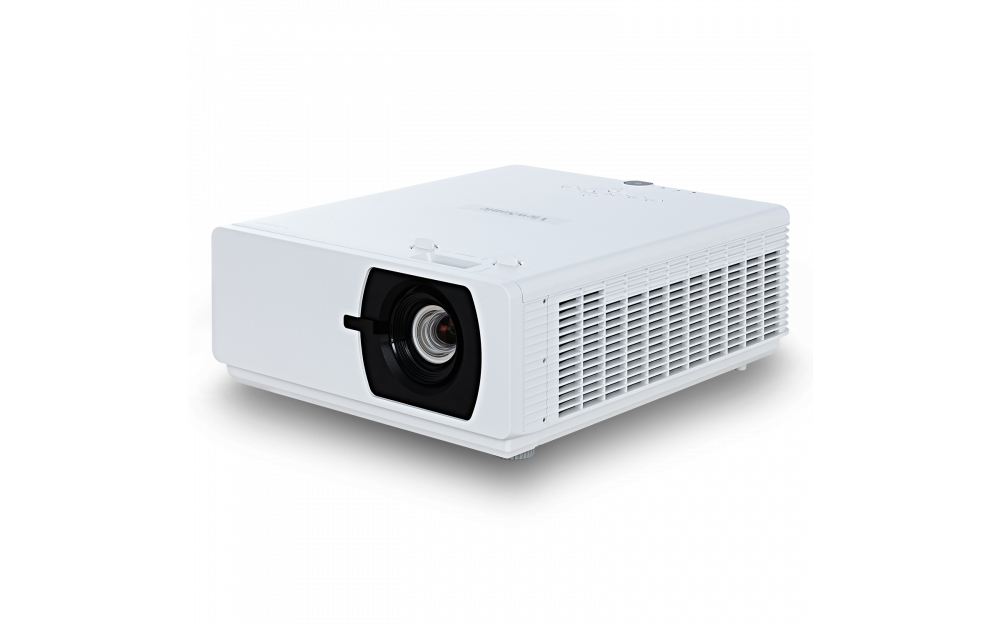

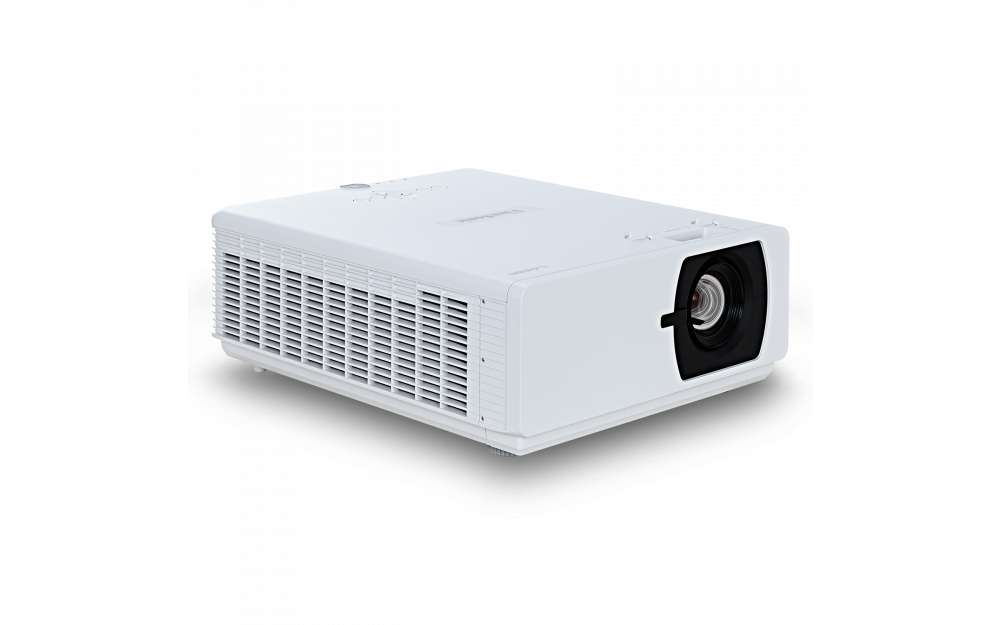

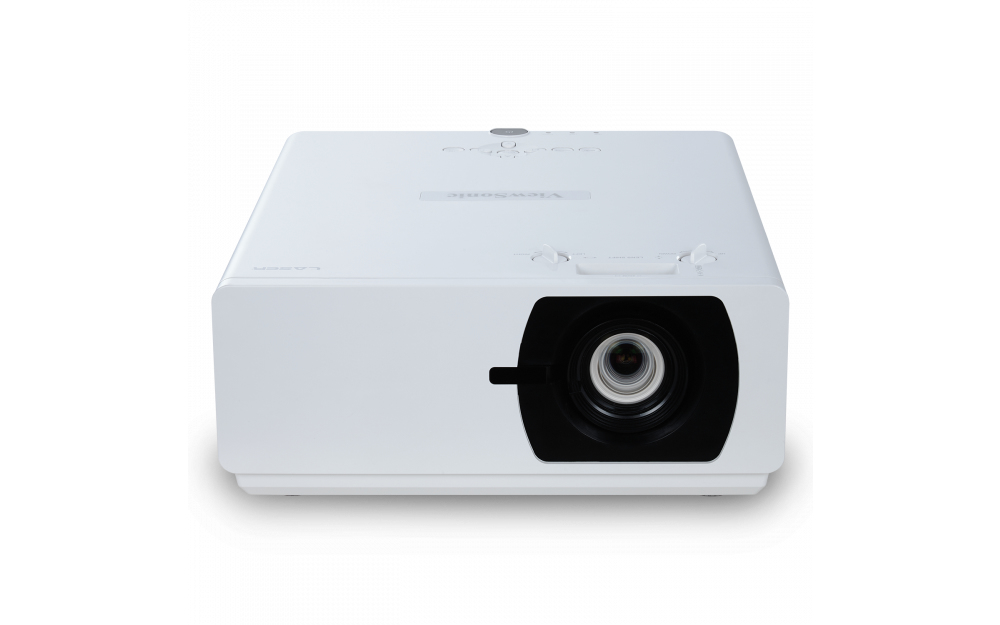

Viewsonic LS800HD data projector Large venue projector 5000 ANSI lumens DLP 1080p (1920x1080) White

Viewsonic LS800HD data projector Large venue projector 5000 ANSI lumens DLP 1080p (1920x1080) White

Model LS800HDEAN 766907932317

70 specifications
  • TypeLarge venue projector
  • Weight11 kg
  • ColourWhite
  • Projector brightness5000 ANSI lumens
  • Light source typeLaser
  • Optical zoom1.65x
See all specifications

Overview

Type
Large venue projector
Weight
11 kg
Colour
White
Projector brightness
5000 ANSI lumens
Light source type
Laser
Optical zoom
1.65x
Brand
Viewsonic
Model
LS800HD
Part number
LS800HD
EAN / UPC
766907932317
Also known as
Viewsonic LS800HD data projector Large venue projector 5000 ANSI lumens DLP 1080p (1920x1080) White

Specifications

70 specifications in 17 groups

Projector

Projector brightness5000 ANSI lumens
Projection technologyDLP
Projector native resolution1080p (1920x1080)
Native aspect ratio16:9
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance1.3 - 12.5 m
Contrast ratio (dynamic)100000:1
Number of colours1.073 billion colours
Horizontal scan range15 - 102 kHz
Vertical scan range23 - 120 Hz
Keystone correction, horizontal-25 - 25°
Keystone correction, vertical-30 - 30°

Light source

Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h

Lens system

Optical zoom1.65x
Throw ratio1.2 - 1.9:1
Horizontal lens shift range-2.5 - 2.5%
Vertical lens shift range-2.9 - 11.8%

Video

Full HDYes
Supported graphics resolutions640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

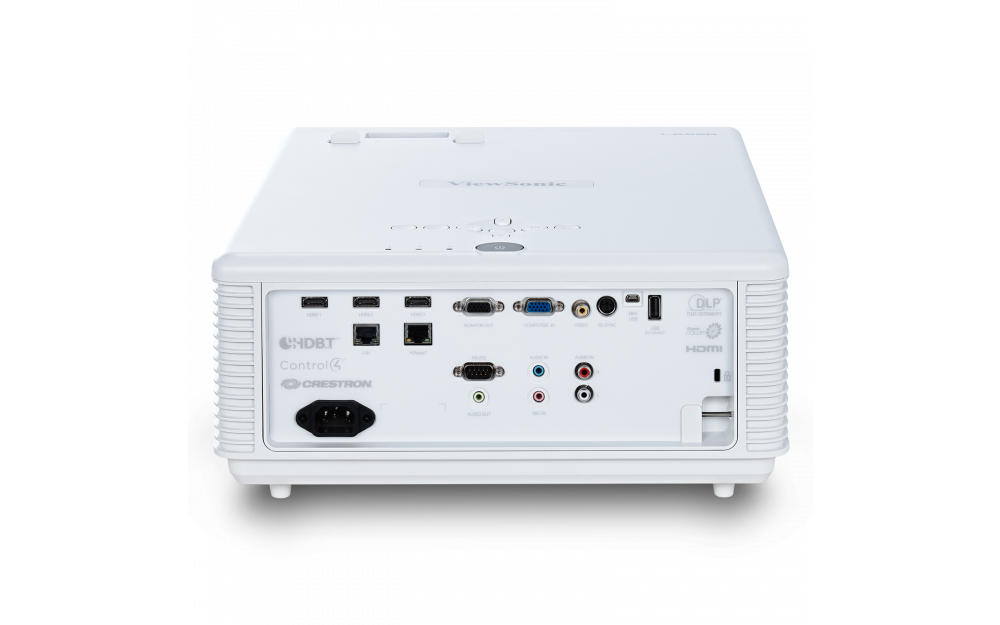

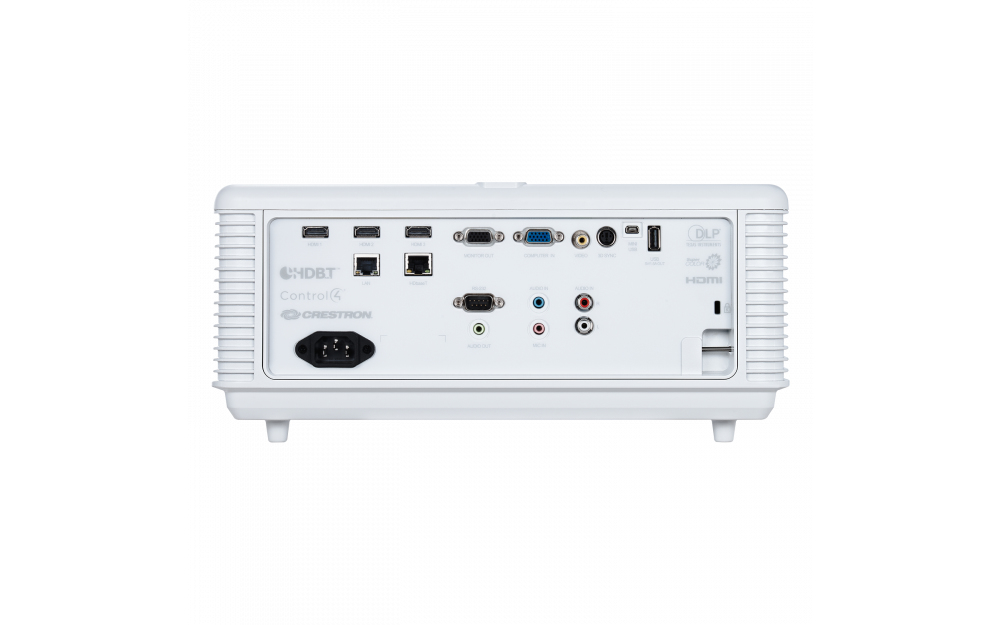

Ports & interfaces

VGA (D-Sub) ports quantity2
HDMI ports quantity3
HDMI connector typeFull-size
Component video (YPbPr/YCbCr) in0
Composite video in1
DVI portNo
S-Video inputs quantity0
HDBaseT portYes
USB 2.0 ports quantity1
Audio (L/R) in1
Serial interface typeRS-232
PC Audio inYes
PC Audio outYes
AC (power) inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Storage

Card reader integratedNo

Features

On Screen Display (OSD)Yes
CertificationFCC, UL/CUL

Multimedia

Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power10 W

Design

Product typeLarge venue projector
Product colourWhite
PlacementDesktop
Cable lock slotYes
Cable lock slot typeKensington

Display

Built-in displayNo

Power

Power sourceAC
Power consumption (typical)430 W
Power consumption (standby)0.5 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Weight11 kg
Width360 mm
Depth440 mm
Height161 mm
Package width559 mm
Package depth469 mm
Package height301 mm
Package weight13.6 kg

Packaging content

Remote control includedYes
Cables includedAC, VGA
Quick start guideYes

Technical details

Compliance certificatesRoHS

Other features

RS-232 ports1
